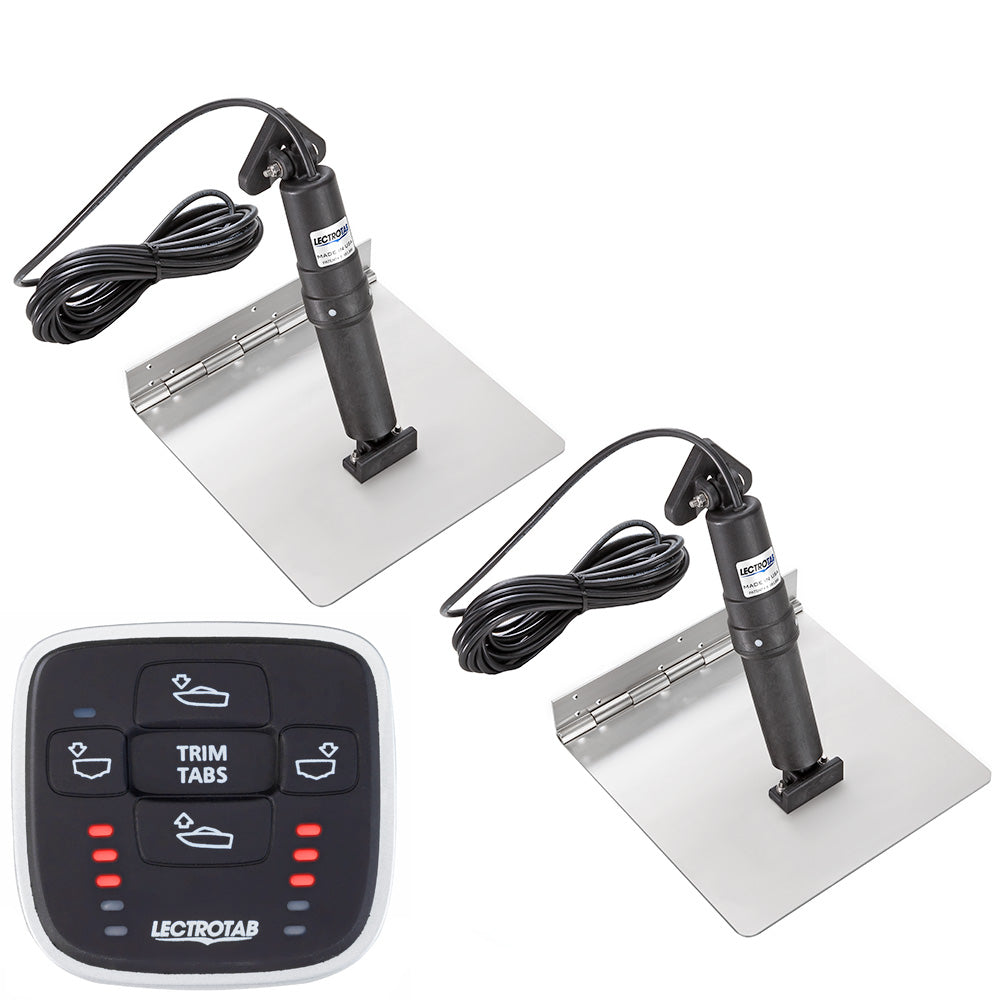

Lectrotab XKA Stainless Steel Electric Trim Tab Kit with MLC-1 Control, 12" x 12", 12V, Boats 18-32 ft, XKASML12X12

Lectrotab XKA 12" x 12" Stainless Steel Electric Trim Tab Kit with MLC-1 Control (XKASML12X12)

The Lectrotab XKA trim tab kit combines heavy-duty 304 stainless steel tabs with precision-engineered electric actuators for strong, reliable trim on boats from 18 to 32 feet. Each tab is fabricated with a continuous rolled and pinned hinge, adding strength and eliminating the need for welding.

The non-hydraulic, maintenance-free actuators deliver quiet operation, accurate tab positioning, and high lift force, with each actuator load tested to push 1,000 lbs. Unlike hydraulic trim tabs, there is no oil to leak. The actuator assembly is housed in a non-metallic, permanently sealed housing that will not corrode or deteriorate in sun or water, and it is fully self-contained, so no components need to be installed inside the boat. Actuators accept either a standard or low-profile transom mounting bracket.

The included MLC-1 is a microprocessor-based manual leveling control that moves both tabs simultaneously at the touch of a single button. Its LED tab position indicators automatically dim in darkness and brighten in sunlight for easy reading day or night.

Key Features

• 12" x 12" tabs made from 12-gauge 304 stainless steel
• Continuous rolled and pinned hinge with no welding
• Electric, non-hydraulic actuators with no oil to leak
• Actuators load tested to 1,000 lbs of force
• Internal brake system prevents unwanted tab movement under way or backing down
• Upper ram seal location protected from fouled ram or barnacle growth
• Internal pressure equalization system
• Non-metallic sealed actuator housing resists corrosion and UV
• Self-contained design with no components inside the boat
• MLC-1 control moves both tabs with one button
• Auto-dimming LED tab position indicators

Specifications
