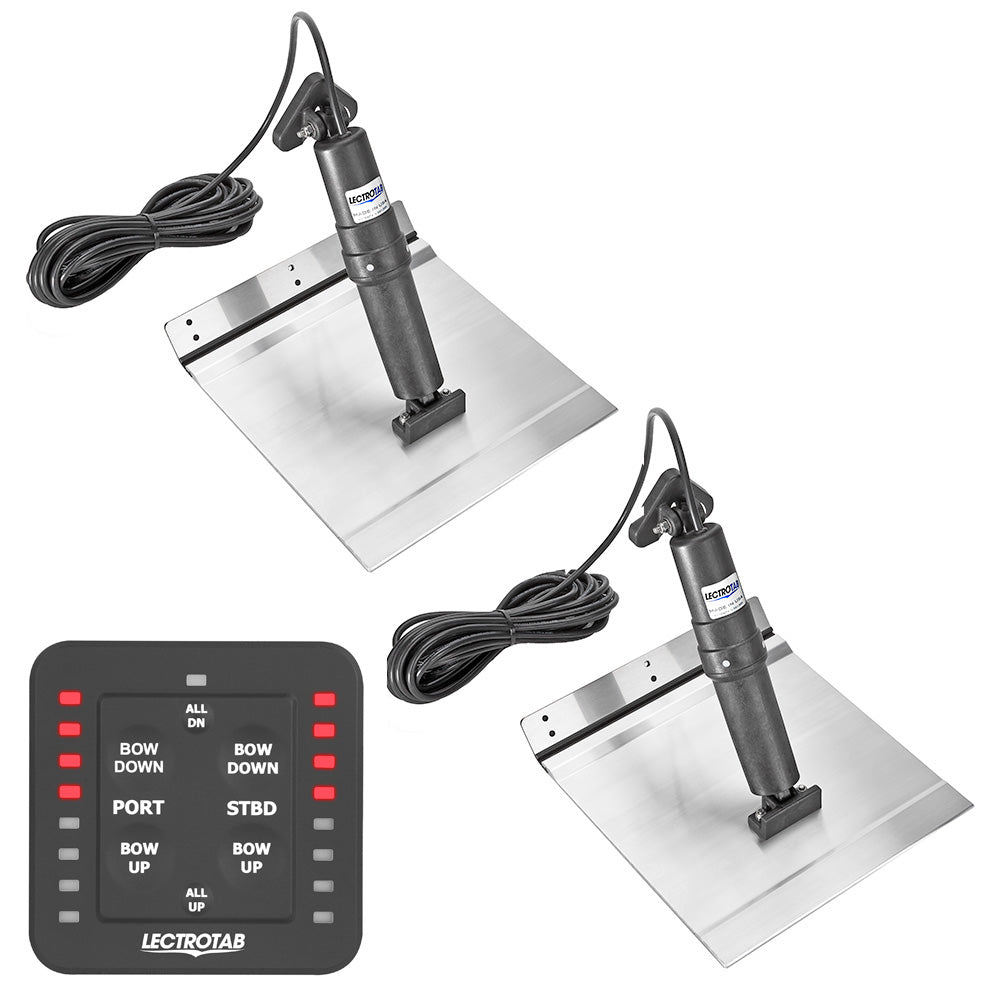

Lectrotab XKA 12" x 12" Aluminum Alloy Electric Trim Tab Kit with One-Touch Leveling Control (XKASL12X12A)

The Lectrotab XKA aluminum alloy trim tab kit is designed to meet the needs of aluminum-hulled boats and is an economical option for any boat from 18 to 32 feet. The marine-grade 6005-T5 aluminum tabs offer strength equivalent to 10-gauge stainless steel, are sealed with a corrosion-resistant epoxy coating, and feature a "no-break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure.

The non-hydraulic, maintenance-free electric actuators deliver quiet operation, accurate tab positioning, and high lift force, with each actuator load tested to push 1,000 lbs. Unlike hydraulic trim tabs, there is no oil to leak. The actuator assembly is housed in a non-metallic, permanently sealed housing that will not corrode or deteriorate in sun or water, and it is fully self-contained, so no components need to be installed inside the boat. Actuators accept either a standard or low-profile transom mounting bracket.

The included Lectrotab One-Touch leveling LED rocker switch control puts complete control of your trim tabs at your fingertips and operates on 12V or 24V systems.

Key Features

  • 12" x 12" marine-grade 6005-T5 aluminum alloy tabs
  • Strength equivalent to 10-gauge stainless steel
  • Corrosion-resistant epoxy coating on all tabs
  • "No-break" polypropylene hinge tested over 300,000 cycles at 90°
  • Well suited for aluminum-hulled boats
  • Electric, non-hydraulic actuators with no oil to leak
  • Actuators load tested to 1,000 lbs of force
  • Internal brake system prevents unwanted tab movement under way or backing down
  • Upper ram seal location protected from fouled ram or barnacle growth
  • Internal pressure equalization system
  • Non-metallic sealed actuator housing resists corrosion and UV
  • One-Touch leveling LED rocker switch control

Specifications

Brand Lectrotab
Model XKA with One-Touch Leveling Control
Part Number XKASL12X12A
Trim Tab Size (L x W) 12" x 12" (30 x 30 cm)
Recommended Boat Length 18 to 32 ft (5.5 to 9.5 m)
Tab Material Marine-Grade 6005-T5 Aluminum Alloy, Epoxy Coated
Hinge "No-Break" Polypropylene
Actuator Voltage 12V DC
Actuator Stroke Length 2.25" (57 mm)
Actuator Cable Length 23 ft (7 m)
Actuator Vertical Height 11.875" (302 mm)
Rocker Switch Dimensions (W x H) 3" x 3" (77 x 77 mm)
Rocker Switch Mounting Cutout (H x W) 2.25" x 2.5" (57 x 64 mm)
Rocker Switch Operating Voltage 12V or 24V

What's in the Box

  • (1) One-Touch leveling control
  • (2) Aluminum alloy trim tabs
  • (2) Actuators with 23 ft (7 m)
