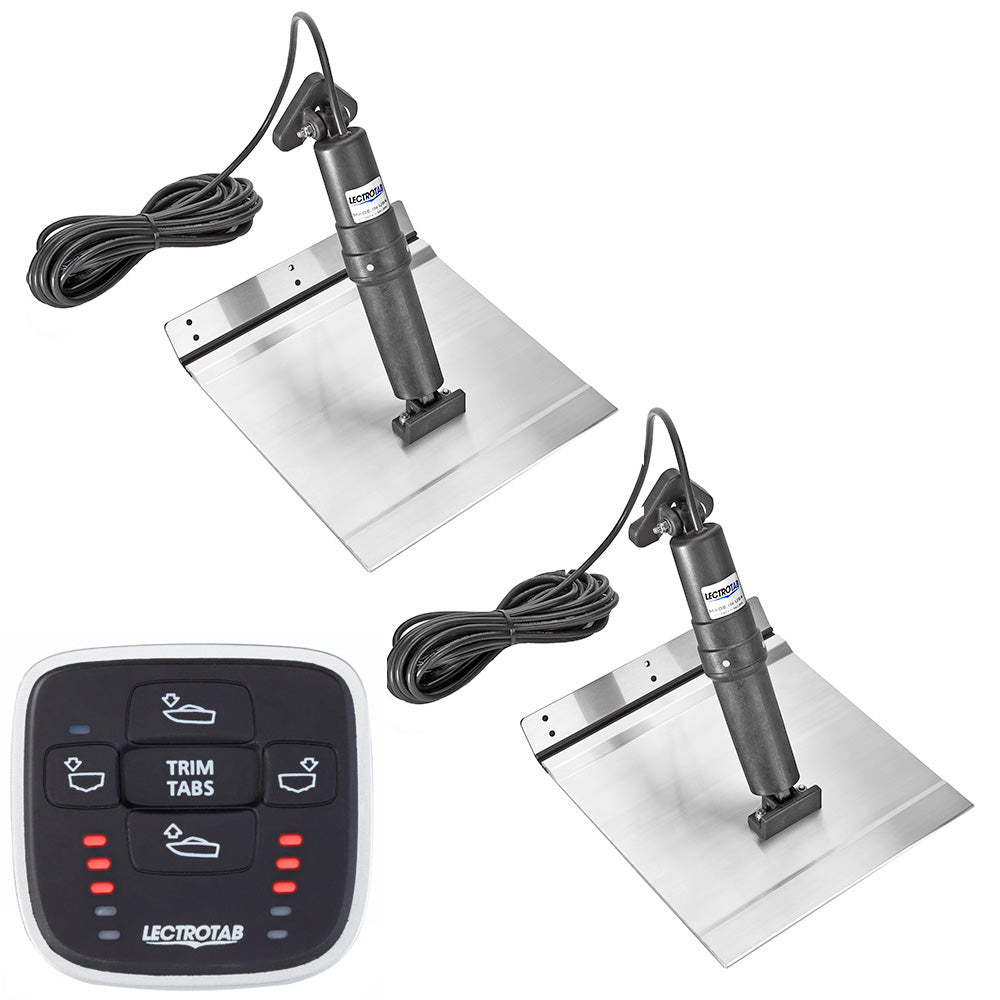

Lectrotab XKA 12" x 12" Aluminum Alloy Electric Trim Tab Kit with MLC-1 Control (XKASML12X12A)

The Lectrotab XKA aluminum alloy trim tab kit is designed to meet the needs of aluminum-hulled boats and is an economical option for any boat from 18 to 32 feet. The marine-grade 6005-T5 aluminum tabs offer strength equivalent to 10-gauge stainless steel, are sealed with a corrosion-resistant epoxy coating, and feature a "no-break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure.

The non-hydraulic, maintenance-free electric actuators deliver quiet operation, accurate tab positioning, and high lift force, with each actuator load tested to push 1,000 lbs. Unlike hydraulic trim tabs, there is no oil to leak. The actuator assembly is housed in a non-metallic, permanently sealed housing that will not corrode or deteriorate in sun or water, and it is fully self-contained, so no components need to be installed inside the boat. Actuators accept either a standard or low-profile transom mounting bracket.

The included MLC-1 is a microprocessor-based manual leveling control that moves both tabs simultaneously at the touch of a single button. Its LED tab position indicators automatically dim in darkness and brighten in sunlight for easy reading day or night.

Key Features

  • 12" x 12" marine-grade 6005-T5 aluminum alloy tabs
  • Strength equivalent to 10-gauge stainless steel
  • Corrosion-resistant epoxy coating on all tabs
  • "No-break" polypropylene hinge tested over 300,000 cycles at 90°
  • Well suited for aluminum-hulled boats
  • Electric, non-hydraulic actuators with no oil to leak
  • Actuators load tested to 1,000 lbs of force
  • Internal brake system prevents unwanted tab movement under way or backing down
  • Upper ram seal location protected from fouled ram or barnacle growth
  • Internal pressure equalization system
  • Non-metallic sealed actuator housing resists corrosion and UV
  • MLC-1 control moves both tabs with one button
  • Auto-dimming LED tab position indicators

Specifications

Brand Lectrotab
Model XKA with MLC-1 Control
Part Number XKASML12X12A
Trim Tab Size (L x W) 12" x 12" (30 x 30 cm)
Recommended Boat Length 18 to 32 ft (5.5 to 9.5 m)
Tab Material Marine-Grade 6005-T5 Aluminum Alloy, Epoxy Coated
Hinge "No-Break" Polypropylene
Actuator Voltage 12V DC
Actuator Stroke Length 2.25" (57 mm)
Actuator Cable Length 23 ft (7 m)
Actuator Vertical Height 11.875" (302 mm)
Control Dimensions (W x H) 3.15" x 3.07" (80 x 77 mm)
Control Mounting Cutout 2" (50 mm)
Control Operating Voltage 12V or 24V

What's in the Box

  • (1) MLC-1 Manual Leveling Control
  • (2) Aluminum alloy trim tabs
  • (2) Actuators with 23 ft (7 m) cables
  • Instruction manual

Sold as a complete kit.
