Lectrotab ALC-1 Automatic Leveling Trim Tab Control with Internal GPS, Single Actuator, Black, 12V/24V

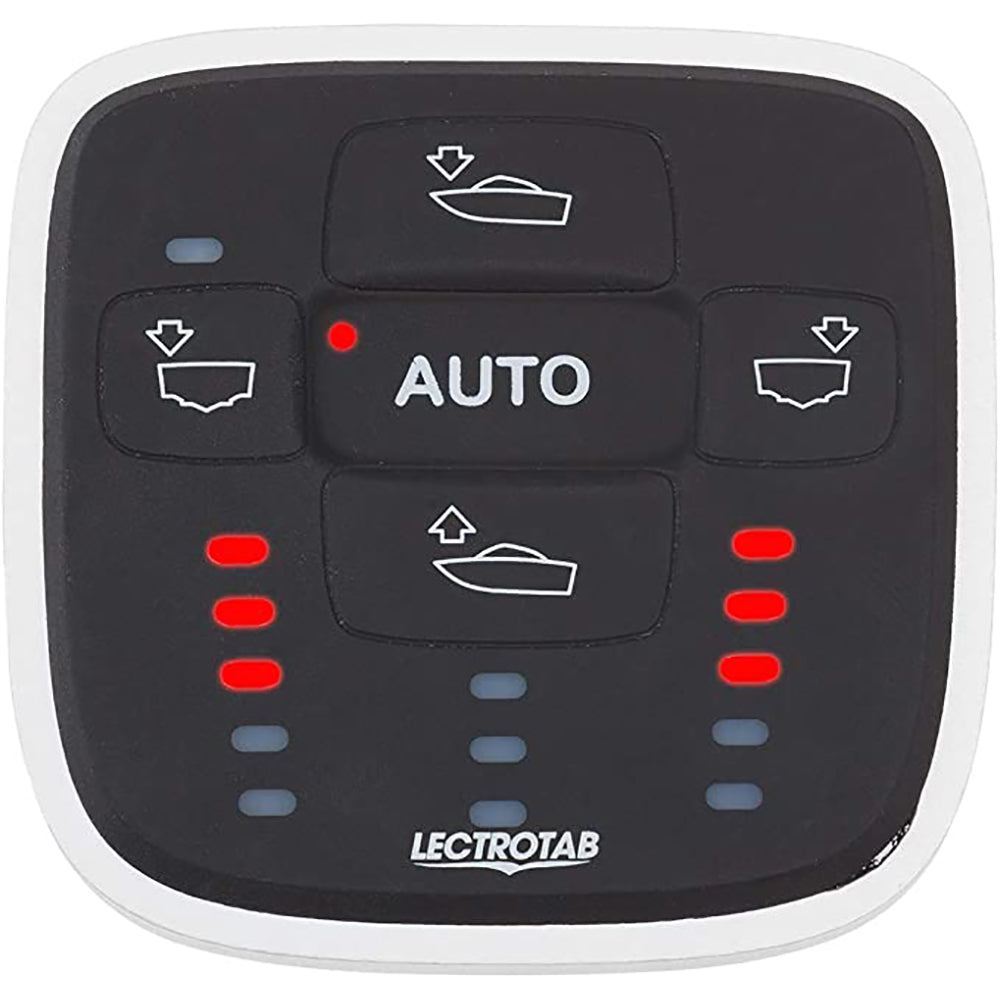

Lectrotab ALC-1 Automatic Leveling Trim Tab Control – Single Actuator, Black

As wind shifts, water conditions change, or passengers move about, the Lectrotab ALC-1 Automatic Leveling Control adjusts your trim tabs on its own to keep the boat level for a more comfortable ride. It automatically corrects side-to-side roll and fore-to-aft pitch, improving your boating experience and helping improve fuel efficiency.

This microprocessor-based control has a built-in GPS, so no external GPS antenna or network connection is required. It adapts automatically to varying sea conditions and holds off on corrections while you're turning. The trim tabs retract automatically when the boat comes off plane, or at shutdown using the optional key switch connection. LED tab position indicators dim in darkness and brighten in sunlight for easy reading day or night.

The ALC-1 is IP68 sealed and waterproof, UV protected against sun damage, and designed for planing and semi-displacement hulls over 20 feet. Actuators connect directly to the display panel, so no external power module box is needed.

Key Features

• Automatic roll and pitch correction
• Internal GPS with no antenna or network required
• Adapts automatically to changing sea conditions
• Prevents automatic corrections while turning
• Auto-retracts tabs when off plane or via optional key switch
• LED tab position indicators with automatic dimming
• IP68 sealed and waterproof, UV protected
• Actuators connect directly with no external power module
• For planing and semi-displacement hulls over 20 ft
• Compatible with 12V or 24V systems
