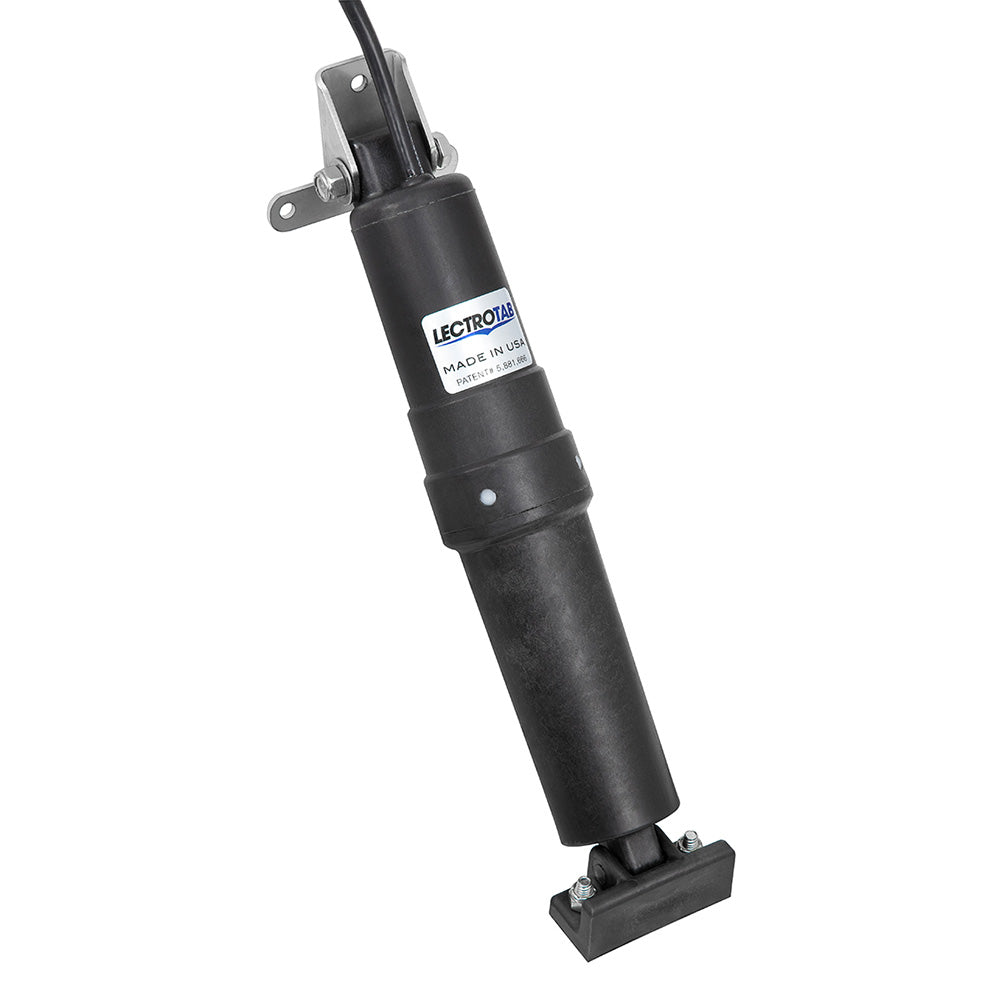

Lectrotab 12V Heavy Duty Electric Trim Tab Actuator with 6 ft Cable, Stainless Steel Upper Bracket, Single, A-BK-20

Lectrotab 12V Heavy Duty Electric Trim Tab Actuator – 6 ft Cable, Stainless Upper Bracket (A-BK-20)

The Lectrotab A-BK-20 heavy duty trim tab actuator is built for boats operating at high speeds or in rough conditions. It features a reinforced upper mounting boss and a 12-gauge stainless steel upper bracket for added strength where it matters most. Like all Lectrotab actuators, it combines quiet operation with a non-hydraulic, maintenance-free design, delivering accurate tab positioning and high lift force with every unit load tested to push 1,000 lbs.

The actuator is housed in a non-metallic, permanently sealed housing that will not corrode or deteriorate in sun or water. It is fully self-contained for easy installation, with no components needed inside the boat, and unlike hydraulic trim tab systems, there is no oil to leak.

Key Features

• Heavy duty design for high-speed and rough-water boats
• 12-gauge stainless steel upper mounting bracket
• Reinforced actuator upper mounting boss
• 12V DC electric actuator with no hydraulic oil to leak
• Load tested to push 1,000 lbs of force
• Internal brake system prevents unwanted tab movement under way or backing down
• Upper ram seal location protected from fouled ram or barnacle growth
• Internal pressure equalization system
• Quiet, maintenance-free operation
• Non-metallic sealed housing resists corrosion and UV
• 6 ft (1.8 m) cable

Specifications

Sold individually.
