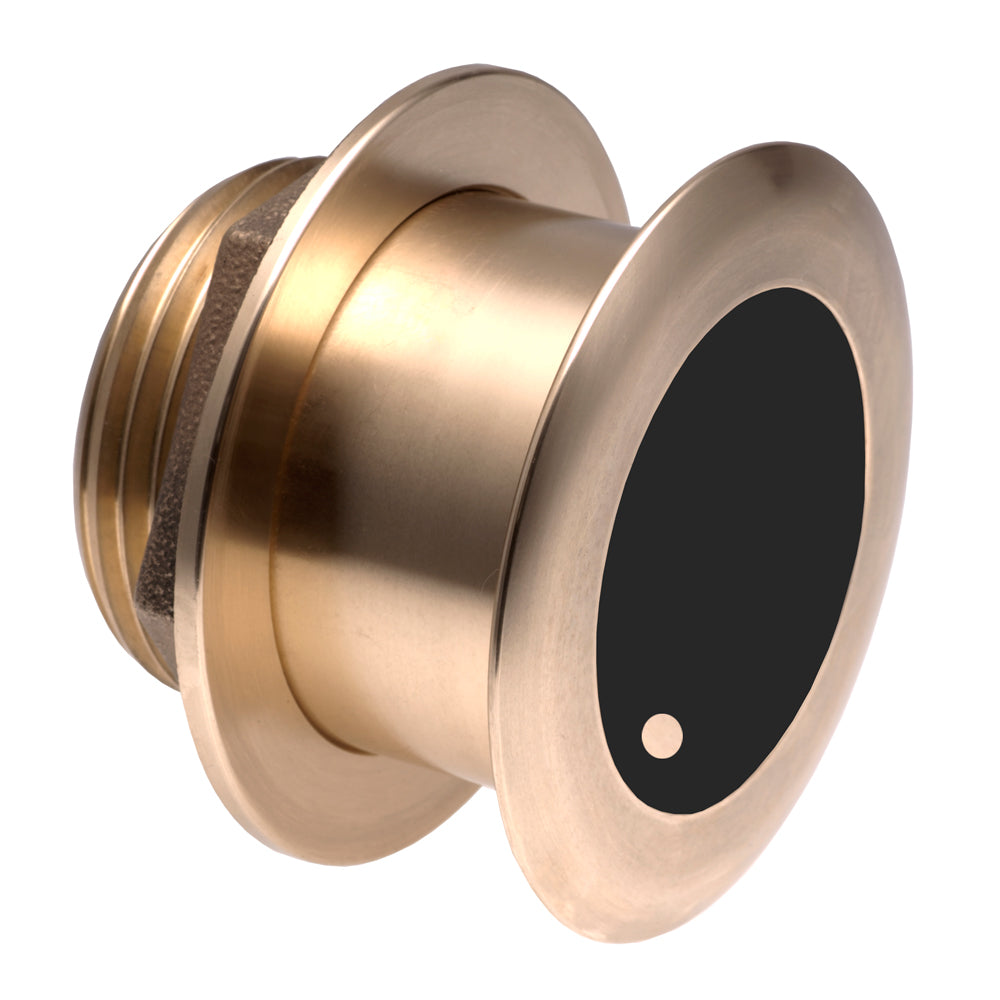

Garmin Airmar B175HW Bronze Thru-Hull Wide Beam Transducer, 20° Tilt, 1kW, 150-250 kHz, Depth & Temp, 8-Pin, 010-12181-22

Garmin Airmar B175HW 1kW Bronze Thru-Hull Wide Beam Transducer – 20° Tilt, 8-Pin (010-12181-22)

Step up to 1kW of transducer power without a fairing block. The Airmar B175HW features a flush-mounted bronze housing that protrudes less than 1/4 inch outside the hull, so it can sit on trailer rollers or bunks without damage. A 20° tilted element inside the housing corrects for hull deadrise on boats with a 16° to 24° deadrise, eliminating the need for a fairing block.

This high frequency wide beam transducer operates from 150 to 250 kHz with a 25° beamwidth and reads depths up to 600 feet, with built-in depth and water temperature sensing. It connects with an 8-pin plug and is an excellent choice for fiberglass and wood hulls. The B175 series is also available in low, medium, high, and high wide versions for maximum frequency flexibility.

The transducer kit includes installation instructions. Follow them carefully to avoid damaging your boat.

Key Features

• 1kW power with no fairing block required
• Flush-mount bronze housing protrudes less than 1/4 inch
• Can rest on trailer rollers or bunks without damage
• High frequency wide beam: 150-250 kHz
• 25° beamwidth for wide coverage
• Depth capability to 600 ft
• Depth and water temperature sensing
• 20° tilted element for 16° to 24° deadrise hulls
• 8-pin connector
• Excellent for fiberglass and wood hulls

Specifications
