Epoch Battery Tray for 12V 460Ah & 24V 230Ah Heated Batteries (12460A-H / 24230A-H), Exact-Fit Mount

🎯 Exact Fit for Epoch 460Ah & 24V 230Ah|🚐 Holds an 84 lb Battery in Place|🔩 2 Straps, Pad & Bolts Included

Regular price: Price: $70.00
Regular price: List Price:
Sale price: Price: $70.00
Unit price: per

In Stock – Ready to Ship

Free Shipping – Lower 48

Authorized Dealer – Full manufacturer warranty

Pay Over Time – Shop Pay Installments

Ships From US Warehouses

Product variants

Quantity

🎯Exact FitEpoch 12V 460Ah & 24V 230Ah
🚐RV & Van ReadyStops battery shifting
🚤Marine House BanksProtected compartments
🔩2 Straps & Bolts IncludedPlus foam pad
🇺🇸Free ShippingContiguous 48 states
📞Real Human SupportFit questions

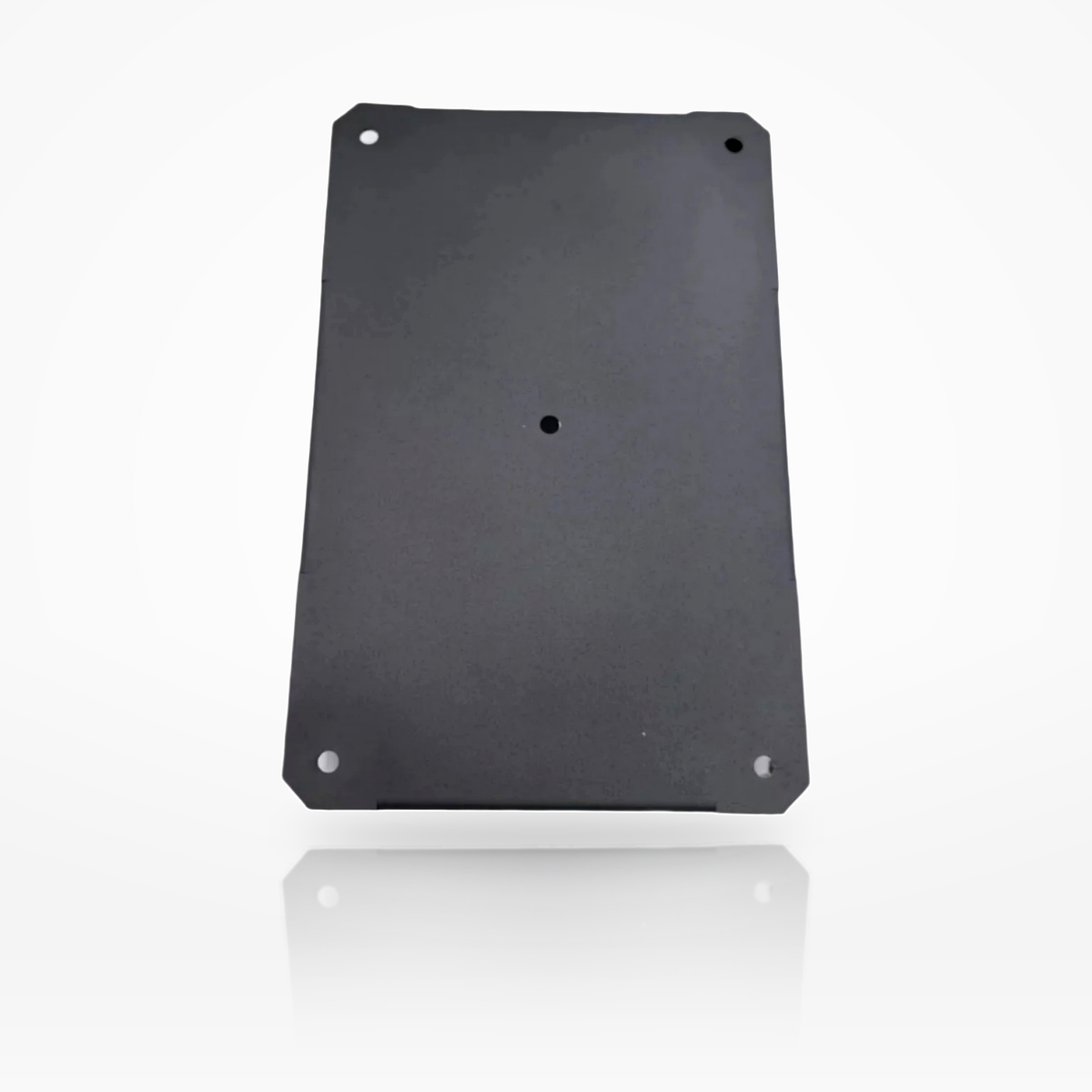

Epoch exact-fit battery tray for the Epoch 12V 460Ah heated (12460A-H) and 24V 230Ah heated (24230A-H) Essentials batteries. These big 5.89kWh batteries weigh about 84 lb, so they need to be held down in an RV, van or boat. The low-profile tray bolts to a solid floor or shelf, and two tie-down straps keep the battery planted while leaving the terminals easy to reach.

📏 Fit check:

Fits the Epoch 12V 460Ah heated (12460A-H) and 24V 230Ah heated (24230A-H).
Have a V2 or V2-T Elite battery? Those use Epoch's 8D mounting hardware instead.
For flat, upright mounting on a floor, shelf or deck.

Why Use a Tray

🔌

Protects Your Wiring

A shifting battery strains cables, busbars and terminals. The tray and straps keep it seated.

📏

Low Profile

Takes far less height than an enclosed battery box, which matters under beds and benches.

🔧

Open Access

Terminals stay easy to inspect and service, with airflow around the case.

⭐

Customer Favorite

Rated 5.0 from 24 reviews on Epoch's site, with buyers calling it a perfect fit for the 460Ah.

📋 Specifications

Fits	Epoch 12460A-H (12V 460Ah heated) and 24230A-H (24V 230Ah heated)
Tray size	19.63 × 9.63 in (498.5 × 244.5 mm); 1.13 in tall with mounting brackets

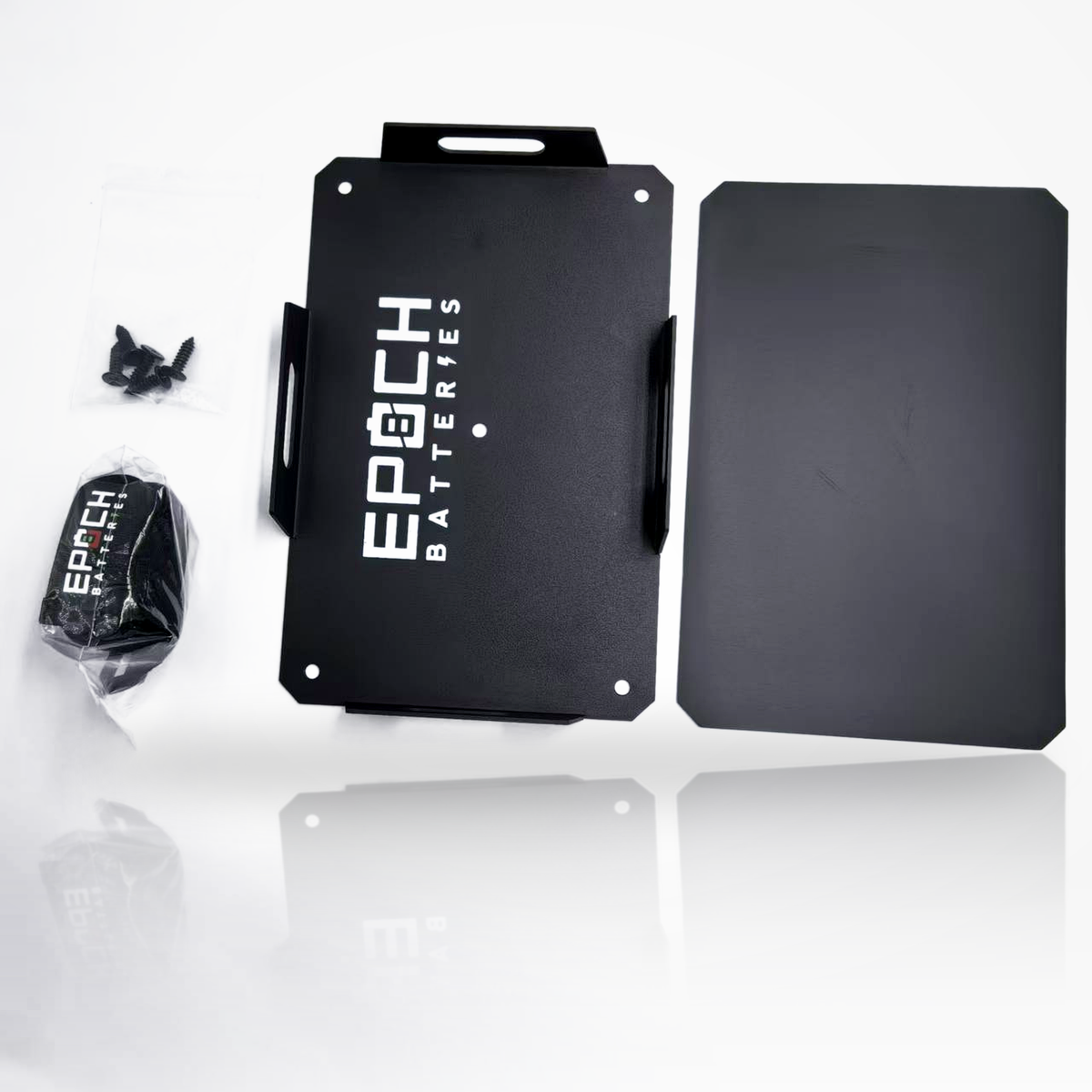

Included	Tray, 19.38 × 9.38 in foam pad, 2 tie-down straps (55.13 in and 76.75 in), 5 mounting bolts
Mounting	Upright on a flat floor, shelf or deck
Epoch SKU	Tray-12460A-H

You may still need screws, through-bolts or backing washers to suit your floor or deck. On boats, batteries must be secured so they can't move more than an inch, so fasten the tray to a solid surface.

❓ Common Questions

Does it fit the 12V 460Ah V2 Elite?

No. The V2 and V2-T Elite batteries use Epoch's 8D mounting hardware.

Do I need a full battery box instead?

For most lithium house batteries, a tray is preferred: it saves space and keeps terminals accessible. Some installers or local codes may still require a box.

Questions? Ask Us First.

Tell us your battery and where it's going, and we'll confirm the fit.

📞 Call 833-664-7433 📧 Email Us

🔋

LiFePO4 Chemistry

Lithium iron phosphate cells, one of the most stable lithium chemistries available

🧠

Built-In Smart BMS

Guards against overcharge, over-discharge, over-current, short circuit & temperature extremes

🧰

Zero Maintenance

No watering, no acid, no terminal cleaning

🛡️

Backed by Epoch

Manufacturer warranty, plus real help from our team at 833-664-7433
