Epoch Batteries 48V 65Ah LiFePO4 Golf Cart Kit With Bluetooth

Epoch Batteries 48V 65Ah LiFePO4 Golf Cart Battery Kit

This complete 48V 65Ah LiMAX Series LiFePO4 golf cart conversion kit provides approximately 3.33kWh of stored energy and includes a 48V 10A lithium charger, dashboard battery gauge, 12V converter, and cart-specific mounting brackets. It also features Bluetooth monitoring, Smart BMS protection, IP67 enclosure protection, and high-current discharge capability for compatible 48V golf cart applications.

Key Features

• 65Ah LiFePO4 Capacity: Provides 65Ah of nominal capacity and approximately 3.33kWh of stored energy at 51.2V.
• Complete Conversion Kit: Includes the 48V 65Ah LiMAX LiFePO4 battery, 48V 10A lithium charger, dashboard battery gauge, 12V converter, and cart-specific mounting brackets.
• 200A Continuous Discharge: Supports up to 200A continuous discharge for compatible golf cart loads and electrical systems.
• 300A Peak Discharge: Provides up to 300A peak discharge for 15 seconds and 700A for 2 seconds for compatible short-duration loads.
• 100A Continuous Charging: Supports up to 100A continuous charging with compatible 48V LiFePO4 charging equipment.
• 300A Peak Regenerative Charging: Supports up to 300A for 15 seconds under compatible regenerative braking conditions.
• Bluetooth Monitoring: Compatible with iOS and Android apps for monitoring state of charge, voltage, battery health, and other battery information.
• Over-the-Air Updates: Supports firmware updates through the compatible app ecosystem.
• Smart BMS Protection: Integrated Battery Management System provides protection against overcharge, over-discharge, over-current, short circuits, and temperature-related conditions.
• IP67 Enclosure: Dustproof and rated for temporary water immersion for suitable golf cart and outdoor applications.
• Parallel Expansion: Supports up to two matched batteries in parallel for increased capacity where compatible.
• 3,500+ Cycle Life: Designed for repeated deep-cycle use with maintenance-free LiFePO4 chemistry.
• 11-Year Warranty: Backed by an 11-year manufacturer warranty.

Specifications

• Brand: Epoch Batteries
• Model / SKU: BB5165A-Kit-1
• Series: LiMAX Series / Golf Cart Complete Kit
• Battery Type: LiFePO4 Golf Cart Battery Conversion Kit
• System Voltage: 48V
• Nominal Voltage: 51.2V
• Nominal Capacity: 65Ah
• Stored Energy: Approximately 3.33kWh / 3,328Wh
• Chemistry: LiFePO4 / Lithium Iron Phosphate
• Cell Configuration: 1P16S
• Maximum Charge Voltage: 58.4V
• Operating Voltage Range: 40V to 58.4V
• Maximum Continuous Discharge: 200A
• Peak Discharge: 300A for 15 seconds / 700A for 2 seconds
• Maximum Continuous Charge Current: 100A
• Peak Regenerative Charge Current: 300A for 15 seconds
• Parallel Configuration: Maximum 2 batteries in parallel
• Bluetooth: Yes
• Over-the-Air Firmware Updates: Yes
• Cycle Life: 3,500+ cycles
• Warranty: 11-year manufacturer warranty
• Charge Temperature Range: 0°C to 55°C / 32°F to 131°F
• Discharge Temperature Range: -20°C to 60°C / -4°F to 140°F
• Storage Temperature: 0°C to 35°C / 32°F to 95°F, maximum 12 months

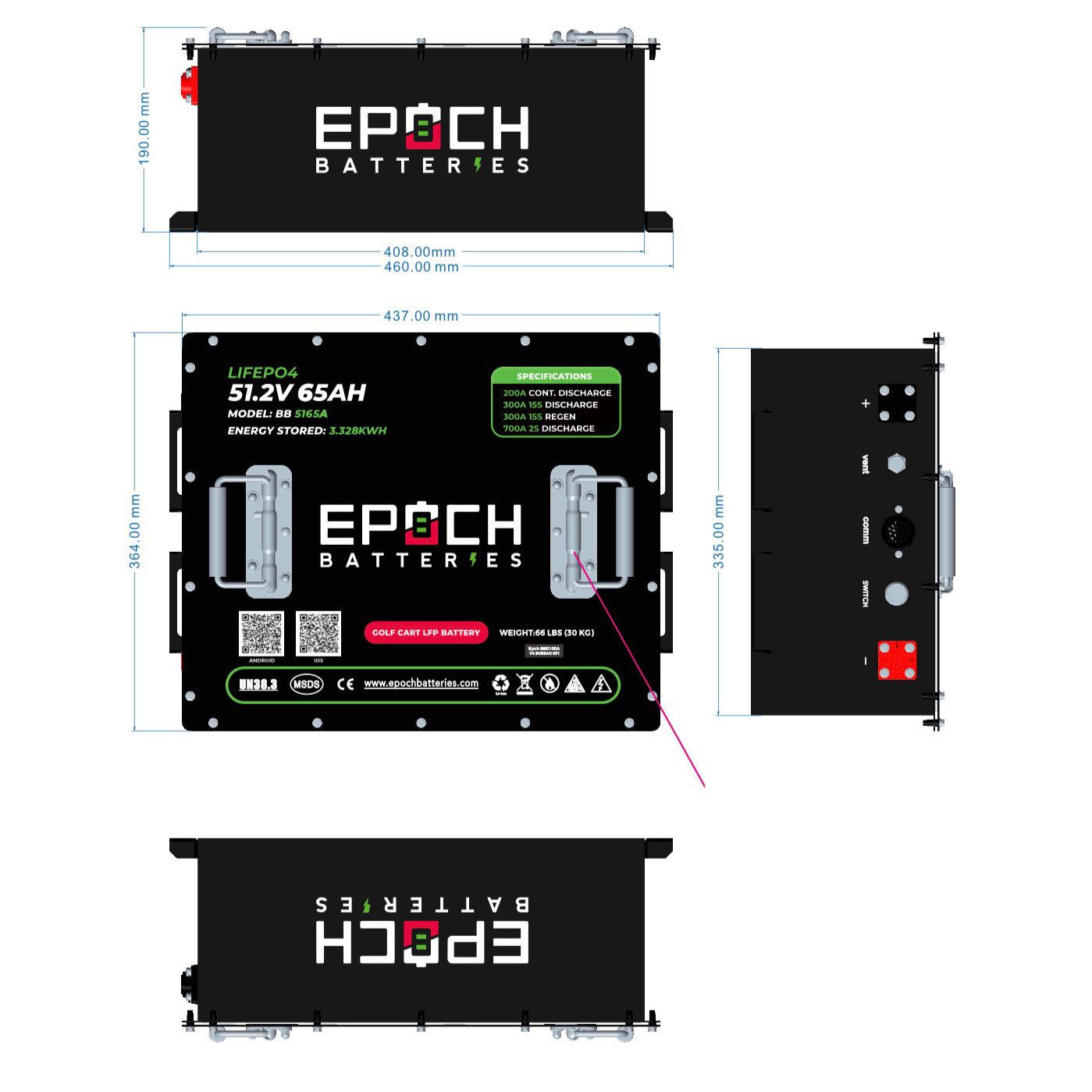

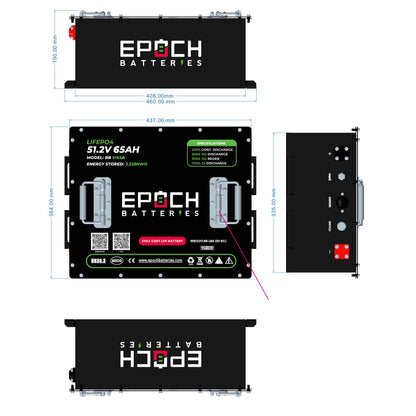

• Length: 17.20 inches
• Width: 14.33 inches
• Height: 7.48 inches
• Overall Dimensions: 17.20 × 14.33 × 7.48 inches
• Weight: 66 lb
• Enclosure Protection: IP67
• Terminal Type: M8 female

Included Kit Components

• LiFePO4 Battery: 48V 65Ah LiMAX lithium battery
• Lithium Charger: 48V 10A charger
• Dashboard Gauge: Battery state-of-charge display
• 12V Converter: Step-down converter for compatible 12V accessories
• Mounting Brackets: Cart-specific mounting brackets for selected configurations

Recommended Use

Suitable for compatible 48V golf carts, utility carts, neighborhood vehicles, fleet carts, campground carts, resort carts, and other 48V applications where battery dimensions, controller requirements, charger compatibility, cable sizing, and mounting requirements match.

Cart Compatibility

Configuration options include Club Car Precedent, EZGO RXV, EZGO TXT, Yamaha, and Other. Confirm the exact cart model, year, battery tray, charger and OBC requirements, controller demand, cable clearance, mounting configuration, and accessory requirements before installation.

Charging Specifications

• Recommended Charger: Use the included 48V 10A lithium charger or a compatible 48V LiFePO4 charger.
• Maximum Charge Voltage: 58.4V
• Maximum Continuous Charge Current: 100A
• Bulk / Absorption Voltage: Follow the compatible LiFePO4 charger settings specified for the battery.
• Temperature Compensation: Disabled / 0mV per °C
• Equalization: Disabled

Installation Note

This kit is designed for compatible 48V golf cart conversions. Verify the cart's controller, motor, charger, OBC requirements, battery compartment dimensions, cable routing, mounting points, and regenerative braking configuration before installation. Do not use a lead-acid charger unless it can be correctly configured for LiFePO4 charging without equalization or desulfation modes.

This 48V 65Ah LiFePO4 golf cart battery kit combines a high-current lithium battery with a 48V charger, dashboard gauge, 12V converter, and mounting hardware for compatible 48V golf cart conversion applications.
