Epoch Batteries 48V 230Ah LiFePO4 Golf Cart Kit Bluetooth

Epoch Batteries 48V 230Ah LiFePO4 Golf Cart Battery Kit

This complete 48V 230Ah LiFePO4 golf cart conversion kit provides 11.776kWh of stored energy and includes a 48V 22A lithium charger, battery gauge, and 12V converter. It features Bluetooth app monitoring, over-the-air firmware updates, high-current discharge capability, IP67 enclosure protection, and support for compatible 48V golf cart applications.

Key Features

• 230Ah LiFePO4 Capacity: Provides 230Ah of nominal capacity and 11.776kWh of stored energy at 51.2V.
• Complete Conversion Kit: Includes the 48V 230Ah LiFePO4 battery, 48V 22A lithium charger, battery gauge, and 12V converter.
• 300A Continuous Discharge: Supports up to 300A maximum continuous discharge for compatible high-current golf cart systems.
• 1,000A Peak Discharge: Provides up to 1,000A peak discharge for 2 seconds and 500A for 15 seconds for compatible short-duration loads.
• 230A Continuous Charging: Supports up to 230A maximum continuous charging with compatible LiFePO4 charging equipment.
• 500A Peak Charge / Regen: Supports up to 500A charging or regenerative current for 15 seconds under compatible system conditions.

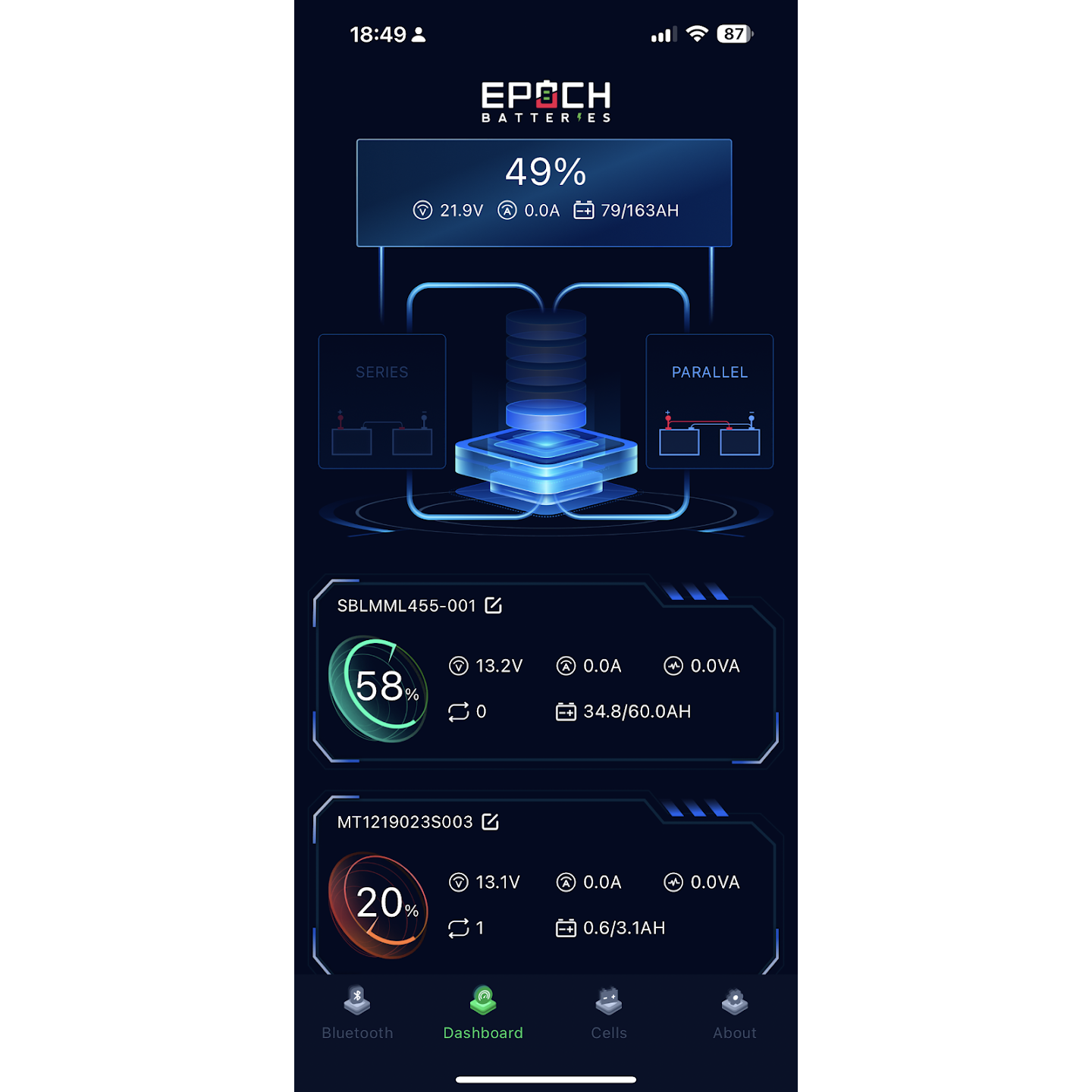

• Bluetooth Monitoring: Compatible with iOS and Android app monitoring for battery status and system information.
• Over-the-Air Updates: Supports compatible firmware updates through the Bluetooth app ecosystem.

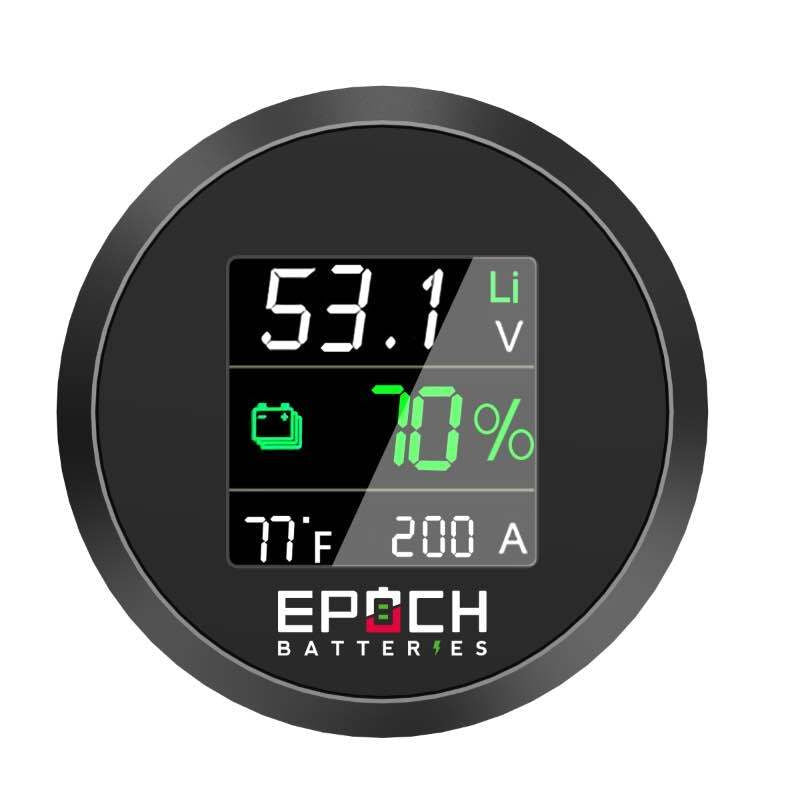

• Battery Gauge Included: Provides a dedicated display for monitoring battery status and state of charge.
• 12V Converter Included: Provides a 12V output source for compatible golf cart lights and accessories.
• IP67 Enclosure: Provides dust-tight construction and protection against temporary water immersion for suitable outdoor applications.
• 4,000 Cycle Life: Rated for approximately 4,000 cycles for repeated deep-cycle operation.
• 11-Year Warranty: Backed by an 11-year manufacturer warranty.

Specifications

• Brand: Epoch Batteries
• Product Type: 48V 230Ah LiFePO4 Golf Cart Conversion Kit
• Model / SKU: BB51230A KIT
• Chemistry: LiFePO4 / Lithium Iron Phosphate
• Cell Configuration: 1P16S
• System Voltage: 48V
• Nominal Voltage: 51.2V
• Nominal Capacity: 230Ah
• Stored Energy: 11.776kWh
• Operating Voltage Range: 40V to 58.4V
• Maximum Charge Voltage: 58.4V
• Maximum Continuous Discharge: 300A
• Maximum Continuous Charge: 230A
• Peak Discharge: 500A for 15 seconds / 1,000A for 2 seconds
• Peak Charge / Regenerative Current: 500A for 15 seconds
• Series Configuration: Not specified for series expansion
• Parallel Configuration: Maximum 2 batteries in parallel
• Bluetooth: Yes
• Over-the-Air Firmware Updates: Yes
• Self-Heating: Not specified in the supplied specifications
• Cycle Life: 4,000 cycles
• Warranty: 11-year manufacturer warranty
• Charge Temperature Range: 0°C to 55°C / 32°F to 131°F
• Discharge Temperature Range: -20°C to 60°C / -4°F to 140°F
• Storage Temperature: 0°C to 35°C / 32°F to 95°F, maximum 12 months
• Length: 23.5 inches
• Width: 14.4 inches
• Height: 9.9 inches
• Weight: 196 lb
• Case Material: Steel
• Enclosure Protection: IP67
• Terminal Type: M8 female

Included Kit Components

• LiFePO4 Battery: 48V 230Ah lithium golf cart battery
• Lithium Charger: 48V 22A lithium charger
• Battery Gauge: Included battery monitoring gauge
• 12V Converter: Included converter for compatible 12V golf cart accessories

Recommended Use

Suitable for compatible 48V golf carts, utility carts, neighborhood vehicles, fleet carts, campground carts, resort carts, and other high-capacity 48V applications where battery dimensions, controller requirements, charger compatibility, wiring, mounting, and electrical specifications match.

Charging Specifications

• Recommended Charger: Included 48V 22A lithium charger or compatible 48V LiFePO4 charger
• Maximum Charge Voltage: 58.4V
• Maximum Continuous Charge Current: 230A
• Peak Charge / Regenerative Current: 500A for 15 seconds
• Bulk / Absorption Voltage: Use charging equipment configured for the battery's LiFePO4 requirements.
• Equalization: Disabled
• Temperature Compensation: 0mV/°C / disabled

Golf Cart Installation

This high-capacity 48V battery is designed for compatible golf cart conversion applications. Verify the cart's battery compartment dimensions, controller and motor current requirements, charger and OBC configuration, cable routing, mounting points, regenerative braking requirements, and accessory connections before installation.

Installation Note

Use properly sized cables, fuses, disconnects, terminals, and mounting hardware for the complete 48V system. The IP67 enclosure provides dust-tight and temporary water-immersion protection, but the battery should still be securely mounted and protected from prolonged water exposure and physical damage.

This 48V 230Ah LiFePO4 golf cart battery kit provides 11.776kWh of stored energy with a 48V 22A charger, battery gauge, 12V converter, Bluetooth monitoring, high-current discharge capability, and IP67 enclosure protection for compatible golf cart systems.
