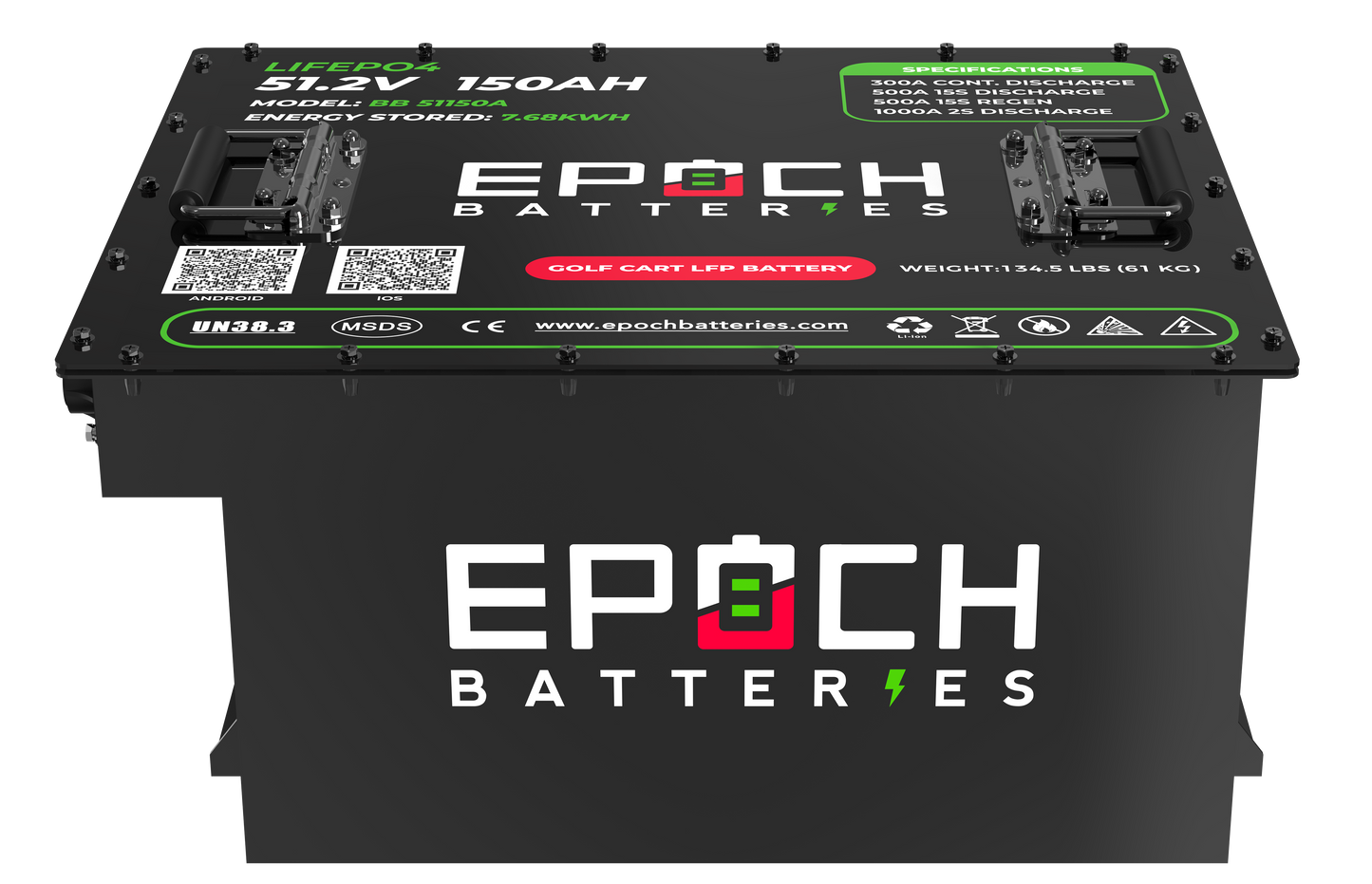

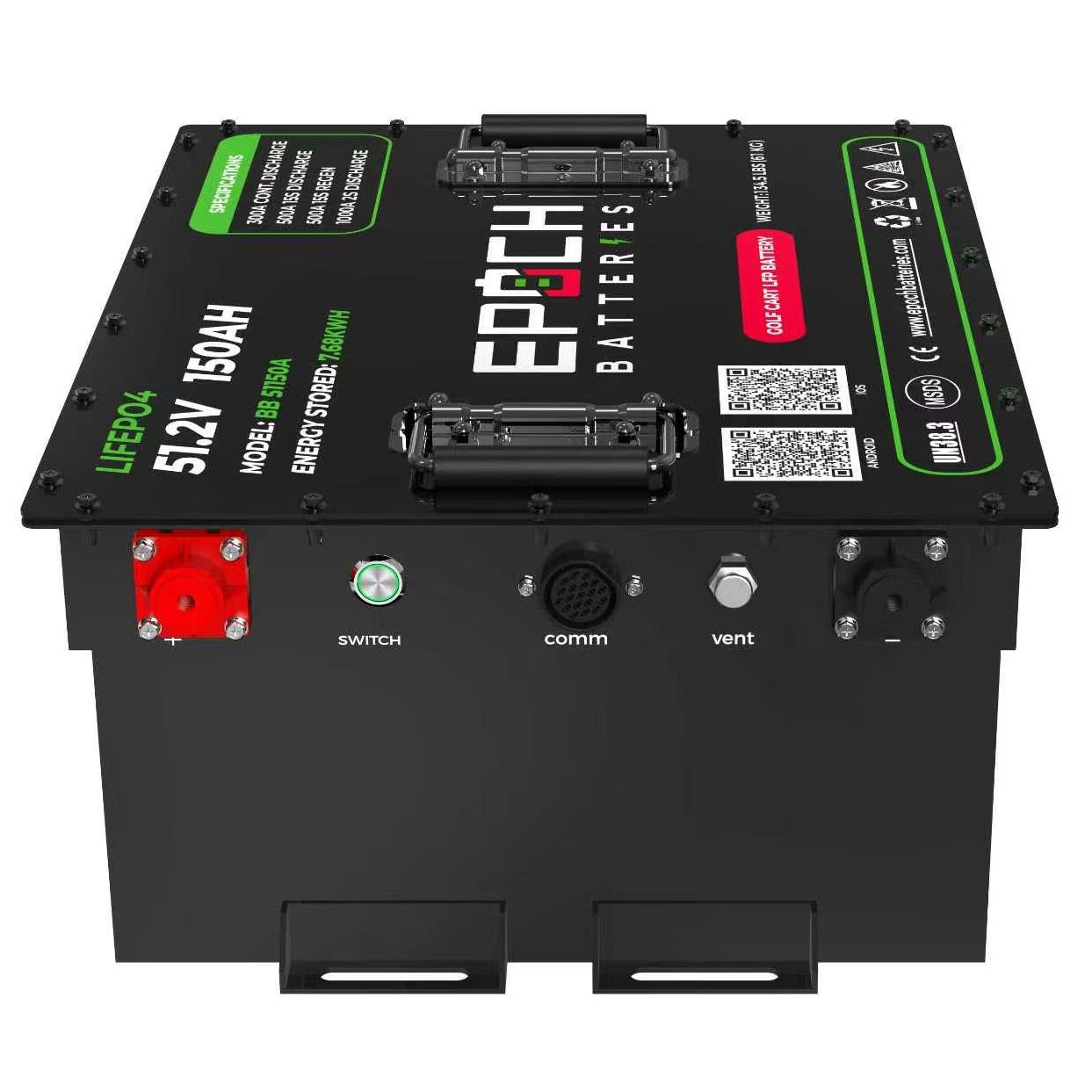

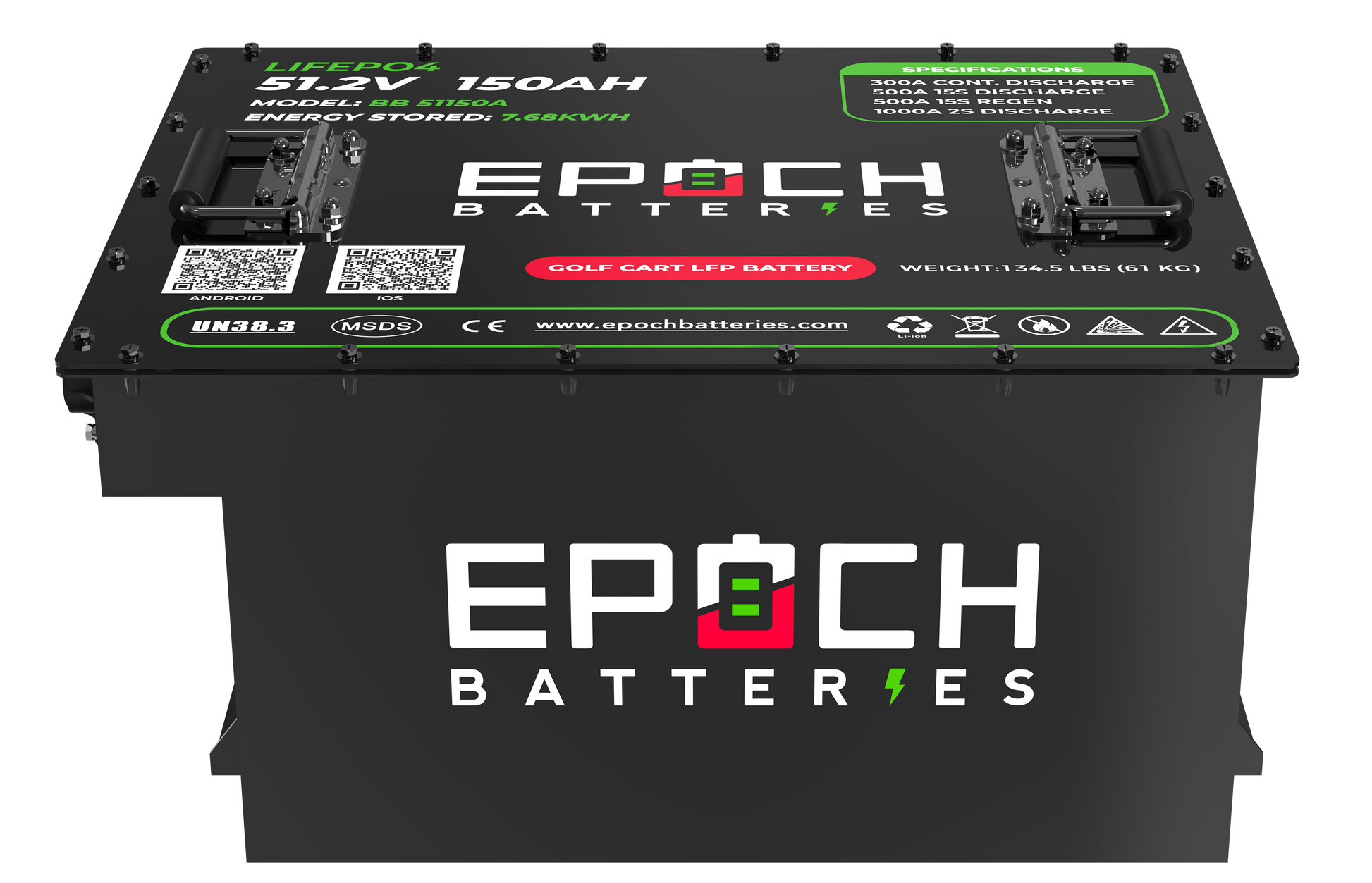

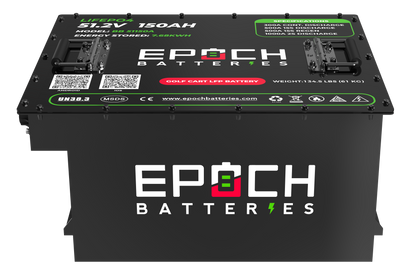

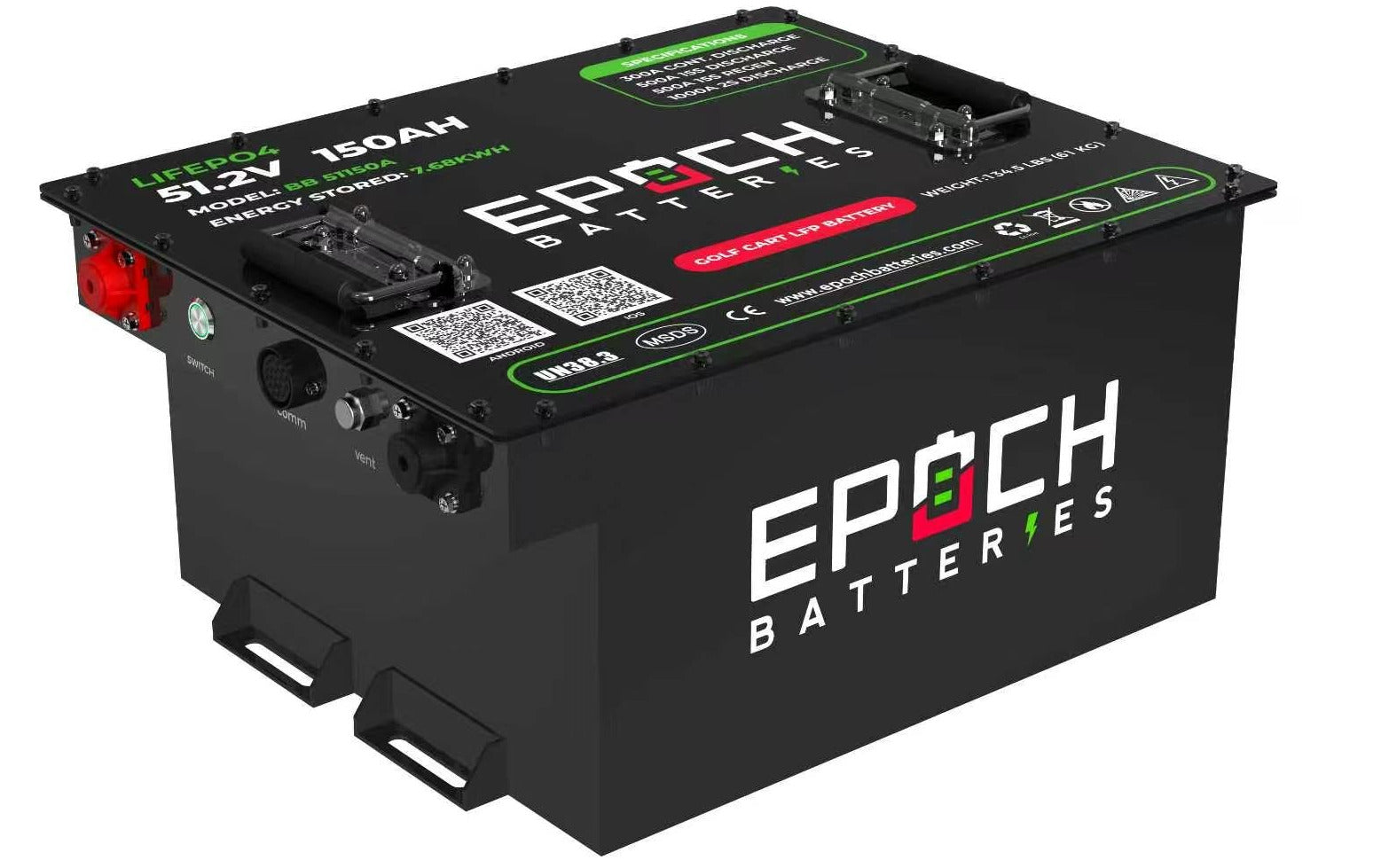

Epoch Batteries 48V 150Ah LiFePO4 Golf Cart Battery Kit

This complete 48V 150Ah LiFePO4 golf cart conversion kit provides high-capacity lithium power for compatible 48V golf cart systems. The kit includes a 48V 22A lithium charger, battery gauge, 48V-to-12V converter, and cart-specific mounting brackets, along with Bluetooth app monitoring and over-the-air firmware update support.

Key Features

• 150Ah LiFePO4 Capacity: Provides 150Ah of nominal capacity for compatible 48V golf cart applications.
• Complete Conversion Kit: Includes a 48V 22A lithium charger, battery gauge, 48V-to-12V converter, and cart-specific mounting brackets.
• 300A Continuous Discharge: Supports up to 300A maximum continuous discharge for compatible high-demand golf cart systems.
• 1,000A Peak Discharge: Provides up to 1,000A peak discharge for 2 seconds and 500A for 15 seconds.
• 150A Continuous Charging: Supports up to 150A maximum continuous charging with compatible LiFePO4 charging equipment.
• 500A Peak Charge / Regen: Supports up to 500A peak charging or regenerative current for 15 seconds under compatible operating conditions.
• Bluetooth Monitoring: Supports app-based monitoring through compatible iOS and Android devices.
• Over-the-Air Updates: Supports compatible firmware updates through the Bluetooth app ecosystem.
• Maintenance-Free LiFePO4: Uses lithium iron phosphate chemistry without routine watering or acid maintenance.
• 4,000 Cycle Life: Rated for approximately 4,000 cycles for repeated deep-cycle operation.
• 11-Year Warranty: Backed by an 11-year manufacturer warranty.

Specifications

• Brand: Epoch Batteries
• Product Type: 48V 150Ah LiFePO4 Golf Cart Conversion Kit
• Chemistry: LiFePO4 / Lithium Iron Phosphate
• Cell Configuration: 1P16S
• Nominal Voltage: 51.2V
• Nominal Capacity: 150Ah
• Maximum Charge Voltage: 58.4V
• Operating Voltage Range: 40V to 58.4V
• Maximum Continuous Discharge: 300A
• Maximum Continuous Charge Current: 150A
• Peak Discharge: 500A for 15 seconds / 1,000A for 2 seconds
• Peak Charge / Regenerative Current: 500A for 15 seconds
• Series Configuration: Not specified for series expansion
• Parallel Configuration: Maximum 2 batteries in parallel
• Bluetooth: Yes
• Over-the-Air Firmware Updates: Yes
• Internal Heating: Not specified in the supplied product information
• Cycle Life: 4,000 cycles
• Warranty: 11-year manufacturer warranty
• Charge Temperature Range: 0°C to 55°C / 32°F to 131°F
• Discharge Temperature Range: -20°C to 60°C / -4°F to 140°F
• Storage Temperature: 0°C to 35°C / 32°F to 95°F, maximum 12 months

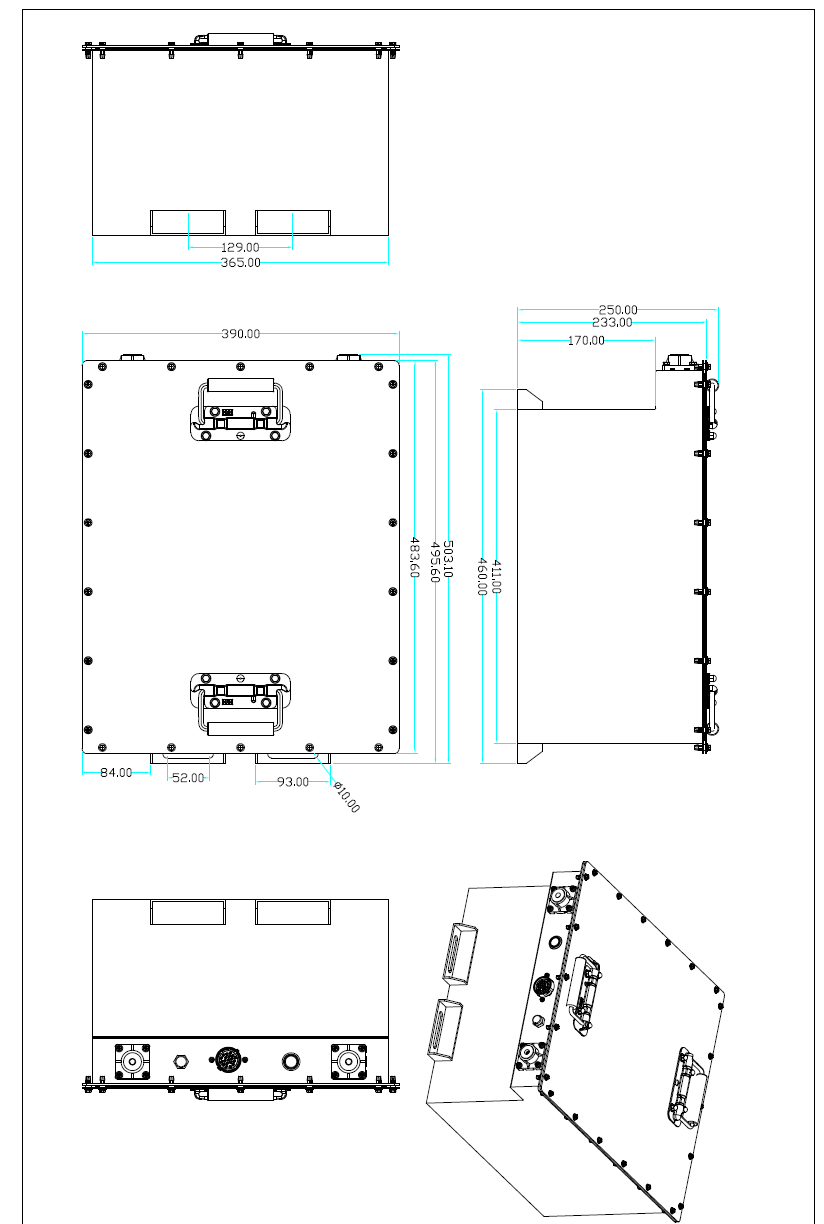

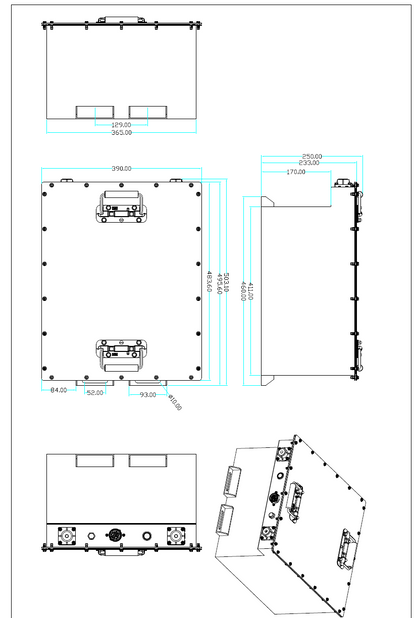

• Length: 19.84 inches
• Width: 15.35 inches
• Height: 9.84 inches
• Weight: 135 lb

Included Kit Components

• LiFePO4 Battery: 48V 150Ah lithium golf cart battery
• Lithium Charger: 48V 22A lithium charger

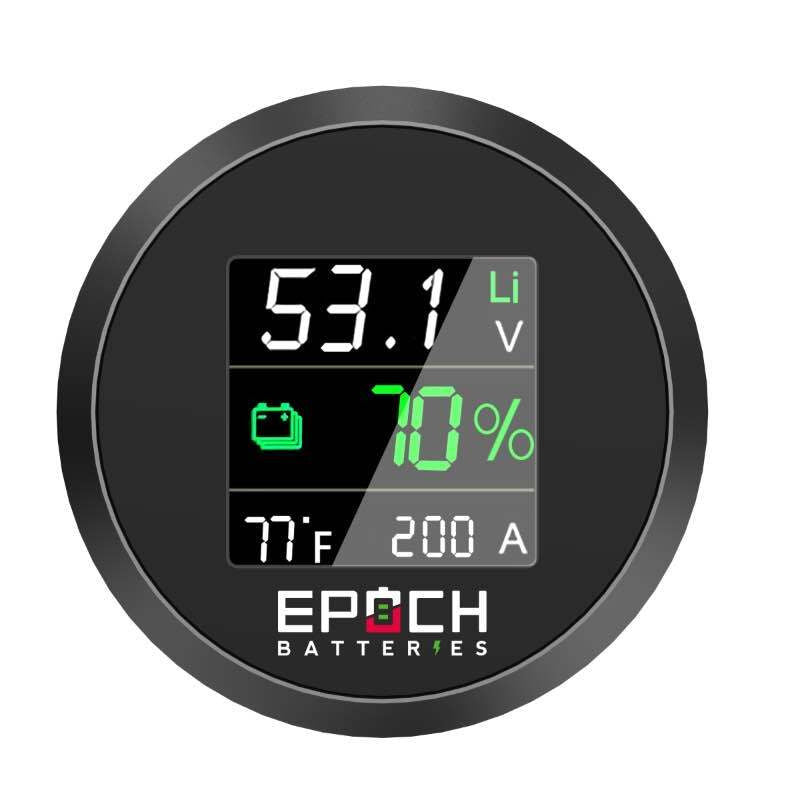

• Battery Gauge: Battery gauge for system status monitoring
• 12V Converter: 48V-to-12V converter for compatible golf cart accessories
• Mounting Brackets: Cart-specific mounting brackets
• Bluetooth Monitoring: Compatible iOS and Android app support

Recommended Use

Suitable for compatible 48V golf carts, utility carts, neighborhood vehicles, fleet carts, campground carts, resort carts, and other 48V golf cart applications where the battery's dimensions, controller requirements, charger compatibility, wiring, and mounting requirements match.

Charging Specifications

• Recommended Charger: Included 48V 22A LiFePO4 charger or another compatible 48V lithium charger
• Bulk / Absorption Voltage: 14.2V to 14.6V
• Absorption End Condition: Stop when charge current is ≤ C/20 or after 15 minutes maximum
• Float Voltage: 13.4V to 13.8V
• Temperature Compensation: 0mV/°C / disabled
• Equalization: Disabled
• Recommended Charge Rate: 50% of the battery or battery-bank capacity
• Battery Charge Temperature Range: 0°C to 55°C / 32°F to 131°F
• Battery Discharge Temperature Range: -20°C to 60°C / -4°F to 140°F

Installation Note

Verify the exact golf cart model, battery compartment dimensions, controller and motor current requirements, charger compatibility, mounting configuration, wiring, and regenerative braking requirements before installation. High-current golf cart systems should use appropriately sized cables, fuses, disconnects, and connectors.

This 48V 150Ah LiFePO4 golf cart kit combines high-current lithium power with a 48V 22A charger, battery gauge, 12V converter, and cart-specific mounting brackets for compatible 48V golf cart conversion applications.
