Epoch Batteries 48V 105Ah LiFePO4 Golf Cart Battery Kit

This complete 48V 105Ah LiFePO4 golf cart conversion kit provides approximately 5.38kWh of stored energy and includes a 48V 15A waterproof lithium charger, 48V-to-12V step-down converter, Bluetooth battery gauge, and cart-specific mounting brackets. It is designed for compatible 48V golf cart conversions and features high-current discharge capability, Smart BMS protection, IP67 enclosure protection, and app-based battery monitoring.

Key Features

• 105Ah LiFePO4 Capacity: Provides 105Ah of nominal capacity and approximately 5.38kWh of stored energy at 51.2V.
• Complete Conversion Kit: Includes the 48V 105Ah LiFePO4 battery, 48V 15A waterproof lithium charger, 12V converter, battery gauge, and cart-specific mounting brackets.
• 200A Continuous Discharge: Supports up to 200A continuous discharge for compatible golf cart loads and upgraded electrical systems.
• 700A Peak Discharge: Provides up to 700A peak discharge for 2 seconds and 300A for 15 seconds for compatible short-duration loads.
• 100A Continuous Charging: Supports up to 100A continuous charging with compatible 48V LiFePO4 charging equipment.
• 300A Peak Charging: Supports up to 300A charging for 15 seconds under compatible charging and regenerative braking conditions.

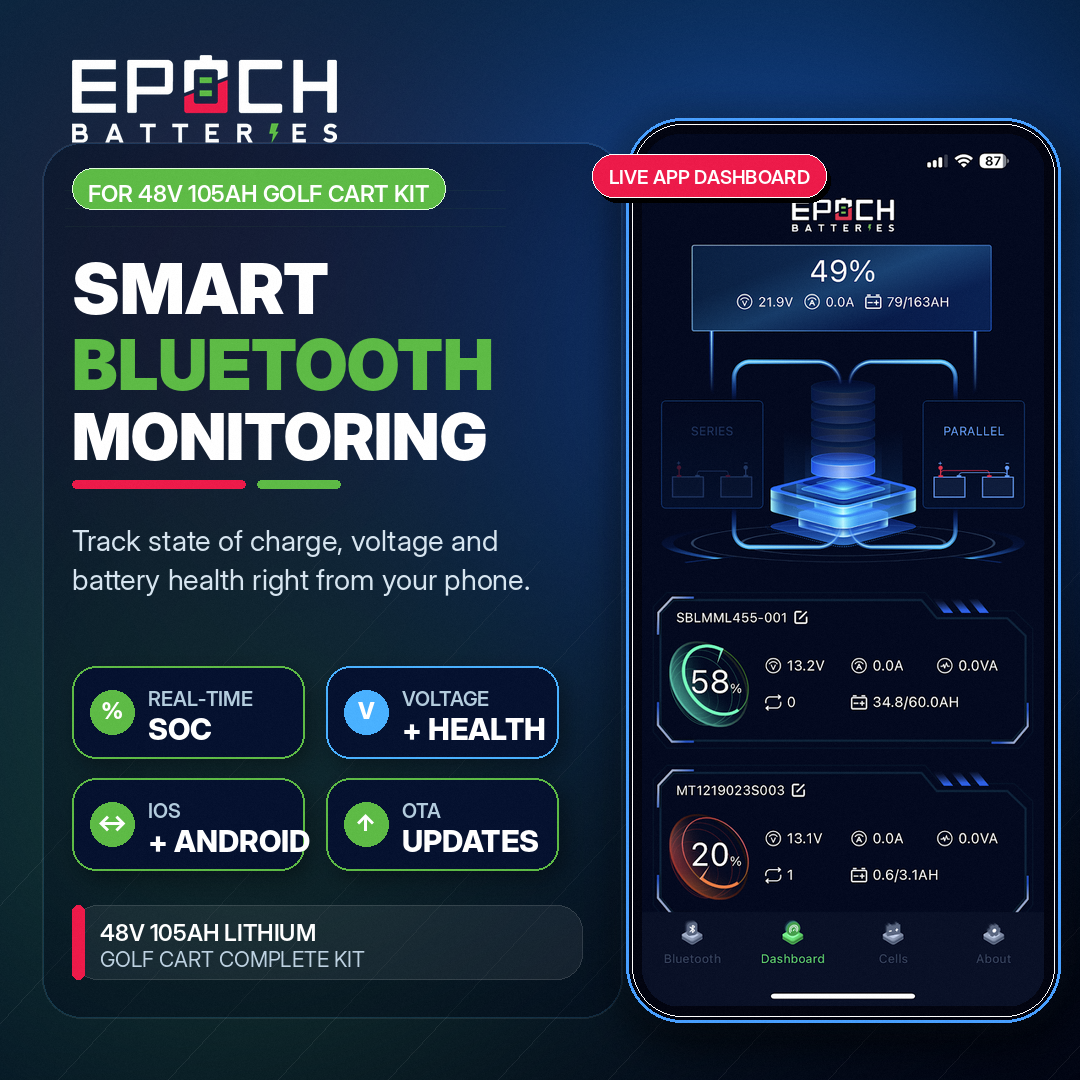

• Bluetooth Monitoring: Supports app-based monitoring of state of charge, voltage, battery health, and other battery information through compatible iOS and Android devices.
• Smart BMS Protection: Integrated Battery Management System provides protection against overcharge, over-discharge, over-current, short circuits, and temperature-related conditions.
• IP67 Protection: Provides dustproof construction and temporary water-immersion protection for suitable golf cart and outdoor applications.
• Parallel Expansion: Supports up to two matched batteries in parallel for compatible higher-capacity systems.
• 3,500+ Cycle Life: Designed for repeated deep-cycle use with maintenance-free LiFePO4 chemistry.
• 11-Year Warranty: Backed by an 11-year manufacturer warranty.

Specifications

• Brand: Epoch Batteries
• Model / SKU: BB51105A-Kit
• Product Type: 48V LiFePO4 Golf Cart Conversion Kit
• Chemistry: LiFePO4 / Lithium Iron Phosphate
• Cell Configuration: 1P16S
• System Voltage: 48V
• Nominal Voltage: 51.2V
• Nominal Capacity: 105Ah
• Stored Energy: Approximately 5.38kWh / 5,376Wh
• Operating Voltage Range: 40V to 58.4V
• Maximum Charge Voltage: 58.4V
• Maximum Continuous Discharge: 200A
• Maximum Continuous Charge Current: 100A
• Peak Charge Current: 300A for 15 seconds
• Peak Discharge: 300A for 15 seconds / 700A for 2 seconds
• Parallel Configuration: Maximum 2 batteries in parallel
• Bluetooth Monitoring: Yes
• Cycle Life: 3,500+ cycles
• Warranty: 11-year manufacturer warranty
• Weight: 99 lb
• Length: 18.1 inches
• Width: 13.4 inches
• Height: 9.8 inches
• Overall Dimensions: 18.1 × 13.4 × 9.8 inches
• Enclosure Protection: IP67

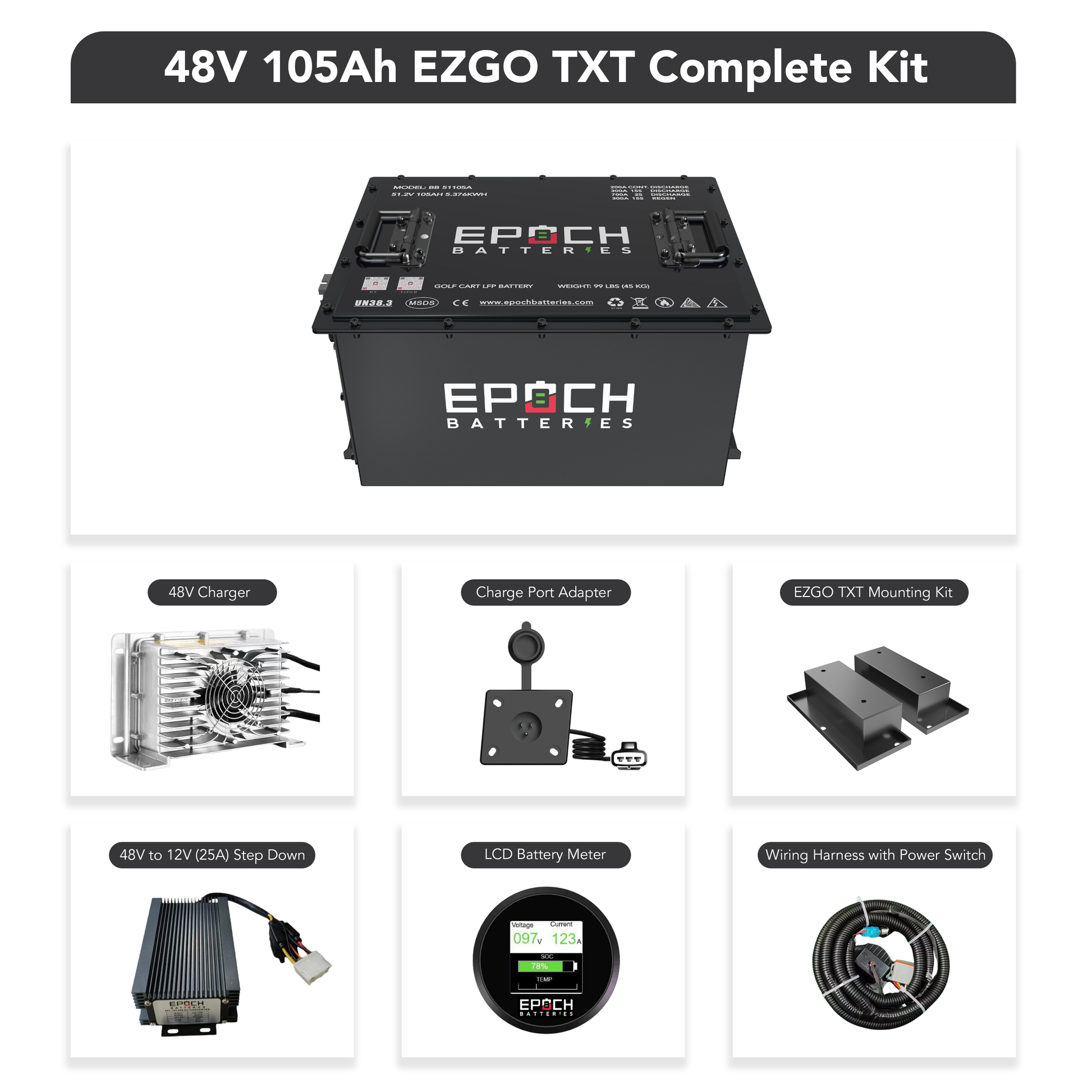

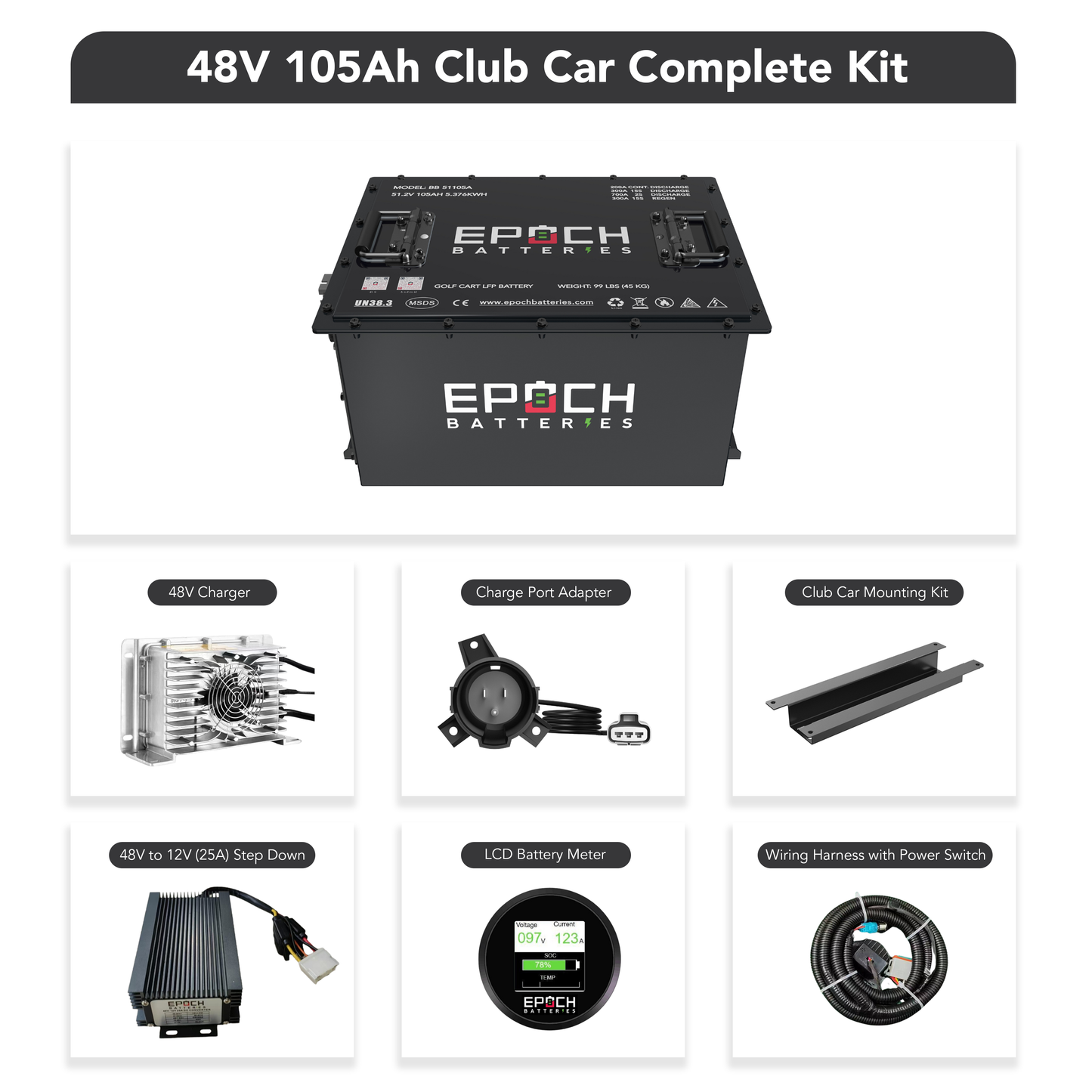

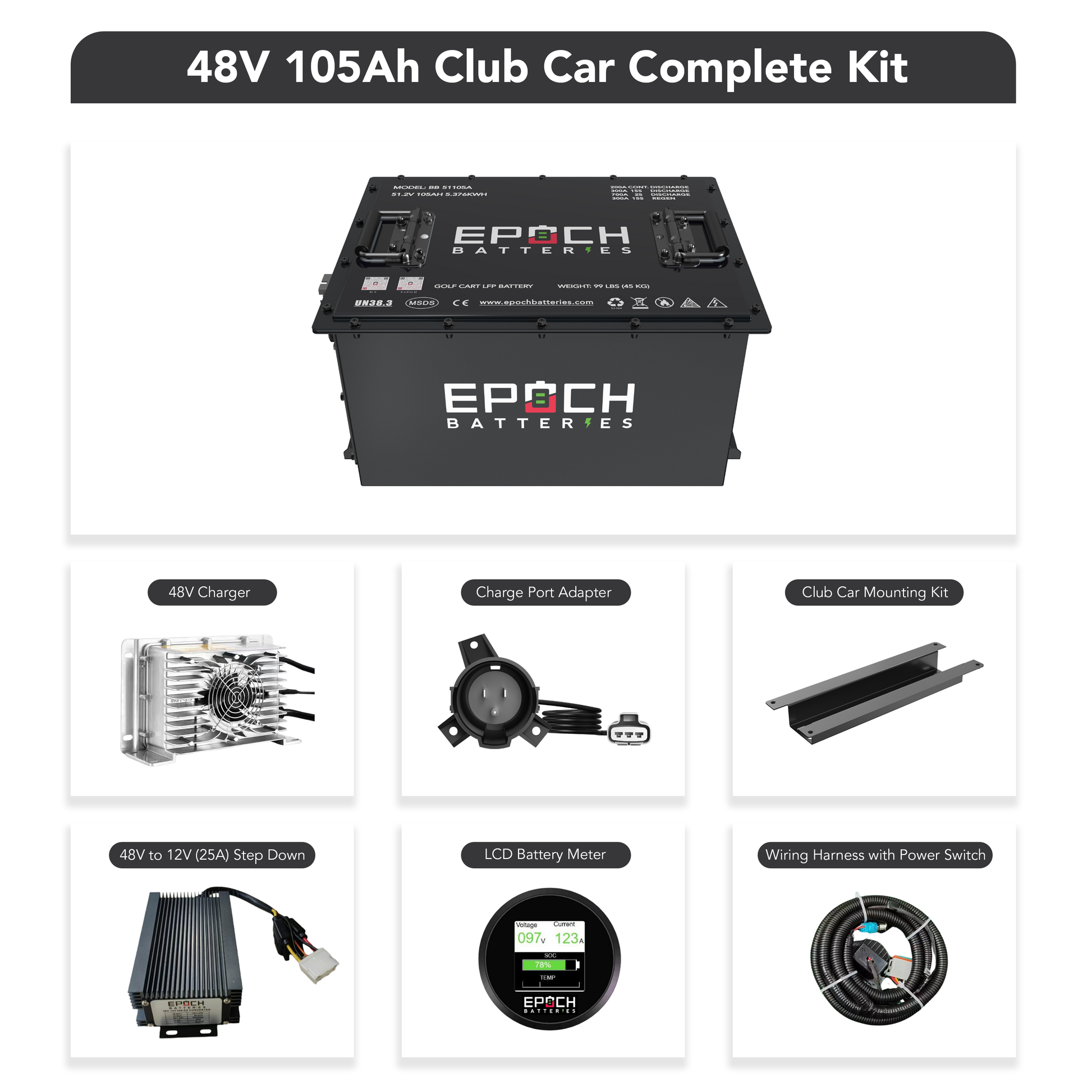

Included Kit Components

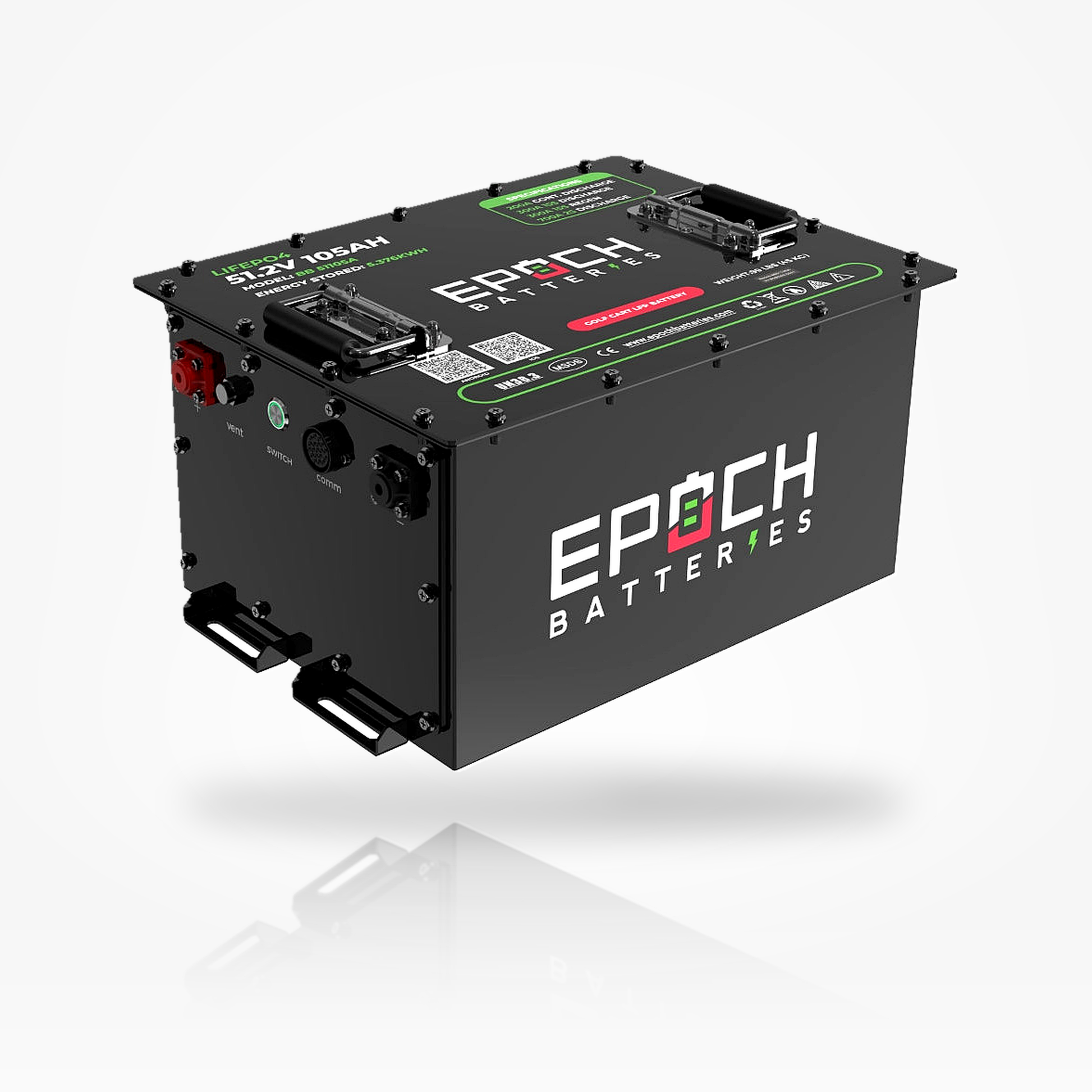

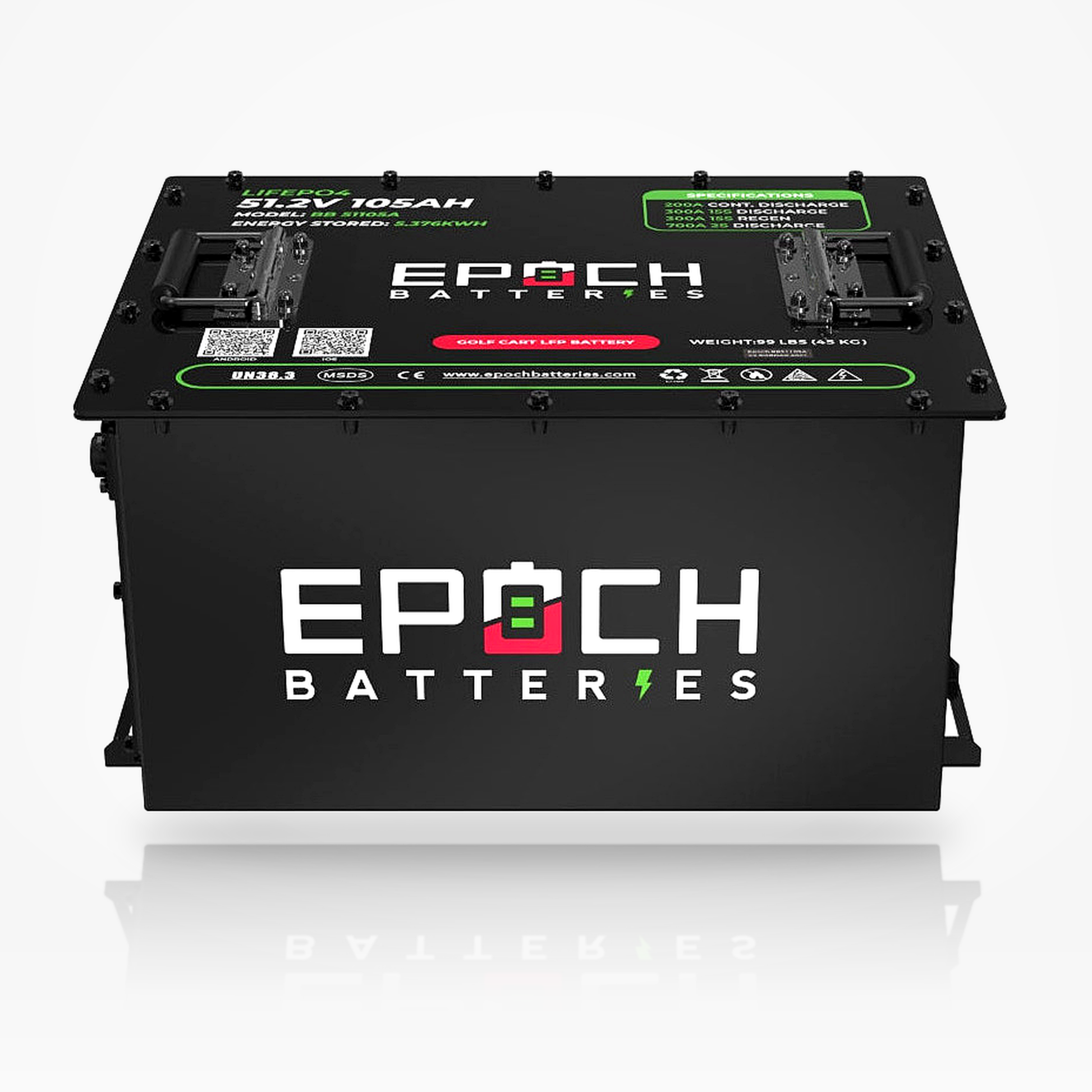

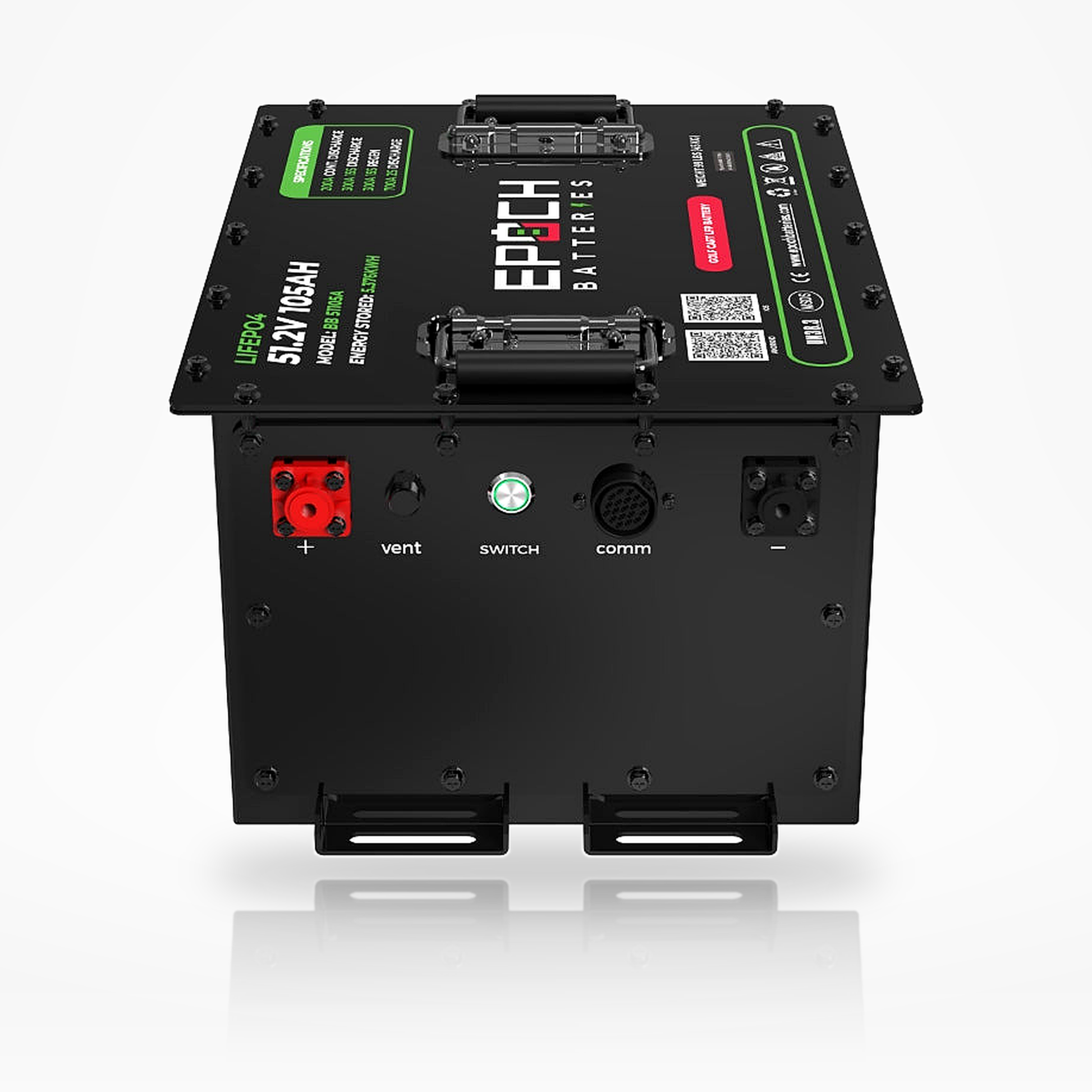

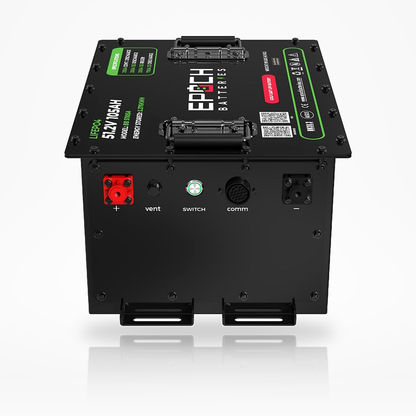

• LiFePO4 Battery: 48V 105Ah lithium golf cart battery

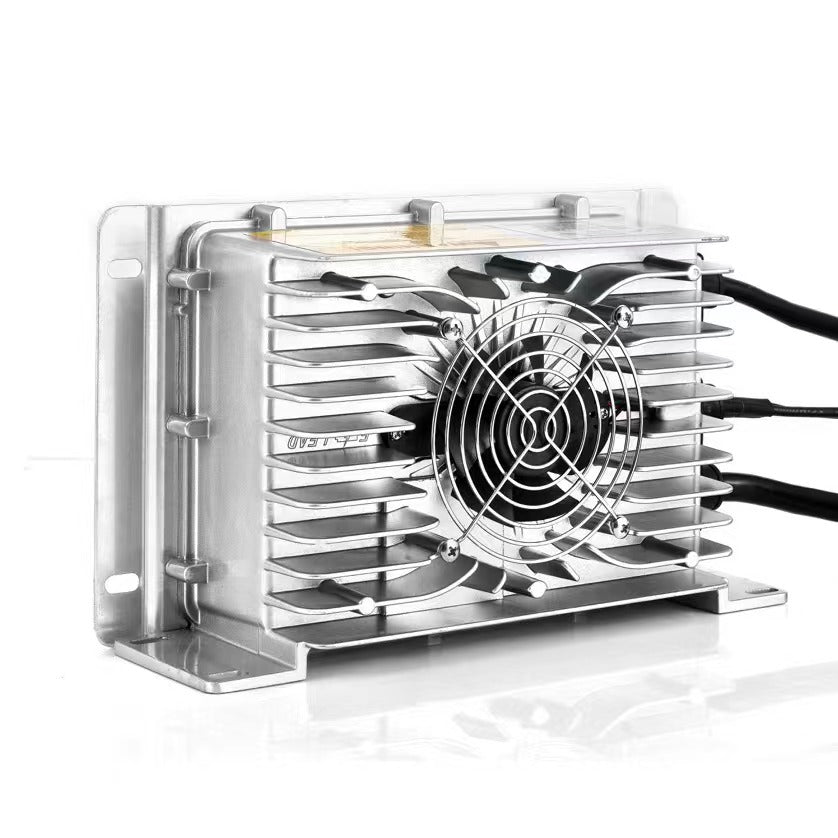

• Lithium Charger: 48V 15A waterproof lithium charger

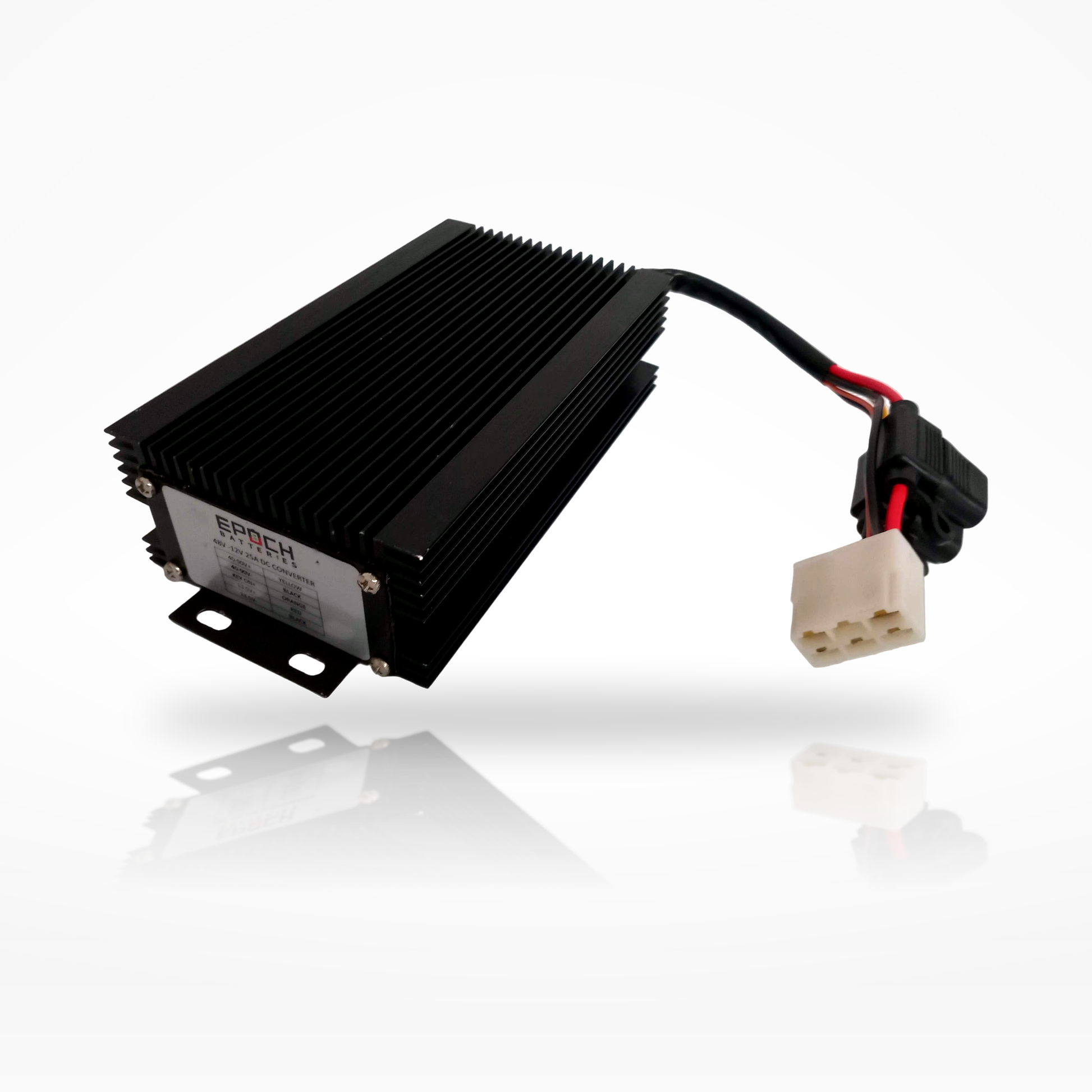

• 12V Converter: 48V-to-12V step-down converter for compatible lights, radios, and accessories

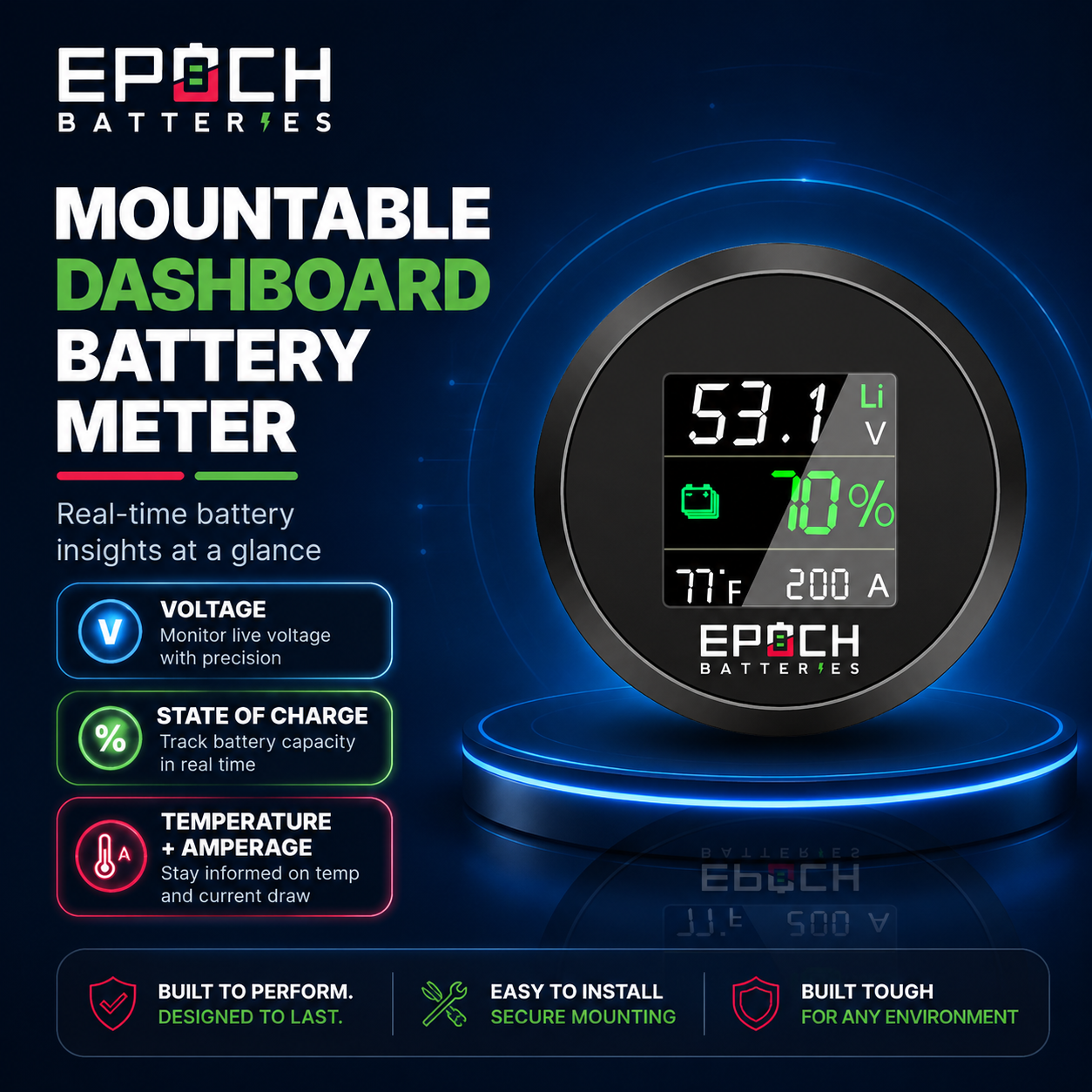

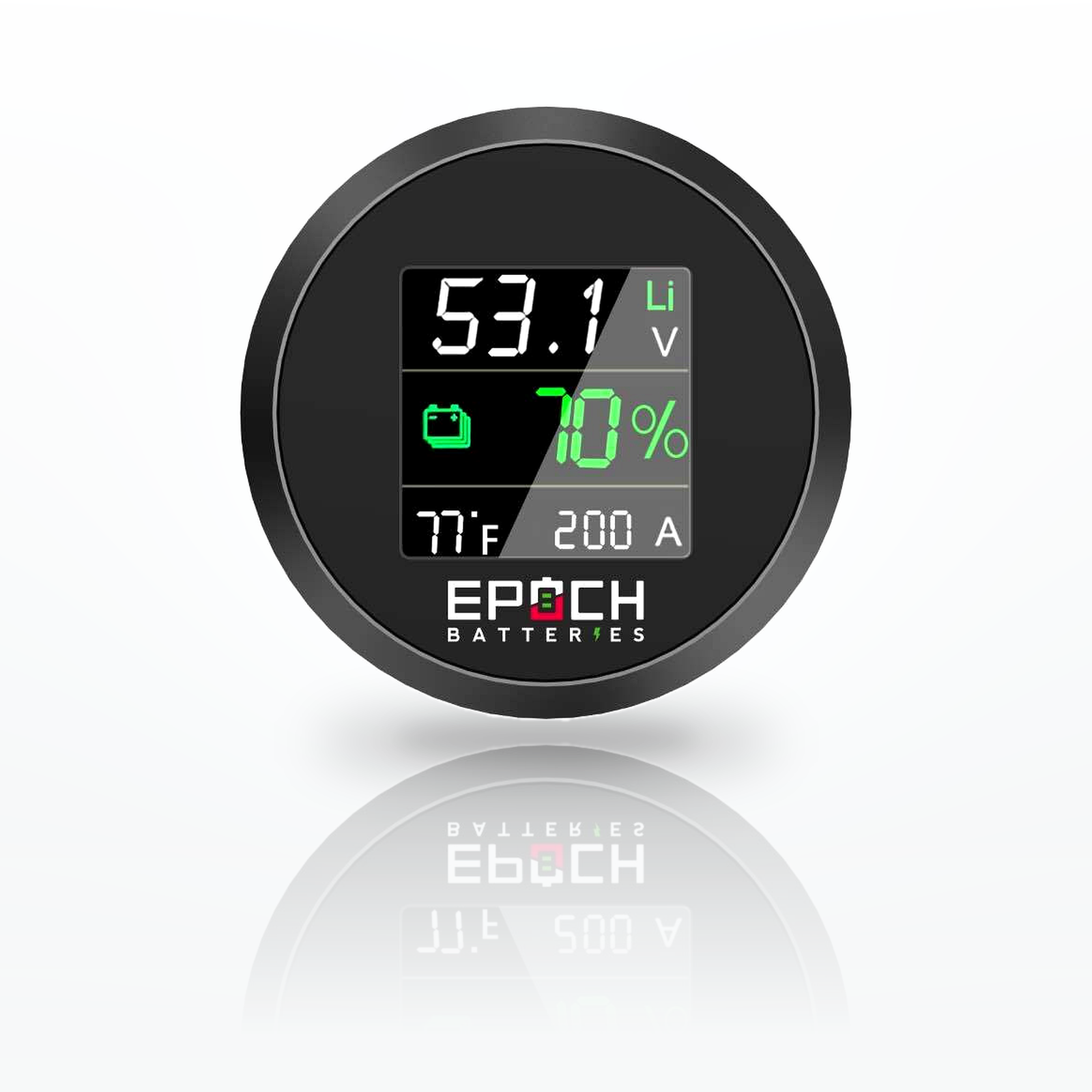

• Battery Gauge: External Bluetooth-compatible battery gauge
• Mounting Hardware: Cart-specific mounting brackets

Recommended Use

Suitable for compatible 48V EZGO, Club Car, Yamaha, ICON, Bintelli, Evolution, Kandi, Epic, and other golf cart platforms where battery dimensions, controller requirements, charger compatibility, mounting, and electrical specifications match.

Cart Compatibility

EZGO TXT and RXV, Club Car Precedent and Onward, Yamaha, ICON, Bintelli, Evolution, Kandi, Epic, and other compatible 48V carts may be supported with the appropriate configuration. Club Car DS applications should use the designated 48V 105Ah Mini Lithium Golf Cart Battery Kit referenced by the source material.

Charging Specifications

• Recommended Charger: Included 48V 15A waterproof LiFePO4 charger or compatible 48V lithium charger
• Maximum Charge Voltage: 58.4V
• Maximum Continuous Charge Current: 100A
• Peak Charge / Regenerative Current: 300A for 15 seconds
• Equalization: Disabled
• Temperature Compensation: 0mV/°C / none

Installation Note

Verify the golf cart's exact model, year, controller, motor, charger and OBC requirements, battery tray dimensions, cable routing, mounting points, and accessory requirements before installation. For high-current or heavily modified carts, confirm that the controller and motor requirements are compatible with the battery's discharge ratings.

This 48V 105Ah LiFePO4 golf cart battery kit combines a high-capacity lithium battery with a 48V charger, 12V converter, battery gauge, and mounting hardware for compatible 48V golf cart conversion applications.
