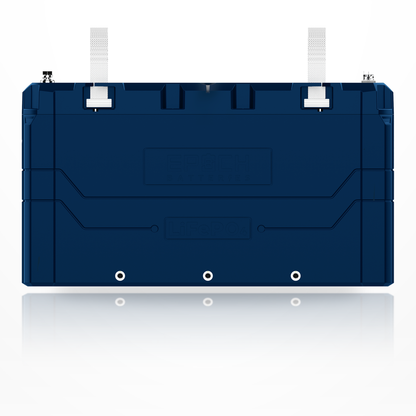

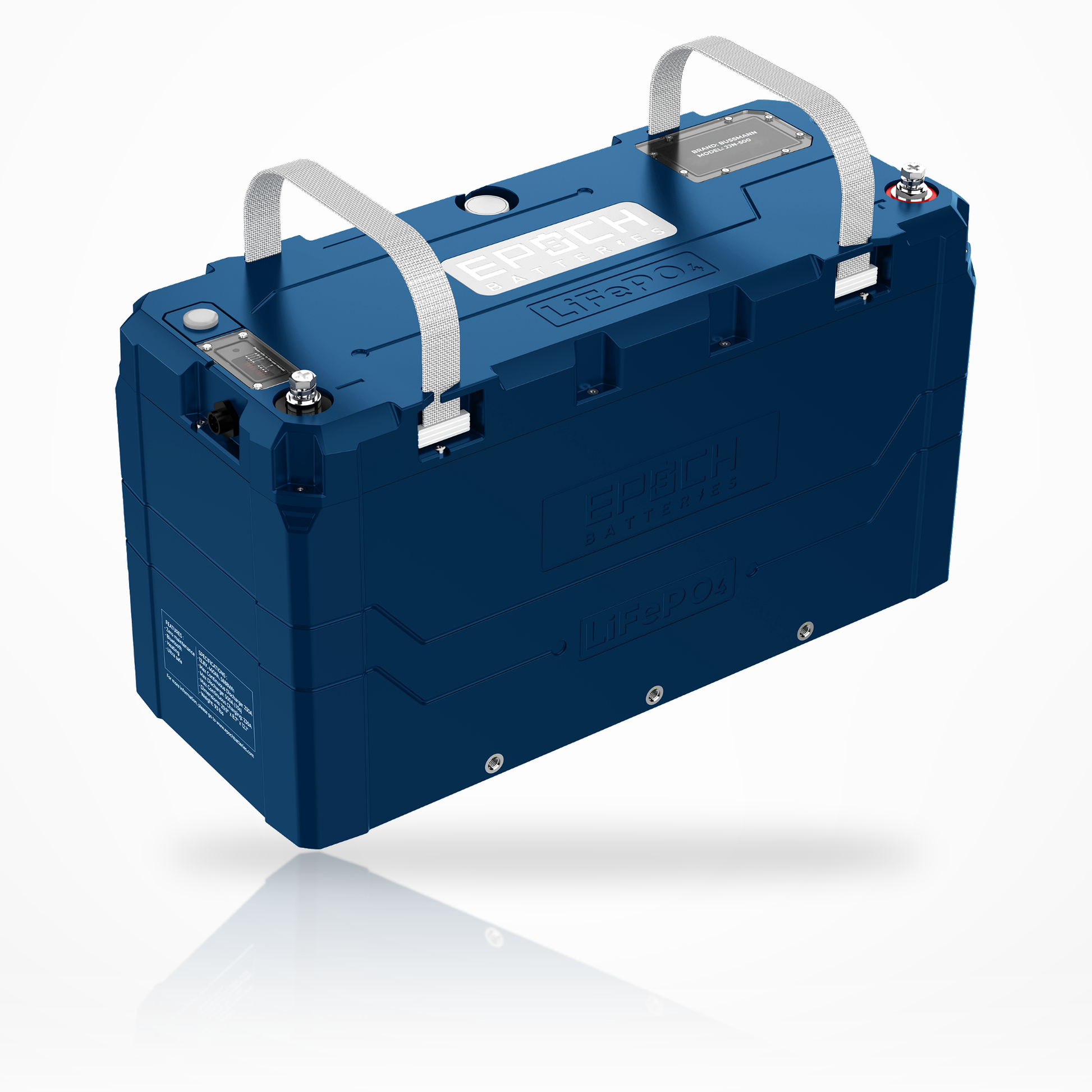

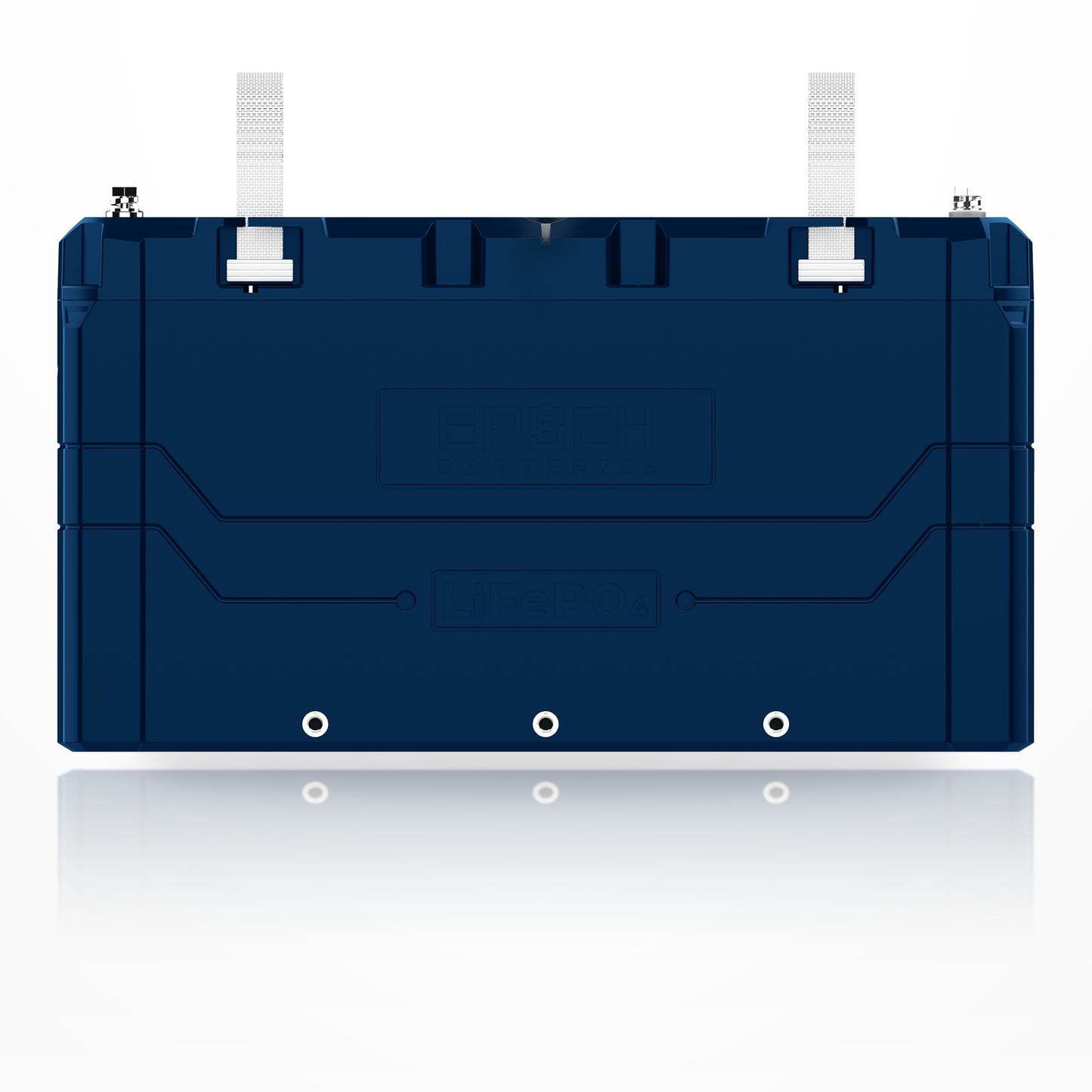

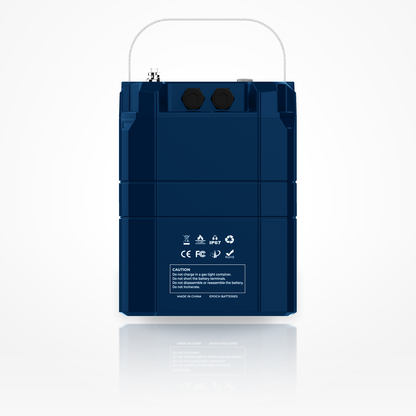

Epoch Batteries 48V 100Ah V2-T Elite LiFePO4 Battery With Bluetooth

Epoch Batteries 48V 100Ah V2-T Elite LiFePO4 Battery With Bluetooth

This 48V 100Ah V2-T Elite Series LiFePO4 battery provides 5.12kWh of stored energy for high-capacity off-grid solar, marine, RV, backup, and other 48V power systems. It combines an integrated user-serviceable 250A Eaton Class-T fuse, Victron CANBus communication, Bluetooth monitoring, internal heating, IP67 protection, and support for parallel expansion up to 16 batteries. :contentReference[oaicite:0]{index=0}

Key Features

• 100Ah LiFePO4 Capacity: Provides 100Ah of nominal capacity and 5.12kWh of stored energy at 51.2V. :contentReference[oaicite:1]{index=1}
• 150A Continuous Discharge: Supports up to 150A continuous discharge for compatible high-demand 48V systems. :contentReference[oaicite:2]{index=2}
• 300A Peak Discharge: Provides a peak discharge rating of 300A for up to 30 seconds. :contentReference[oaicite:3]{index=3}
• 100A Continuous Charging: Supports up to 100A continuous charging with compatible LiFePO4 charging equipment. :contentReference[oaicite:4]{index=4}

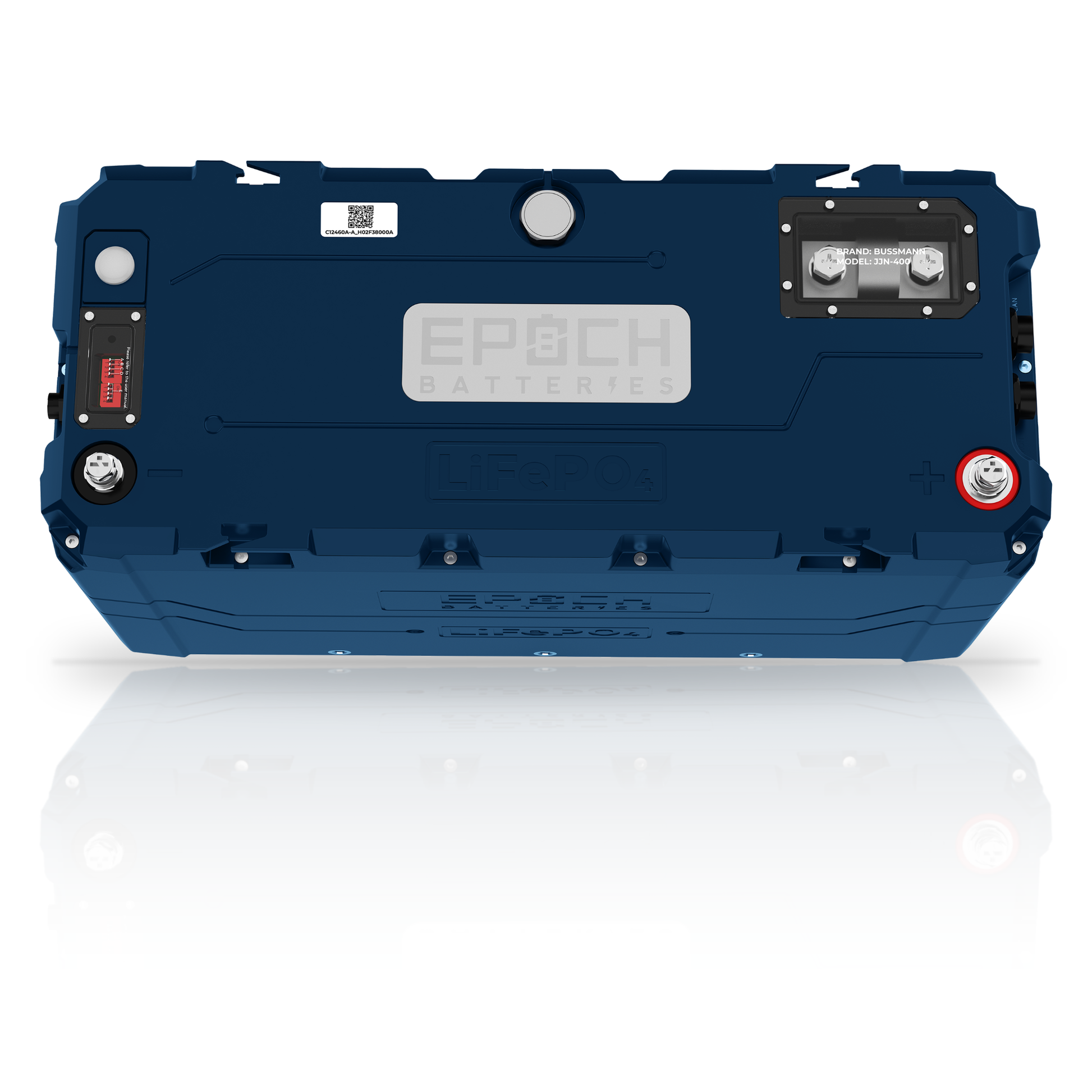

• Integrated 250A Class-T Fuse: Includes a user-serviceable 250A Eaton Class-T fuse integrated into the battery for high-current protection. :contentReference[oaicite:5]{index=5}
• Victron CANBus Communication: Supports native communication with compatible Victron GX devices and DVCC system integration. :contentReference[oaicite:6]{index=6}
• Bluetooth Monitoring: Compatible with the Epoch app for monitoring state of charge, voltage, current, temperature, cycles, and system alerts. :contentReference[oaicite:7]{index=7}
• Internal Self-Heating: Supports cold-weather charging down to -22°F / -30°C when external charge current is available. :contentReference[oaicite:8]{index=8}
• IP67 Protection: The enclosure is dust-tight and rated for temporary water immersion. :contentReference[oaicite:9]{index=9}
• Parallel Expansion: Supports up to 16 batteries in parallel for a maximum bank of approximately 1,600Ah / 81.92kWh at 48V nominal. :contentReference[oaicite:10]{index=10}
• Advanced Smart BMS: Provides protection against overcharge, over-discharge, over-current, short circuit, and high or low temperature conditions. :contentReference[oaicite:11]{index=11}
• 3,500+ Cycle Life: Designed for repeated deep-cycle use with maintenance-free LiFePO4 chemistry. :contentReference[oaicite:12]{index=12}
• 11-Year Warranty: Backed by an 11-year manufacturer warranty. :contentReference[oaicite:13]{index=13}

Specifications

• Brand: Epoch Batteries
• Model / SKU: C48100A-A
• Series: V2-T Elite Series
• Battery Type: Heated Bluetooth LiFePO4 Battery with Victron Communication and Integrated Class-T Fuse
• Chemistry: LiFePO4 / Lithium Iron Phosphate
• Cell Configuration: 16S1P
• System Voltage: 48V
• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Stored Energy: 5.12kWh / 5,120Wh
• Maximum Voltage: 58.0V
• Minimum Voltage: 41.6V
• Maximum Continuous Discharge: 150A
• Peak Discharge: 300A for 30 seconds
• Maximum Continuous Charge Current: 100A
• Peak Charge Current: 300A for 10 seconds
• Approximate Continuous DC Output: Up to 7,680W nominal before inverter losses
• Integrated Fuse: 250A Eaton Class-T fuse
• Series Configuration: Not supported
• Parallel Configuration: Up to 16 batteries in parallel
• Maximum Parallel Bank: Up to 1,600Ah / 81.92kWh at 48V nominal
• Bluetooth: Yes, Epoch app support for iOS and Android
• Victron Communication: CANBus / Victron-ready communication with DVCC support
• Internal Heating: Yes

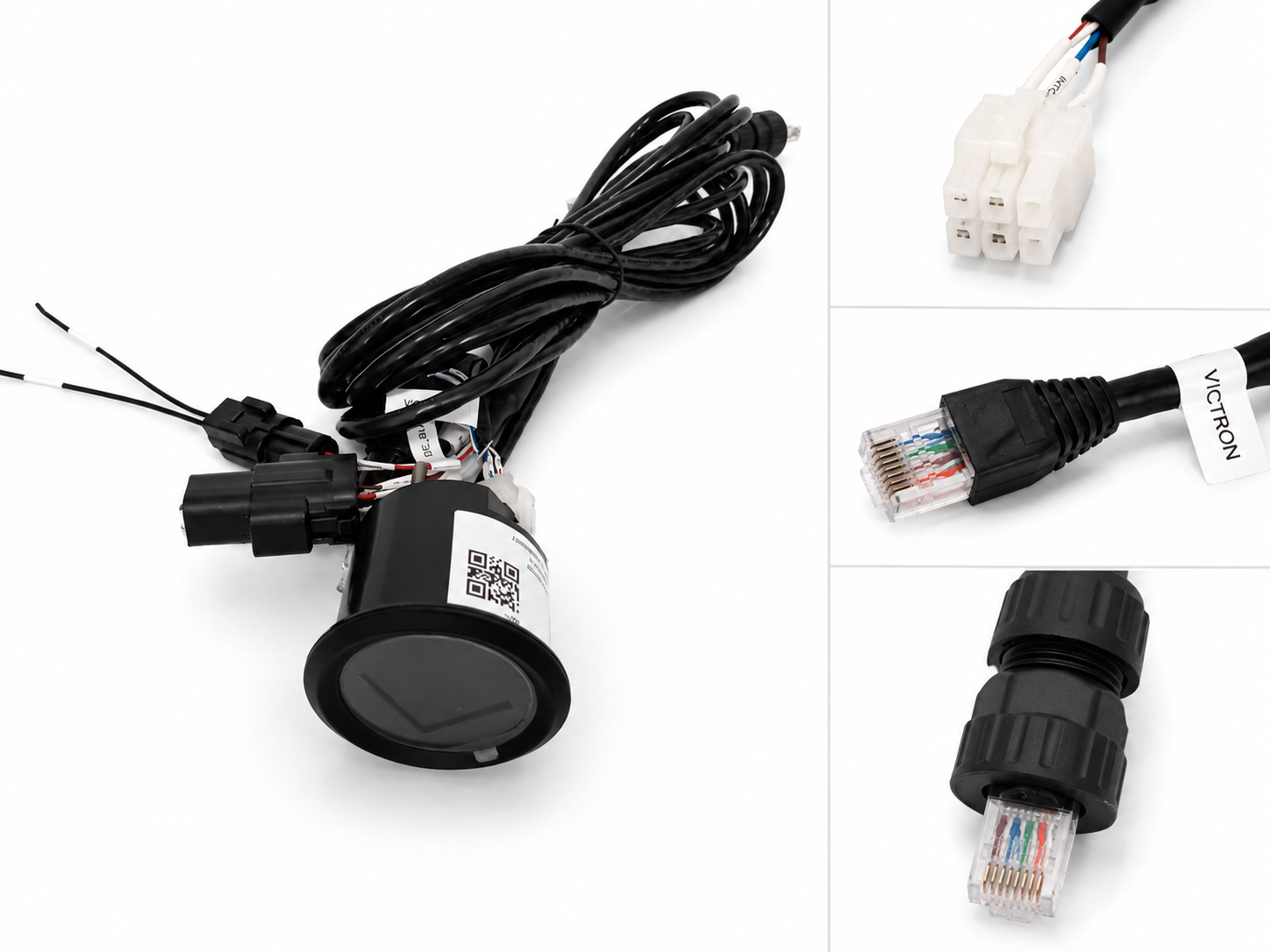

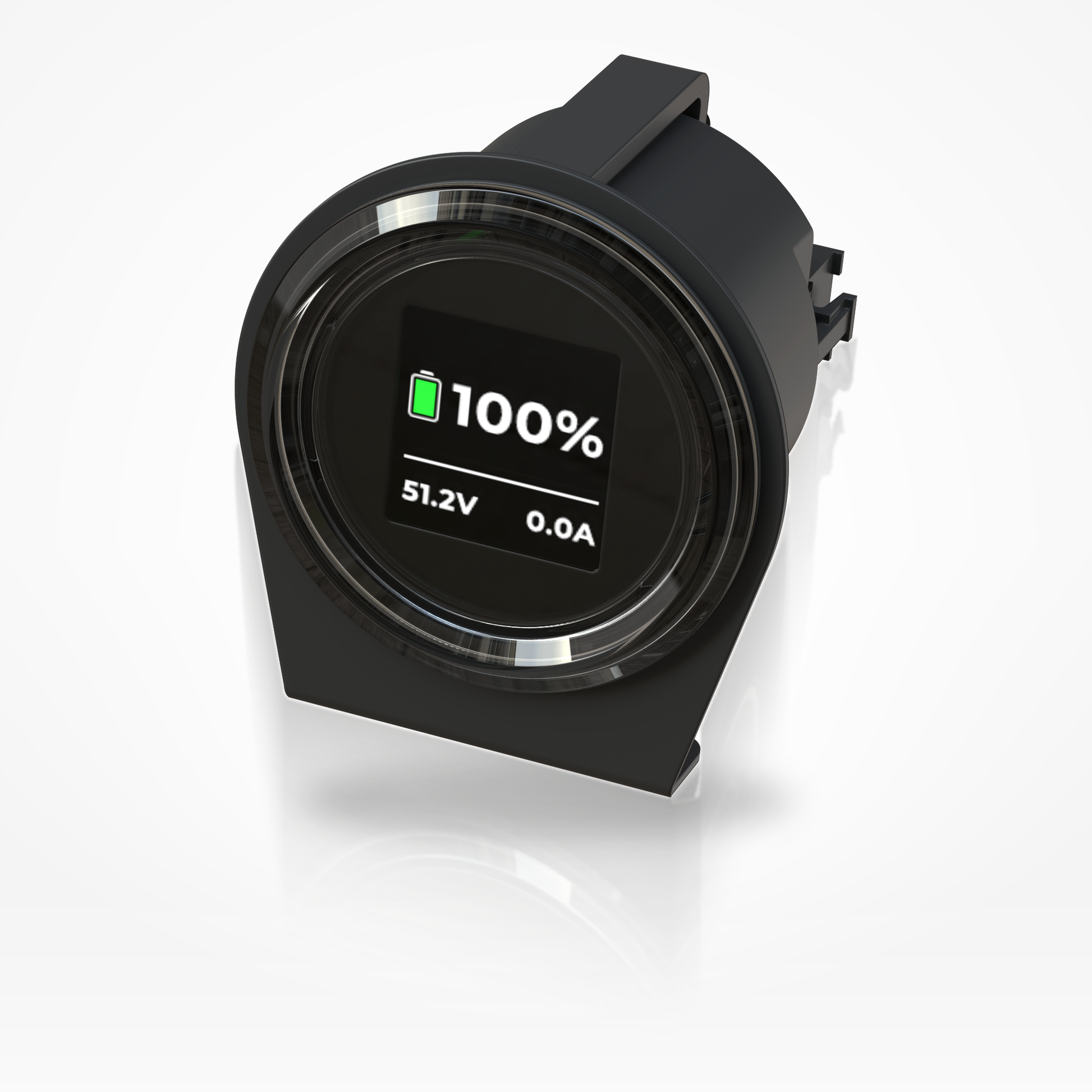

• External Controls: External power button and battery gauge included
• Cycle Life: 3,500+ cycles
• Charge Temperature: 0°C to 55°C / 32°F to 131°F
• Self-Heated Charging Support: Down to -30°C / -22°F when external charge current is available
• Discharge Temperature: -20°C to 55°C / -4°F to 131°F
• Storage Temperature, Up to 1 Month: -20°C to 45°C / -4°F to 113°F
• Long-Term Storage Temperature: 0°C to 35°C / 32°F to 95°F
• Enclosure Protection: IP67
• Battery Footprint: Group 8D-style footprint
• Length: 20.86 inches / approximately 529.8 mm
• Width: 8.65 inches / approximately 219.8 mm
• Height: 12.06 inches / approximately 306.3 mm
• Weight: 97 lb / approximately 44 kg
• Case Material: PC + ABS, UL94 V-0
• Terminal Type: M8 bolts
• Terminal Torque: 12 N·m / 8.85 lb-ft
• Internal Fuse Certification: UL60691
• Cell Certifications: UL1642, UL9540A, IEC 62619:2022
• Battery Pack Certification: UL1973
• Shipping: UN38.3 / lithium battery shipping requirements

Recommended Use

Suitable for compatible 48V off-grid solar battery banks, home backup systems, marine house-power systems, RV and overland electrical systems, workshops, communications sites, and other high-capacity 48V applications where the battery's voltage, current, charging, communication, and installation requirements match. :contentReference[oaicite:14]{index=14}

Charging Specifications

• Non-Victron Absorption Voltage: 56.8V
• Minimum Absorption Time: 15 minutes per battery
• Float Voltage: 54.0V
• Equalization: Disabled
• Temperature Compensation: Disabled / 0mV per °C

Victron System Integration

The V2-T Elite supports CANBus communication with compatible Victron GX devices. Compatible installations can use the BMS CAN connection, DVCC, and Epoch as the controlling BMS and battery monitor. Follow the manufacturer's communication and commissioning procedure for the specific Victron equipment being used. :contentReference[oaicite:15]{index=15}

System Expansion

Up to 16 matched batteries can be connected in parallel for a maximum bank of approximately 1,600Ah and 81.92kWh at 48V nominal. This battery is designed for parallel expansion and should not be connected in series. :contentReference[oaicite:16]{index=16}

Installation Note

This battery is intended for properly designed 48V / 51.2V nominal systems and is not an engine-starting battery. High-current DC installations should use appropriately rated conductors, disconnects, overcurrent protection, terminals, and battery communication equipment. :contentReference[oaicite:17]{index=17}

This 48V 100Ah V2-T Elite LiFePO4 battery combines high-capacity energy storage with a user-serviceable Class-T fuse, Victron CANBus communication, Bluetooth monitoring, internal heating, IP67 protection, Smart BMS protection, and scalable parallel expansion.
