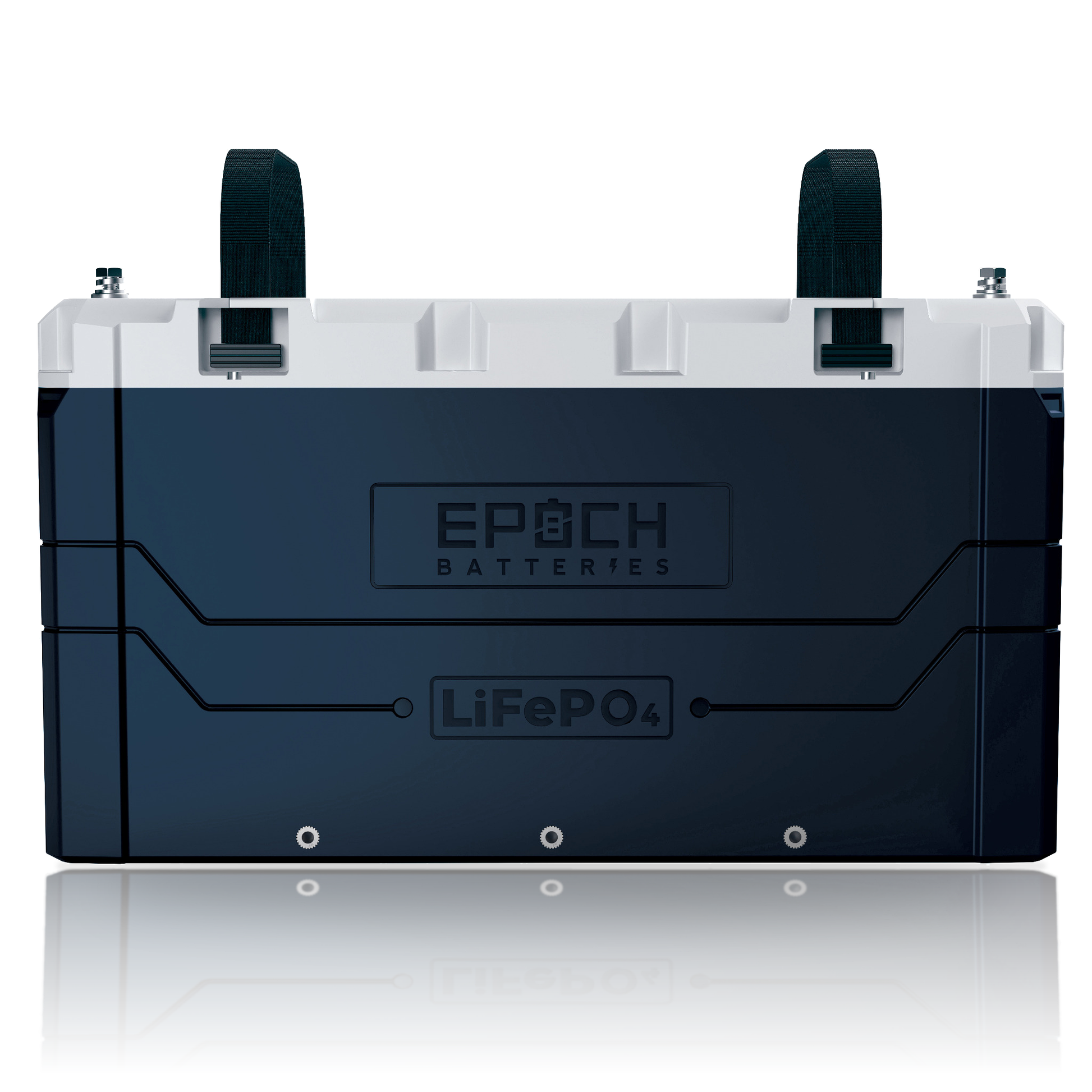

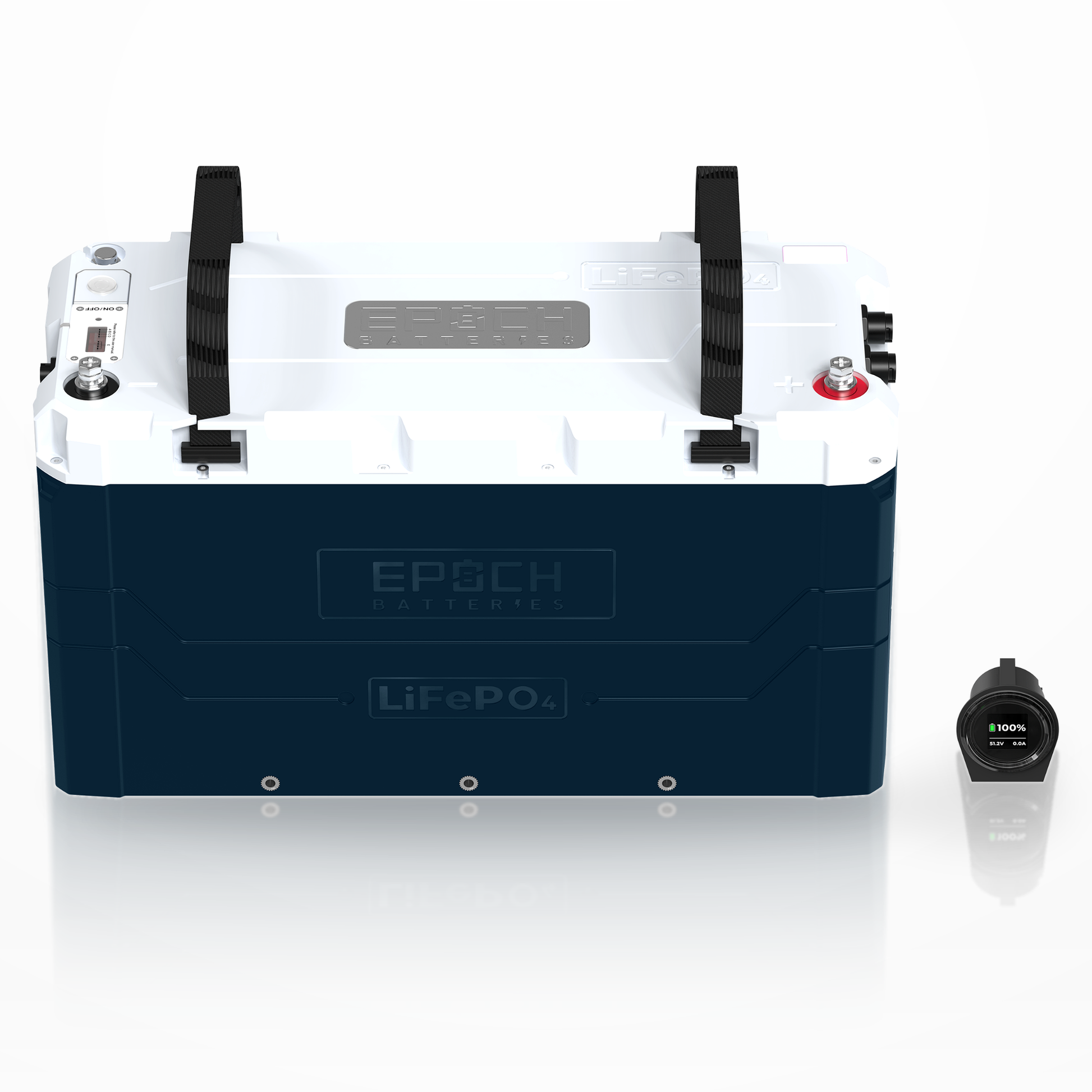

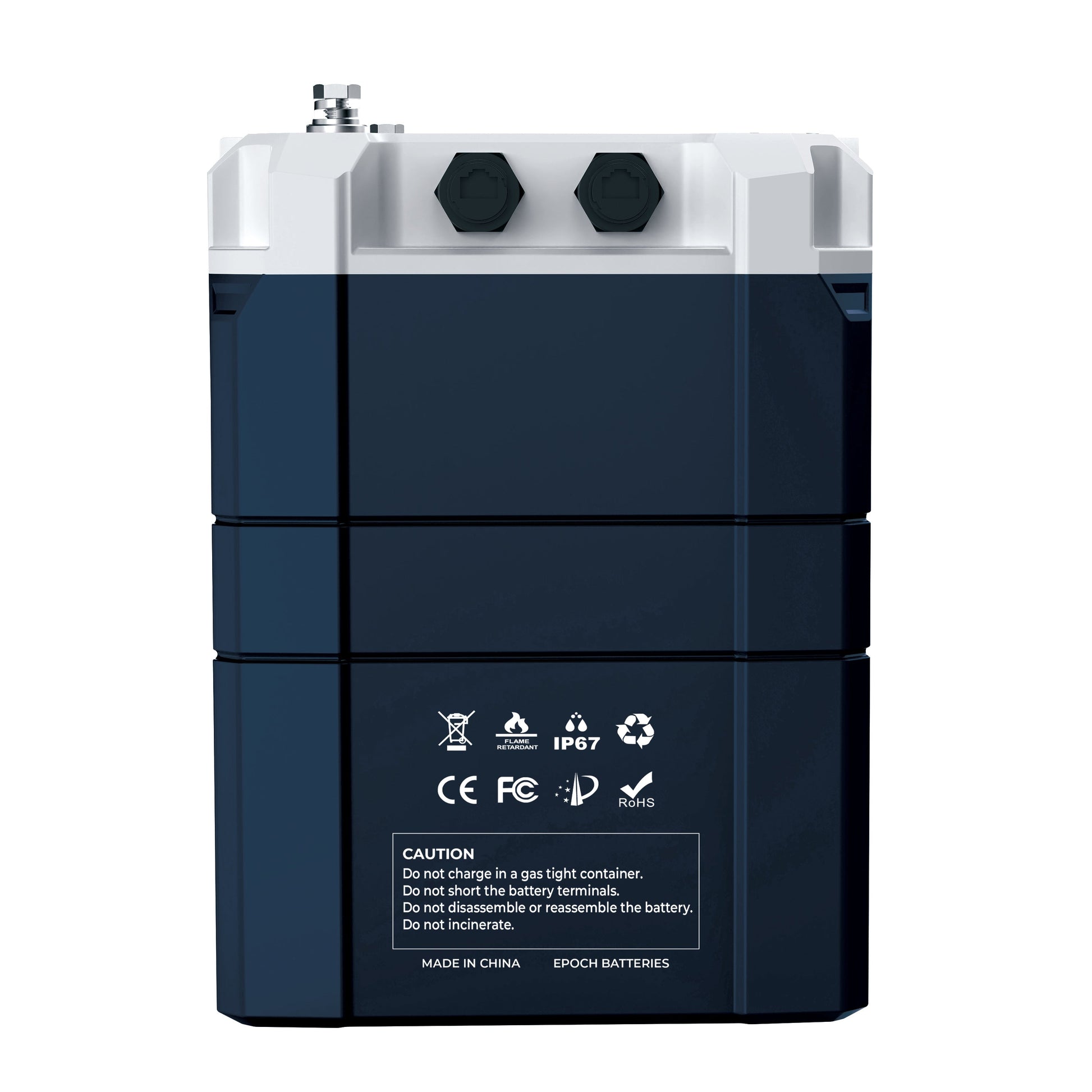

Epoch Batteries 48V 100Ah V2 Elite LiFePO4 Battery With Bluetooth

Epoch Batteries 48V 100Ah V2 Elite LiFePO4 Battery With Bluetooth

This 48V 100Ah V2 Elite Series LiFePO4 battery provides 5.12kWh of stored energy for high-capacity off-grid, RV, marine, solar, and high-power inverter systems. It features native Victron CANBus communication, Bluetooth monitoring, internal self-heating, IP67 waterproof protection, Smart BMS protection, and support for parallel expansion up to 16 batteries. :contentReference[oaicite:0]{index=0}

Key Features

• 100Ah LiFePO4 Capacity: Provides 100Ah of nominal capacity and 5.12kWh of stored energy at 51.2V. :contentReference[oaicite:1]{index=1}
• 150A Continuous Discharge: Supports up to 150A continuous discharge for compatible high-demand 48V systems. :contentReference[oaicite:2]{index=2}
• 300A Peak Discharge: Provides a peak discharge rating of 300A for up to 30 seconds for compatible short-duration loads. :contentReference[oaicite:3]{index=3}
• 100A Continuous Charge: Supports up to 100A continuous charging with compatible 48V LiFePO4 charging equipment. :contentReference[oaicite:4]{index=4}

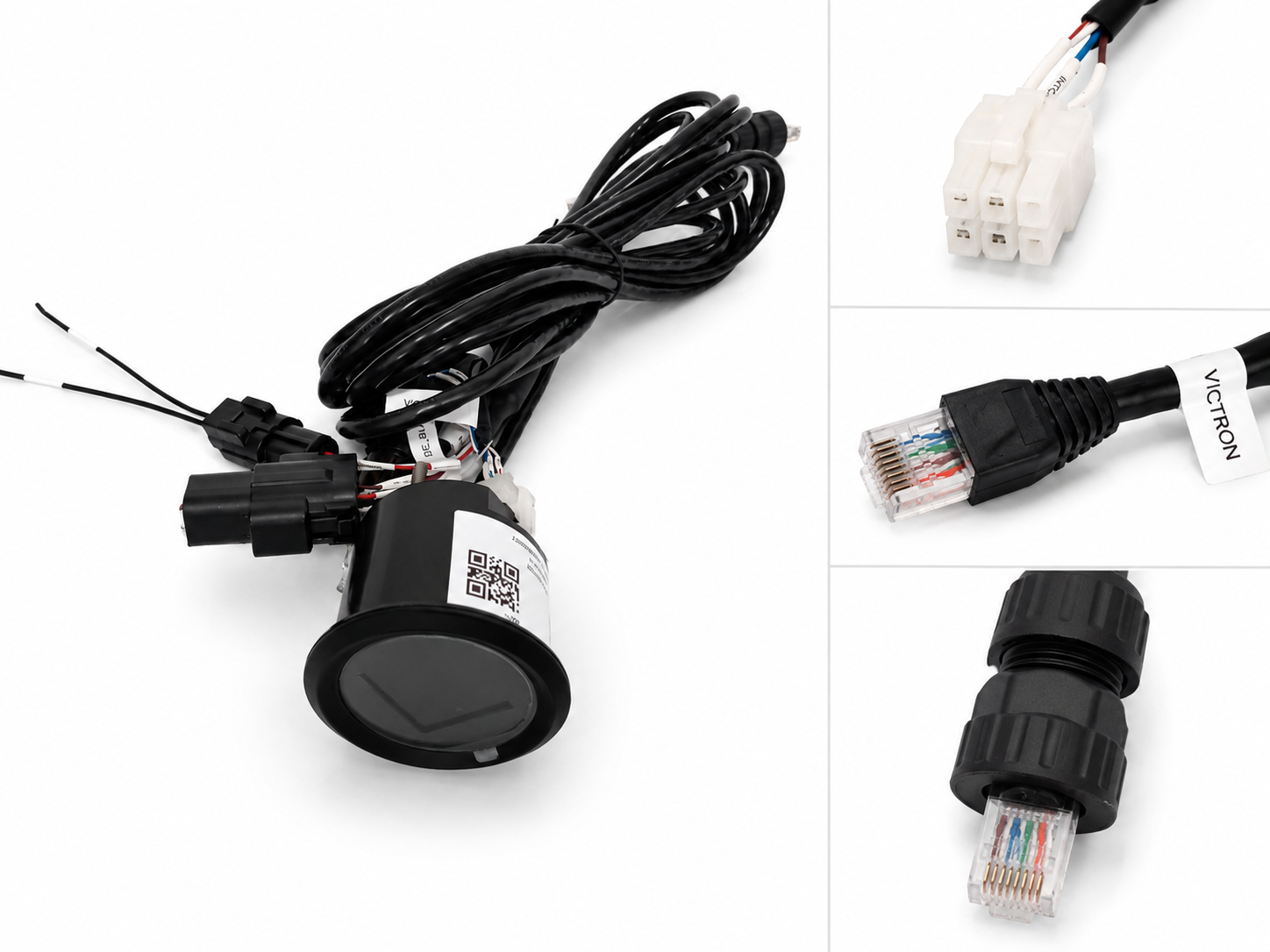

• Victron CANBus Communication: Native CANBus communication supports compatible Victron GX devices and closed-loop system control through DVCC. :contentReference[oaicite:5]{index=5}

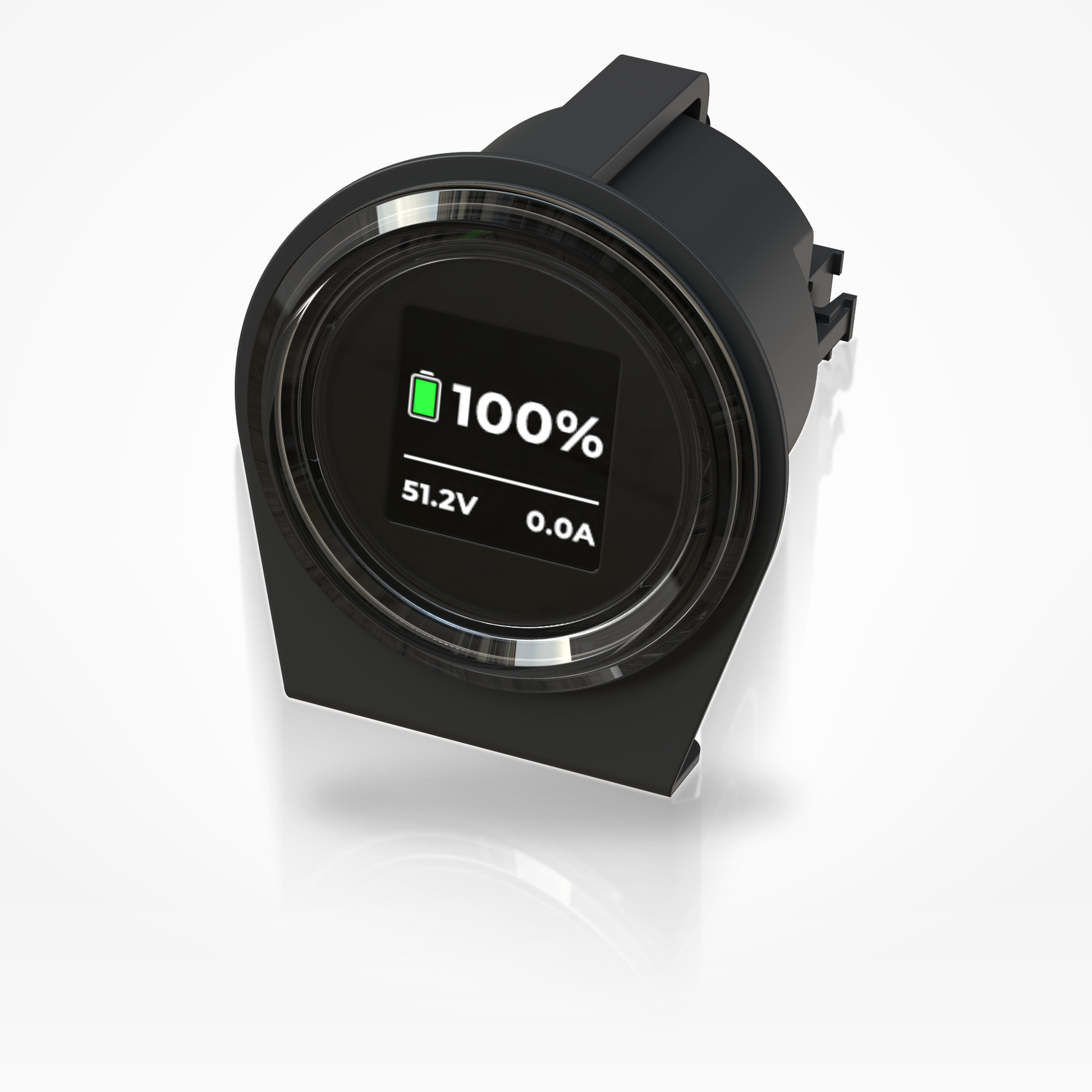

• Bluetooth Monitoring: Compatible with the Epoch app for monitoring state of charge, cell voltage, temperature, charge/discharge cycles, and system alerts. :contentReference[oaicite:6]{index=6}
• Internal Self-Heating: Built-in heating supports cold-weather charging down to -22°F / -30°C when charging power is available. :contentReference[oaicite:7]{index=7}
• IP67 Protection: The enclosure is waterproof and dustproof for suitable marine, mobile, off-grid, and outdoor applications. :contentReference[oaicite:8]{index=8}
• Parallel Expansion: Supports up to 16 batteries in parallel for larger 48V battery banks up to approximately 81.9kWh. :contentReference[oaicite:9]{index=9}
• Advanced Smart BMS: Provides protection against overcharge, over-discharge, over-current, short circuits, and high or low temperature conditions. :contentReference[oaicite:10]{index=10}
• 3,500+ Cycle Life: Designed for repeated deep-cycle use with maintenance-free LiFePO4 chemistry. :contentReference[oaicite:11]{index=11}
• 11-Year Warranty: Backed by an 11-year manufacturer warranty. :contentReference[oaicite:12]{index=12}

Specifications

• Brand: Epoch Batteries
• Model / SKU: C48100A
• Series: V2 Elite Series
• Battery Type: Heated Bluetooth LiFePO4 Battery with Victron CANBus Communication
• Primary Applications: 48V off-grid, RV, marine, solar, industrial, and high-power inverter systems
• Chemistry: LiFePO4 / Lithium Iron Phosphate
• Cell Configuration: 16S1P
• System Voltage: 48V
• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Stored Energy: 5.12kWh / 5,120Wh
• Operating Voltage Range: 40.0V to 58.4V
• Maximum Voltage: 58.4V
• Minimum Voltage: 40.0V
• Maximum Continuous Discharge: 150A
• Peak Discharge: 300A for 30 seconds
• Maximum Continuous Charge Current: 100A
• Maximum Short-Duration Charge Current: 300A
• Theoretical Continuous DC Output: 7,680W at 51.2V and 150A
• Series Configuration: No series connections; native 48V battery
• Parallel Configuration: Maximum 16 batteries in parallel
• Maximum Parallel Bank: Up to 1,600Ah / 81.9kWh
• Bluetooth: Yes, Bluetooth 4.0
• Victron Communication: Yes, CANBus
• Internal Heating: Yes
• Cycle Life: 3,500+ cycles
• Charge Temperature Range: -30°C to 55°C / -22°F to 131°F with self-heating
• Discharge Temperature Range: -20°C to 55°C / -4°F to 131°F
• Recommended Long-Term Storage Temperature: 0°C to 35°C / 32°F to 95°F
• Length: 20.86 inches
• Width: 8.65 inches
• Height: 12.06 inches
• Weight: 97 lb / approximately 44 kg
• Case Material: ABS and PC blend
• Enclosure Protection: IP67
• Terminal Type: M8
• Internal Fuse: UL60691 certified internal fuse
• Cell Certifications: UL1642, UL9540A, IEC 62619:2022
• Battery Pack Certification: UL1973
• Additional Compliance: CE, RoHS
• Warranty: 11-year manufacturer warranty

Recommended Use

Suitable for compatible 48V off-grid battery banks, RV and van systems, marine power systems, solar energy storage, large inverter systems, golf cart and 48V vehicle applications, remote cabins, and other high-capacity 48V installations where the battery's voltage, current, charging, communication, and fitment requirements match. :contentReference[oaicite:13]{index=13}

Charging Specifications

• Absorption Voltage: 56.8V
• Minimum Absorption Time: 15 minutes per battery for non-Victron systems
• Float Voltage: 54.0V
• Equalization: Off / disabled
• Temperature Compensation: Disabled

Victron System Integration

Compatible Victron installations can use the battery's CANBus connection with supported GX devices. Configure the communication harness and battery settings according to Epoch's installation guidance, confirm that the battery appears on the GX device, enable DVCC, and set Epoch as the controlling BMS and battery monitor. :contentReference[oaicite:14]{index=14}

System Expansion

Up to 16 matched batteries can be connected in parallel to create a 48V battery bank with up to 1,600Ah and approximately 81.9kWh of stored energy. This model is a native 48V battery and is designed for parallel expansion rather than series stacking. :contentReference[oaicite:15]{index=15}

Installation Note

Verify inverter requirements, charger compatibility, cable sizing, fusing, communication settings, mounting, and installation environment before commissioning. This battery is designed for parallel 48V system configurations and should be installed using appropriately rated system protection and wiring.

This 48V 100Ah V2 Elite LiFePO4 battery combines high-capacity energy storage with Victron CANBus communication, Bluetooth monitoring, internal self-heating, IP67 protection, Smart BMS protection, and scalable parallel expansion.
