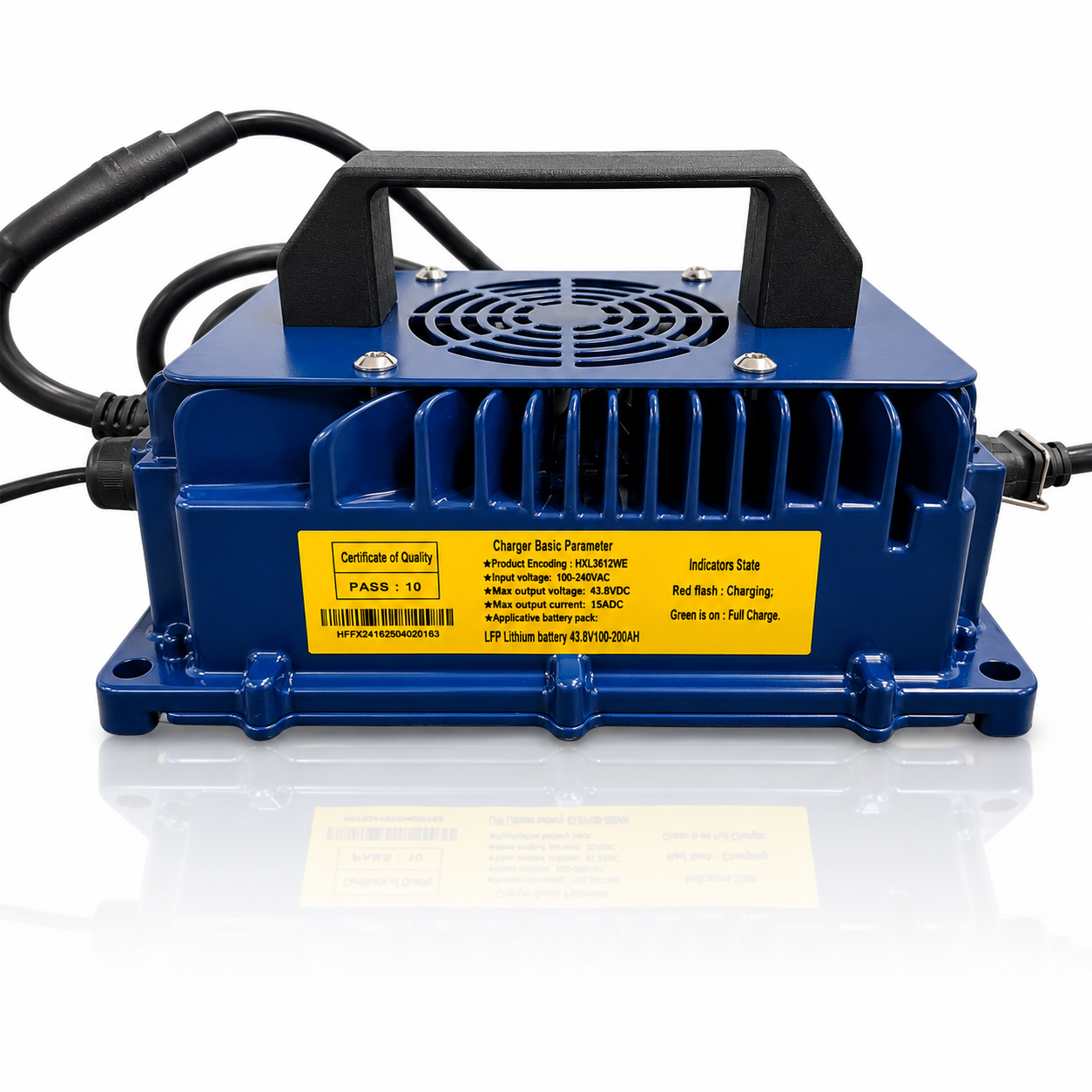

Epoch Batteries 36V 15A LiFePO4 Charger For Trolling Motors

Epoch Batteries 36V 15A LiFePO4 Charger For Trolling Motors

This 36V 15A LiFePO4 battery charger is designed for compatible 36V lithium iron phosphate battery systems, including trolling motor, marine, RV, and mobile applications. It provides up to 95% charging efficiency, ring-terminal output connections, IP67 protection, shock-resistant construction, and multiple automatic safety protections.

Key Features

• 36V LiFePO4 Charging: Designed specifically for compatible 36V Lithium Iron Phosphate battery systems.
• 15A Charging Output: Provides a 15A charge rate for compatible 36V LiFePO4 batteries.
• Up to 95% Efficiency: Provides efficient power conversion during the charging process.
• 120V AC Input: Connects to standard 120V AC outlets for convenient charging at home, garages, shops, marinas, and campgrounds.
• Ring-Terminal Connection: Provides a secure direct connection to compatible battery terminals for onboard or semi-permanent installations.
• IP67 Protection: Dustproof and waterproof construction with temporary immersion protection for suitable marine and outdoor environments.
• Shock-Resistant Construction: Designed for mobile environments such as boats, RVs, and trailers where vibration and movement are present.
• Aluminum Alloy Housing: Lightweight aluminum construction functions as a heatsink to help dissipate heat during charging.
• Smart Charging Protection: Includes reverse polarity, overcharge, output overvoltage, output overcurrent, short-circuit, overtemperature, and ambient temperature protection.
• Dedicated Lithium Charging Profile: Designed for 36V LiFePO4 batteries rather than lead-acid or AGM battery systems.

Specifications

• Brand: Epoch Batteries
• Product: 36V 15A Battery Charger
• Model / SKU: CHG-36V15A
• Charger Type: 36V Lithium LiFePO4 Battery Charger
• Primary Use: 36V trolling motor and marine LiFePO4 battery charging
• Output Voltage Class: 36V
• Output Current: 15A
• Input Voltage: 120V AC
• Charging Efficiency: Up to 95%
• Charge Profile: LiFePO4 / Lithium Iron Phosphate
• Output Connector: Ring terminals
• Housing Material: Lightweight aluminum alloy
• Heat Management: Aluminum housing functions as a heatsink
• Ingress Protection: IP67
• Water Protection: Temporary immersion up to 1 metre for 30 minutes
• Shock Resistance: Yes, designed for mobile environments
• Operating Temperature Range: -40°C to 60°C
• Overtemperature Protection: Yes
• Ambient Temperature Protection: Yes
• Reverse Polarity Protection: Yes
• Overcharge Protection: Yes
• Output Overvoltage Protection: Yes
• Output Overcurrent Protection: Yes
• Output Short-Circuit Protection: Yes

Recommended Use

Suitable for compatible 36V LiFePO4 batteries used in trolling motor systems, bass boats, fishing boats, skiffs, pontoons, RVs, trailers, garages, shops, and other 36V lithium applications requiring a dedicated AC battery charger.

Charging Specifications

• Output Current: 15A
• Output Voltage Class: 36V
• Battery Chemistry: LiFePO4 / Lithium Iron Phosphate
• Input Power: 120V AC
• Charging Efficiency: Up to 95%
• Output Connection: Ring terminals

Charging Time Estimates

Approximate bulk charging time can be estimated by dividing battery capacity in amp-hours by the charger's 15A output. Actual charging time may be longer because of charging-current tapering and battery management functions.

• 36V 50Ah Battery: Approximately 3.3 to 3.5 hours from empty, plus taper or balancing time.
• 36V 100Ah Battery: Approximately 6.7 to 7 hours from empty, plus taper or balancing time.
• Higher-Capacity Batteries: Charging time increases according to battery capacity and starting state of charge.

Compatibility Notice

This charger is intended for compatible 36V LiFePO4 battery systems. Do not use it with lead-acid, AGM, gel, flooded, 12V, 24V, or 48V batteries unless Epoch specifically confirms compatibility for the exact battery and application.

Installation and Safety

Connect the ring terminals to the correct battery terminals and verify polarity before energizing the charger. Keep AC connections dry and properly protected even though the charger enclosure is IP67 rated. Use suitable wiring, terminal connections, and mounting methods for the complete installation.

This 36V 15A LiFePO4 battery charger provides dedicated lithium charging with up to 95% efficiency, IP67 protection, ring-terminal connections, aluminum thermal management, shock-resistant construction, and multiple automatic electrical safety protections.
