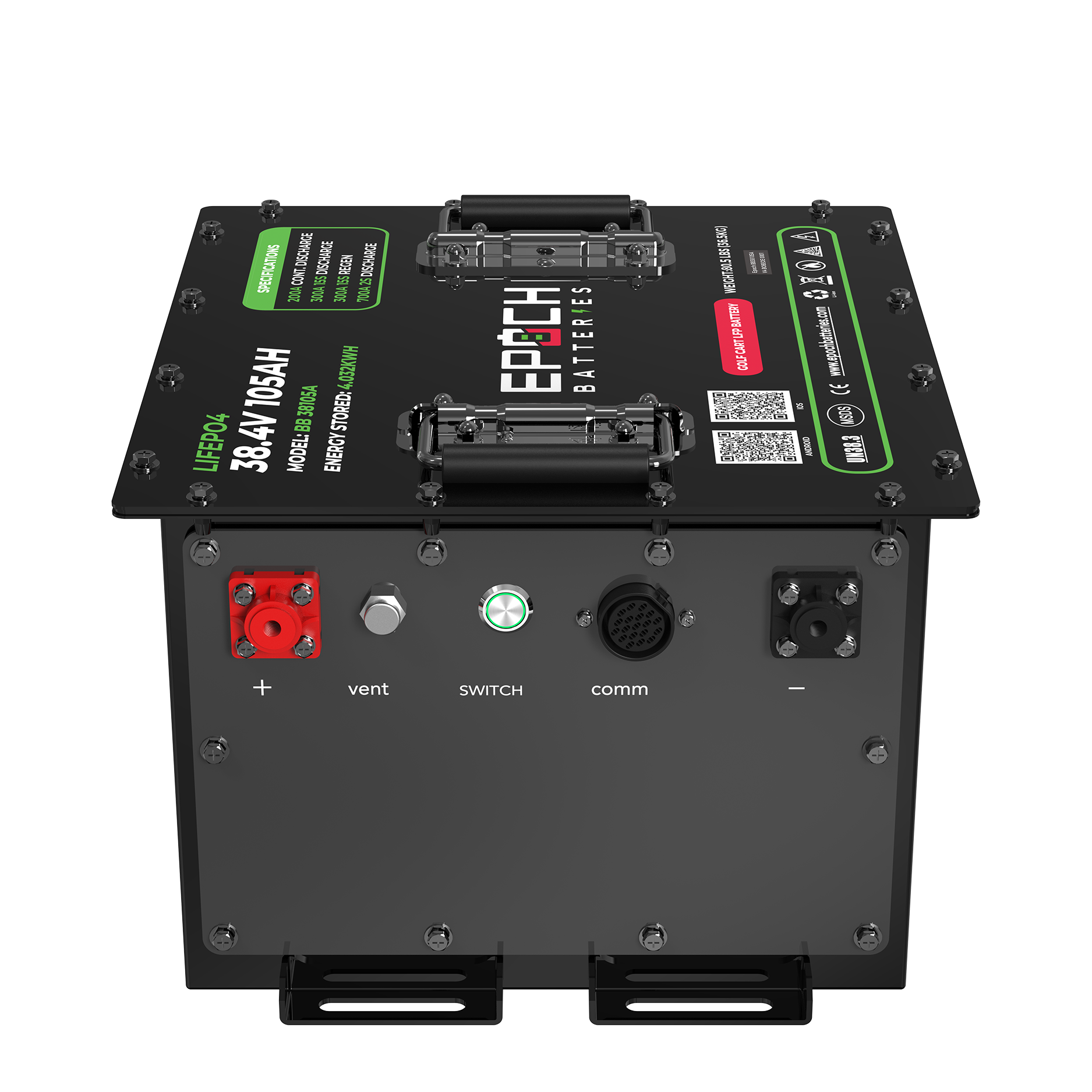

Epoch Batteries 36V 105Ah LiFePO4 Golf Cart Battery Kit With Bluetooth

Epoch Batteries 36V 105Ah LiFePO4 Golf Cart Battery Kit

This complete 36V 105Ah LiFePO4 golf cart conversion kit provides 4.032kWh of stored energy and includes a 36V 15A lithium charger, dashboard battery gauge, and 12V converter. It also features Bluetooth monitoring, Smart BMS protection, IP67 enclosure protection, and support for compatible 36V golf cart applications.

Key Features

• 105Ah LiFePO4 Capacity: Provides 105Ah of nominal capacity and 4.032kWh of stored energy at 38.4V.
• Complete Conversion Kit: Includes the 36V 105Ah LiFePO4 battery, 36V 15A lithium charger, dashboard battery gauge, and 12V converter.
• 200A Continuous Discharge: Supports up to 200A continuous discharge for compatible golf cart loads and electrical systems.
• 700A Peak Discharge: Provides up to 700A peak discharge for 2 seconds and 300A for 15 seconds for compatible short-duration loads.
• 100A Continuous Charging: Supports up to 100A continuous charging with compatible 36V LiFePO4 charging equipment.
• Regenerative Charging Support: Supports up to 300A for 15 seconds under compatible regenerative charging conditions.

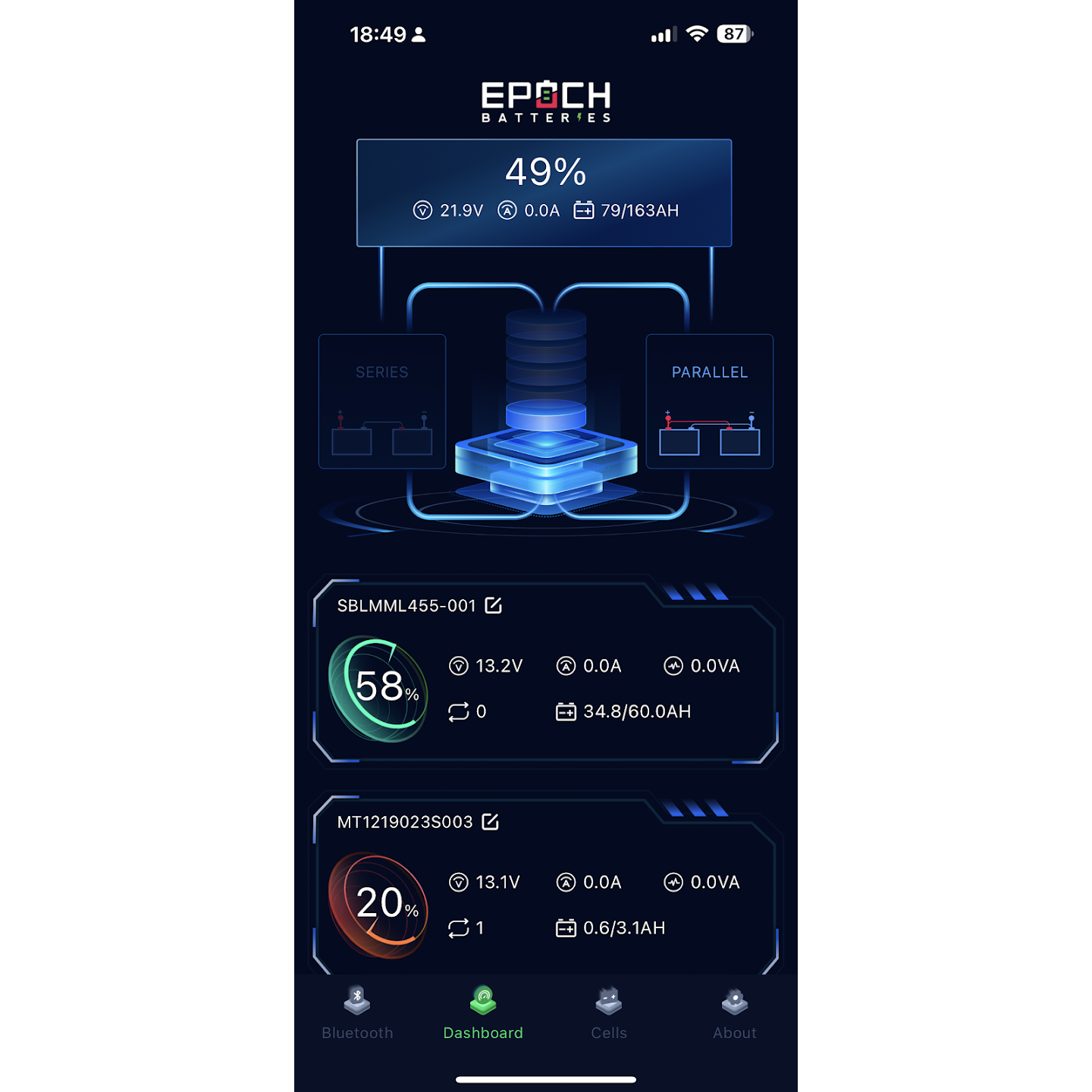

• Bluetooth Monitoring: Connects with compatible iOS and Android apps for monitoring battery health, voltage, state of charge, current, and battery status.
• Over-the-Air Updates: Supports firmware updates through the compatible Bluetooth app ecosystem.
• Smart BMS Protection: Integrated Battery Management System provides protection against overcharge, over-discharge, over-current, short circuits, and temperature-related conditions.
• IP67 Enclosure: Dustproof and protected against temporary water immersion for suitable outdoor golf cart and utility applications.
• Parallel Expansion: Supports up to two matched batteries in parallel for increased capacity where compatible.
• 3,500+ Cycle Life: Designed for repeated deep-cycle use with maintenance-free LiFePO4 chemistry.
• 11-Year Warranty: Backed by an 11-year manufacturer warranty.

Specifications

• Brand: Epoch Batteries
• Model / SKU: BB38105A-KIT-1
• Product Type: 36V LiFePO4 Golf Cart Conversion Kit
• Chemistry: LiFePO4 / Lithium Iron Phosphate
• Cell Type: Prismatic LiFePO4
• Cell Configuration: 1P12S
• System Voltage Class: 36V
• Nominal Voltage: 38.4V
• Nominal Capacity: 105Ah
• Stored Energy: 4.032kWh
• Operating Voltage Range: 30V to 43.8V
• Maximum Charge Voltage: 43.8V
• Maximum Continuous Discharge: 200A
• Maximum Discharge Peak: 300A for 15 seconds / 700A for 2 seconds
• Maximum Continuous Charge: 100A
• Maximum Regenerative Charge: 300A for 15 seconds
• Series Configuration: Not intended for series expansion beyond 36V
• Parallel Configuration: Maximum 2 batteries in parallel
• Bluetooth: Yes
• Over-the-Air Firmware Updates: Yes
• Internal Heating: No
• Low-Temperature Charge Protection: Yes
• Cycle Life: 3,500+ cycles
• Warranty: 11-year manufacturer warranty
• Charger Included: 36V 15A LiFePO4 charger
• Battery Gauge Included: Yes, dashboard battery gauge
• 12V Converter Included: Yes
• Configuration Options: EZGO TXT, Club Car DS, and Other

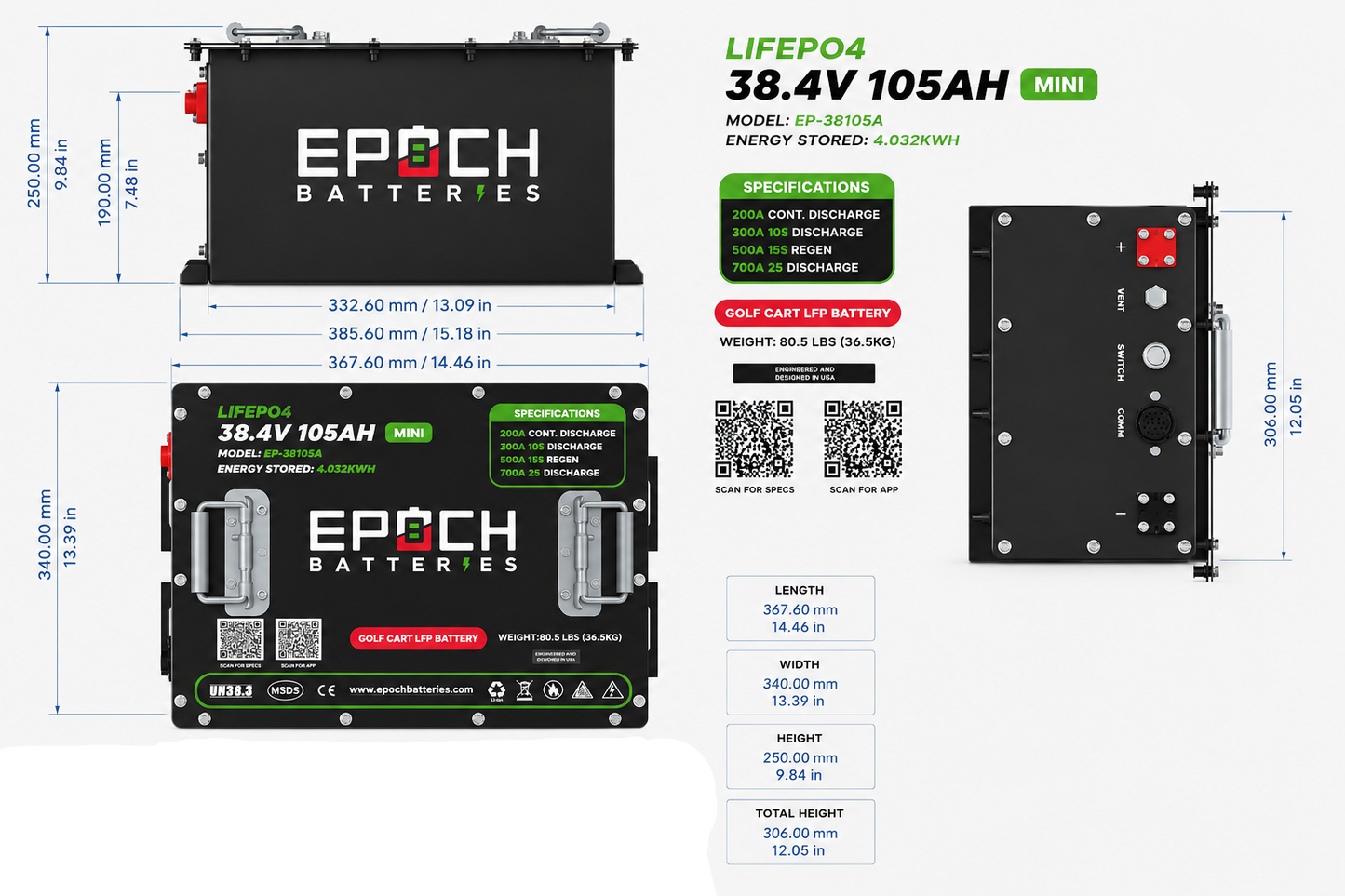

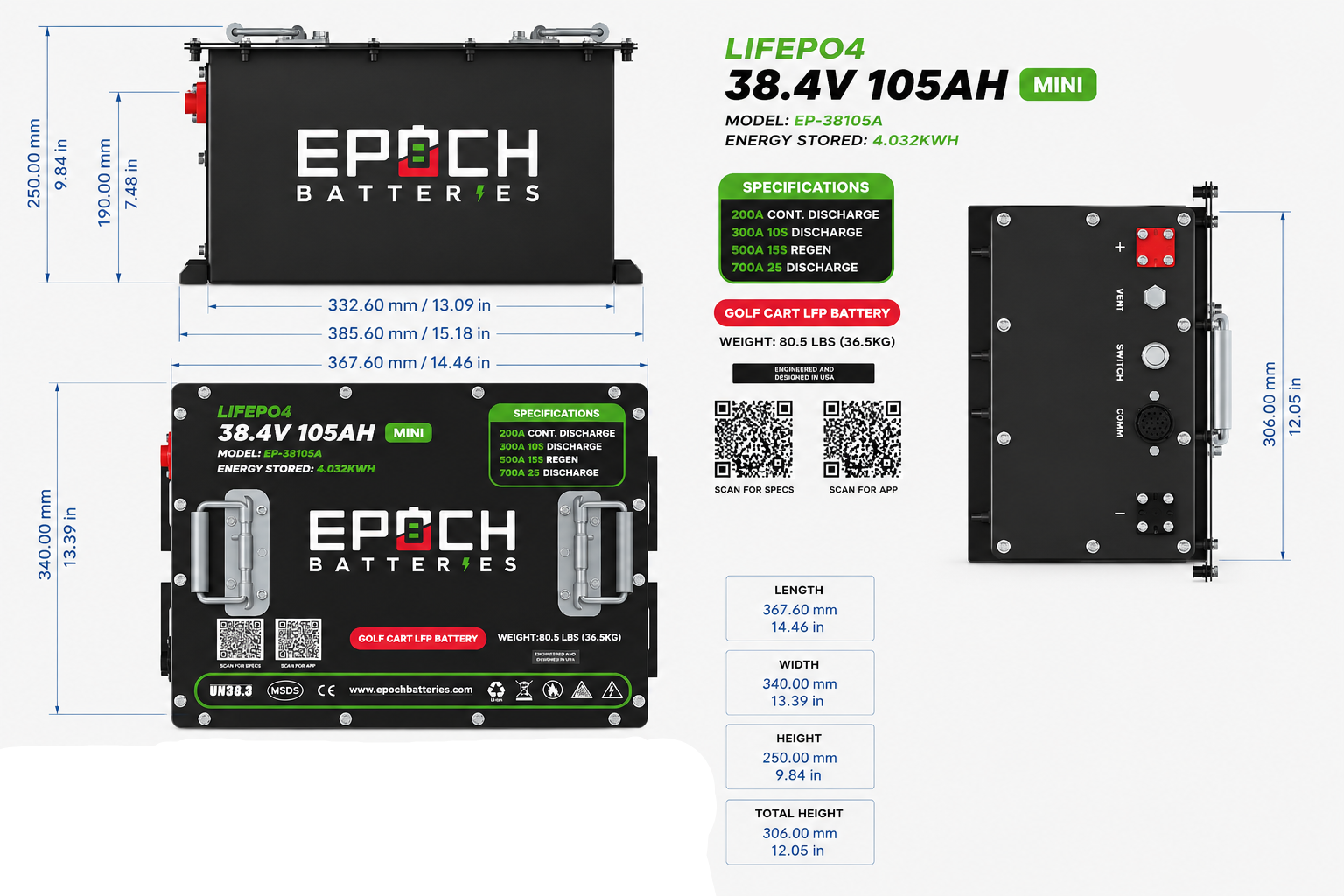

• Length: 14.6 inches
• Width: 13.4 inches
• Height: 9.9 inches
• Weight: 81 lb
• Case Material: Steel
• Enclosure Protection: IP67

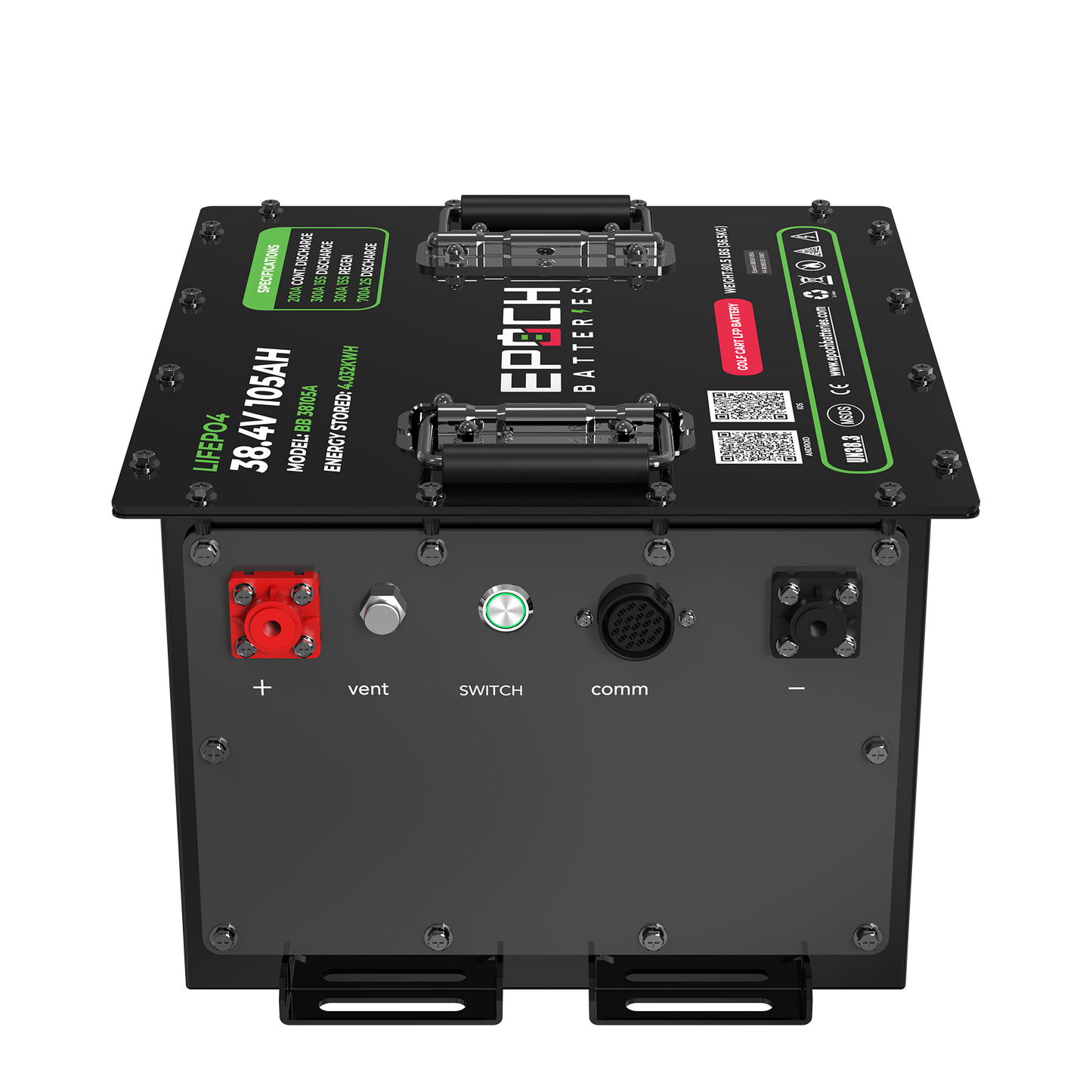

• Terminal Type: M8 female
• Charge Temperature Range: 0°C to 55°C / 32°F to 131°F
• Discharge Temperature Range: -20°C to 60°C / -4°F to 140°F
• Recommended Storage Temperature: 0°C to 35°C / 32°F to 95°F, maximum 12 months

Recommended Use

Suitable for compatible 36V golf carts, utility carts, neighborhood vehicles, fleet carts, campground vehicles, resort carts, and other 36V applications where battery fitment, controller requirements, charger compatibility, and electrical specifications match.

Included Kit Components

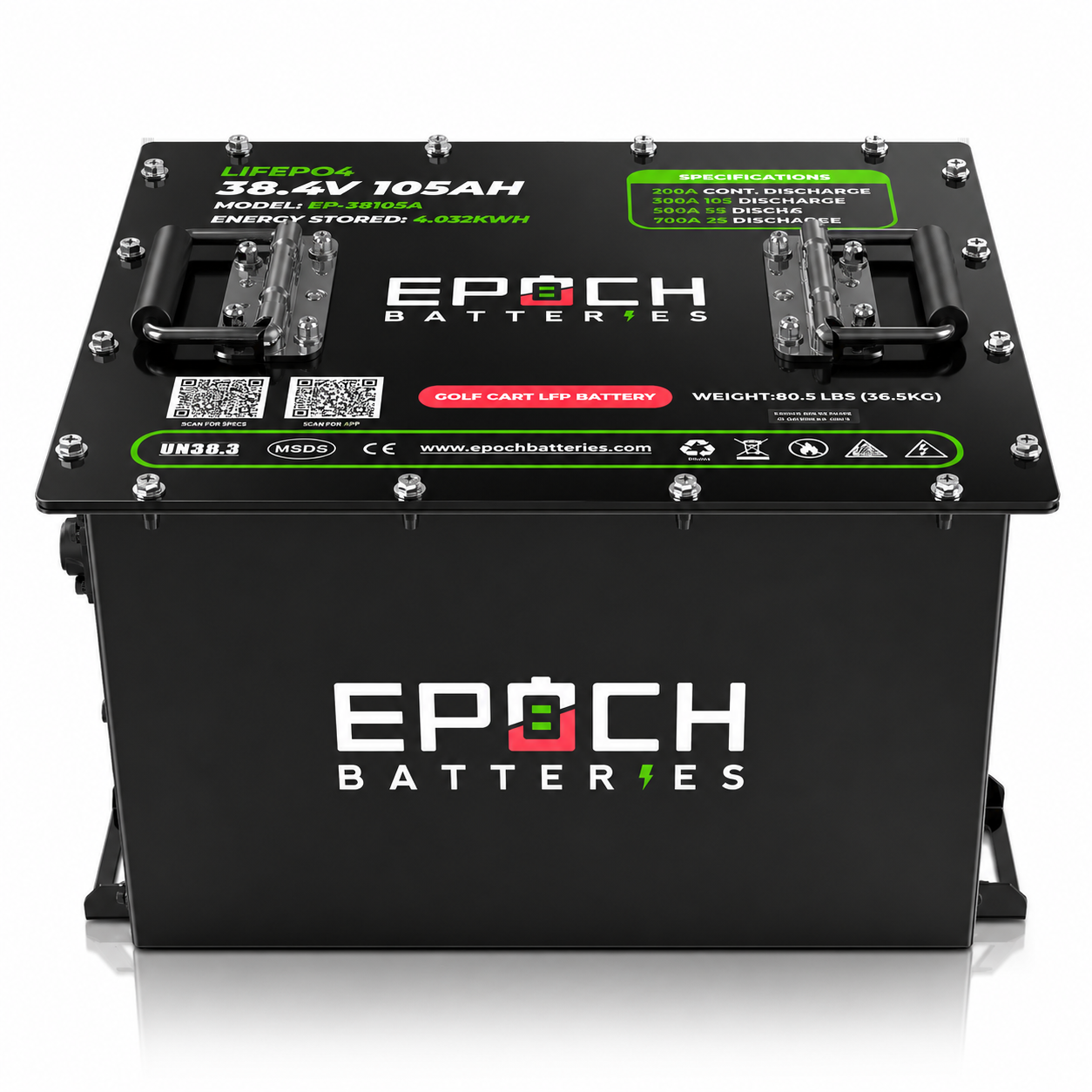

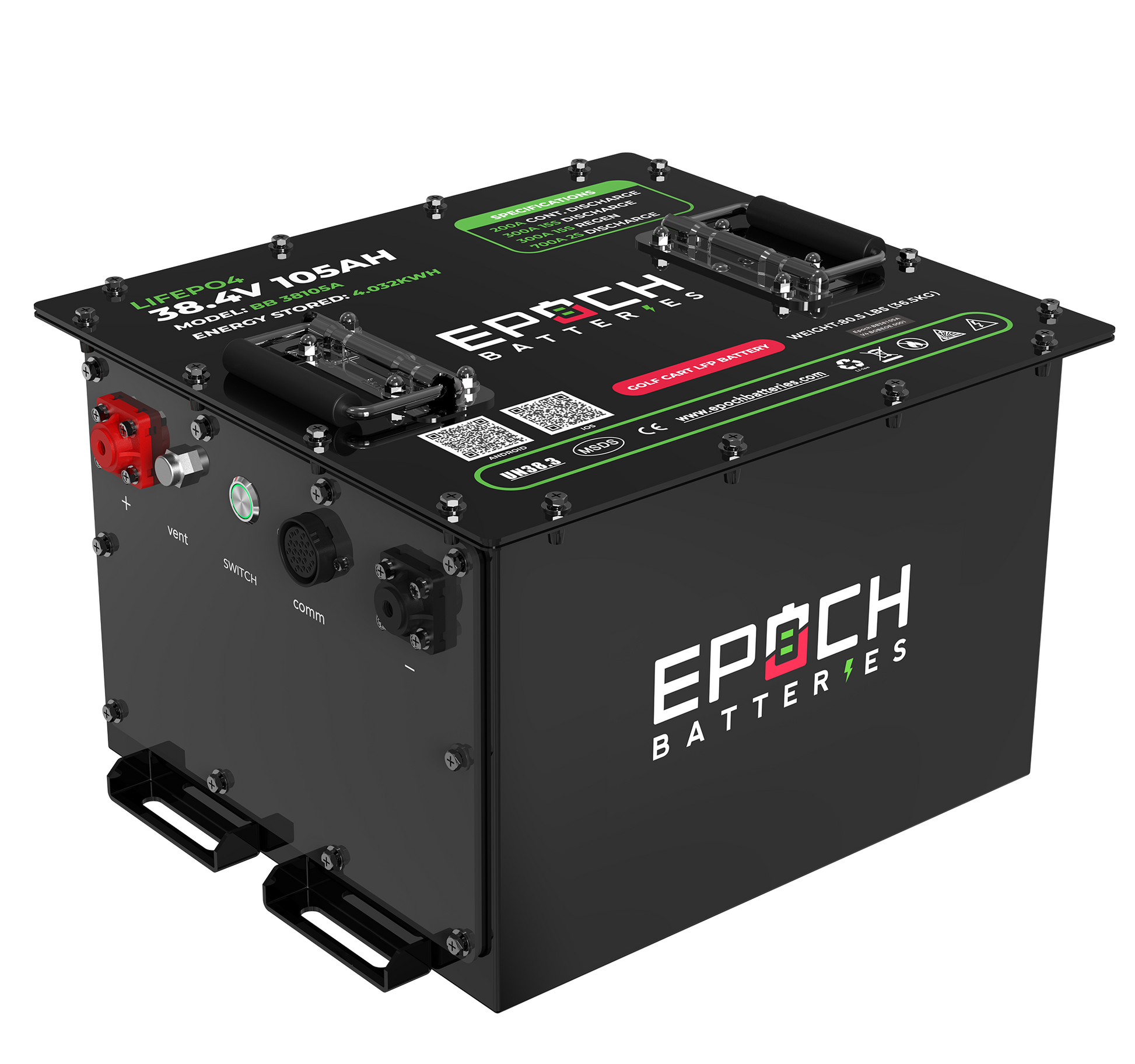

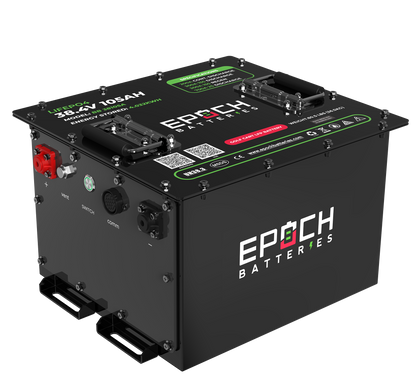

• LiFePO4 Battery: 36V 105Ah battery with 4.032kWh of stored energy.
• Lithium Charger: 36V 15A LiFePO4 charger.

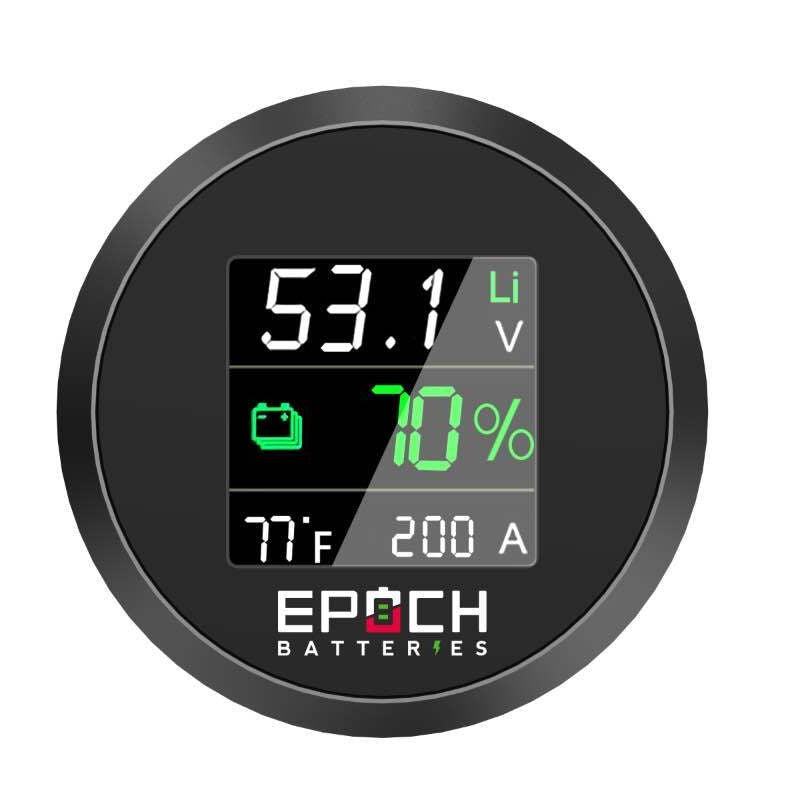

• Dashboard Gauge: Battery state-of-charge display for compatible golf cart installations.
• 12V Converter: Converter for compatible low-voltage accessories and electrical loads.

Charging Specifications

• Required Charger: 36V LiFePO4-compatible charger
• Bulk / Absorption Voltage: 42.6V to 43.2V
• Absorption End Condition: Stop when charge current is ≤ C/20 or after 15 minutes maximum
• Float Voltage: Disabled preferred, or 40.0V to 40.8V
• Re-Bulk Voltage: 39.6V
• Temperature Compensation: 0mV/°C / none
• Equalization: Disabled
• Recommended Charge Rate: 50% of the battery or battery-bank capacity
• BMS High-Voltage Cutoff: 43.8V
• SoC Recalibration Voltage: 43.8V

Golf Cart Fitment

Available configurations include EZGO TXT, Club Car DS, and Other. Because golf cart fitment varies by model year and configuration, verify battery-bay dimensions, controller compatibility, cable routing, charger connection, mounting requirements, and 12V accessory requirements before installation.

Installation Note

The IP67 enclosure provides dust protection and temporary water-immersion resistance, but the battery should still be securely mounted and protected from prolonged standing water and physical damage. Use the included charger and compatible installation components according to the battery and golf cart manufacturer's requirements.

This 36V 105Ah LiFePO4 golf cart kit combines a high-capacity lithium battery with a charger, dashboard gauge, 12V converter, Bluetooth monitoring, Smart BMS protection, and IP67 enclosure protection for compatible 36V golf cart conversions.
