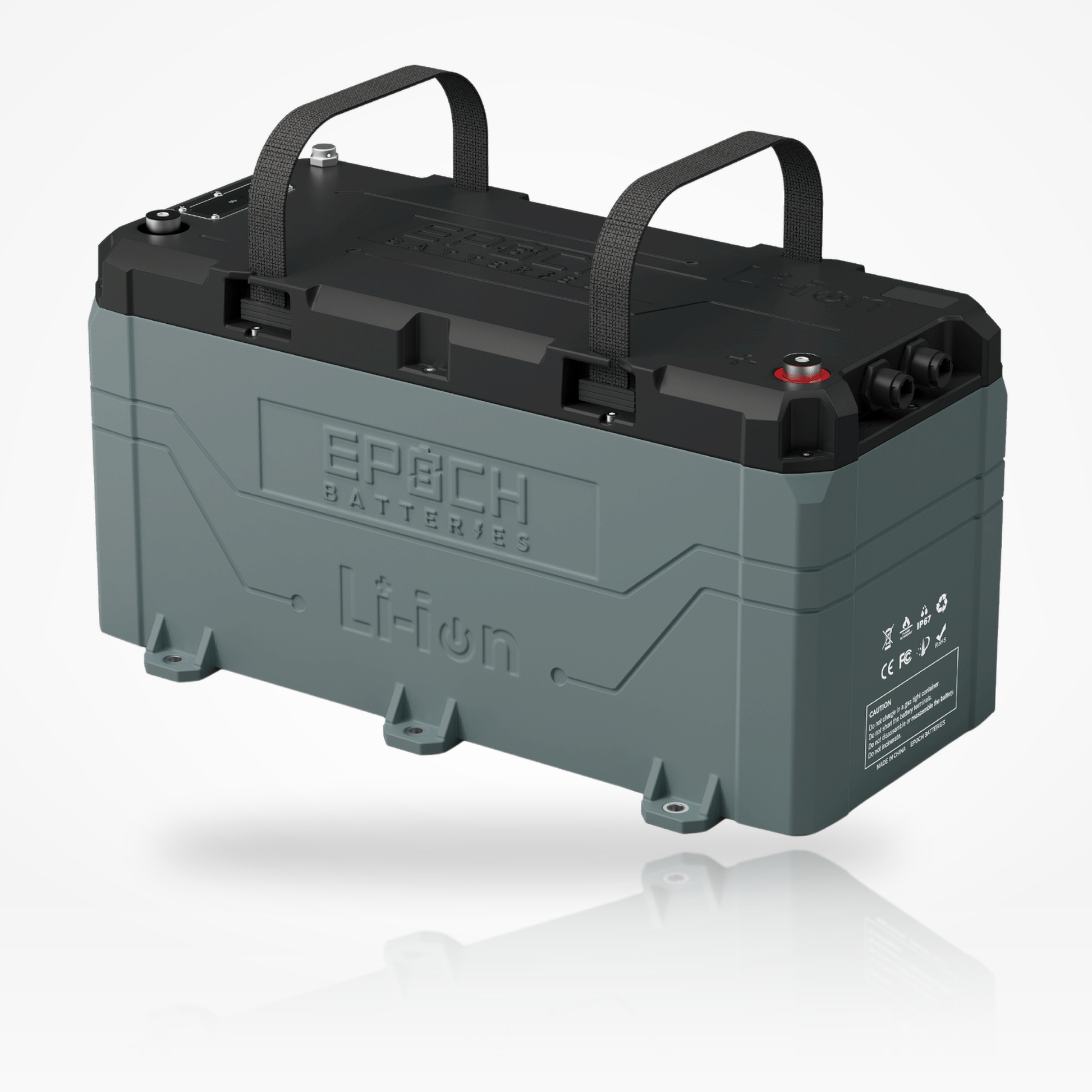

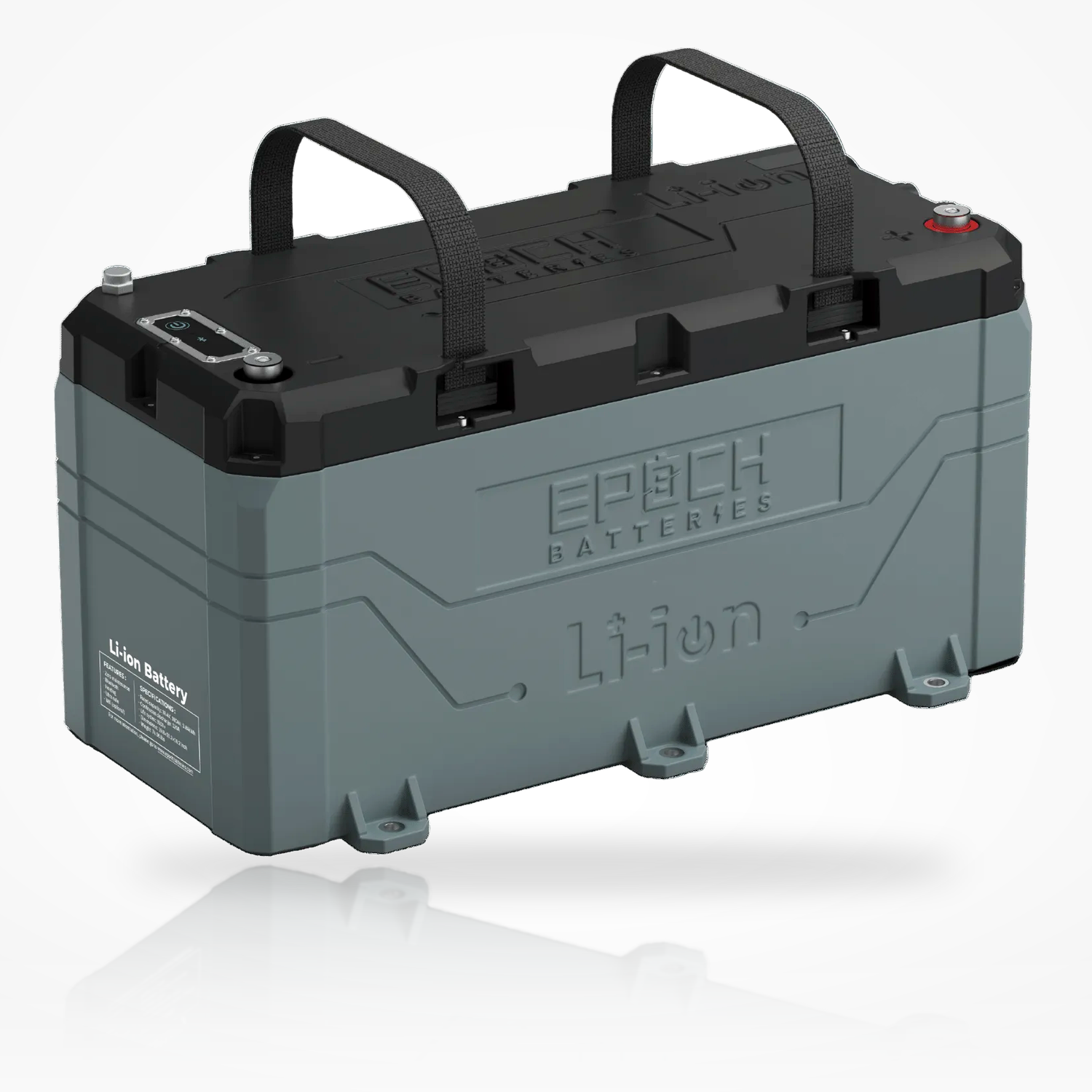

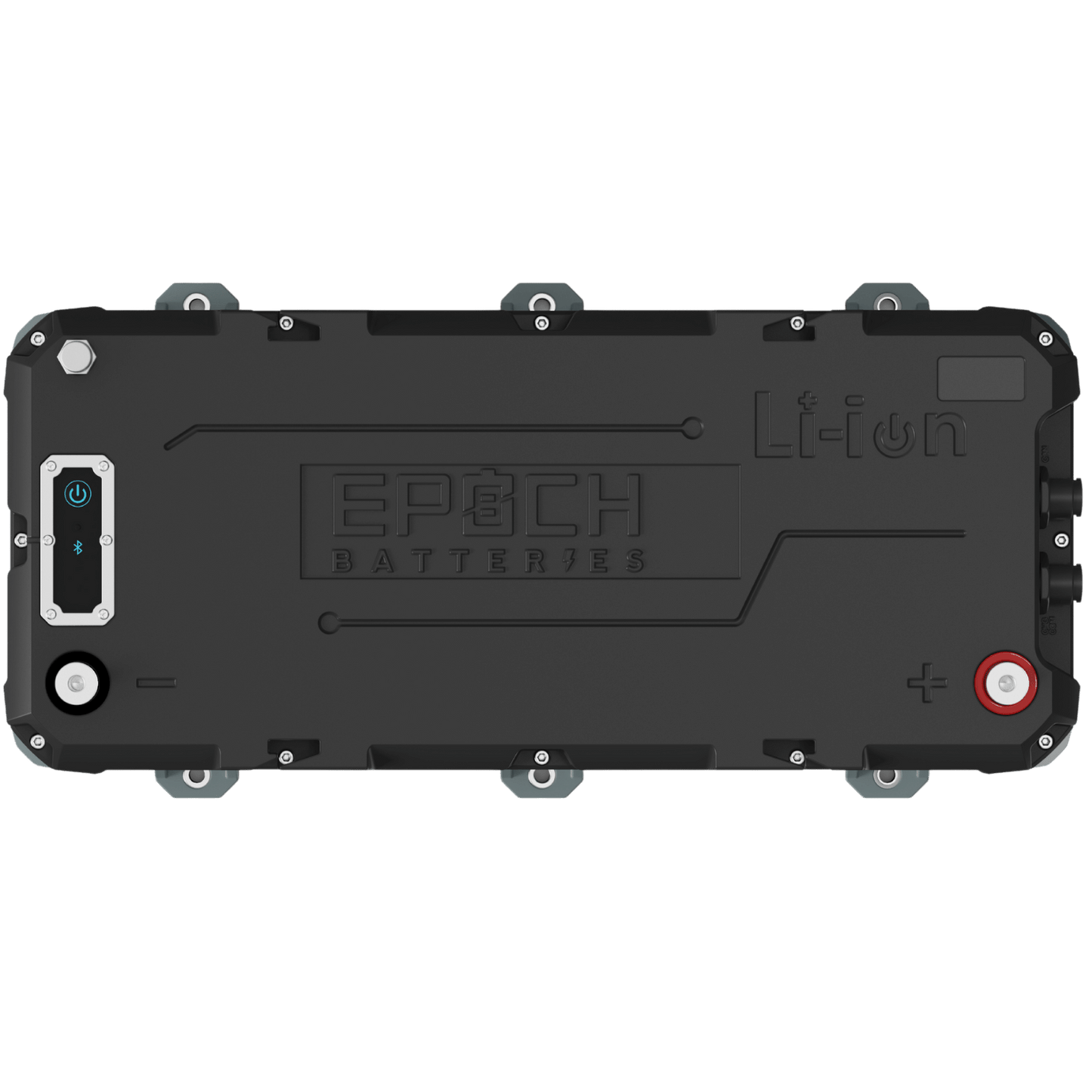

Epoch Batteries 36V 100Ah Heated LiFePO4 Battery With Bluetooth

Epoch Batteries 36V 100Ah Heated LiFePO4 Battery With Bluetooth

This 36V 100Ah LiFePO4 deep-cycle battery provides 3.84kWh of stored energy for compatible trolling motors, marine, golf cart, solar, and off-grid power systems. It features internal heating for cold-weather charging, Bluetooth monitoring, Smart BMS protection, IP67 enclosure protection, and support for parallel expansion up to four batteries.

Key Features

• 100Ah LiFePO4 Capacity: Provides 100Ah of nominal capacity and 3.84kWh of stored energy at 38.4V.
• 120A Continuous Discharge: Supports up to 120A continuous discharge for compatible 36V loads and trolling motor applications.
• 200A Peak Discharge: Provides peak discharge of 200A for up to 60 seconds for compatible short-duration loads.
• 100A Continuous Charge: Supports up to 100A continuous charging with compatible 36V LiFePO4 charging equipment.
• 150A Peak Charge: Supports up to 150A charging for 10 seconds under compatible charging conditions.
• Internal Self-Heating: Built-in heating supports charging in cold conditions within the specified temperature range.

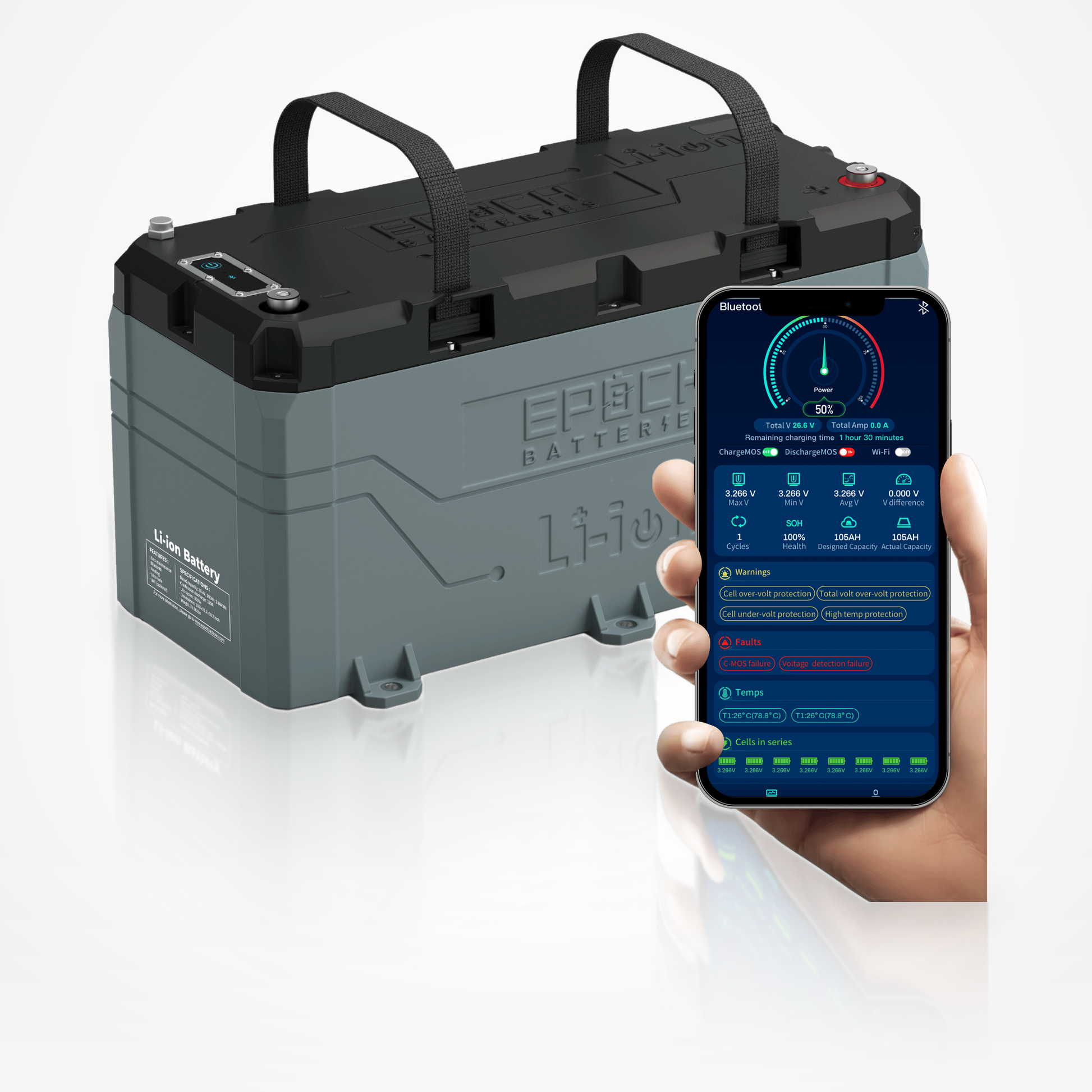

• Bluetooth Monitoring: Compatible with iOS and Android apps for monitoring state of charge, voltage, current, cycle information, and battery status.
• Smart BMS Protection: Integrated Battery Management System provides protection against overcharge, over-discharge, over-current, short circuits, and temperature-related conditions.
• IP67 Enclosure: Dustproof and rated for temporary water immersion up to 1 metre for 30 minutes.
• Parallel Expansion: Supports up to four matched batteries in parallel for increased 36V capacity and runtime.
• 3,500+ Cycle Life: Designed for repeated deep-cycle use with maintenance-free LiFePO4 chemistry.
• 11-Year Warranty: Backed by an 11-year manufacturer warranty.

Specifications

• Brand: Epoch Batteries
• Model / SKU: B36100A-A
• Data-Sheet Platform: B36100A
• Battery Type: Heated Bluetooth Deep-Cycle LiFePO4 Battery
• Primary Application: 36V marine trolling motor and compatible 36V deep-cycle systems
• Chemistry: LiFePO4 / Lithium Iron Phosphate
• Cell Type: Prismatic LiFePO4
• Cell Configuration: 12S
• System Voltage Class: 36V
• Nominal Voltage: 38.4V
• Nominal Capacity: 100Ah
• Stored Energy: 3.84kWh
• Operating Voltage Range: 30.0V to 43.8V
• Maximum Charge Voltage: 43.8V
• Maximum Continuous Discharge: 120A
• Maximum Continuous Charge Current: 100A
• Maximum Charge Current: 150A for 10 seconds
• Maximum Discharge Peak Current: 200A for 60 seconds
• Series Configuration: Maximum 1 battery in series
• Parallel Configuration: Maximum 4 batteries in parallel
• Maximum Parallel Capacity: Up to 400Ah with four matched batteries
• Bluetooth: Yes
• Internal Self-Heating: Yes
• Low-Temperature Charge Protection: Yes
• Cycle Life: 3,500+ cycles
• Warranty: 11-year manufacturer warranty
• Charge Temperature Range: -20°C to 55°C / -4°F to 131°F, with heating
• Battery Charge Temperature Range: 0°C to 55°C / 32°F to 131°F
• Discharge Temperature Range: -20°C to 60°C / -4°F to 140°F
• Recommended Storage Temperature: 0°C to 35°C / 32°F to 95°F
• Length: 20 inches / approximately 50.8 cm
• Width: 10.25 inches / approximately 26.04 cm
• Height: 11 inches / approximately 27.94 cm
• Overall Dimensions: 20 × 10.25 × 11 inches
• Weight: 75 lb / approximately 34.02 kg
• Case Material: ABS and PC blend, UL94-V0 flame rating
• Enclosure Protection: IP67
• Terminal Type: M8 female

Recommended Use

Suitable for compatible 36V trolling motor systems, bass boats, fishing boats, pontoons, skiffs, marine auxiliary power, golf cart applications, solar energy storage, off-grid systems, and other 36V deep-cycle applications where battery voltage, current, fitment, and charging requirements match.

Charging Specifications

• Bulk / Absorption Voltage: 42.6V to 43.2V
• Absorption End Condition: Stop when charge current is ≤ C/20 or after 15 minutes maximum
• Float Voltage: Disabled preferred, or 40.0V to 40.8V
• Re-Bulk Voltage: 39.6V
• Temperature Compensation: 0mV/°C / none
• Equalization: Disabled
• Recommended Charge Rate: 50% of the battery or battery-bank capacity
• Battery Charge Temperature: 0°C to 55°C / 32°F to 131°F
• BMS High-Voltage Cutoff: 43.8V
• SoC Recalibration: 43.8V

Compatible Applications

Designed for compatible 36V trolling motor systems, marine deep-cycle installations, golf cart and utility applications, solar and off-grid storage, and parallel 36V battery banks. Verify system requirements, charger compatibility, battery dimensions, cabling, fuse protection, and controller specifications before installation.

Installation Note

This model supports a maximum of one battery in series and up to four batteries in parallel. The IP67 enclosure provides dust protection and temporary water-immersion resistance, but the battery should still be securely mounted and protected from prolonged submersion and physical damage.

This 36V 100Ah LiFePO4 battery provides high-capacity deep-cycle energy storage with internal heating, Bluetooth monitoring, Smart BMS protection, IP67 enclosure protection, and scalable parallel capacity for compatible 36V systems.
