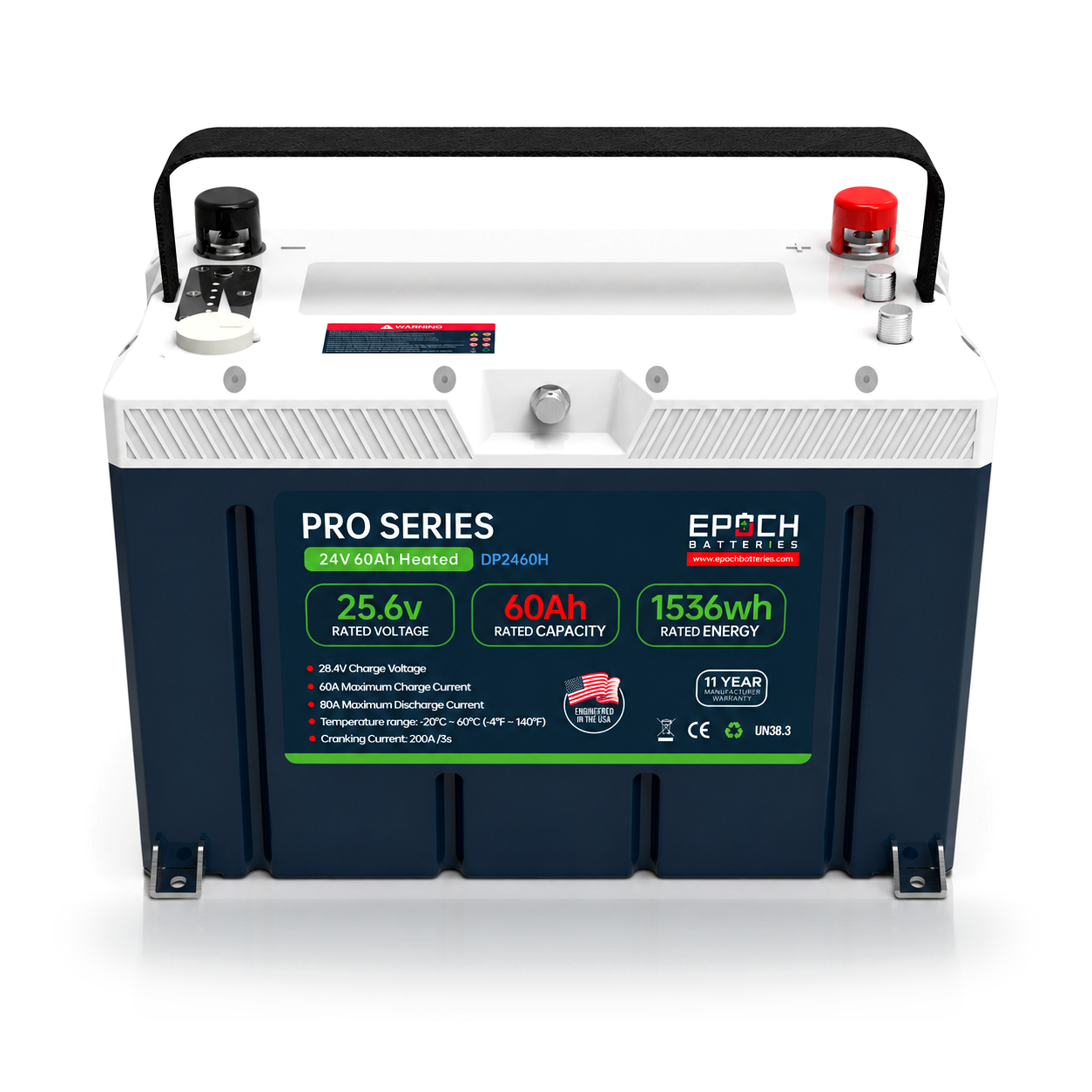

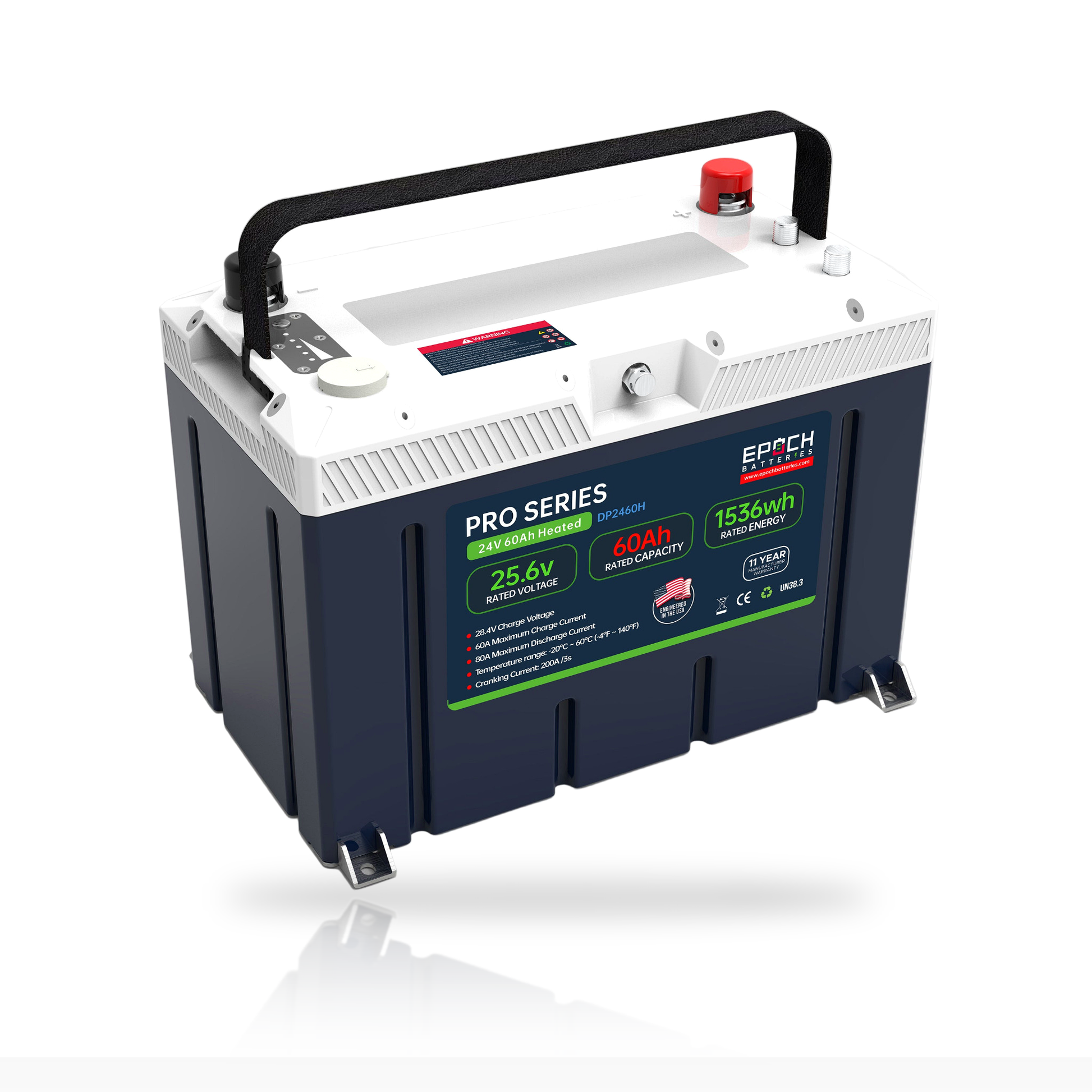

Epoch Batteries 24V 60Ah Pro Series LiFePO4 Battery With Bluetooth

Epoch Batteries 24V 60Ah Pro Series LiFePO4 Battery With Bluetooth

This 24V 60Ah Pro Series LiFePO4 deep-cycle battery provides 1.54kWh of stored energy in a compact Group 27 format. It features internal heating, Bluetooth monitoring, Victron communication support, Smart BMS protection, IP67 enclosure protection, and parallel expansion for compatible marine, RV, trolling motor, solar, and off-grid 24V power systems.

Key Features

• 60Ah LiFePO4 Capacity: Provides 60Ah of nominal capacity and 1.54kWh of stored energy at 25.6V.
• 80A Continuous Discharge: Supports up to 80A continuous discharge for compatible 24V loads and deep-cycle applications.
• 200A Peak Discharge: Provides peak output of 200A for up to 3 seconds for compatible short-duration loads.
• 60A Maximum Charge Current: Supports up to 60A continuous charging with compatible LiFePO4 charging equipment.
• Internal Heating: Built-in self-heating supports charging in cold conditions within the specified temperature range.
• Bluetooth Monitoring: Compatible with the Epoch Pro app for iOS and Android devices to monitor battery status, voltage, current, temperature, and other battery information.
• Victron Communication Support: CAN/RS485 communication support enables integration with compatible Victron systems and equipment.
• Smart BMS Protection: Integrated Battery Management System provides protection against overcharge, over-discharge, over-current, short circuits, and high or low temperature conditions.
• IP67 Enclosure: Dustproof and protected against temporary water immersion for suitable marine, outdoor, RV, and mobile installations.
• Parallel Expansion: Supports up to 16 matched batteries in parallel for larger 24V battery banks.
• 6,000+ Cycle Life: Designed for repeated deep-cycle use with maintenance-free LiFePO4 chemistry.
• 11-Year Warranty: Backed by an 11-year manufacturer warranty.

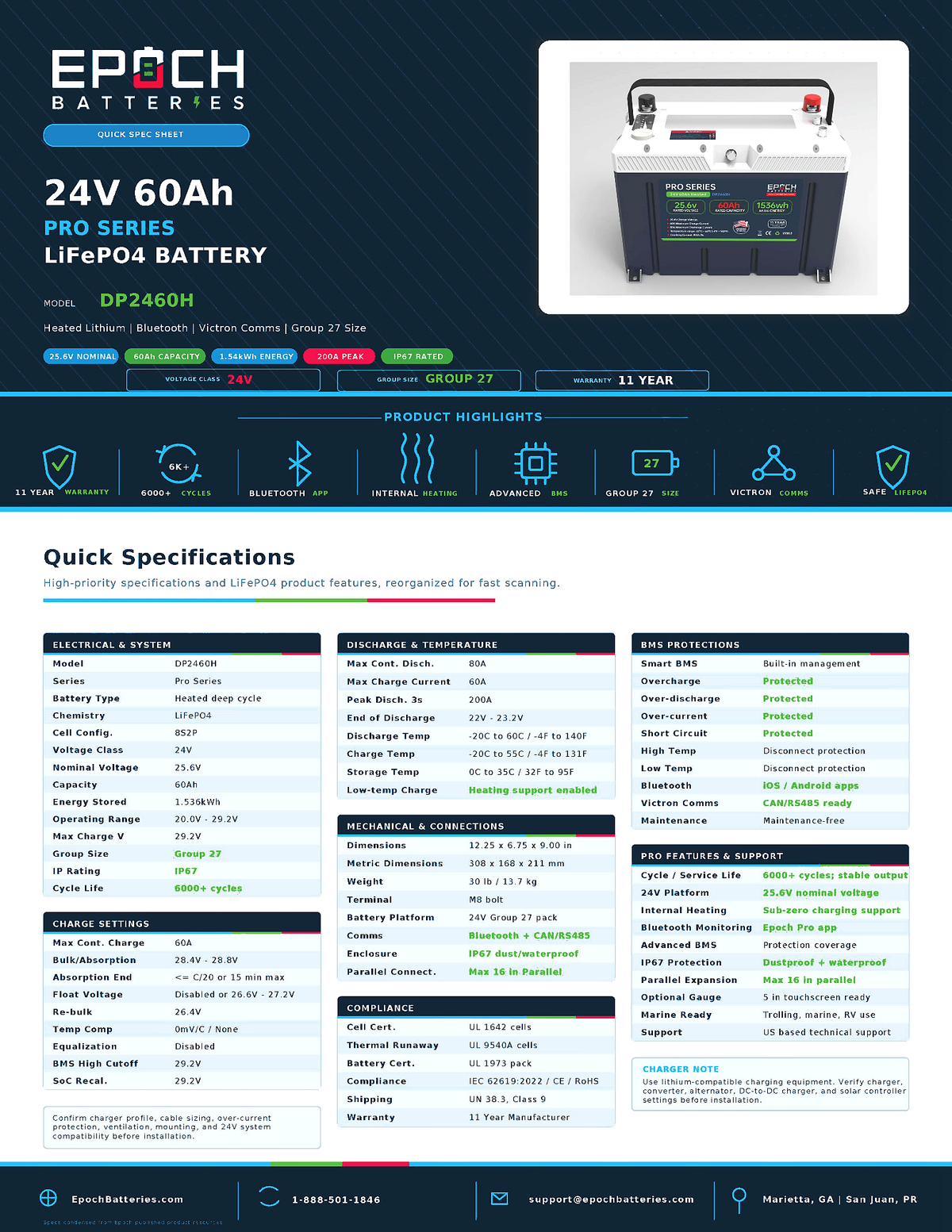

Specifications

• Brand: Epoch Batteries
• Model / SKU: DP2460H
• Series: Pro Series
• Battery Type: Heated Bluetooth Deep-Cycle LiFePO4 Battery
• Voltage Class: 24V
• Battery Group Size: Group 27
• Chemistry: LiFePO4 / Lithium Iron Phosphate
• Cell Configuration: 8S2P
• Nominal Voltage: 25.6V
• Nominal Capacity: 60Ah
• Nominal Energy: 1,536Wh / 1.54kWh
• Operating Voltage Range: 20.0V to 29.2V
• Maximum Charge Voltage: 29.2V
• Maximum Continuous Discharge: 80A
• Maximum Continuous Charge Current: 60A
• Recommended Charge Current: 30A
• Recommended Discharge Current: 30A
• Peak Discharge: 200A for 3 seconds
• Short-Circuit Protection: 800A @ 500µs
• Parallel Configuration: Maximum 16 batteries in parallel
• Maximum Parallel Capacity: Up to 960Ah at 24V nominal with 16 matched batteries
• Bluetooth: Yes
• Firmware Updates: Over-the-air updates through the compatible app
• Communications: CAN/RS485; Victron communications ready
• Internal Heating: Yes
• Cycle Life: 6,000+ cycles
• Warranty: 11-year manufacturer warranty
• Charge Temperature Range: -20°C to 55°C / -4°F to 131°F, with heating
• Discharge Temperature Range: -20°C to 60°C / -4°F to 140°F
• Recommended Storage Temperature: 0°C to 35°C / 32°F to 95°F
• Low-Temperature Charge Protection: Yes
• Length: 12.25 inches
• Width: 6.75 inches
• Height: 9.00 inches
• Overall Dimensions: 12.25 × 6.75 × 9.00 inches
• Weight: 30 lb / approximately 13.7 kg
• Enclosure Protection: IP67
• Terminal Type: M8 bolt
• Terminal Torque: 8–10 N·m
• Optional Display: 5-inch touchscreen battery gauge ready
• Operational Altitude: Less than 3000m
• Self-Discharge Rate: ≤3% per month / ≤15% per year

Recommended Use

Suitable for compatible 24V trolling motor systems, marine house-power systems, kayaks, skiffs, fishing boats, RV and camper auxiliary power, van and mobile systems, solar energy storage, off-grid 24V systems, and compatible Victron-based power installations.

Charging Specifications

• Bulk / Absorption Voltage: 28.4V to 28.8V
• Absorption End Condition: Stop when charge current is ≤ C/20 or after 15 minutes maximum
• Float Voltage: Disabled preferred, or 26.6V to 27.2V
• Re-Bulk Voltage: 26.4V
• Temperature Compensation: 0mV/°C / none
• Equalization: Disabled
• Battery Charge Temperature Range: -20°C to 55°C / -4°F to 131°F, with self-heating
• BMS High-Voltage Cutoff: 29.2V
• SoC Recalibration: 29.2V

Compatible Applications

This 24V battery can be used in compatible trolling motor systems, marine electronics and house-power systems, RV and mobile auxiliary systems, solar storage, off-grid installations, and parallel 24V battery banks. Verify voltage, current, charger configuration, battery fitment, wiring, and protection requirements before installation.

Installation Note

The IP67 enclosure is designed for dust protection and temporary water immersion. Use properly sized cables, fuses, disconnects, busbars, and mounting hardware appropriate for the complete 24V system.

This 24V 60Ah LiFePO4 battery provides compact deep-cycle energy storage with internal heating, Bluetooth monitoring, Victron communication support, Smart BMS protection, IP67 protection, and scalable parallel configuration.
