Epoch Batteries 24V 230Ah V2 Elite LiFePO4 Battery With Bluetooth

Epoch Batteries 24V 230Ah V2 Elite LiFePO4 Battery With Bluetooth

This 24V 230Ah V2 Elite Series LiFePO4 battery provides 5.89kWh of stored energy for high-capacity marine, RV, solar, trolling motor, and off-grid power systems. It features Bluetooth monitoring, native Victron CANBus communication, internal self-heating, IP67 protection, Smart BMS protection, and support for series and parallel configurations.

Key Features

• 230Ah LiFePO4 Capacity: Provides 230Ah of nominal capacity and 5.89kWh of stored energy at 25.6V.
• 110A Continuous Discharge: Supports up to 110A continuous discharge for compatible 24V loads and properly designed inverter systems.
• 500A Peak Discharge: Provides up to 500A peak discharge for 30 seconds for compatible short-duration loads.
• 230A Maximum Continuous Charge: Supports up to 230A continuous charging with compatible LiFePO4 charging equipment.
• Internal Self-Heating: Built-in heating supports charging in freezing conditions within the specified temperature range.
• Bluetooth Monitoring: Compatible with the Epoch iOS and Android apps for monitoring state of charge, cell voltage, temperature, cycle information, current, and battery status.
• Victron CANBus Communication: Supports BMS-CAN communication with compatible Victron GX devices for battery monitoring and DVCC-controlled charging.
• IP67 Protection: The sealed enclosure is dustproof and rated for temporary water immersion for suitable marine, RV, and outdoor installations.
• Series and Parallel Expansion: Supports up to two batteries in series and up to 16 batteries in parallel when configured according to manufacturer requirements.

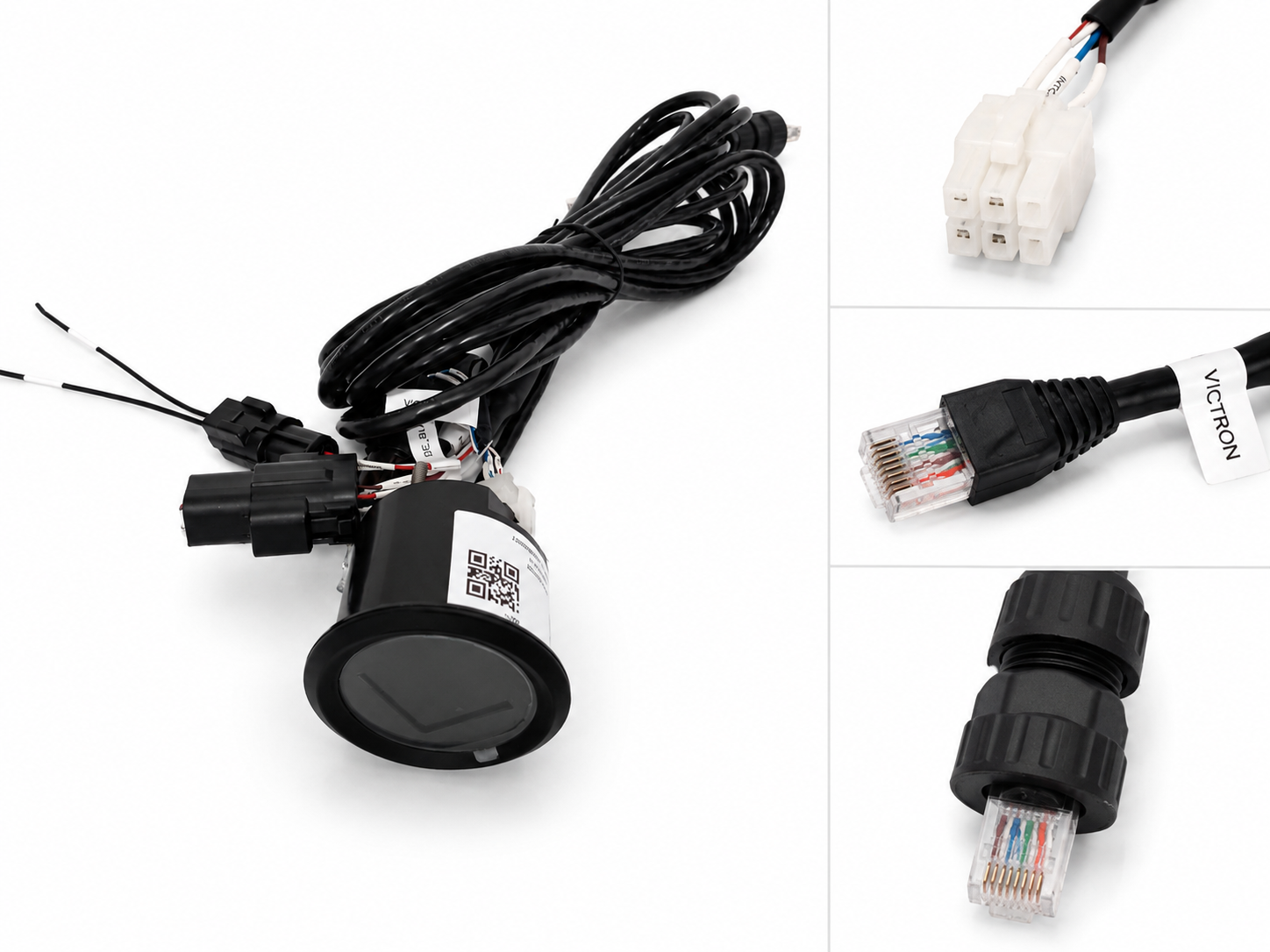

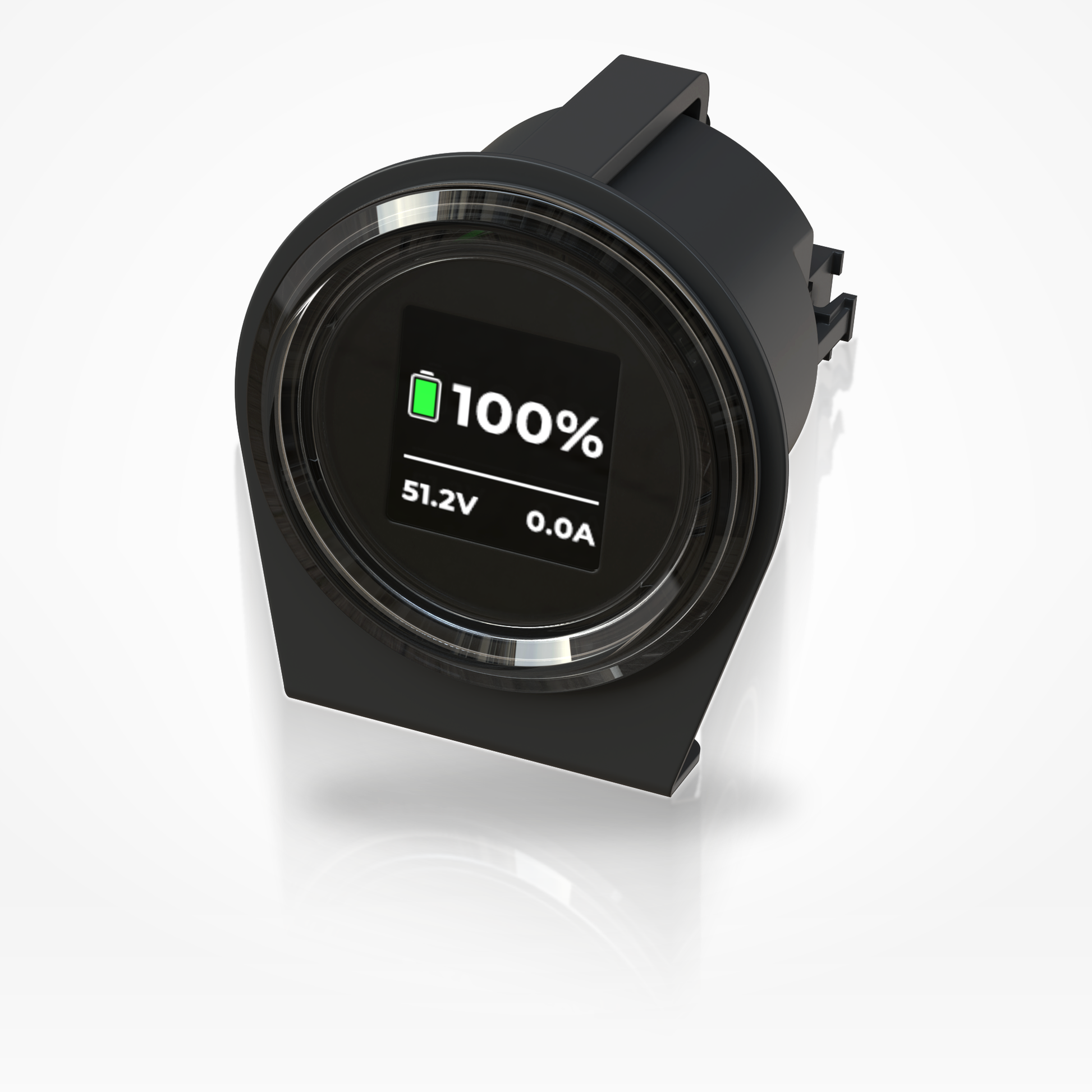

• External Controls: Includes a mountable ON/OFF switch and mountable battery gauge.
• 3,500+ Cycle Life: Designed for repeated deep-cycle use with maintenance-free LiFePO4 chemistry.
• 11-Year Warranty: Backed by an 11-year manufacturer warranty.

Specifications

• Brand: Epoch Batteries
• Model / SKU: C24230A
• Series: V2 Elite Series
• Battery Type: Heated Bluetooth LiFePO4 Battery with Victron Communications
• Battery Group Size: Group 8D footprint
• Chemistry: LiFePO4 / Lithium Iron Phosphate
• Cell Type: Prismatic LiFePO4
• Cell Configuration: 8S1P
• Nominal Voltage: 25.6V
• Nominal Capacity: 230Ah
• Stored Energy: 5.89kWh / 5,888Wh
• Operating Voltage Range: 20.0V to 29.2V
• Maximum Charge Voltage: 29.2V
• Maximum Continuous Discharge: 110A
• Maximum Discharge Current: 500A for 30 seconds
• Maximum Continuous Charge Current: 230A
• Maximum Charge Current: 400A for 5 seconds
• Nominal Continuous Output Power: Approximately 2,816W at 25.6V
• Series Configuration: Maximum 2 batteries in series, up to 48V nominal
• Parallel Configuration: Maximum 16 batteries in parallel
• Maximum 24V Parallel Bank: Up to 3,680Ah / approximately 94.2kWh with 16 matched batteries
• Bluetooth: Yes
• Victron Communications: Yes, CANBus / BMS-CAN
• Internal Heating: Yes
• External Controls: Mountable ON/OFF switch and battery gauge
• Cycle Life: 3,500+ cycles
• Warranty: 11-year manufacturer warranty
• Charge Temperature Range: -30°C to 55°C / -22°F to 131°F, with self-heating
• Cell Charge Temperature Range: 0°C to 55°C / 32°F to 131°F
• Discharge Temperature Range: -20°C to 55°C / -4°F to 131°F
• Recommended Storage Temperature: 0°C to 35°C / 32°F to 95°F
• Low-Temperature Charge Protection: Yes
• High and Low Temperature Disconnects: Yes
• Length: 20.86 inches / approximately 529.8 mm
• Width: 8.65 inches / approximately 219.8 mm
• Height: 12.06 inches / approximately 306.3 mm
• Overall Dimensions: Approximately 20.9 × 8.7 × 12.1 inches
• Weight: 97 lb / approximately 44 kg
• Case Material: ABS and PC blend
• Case Flame Rating: UL94-V0
• Enclosure Protection: IP67
• Terminal Size: M8
• Terminal Torque: 8–12 Nm
• Internal Fuse: Included internal fuse with current and temperature protections
• Certifications / Compliance: UL 1642 cells, UL 9540A cells, UL 1973 pack, UL 60691 fuse, IEC 62619:2022, CE, RoHS
• Shipping Classification: UN 3480, Class 9

Recommended Use

Suitable for compatible 24V marine house-power systems, trolling motor applications, RV and camper house-power systems, off-grid solar storage, van and mobile power systems, backup power installations, and Victron-based 24V systems where the battery's voltage, current, communication, and fitment requirements match.

Charging Specifications

• Absorption Voltage: 28.4V
• Minimum Absorption Time: 15 minutes per battery
• Float Voltage: 27.0V
• Re-Bulk Voltage: 26.6V
• Equalization: Off / disabled
• Temperature Compensation: Disabled / 0mV per °C
• BMS High-Voltage Cutoff: 29.2V

Victron System Integration

The battery supports native CANBus communication with compatible Victron GX devices. Compatible installations can use battery communication cabling and a daisy-chain configuration for multiple batteries in parallel. When properly configured, DVCC can use Epoch as the controlling BMS and battery monitor.

Installation Note

This battery is designed for high-capacity 24V deep-cycle energy storage. Verify battery dimensions, terminal access, cable sizing, fuse protection, charger settings, inverter requirements, communication wiring, and system compatibility before installation.

This 24V 230Ah V2 Elite LiFePO4 battery provides high-capacity energy storage with Bluetooth monitoring, Victron CANBus communication, internal self-heating, IP67 protection, Smart BMS protection, and scalable series and parallel configurations.
