Epoch Batteries 24V 230Ah Heated LiFePO4 Battery With Bluetooth

Epoch Batteries 24V 230Ah Heated LiFePO4 Battery With Bluetooth

This 24V 230Ah Essential Series LiFePO4 deep-cycle battery provides 5.89kWh of stored energy for high-capacity marine, RV, solar, and off-grid power systems. It features internal heating for cold-weather charging, Bluetooth monitoring, Smart BMS protection, IP54 enclosure protection, and a 200A continuous discharge rating for compatible high-demand 24V applications.

Key Features

• 230Ah LiFePO4 Capacity: Provides 230Ah of nominal capacity and 5.89kWh of stored energy at 25.6V.
• 200A Continuous Discharge: Supports up to 200A continuous discharge for compatible high-demand 24V loads and properly designed inverter systems.
• 300A Peak Discharge: Provides a peak discharge rating of 300A for up to 10 seconds for compatible short-duration loads.
• Internal Heating: Built-in self-heating supports charging in cold conditions within the specified temperature range.
• Bluetooth Monitoring: Compatible with the Epoch app on iOS and Android devices for monitoring state of charge, voltage, current, temperature, and battery status.
• Smart BMS Protection: Integrated Battery Management System provides protection against overcharge, over-discharge, over-current, short circuits, and high or low temperature conditions.
• IP54 Enclosure: Provides dust protection and splash resistance for suitable protected marine, RV, mobile, and outdoor installations.
• 8S1P Cell Configuration: Designed specifically for 24V-class LiFePO4 applications with a nominal voltage of 25.6V.
• Maintenance-Free Design: LiFePO4 chemistry does not require routine watering or acid maintenance associated with flooded lead-acid batteries.
• 4,000+ Cycle Life: Designed for repeated deep-cycle use.
• 11-Year Warranty: Backed by an 11-year manufacturer warranty.

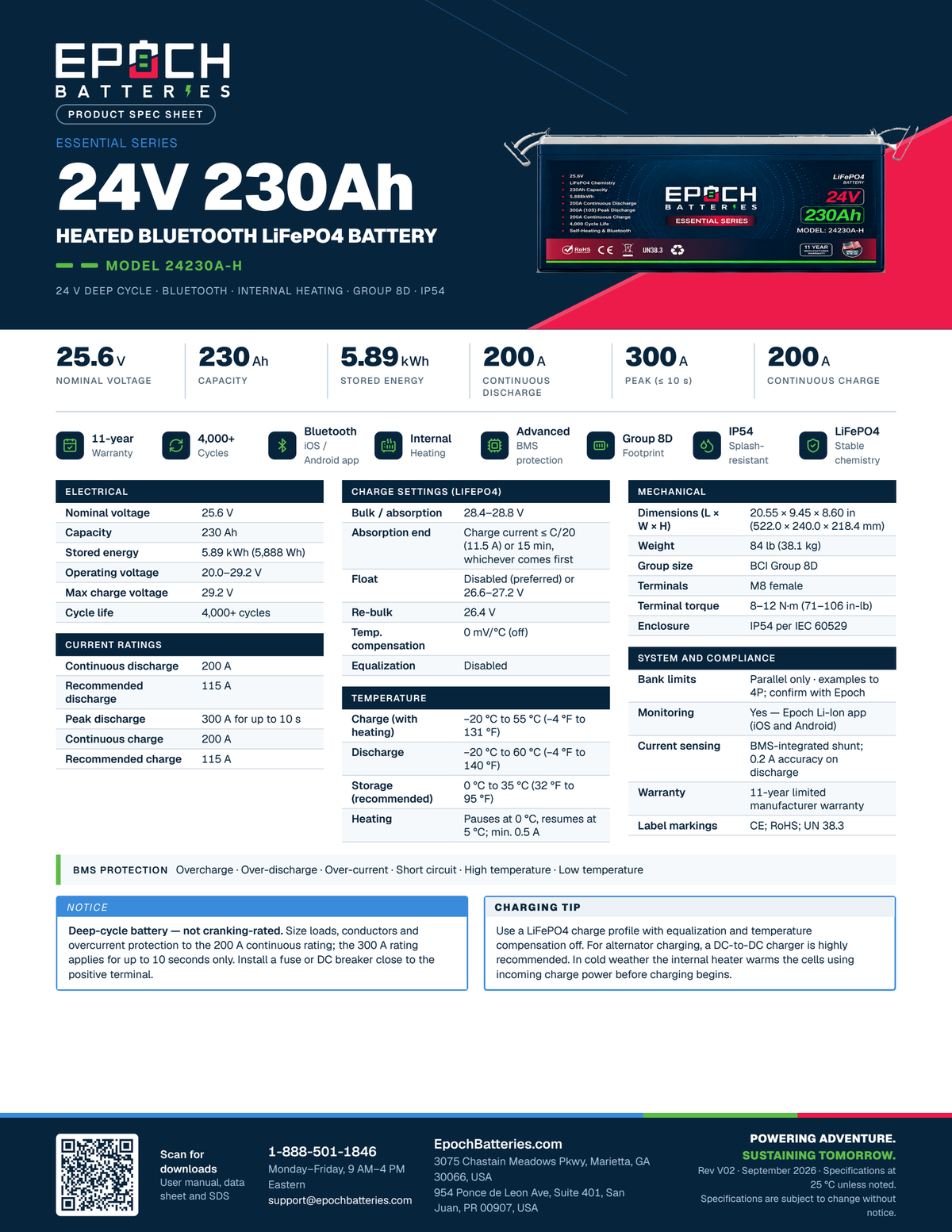

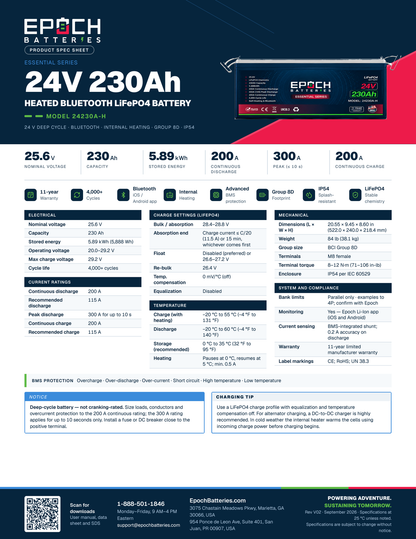

Specifications

• Brand: Epoch Batteries
• Model / SKU: 24230A-H
• Series: Essential Series
• Battery Type: Heated Bluetooth Deep-Cycle LiFePO4 Battery
• System Voltage: 24V platform / 25.6V nominal
• Chemistry: LiFePO4 / Lithium Iron Phosphate
• Cell Configuration: 8S1P
• Nominal Voltage: 25.6V
• Nominal Capacity: 230Ah
• Stored Energy: 5.89kWh / 5,890Wh
• Operating Voltage Range: 20.0V to 29.2V
• Maximum Charge Voltage: 29.2V
• Maximum Continuous Discharge: 200A
• Maximum Continuous Charge Rating: 200A
• Recommended Continuous Charge: 100A
• Peak Discharge: 300A for 10 seconds
• Bluetooth Monitoring: Yes
• Internal Heating: Yes
• Low-Temperature Charge Protection: Yes
• Cycle Life: 4,000+ cycles
• Warranty: 11-year manufacturer warranty
• Charge Temperature Range: -20°C to 55°C / -4°F to 131°F, with self-heating
• Battery Charge Temperature Range: 0°C to 55°C / 32°F to 131°F
• Discharge Temperature Range: -20°C to 60°C / -4°F to 140°F
• Recommended Storage Temperature: 0°C to 35°C / 32°F to 95°F
• Length: 20.55 inches
• Width: 9.45 inches
• Height: 8.60 inches
• Weight: 84 lb / approximately 38.10 kg
• Terminal Type: M8 female
• Enclosure Protection: IP54
• Case Material: Battery-grade ABS/PC housing

Recommended Use

Suitable for compatible 24V trolling motor systems, marine house-power banks, RV and camper electrical systems, van and mobile power systems, solar energy storage, off-grid installations, backup power, and properly designed 24V inverter systems.

Charging Specifications

• Bulk / Absorption Voltage: 28.4V to 28.8V
• Absorption End Condition: Stop when charge current is ≤ C/20 or after 15 minutes maximum
• Float Voltage: Disabled preferred, or 26.6V to 27.2V
• Re-Bulk Voltage: 26.4V
• Temperature Compensation: 0mV/°C / none
• Equalization: Disabled
• Battery Charge Temperature: 0°C to 55°C / 32°F to 131°F
• BMS High-Voltage Cutoff: 29.2V
• SoC Recalibration: 29.2V

Compatible Applications

Designed for compatible 24V marine house-power systems, trolling motors, RV and camper auxiliary power, solar storage, off-grid systems, backup power, and other 24V deep-cycle applications where battery capacity, voltage, current, fitment, and charging requirements match.

Installation Note

The IP54 enclosure is dust-protected and splash-resistant for protected installations but is not designed for submersion. Use appropriately sized cables, fuses, disconnects, terminals, and charging equipment for the complete 24V system.

This 24V 230Ah LiFePO4 battery provides high-capacity deep-cycle energy storage with internal heating, Bluetooth monitoring, Smart BMS protection, IP54 enclosure protection, and 200A continuous discharge capability.
