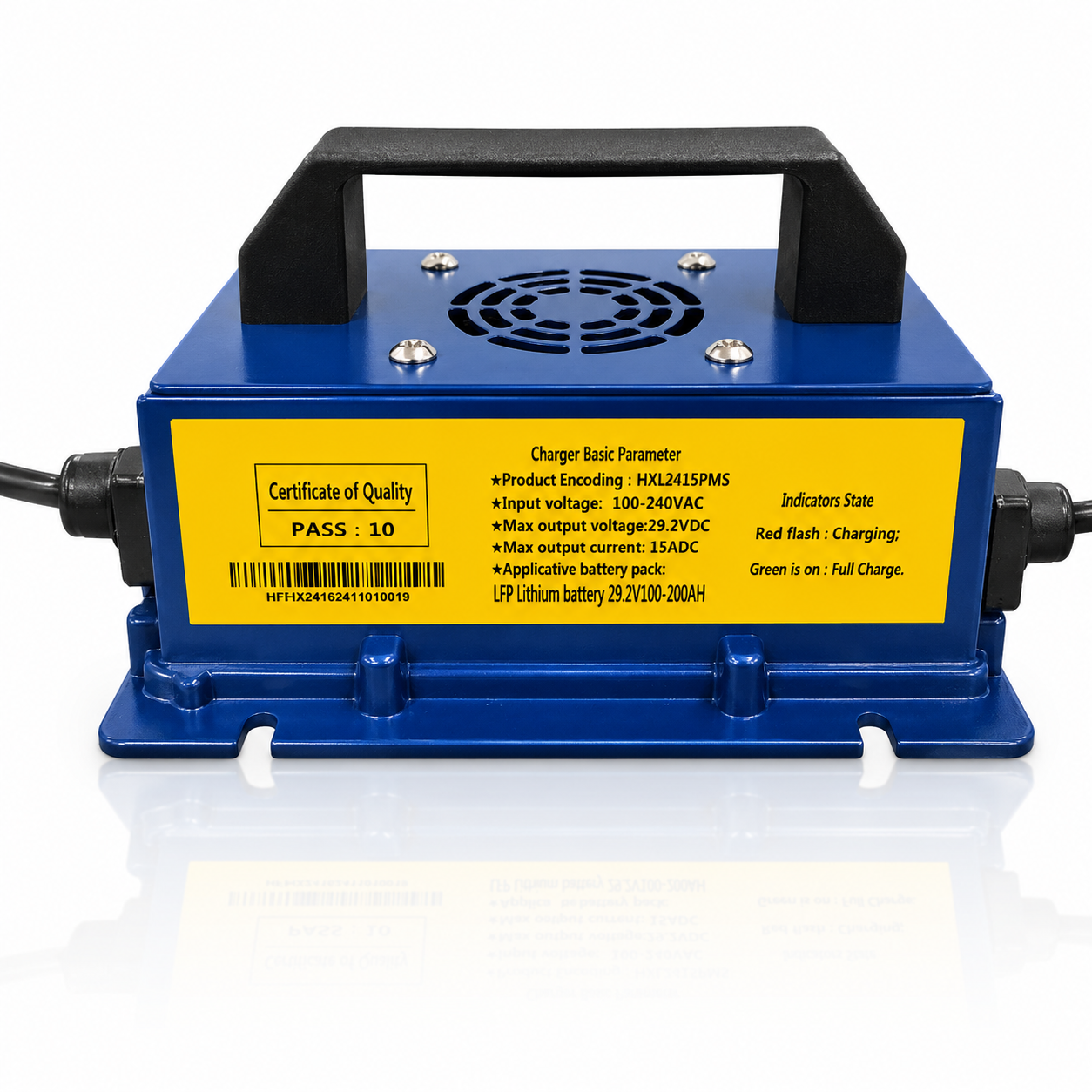

Epoch Batteries 24V 15A LiFePO4 Battery Charger

Epoch Batteries 24V 15A LiFePO4 Battery Charger

This 24V 15A LiFePO4 battery charger is designed for compatible 24V lithium iron phosphate battery systems. It provides a maximum 29.2VDC output, 15A charging current, up to 95% efficiency, ring-terminal connections, IP67 protection, and multiple built-in safety protections for suitable marine, RV, mobile, and off-grid charging applications.

Key Features

• 24V LiFePO4 Charging: Designed specifically for compatible 24V Lithium Iron Phosphate battery systems.
• 15A Output: Provides up to 15A charging current for compatible 24V LiFePO4 batteries.
• 29.2V Maximum Output: Provides the specified charging voltage for compatible 24V LiFePO4 battery packs.
• Up to 95% Efficiency: Provides efficient AC-to-DC power conversion during charging.
• 120V AC Compatible: Designed for use with standard AC power outlets; the product specification also lists a 100–240VAC input range.
• Ring-Terminal Connection: Provides a direct connection to compatible battery terminals for installed or semi-permanent charging setups.
• IP67 Protection: Dustproof and waterproof construction for suitable marine, RV, mobile, and outdoor charging environments.
• Aluminum Alloy Housing: Lightweight aluminum construction supports thermal management during charging.
• Multiple Safety Protections: Includes reverse polarity, overcharge, output overvoltage, output overcurrent, short-circuit, overtemperature, and ambient temperature protection.
• Shock-Resistant Design: Suitable for mobile applications where the charger may be exposed to vibration during normal use.
• LiFePO4-Only Compatibility: Intended for compatible 24V LiFePO4 systems and should not be used with other battery chemistries unless specifically approved.

Specifications

• Brand: Epoch Batteries
• Product: Epoch 24V 15A LiFePO4 Smart Battery Charger
• SKU: CHG-24V15A
• Product Encoding: HXL2415PMS
• Battery Compatibility: 24V LiFePO4 / LFP lithium battery systems
• Typical Applications: 24V trolling motor batteries, marine batteries, RV batteries, off-grid lithium batteries, and compatible Epoch 24V LiFePO4 batteries
• Output Voltage: 29.2VDC maximum
• Output Current: 15A maximum
• Charge Profile: Dedicated LiFePO4 charging behavior with controlled voltage top-off
• Charging Efficiency: Up to 95%
• Full-Charge Indicator: Red flashing indicates charging; green indicates full charge
• Input Voltage: 100–240VAC according to product label
• Standard Outlet Use: 120V AC compatible
• Output Connector: Ring terminals
• Housing Material: Lightweight aluminum alloy
• Ingress Protection: IP67
• Operating Temperature Range: -40°C to 60°C
• Overtemperature Protection: Yes
• Ambient Temperature Protection: Yes
• Reverse Polarity Protection: Yes
• Overcharge Protection: Yes
• Output Overvoltage Protection: Yes
• Output Overcurrent Protection: Yes
• Output Short-Circuit Protection: Yes
• Shock-Resistant Design: Yes
• Charger Warranty: Warranty term not specified in the supplied product information

Recommended Use

Suitable for compatible 24V LiFePO4 batteries used in marine trolling motor systems, RV and camper power systems, off-grid battery installations, mobile power systems, solar storage, and other 24V lithium applications requiring a 15A AC battery charger.

Charging Specifications

• Maximum Output Current: 15A
• Maximum Output Voltage: 29.2VDC
• Battery Chemistry: LiFePO4 / Lithium Iron Phosphate
• Charging Efficiency: Up to 95%
• Connection: Ring terminals

Compatibility Notice

This charger is intended for compatible 24V LiFePO4 battery systems. Do not use it with 12V, 36V, or 48V battery systems, or with lead-acid, AGM, gel, or flooded batteries, unless Epoch specifically confirms compatibility for the exact battery and application.

Protection Features

• Reverse Polarity Protection: Helps protect against incorrect output polarity.
• Overcharge Protection: Helps prevent charging beyond the charger's intended output conditions.
• Overvoltage Protection: Protects against excessive output voltage.
• Overcurrent Protection: Helps limit excessive output current.
• Short-Circuit Protection: Helps protect the charger if the output is accidentally shorted.
• Temperature Protection: Provides overtemperature and ambient temperature protection during operation.

Installation and Use

Connect the ring terminals to the correct battery terminals and verify polarity before energizing the charger. Use the charger in accordance with the battery manufacturer's charging requirements and keep AC and battery connections secure and protected throughout operation.

This 24V 15A LiFePO4 battery charger provides dedicated lithium charging with a 29.2V maximum output, up to 95% efficiency, IP67 protection, ring-terminal connections, aluminum construction, and multiple electrical safety protections.
