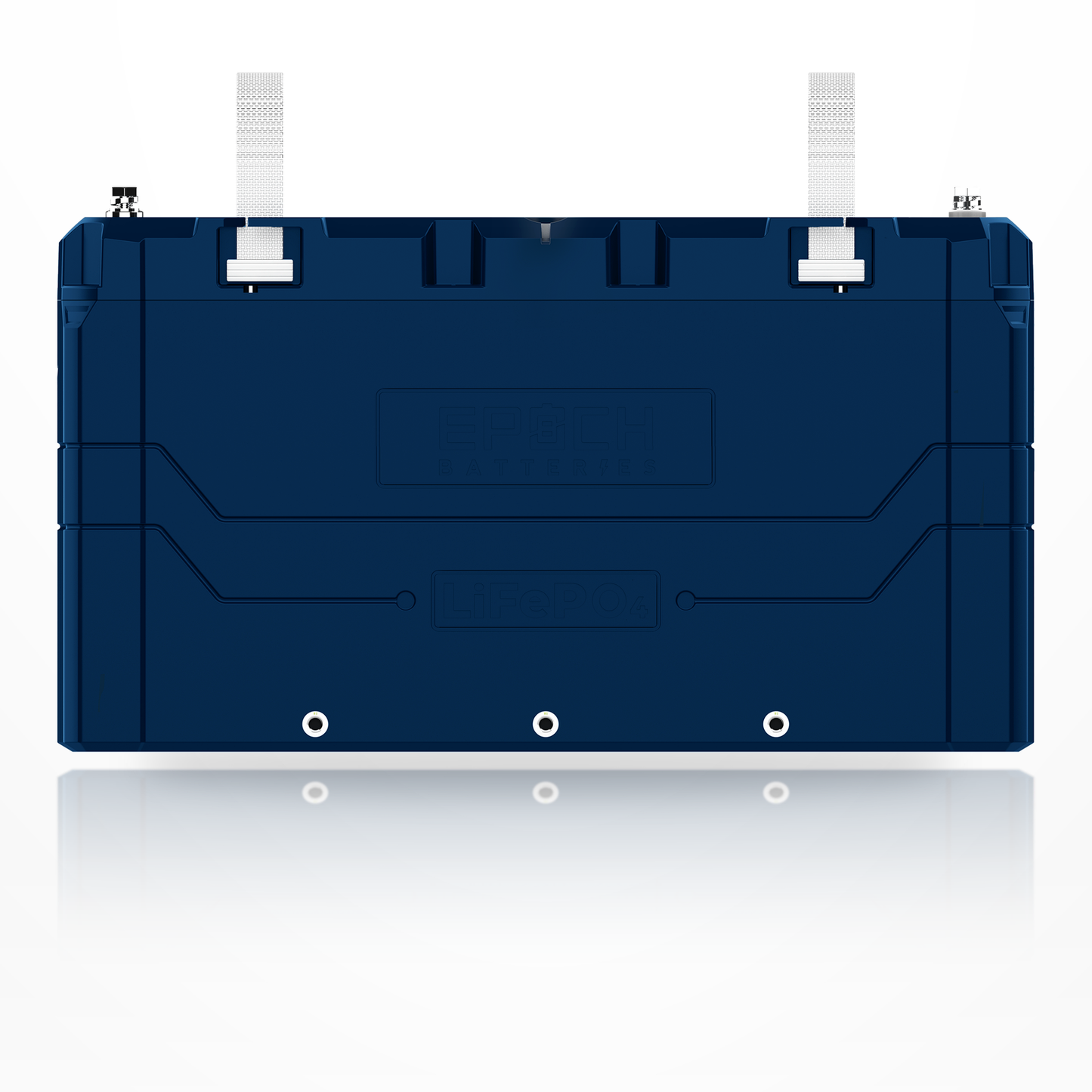

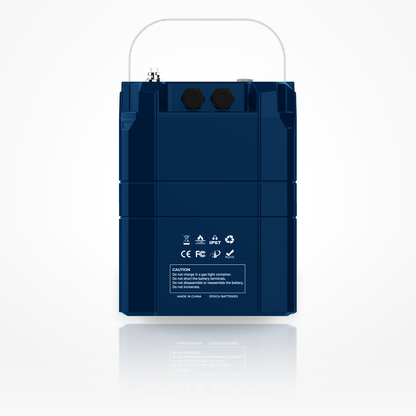

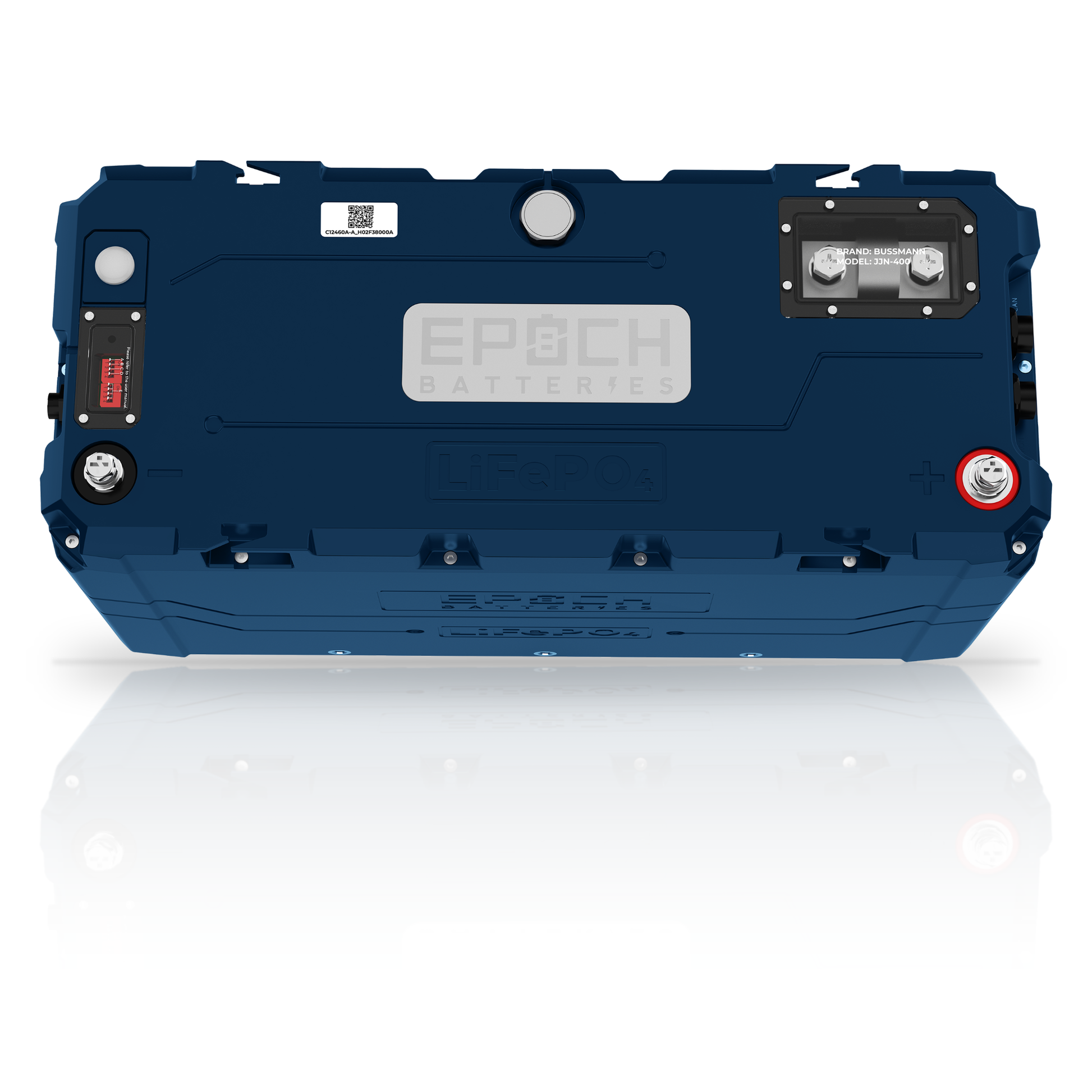

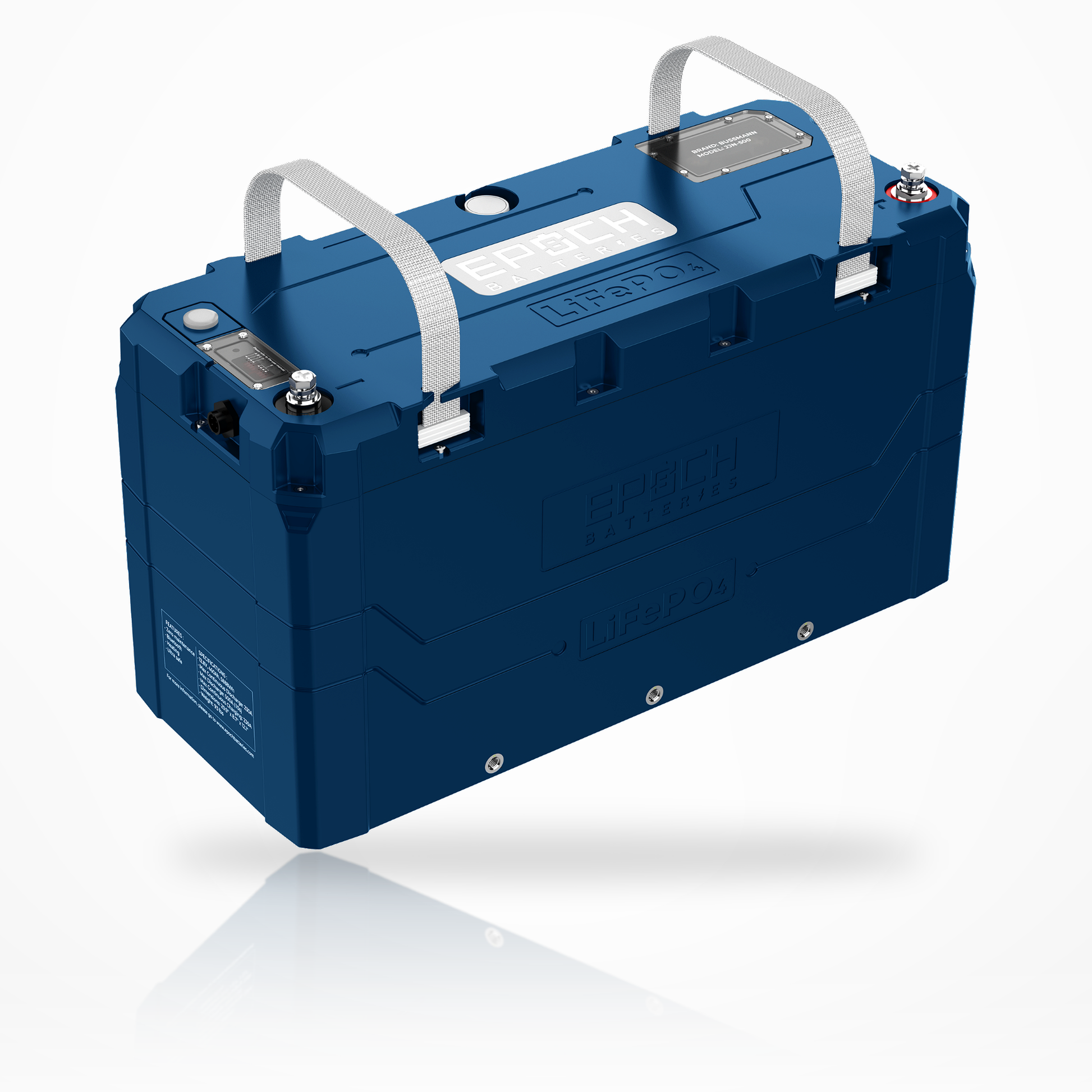

Epoch Batteries 12V 460Ah V2-T Elite LiFePO4 Battery With CANbus

Epoch Batteries 12V 460Ah V2-T Elite LiFePO4 Battery With CANbus

This 12V 460Ah V2-T Elite Series LiFePO4 battery provides 5.89kWh of energy storage for high-capacity RV, marine, solar, off-grid, and professional 12V power systems. It features an integrated 400A Eaton Class T fuse, Victron CANbus communication, Bluetooth monitoring, internal heating, IP67 protection, and support for parallel expansion up to 16 batteries. :contentReference[oaicite:0]{index=0}

Key Features

• 460Ah LiFePO4 Capacity: Provides 460Ah of nominal capacity and 5.89kWh of stored energy at 12.8V. :contentReference[oaicite:1]{index=1}
• Integrated 400A Class T Fuse: Includes a user-serviceable 400A Eaton Class T fuse for integrated high-current protection. :contentReference[oaicite:2]{index=2}
• 230A Continuous Discharge: Supports up to 230A continuous discharge at 25°C for compatible high-demand 12V systems. :contentReference[oaicite:3]{index=3}
• 500A Peak Output: Provides up to 500A for 30 seconds and 1,300A for 1 second for compatible short-duration loads. :contentReference[oaicite:4]{index=4}
• 210A Continuous Charging: Supports up to 210A continuous charging at 25°C with compatible LiFePO4 charging equipment. :contentReference[oaicite:5]{index=5}
• Victron CANbus Communication: Supports CANbus communication at 500kbit/s and DVCC integration with compatible Victron GX devices. :contentReference[oaicite:6]{index=6}
• Bluetooth Monitoring: Bluetooth 4.0 compatibility allows monitoring through the Epoch app, including battery information and system status. :contentReference[oaicite:7]{index=7}
• Internal Heating: Internal heating supports cold-weather charging within the published operating conditions. :contentReference[oaicite:8]{index=8}
• IP67 Protection: The enclosure is dust-tight and immersion-rated to 1 metre for up to 30 minutes when seals and glands are properly installed. :contentReference[oaicite:9]{index=9}
• Parallel Expansion: Supports up to 16 batteries in parallel for larger 12V battery banks. :contentReference[oaicite:10]{index=10}

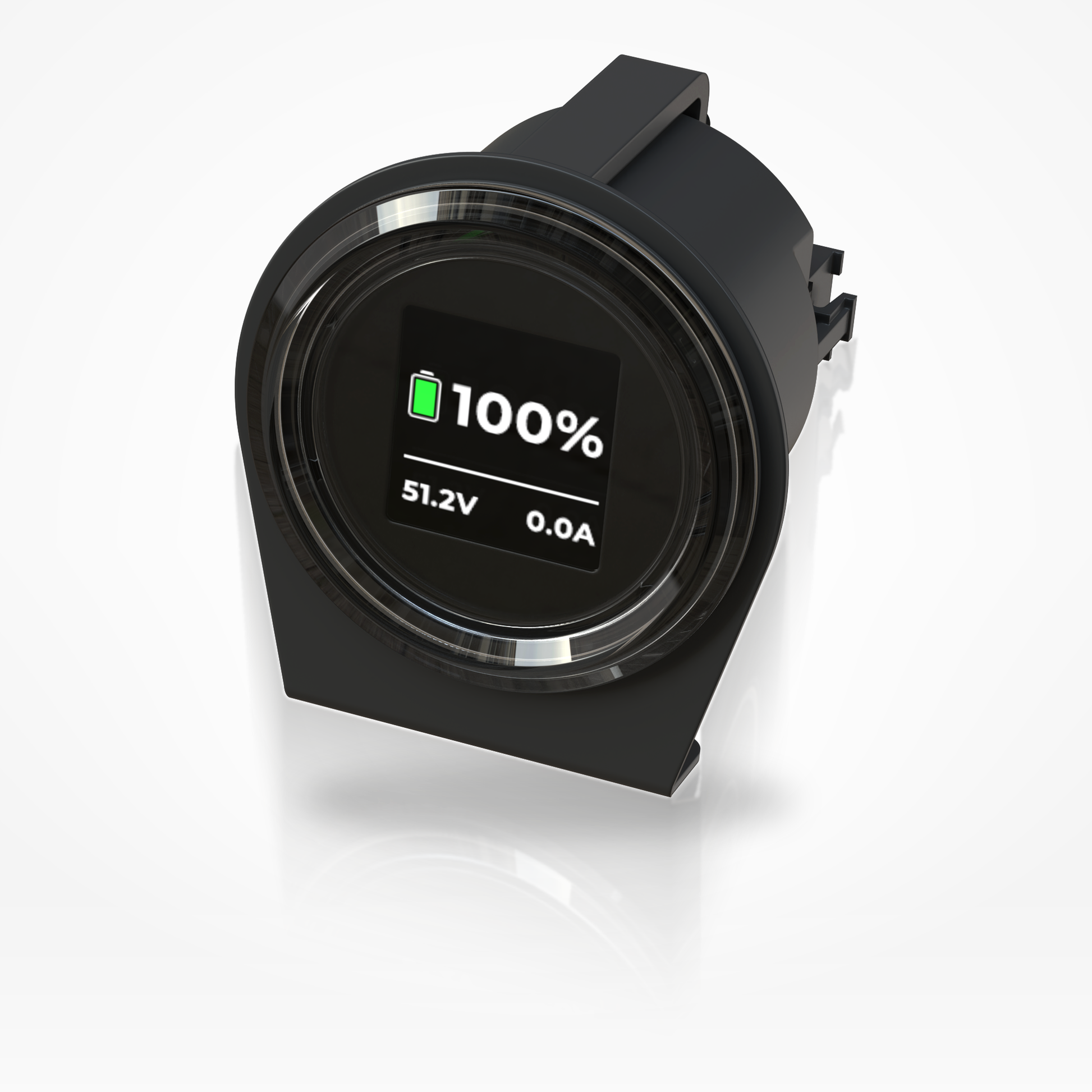

• External Controls: Includes an external power button and battery gauge for local access and monitoring. :contentReference[oaicite:11]{index=11}
• 4,000+ Cycle Life: Listed with a published 4,000+ cycle-life rating for repeated deep-cycle use. :contentReference[oaicite:12]{index=12}
• 11-Year Warranty: Backed by an 11-year manufacturer warranty. :contentReference[oaicite:13]{index=13}

Specifications

• Brand: Epoch Batteries :contentReference[oaicite:14]{index=14}
• Model / SKU: C12460A-A :contentReference[oaicite:15]{index=15}
• Series: V2-T Elite Series :contentReference[oaicite:16]{index=16}
• Battery Type: Heated Bluetooth LiFePO4 Deep-Cycle Battery :contentReference[oaicite:17]{index=17}
• Chemistry: LiFePO4 / Lithium Iron Phosphate :contentReference[oaicite:18]{index=18}
• Cell Configuration: 4S2P :contentReference[oaicite:19]{index=19}
• Nominal Voltage: 12.8V :contentReference[oaicite:20]{index=20}
• Nominal Capacity: 460Ah :contentReference[oaicite:21]{index=21}
• Energy Capacity: 5.888kWh / 5.89kWh :contentReference[oaicite:22]{index=22}
• Maximum Voltage: 14.52V :contentReference[oaicite:23]{index=23}
• Minimum Voltage: 10.4V :contentReference[oaicite:24]{index=24}
• Maximum Continuous Discharge: 230A @ 25°C :contentReference[oaicite:25]{index=25}
• Maximum Continuous Charge: 210A @ 25°C :contentReference[oaicite:26]{index=26}
• Peak Discharge Output: 500A for 30 seconds; 1,300A for 1 second :contentReference[oaicite:27]{index=27}
• Integrated Fuse: User-serviceable 400A Eaton Class T fuse :contentReference[oaicite:28]{index=28}
• Internal Fuse Certification: UL60691 :contentReference[oaicite:29]{index=29}
• Parallel Configuration: Up to 16 batteries in parallel :contentReference[oaicite:30]{index=30}
• Series Configuration: Not supported according to the supplied specification table :contentReference[oaicite:31]{index=31}
• Bluetooth: Bluetooth 4.0 :contentReference[oaicite:32]{index=32}
• CAN Communication: CANbus 500kbit/s :contentReference[oaicite:33]{index=33}
• Victron Integration: DVCC / distributed charge control through compatible GX devices :contentReference[oaicite:34]{index=34}
• External Power Button and Gauge: Included :contentReference[oaicite:35]{index=35}
• Charge Temperature Range: 0°C to 50°C / 32°F to 122°F, with internal heating support :contentReference[oaicite:36]{index=36}
• Discharge Temperature Range: -20°C to 50°C / -4°F to 122°F :contentReference[oaicite:37]{index=37}
• Storage Temperature, Up to 1 Month: -20°C to 45°C / -4°F to 113°F :contentReference[oaicite:38]{index=38}
• Long-Term Storage Temperature: 0°C to 35°C / 32°F to 95°F :contentReference[oaicite:39]{index=39}
• Length: 20.86 inches / approximately 529.8 mm :contentReference[oaicite:40]{index=40}
• Width: 8.65 inches / approximately 219.8 mm :contentReference[oaicite:41]{index=41}
• Height: 12.06 inches / approximately 306.3 mm :contentReference[oaicite:42]{index=42}
• Weight: 97.55 lb / approximately 44.25 kg :contentReference[oaicite:43]{index=43}
• Case Material: PC + ABS, UL94 V-0 :contentReference[oaicite:44]{index=44}
• Terminal: M8 bolts :contentReference[oaicite:45]{index=45}
• Terminal Torque: 12 N·m / 8.85 lb-ft :contentReference[oaicite:46]{index=46}
• Enclosure Protection: IP67 :contentReference[oaicite:47]{index=47}
• Cycle Life: 4,000+ cycles :contentReference[oaicite:48]{index=48}
• Cell Certifications: UL1642, UL9540A, IEC 62619:2022 :contentReference[oaicite:49]{index=49}
• Battery Pack Certification: UL1973 :contentReference[oaicite:50]{index=50}
• Additional Compliance: CE and RoHS :contentReference[oaicite:51]{index=51}
• Warranty: 11-year manufacturer warranty :contentReference[oaicite:52]{index=52}

Recommended Use

Suitable for compatible high-capacity RV house-power systems, marine house banks, solar energy storage, off-grid installations, mobile power systems, professional 12V power banks, and large inverter-based applications where the battery's electrical and installation requirements match. :contentReference[oaicite:53]{index=53}

Charging Specifications

• Absorption Voltage: 14.2V :contentReference[oaicite:54]{index=54}
• Absorption Time: 15 minutes per battery :contentReference[oaicite:55]{index=55}
• Float Voltage: 13.5V :contentReference[oaicite:56]{index=56}
• Equalization: Off / disabled :contentReference[oaicite:57]{index=57}
• Temperature Compensation: Disabled :contentReference[oaicite:58]{index=58}
• Charge Profile: CC/CV, no equalization :contentReference[oaicite:59]{index=59}

Victron System Integration

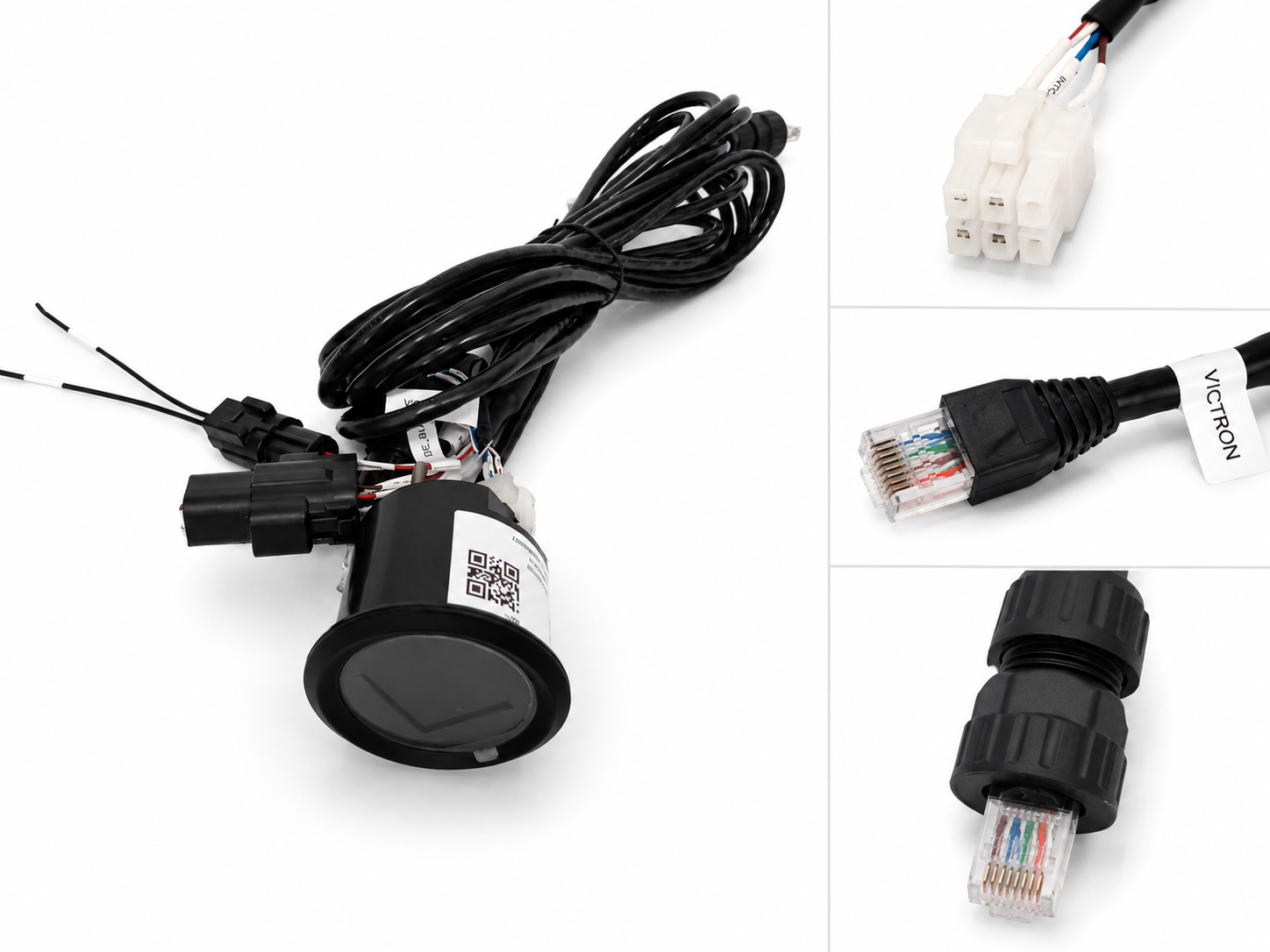

The V2-T Elite supports CANbus communication and DVCC integration with compatible Victron GX devices. A compatible installation uses the communication harness and battery daisy-chain, followed by configuration of the appropriate DIP switches and GX CAN connection. The GX system should be configured with DVCC enabled and Epoch selected as the controlling BMS and battery monitor. :contentReference[oaicite:60]{index=60}

Installation Note

The battery is designed for professional 12V power-bank and parallel-bank applications. Verify cable sizing, fusing, disconnect placement, mounting, charging equipment, communication wiring, and system compatibility before installation. For installation-specific requirements, follow the supplied manufacturer documentation. :contentReference[oaicite:61]{index=61}

This 12V 460Ah V2-T Elite LiFePO4 battery combines high-capacity energy storage with integrated Class T fuse protection, Victron CANbus communication, Bluetooth monitoring, internal heating, IP67 protection, and scalable parallel configuration.
