Epoch Batteries 12V 460Ah V2 Elite LiFePO4 Battery With Victron

Epoch Batteries 12V 460Ah V2 Elite LiFePO4 Battery With Victron

This 12V 460Ah V2 Elite Series LiFePO4 deep-cycle battery provides 5.89kWh of stored energy in a Group 8D format. It features internal self-heating, Bluetooth monitoring, native Victron CAN communications, 2A-class active battery management capabilities, IP67 protection, and support for series and parallel system configurations for compatible RV, marine, solar, and off-grid applications.

Key Features

• 460Ah LiFePO4 Capacity: Provides 460Ah of nominal capacity and 5.89kWh of stored energy at 12.8V.
• 230A Continuous Discharge: Supports up to 230A continuous discharge for compatible high-demand 12V loads and properly sized inverter systems.
• 500A Peak Discharge: Provides up to 500A peak discharge for 30 seconds, with a listed 1,300A peak output for 1 second.
• 230A Maximum Charge Current: Supports high-current charging when paired with compatible LiFePO4 charging equipment.
• Internal Self-Heating: Built-in heating supports charging in temperatures below freezing within the specified charging range.
• Bluetooth Monitoring: Compatible with iOS and Android apps for monitoring state of charge, cell voltage, temperature, cycle information, battery status, and alerts.
• Native Victron Communications: Supports BMS CAN communications with compatible Victron GX devices for battery-system monitoring and control.
• IP67 Protection: The sealed enclosure is dustproof and rated for temporary water immersion, making it suitable for compatible marine and protected outdoor applications.
• Series and Parallel Expansion: Supports up to four batteries in series and up to 16 batteries in parallel when configured according to manufacturer requirements.

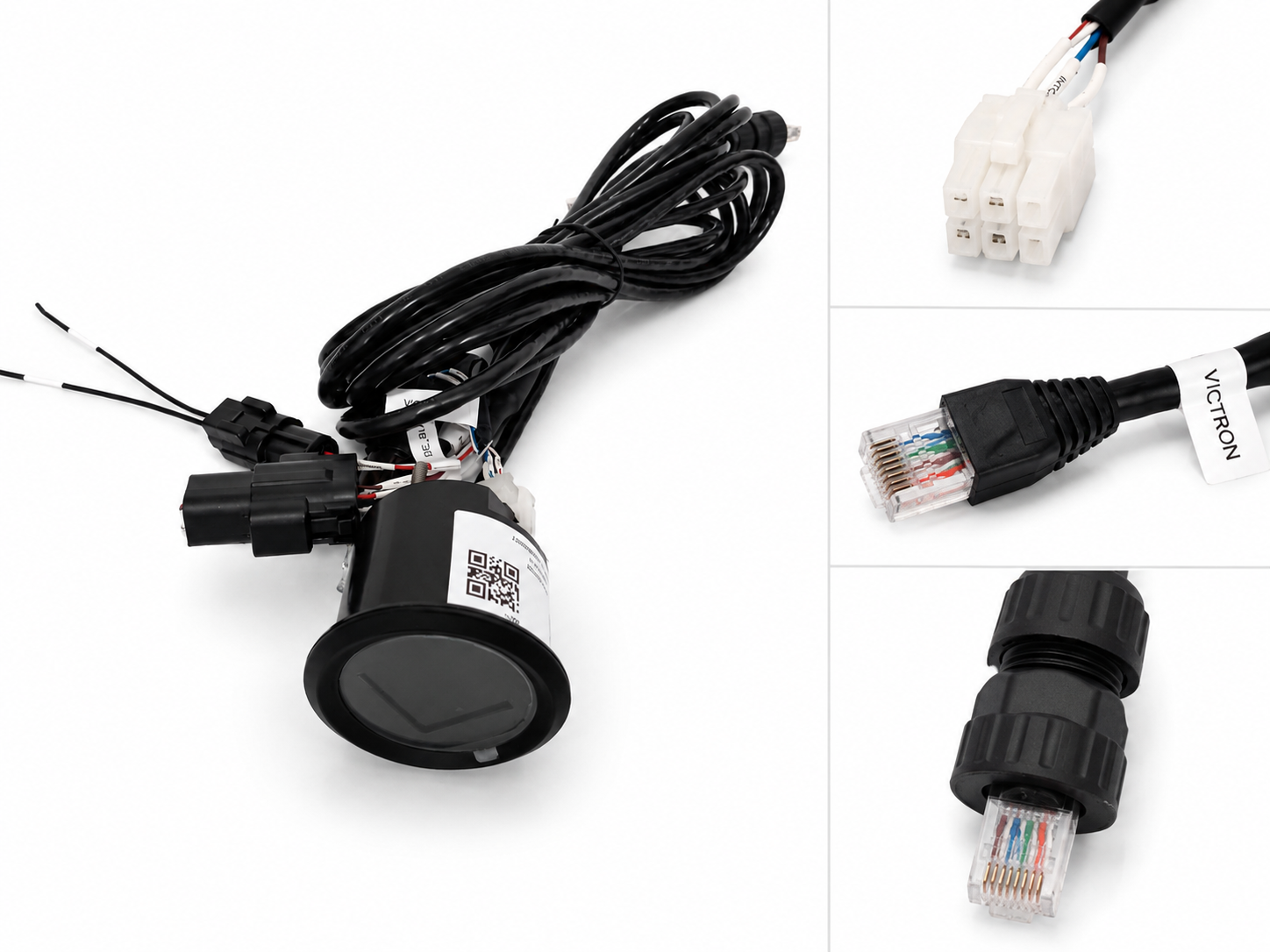

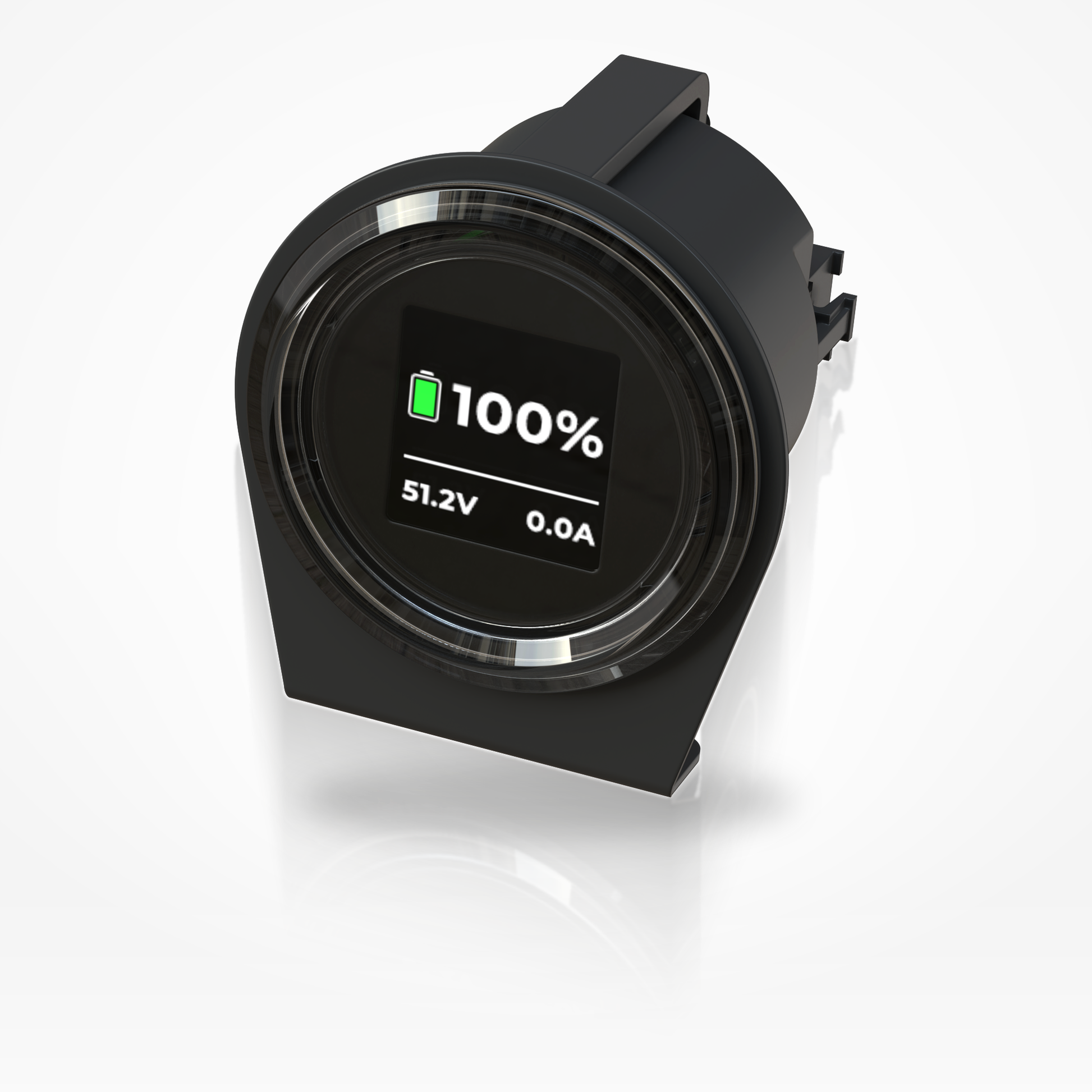

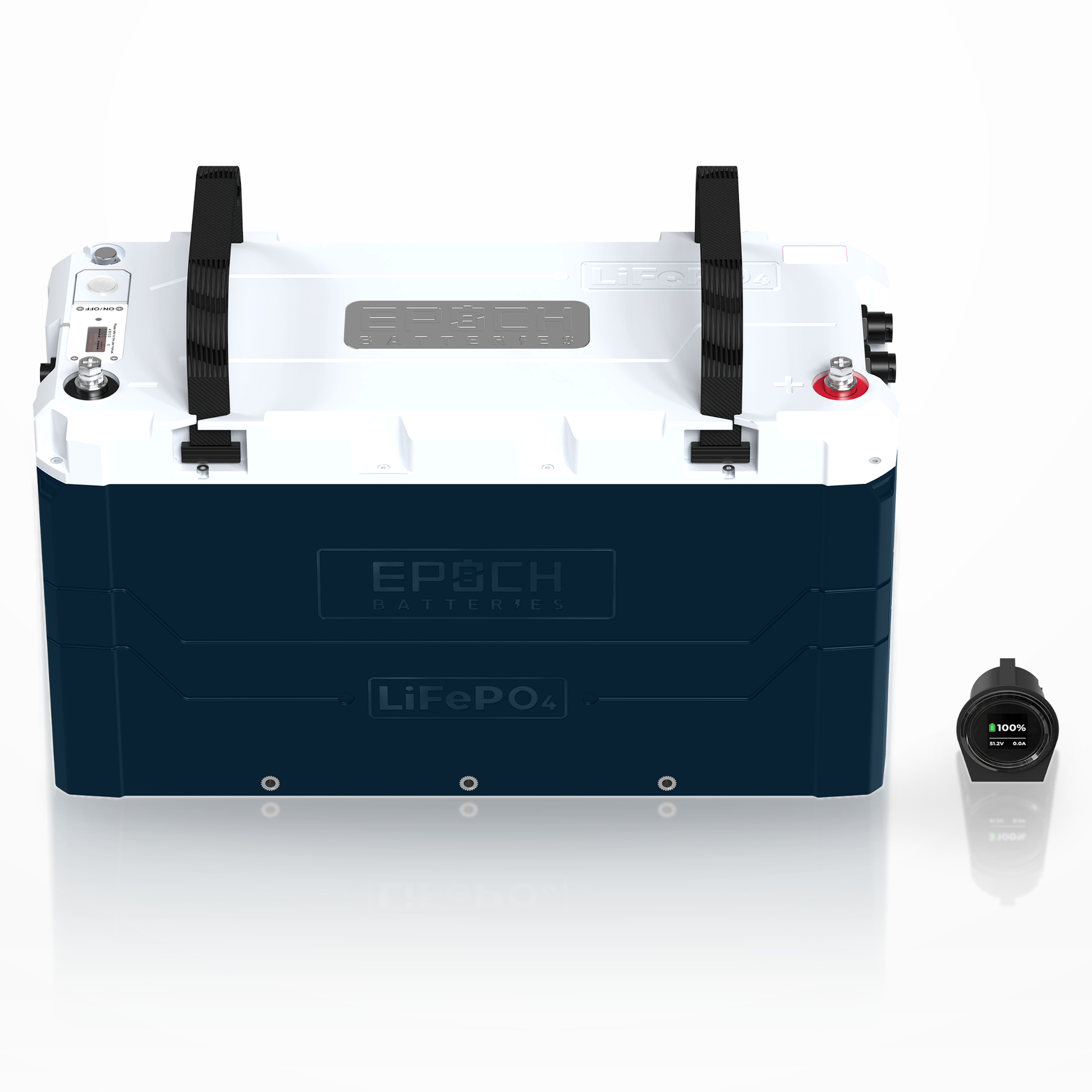

• External Controls Included: Includes an external power button and battery gauge.
• 3,500+ Cycle Life: Designed for repeated deep-cycle use with maintenance-free LiFePO4 chemistry.
• 11-Year Warranty: Backed by an 11-year manufacturer warranty.

Specifications

• Brand: Epoch Batteries
• Model / SKU: C12460A
• Series: V2 Elite Series
• Battery Type: Heated Bluetooth LiFePO4 Battery with Victron Communications
• Battery Group Size: Group 8D
• Chemistry: LiFePO4 / Lithium Iron Phosphate
• Cell Type: Prismatic LiFePO4
• Cell Configuration: 4S2P
• Nominal Voltage: 12.8V
• Nominal Capacity: 460Ah
• Stored Energy: 5.89kWh / 5,888Wh
• Operating Voltage Range: 10.0V to 14.6V
• Maximum Charge Voltage: 14.6V
• Maximum Continuous Discharge: 230A
• Maximum Continuous Charge Current: 230A
• Maximum Charge Current: 400A for 5 seconds
• Maximum Discharge Current: 500A for 30 seconds
• Peak Discharge Output: 1,300A for 1 second
• Series Configuration: Maximum 4 batteries in series
• Parallel Configuration: Maximum 16 batteries in parallel
• Bluetooth: Yes
• Victron Communications: Yes, BMS CAN communication with compatible Victron GX devices
• Internal Heating: Yes
• External Power Button and Battery Gauge: Included
• Cycle Life: 3,500+ cycles
• Self-Discharge: Less than 3% per month
• Charge Temperature Range: -30°C to 55°C / -22°F to 131°F, with self-heating
• Cell Charge Temperature Range: 0°C to 55°C / 32°F to 131°F
• Discharge Temperature Range: -20°C to 55°C / -4°F to 131°F
• Short-Term Storage Temperature: -20°C to 45°C / -4°F to 113°F, up to 1 month
• Recommended Long-Term Storage Temperature: 0°C to 35°C / 32°F to 95°F, up to 1 year
• Low-Temperature Charge Protection: Yes
• High and Low Temperature Disconnects: Yes
• Length: 20.86 inches / approximately 529.8 mm
• Width: 8.65 inches / approximately 219.8 mm
• Height: 12.06 inches / approximately 306.3 mm
• Overall Dimensions: Approximately 20.9 × 8.7 × 12.1 inches
• Weight: 97 lb / approximately 44 kg
• Case Material: ABS and PC blend
• Case Flame Rating: UL94-V0
• Enclosure Protection: IP67
• Terminal Size: M8
• Terminal Torque: 8–12 Nm
• Cooling Method: Natural / passive convection
• Internal Fuse: 400A rated internal fuse
• Internal Fuse Certification: UL60691 certified
• Cell Certifications: UL1642 cells, UL9540A cells, IEC 62619:2022
• Battery Pack Certification: UL1973 certified
• Additional Compliance: CE, RoHS
• Shipping Classification: UN 3480, Class 9
• Warranty: 11-year manufacturer warranty

Recommended Use

Suitable for compatible RV and camper house-power systems, marine house banks, van and overland electrical systems, solar energy storage, off-grid installations, backup power systems, and other high-capacity 12V applications where the battery's electrical, charging, communication, and installation requirements match.

Charging Specifications

• Non-Victron Absorption Voltage: 14.2V
• Absorption Time: 15 minutes per battery
• Float Voltage: 13.5V
• Re-Bulk Voltage: 13.3V
• Equalization: Off / disabled
• Temperature Compensation: Disabled / 0mV per °C
• BMS High-Voltage Cutoff: 14.6V
• SoC Recalibration: 14.6V when configured according to the specified system requirements

Victron System Integration

The battery supports native BMS CAN communications with compatible Victron GX devices. Compatible installations can use a master-to-slave communication chain for multiple batteries in parallel, followed by connection to the appropriate GX CAN port. Configure the system according to Epoch's communication and DIP-switch instructions, then enable DVCC and assign the Epoch battery as the controlling BMS and battery monitor where supported.

Installation Note

The IP67 enclosure is designed for dust protection and temporary water immersion, but correct installation remains essential. Verify battery dimensions, terminal access, cable routing, mounting, charging equipment, communication wiring, fuse protection, and system compatibility before installation.

This 12V 460Ah LiFePO4 battery provides high-capacity deep-cycle energy storage with internal heating, Bluetooth monitoring, native Victron communications, IP67 protection, and scalable series and parallel configurations for compatible RV, marine, solar, and off-grid systems.
