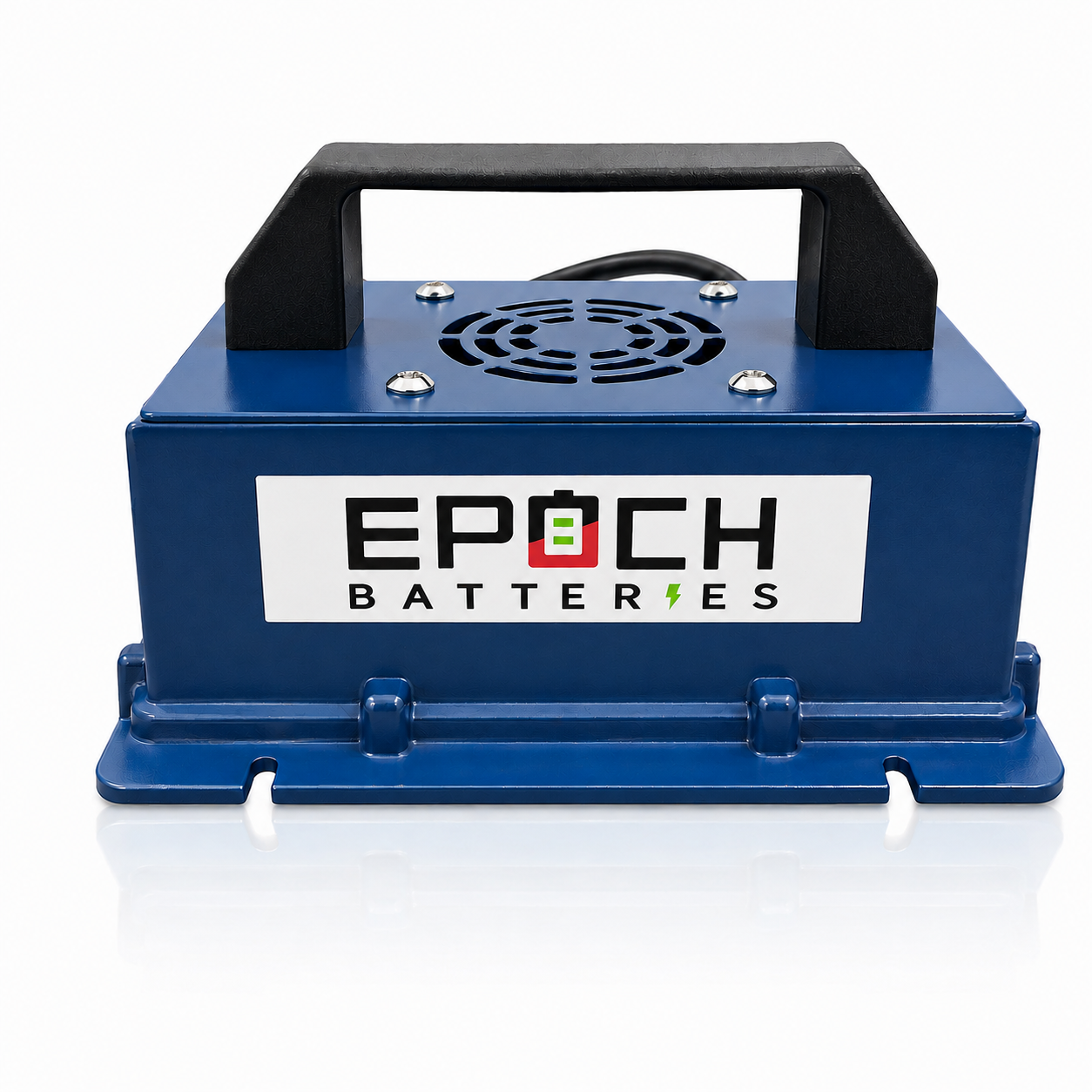

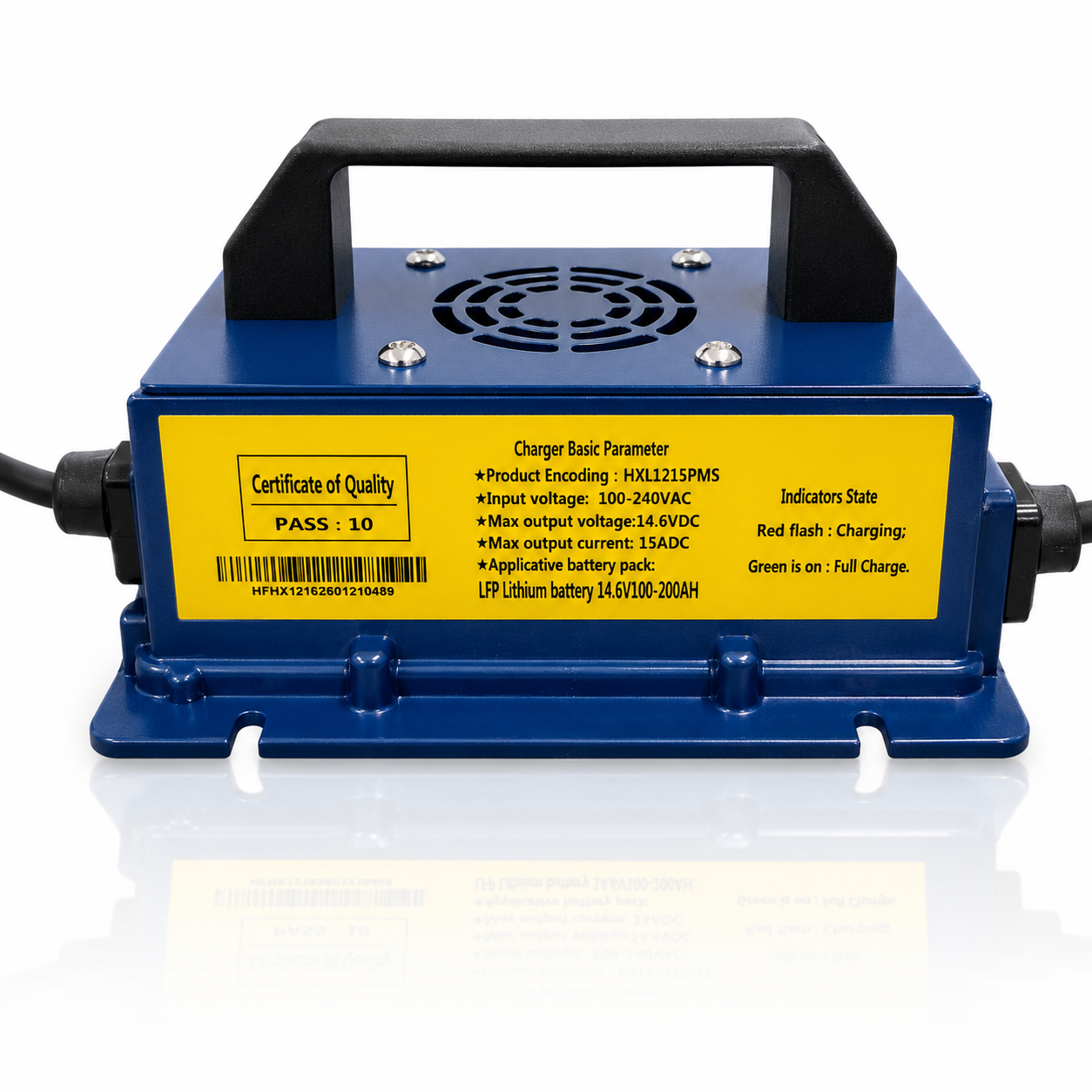

Epoch Batteries 12V 15A LiFePO4 Battery Charger

Epoch Batteries 12V 15A LiFePO4 Battery Charger

This 12V 15A LiFePO4 battery charger is designed for compatible 12V lithium iron phosphate battery systems. It features 120V AC input, 15A output, up to 95% charging efficiency, ring terminal connectors, IP67 protection, an aluminum alloy housing, and automatic protection against overtemperature, reverse polarity, overcharge, overvoltage, overcurrent, and short circuits.

Key Features

• 12V LiFePO4 Charging: Designed specifically for compatible 12V Lithium Iron Phosphate battery systems.
• 15A Output: Provides a 15A charging current for compatible 12V LiFePO4 batteries.
• 120V AC Input: Connects to standard 120V AC power outlets for home, garage, shop, RV, and marine charging.
• Up to 95% Efficiency: Provides up to 95% charging efficiency for efficient power conversion.
• Ring Terminal Connection: Includes ring terminal connectors for direct connection to compatible battery terminals.
• IP67 Protection: Dustproof and waterproof construction for suitable mobile, marine, RV, and outdoor charging environments.
• Aluminum Alloy Housing: Lightweight aluminum construction also functions as a heatsink for thermal management.
• Automatic Protection: Includes overtemperature, ambient temperature, reverse polarity, overcharge, output overvoltage, output overcurrent, and short-circuit protection.
• Shock-Resistant Design: Designed for mobile charging environments such as RVs and marine applications.
• LiFePO4 Compatibility: Intended for compatible 12V LiFePO4 batteries and should not be used with other battery chemistries unless specifically approved by the battery manufacturer.

Specifications

• Brand: Epoch Batteries
• Product Name: 12V 15A Battery Charger
• SKU: CHG-12V15A
• Charger Type: 12V Lithium LiFePO4 Battery Charger
• Compatible Chemistry: 12V Lithium Iron Phosphate / LiFePO4 Batteries
• Input Voltage: 120V AC
• Output Voltage: 12V lithium charging output
• Output Current: 15A
• Charging Efficiency: Up to 95%
• Output Connector: Ring terminal connector
• Housing Material: Lightweight aluminum alloy
• Heat Management: Aluminum housing functions as a heatsink
• Ingress Protection: IP67 dustproof and waterproof
• Mobile Use: Shock-resistant design
• Working Temperature Range: -40°C to 60°C
• Overtemperature Protection: Yes
• Ambient Temperature Protection: Yes
• Reverse Polarity Protection: Yes
• Overcharge Protection: Yes
• Output Overvoltage Protection: Yes
• Output Overcurrent Protection: Yes
• Output Short-Circuit Protection: Yes

Recommended Use

Suitable for compatible 12V LiFePO4 batteries used in marine, RV, camper, van, portable power, solar, backup, and off-grid applications where a 15A lithium battery charger is appropriate.

Compatibility Notice

This charger is designed for compatible 12V LiFePO4 battery systems. Do not use it with 24V, 36V, or 48V battery systems, or with lead-acid, AGM, gel, or flooded batteries, unless the battery manufacturer specifically confirms compatibility.

Charging Connections

The charger uses ring terminal connectors for direct battery connection. Before charging, verify battery polarity, terminal compatibility, wiring, and the battery manufacturer's recommended charging requirements.

Installation and Safety

Use the charger in accordance with the manufacturer's operating instructions. Although the charger has IP67 protection, position it appropriately for the installation environment and prevent damage to the power cable, charging leads, or battery connections.

This 12V 15A LiFePO4 battery charger provides dedicated lithium charging with 120V AC input, 15A output, IP67 protection, aluminum thermal management, and multiple built-in electrical protection features.
