Epoch Batteries

Epoch 4-Bank 12V Marine Battery Charger, 10A Per Bank (40A), Onboard LiFePO4/AGM, IP67

🚤 4 Batteries, 1 Onboard Charger|🔋 10A Per Bank, 40A Total|🔧 Lithium, AGM or Lead-Acid Per Bank|💧 IP67 Epoxy-Filled

Regular price: Price: $399.00
Regular price: List Price:
Sale price: Price: $399.00
Unit price: per

In Stock – Ready to Ship

Free Shipping – Lower 48

Authorized Dealer – Full manufacturer warranty

Pay Over Time – Shop Pay Installments

Ships From US Warehouses

Product variants

Quantity

🚤4 Batteries, 1 ChargerBass boat ready
🔋10A Per Bank40A total
🔧Mode Per BankLiFePO4, AGM, lead-acid
💧IP67 Epoxy-FilledOnboard mounting
🇺🇸Free ShippingContiguous 48 states
📞Real Human SupportWiring questions

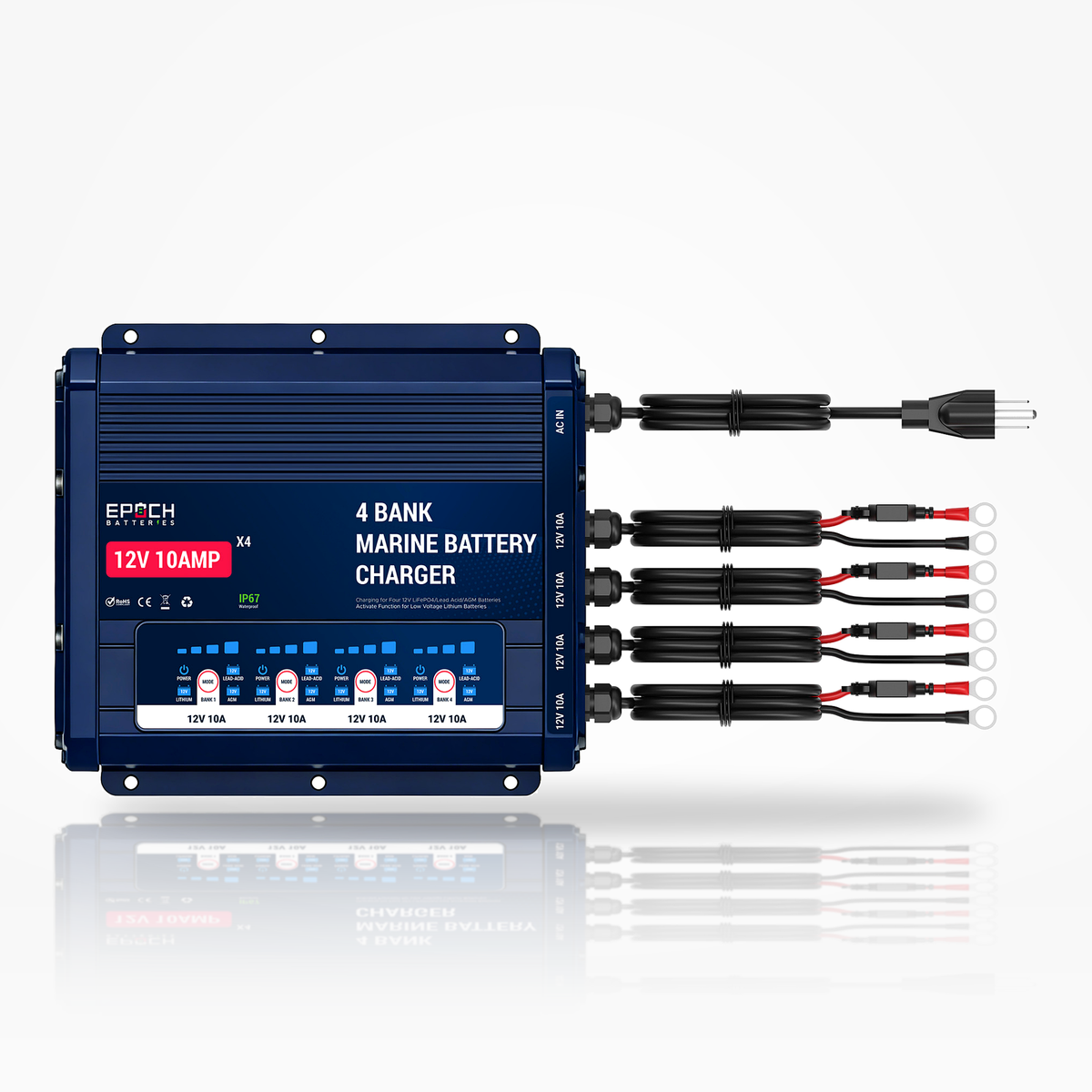

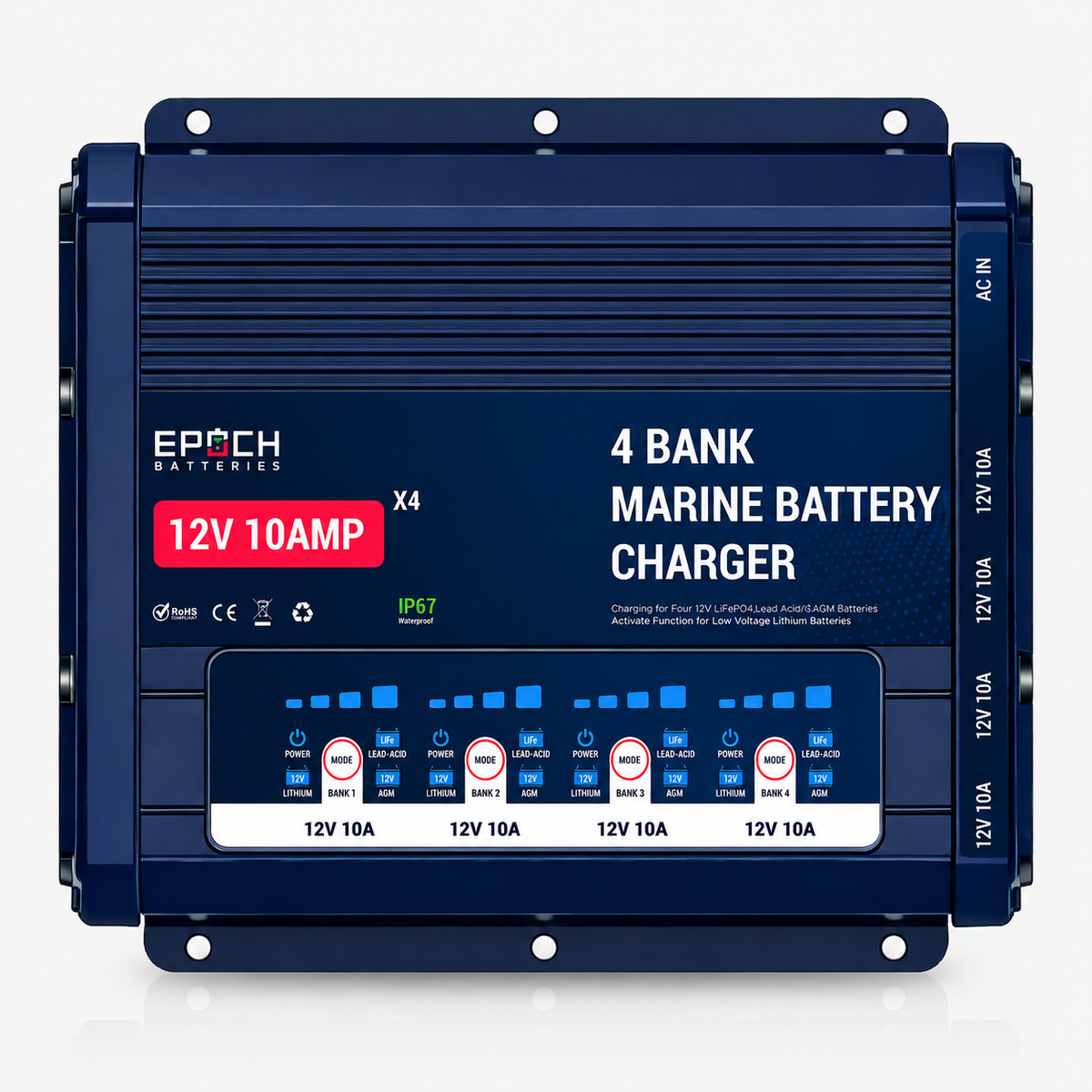

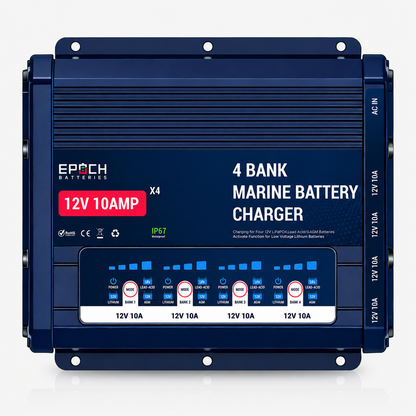

Epoch 4-Bank 12V Marine Charger: four independent 12V/10A charging banks in one onboard unit. It's built for the classic bass boat setup of three 12V trolling batteries plus a 12V cranking or house battery. Each bank has its own LiFePO4, AGM or lead-acid setting, lithium BMS wake-up and status light, so you charge the whole boat overnight from one AC plug.

4Independent banks

10APer bank

40ATotal

IP67Epoxy-filled

Specs from Epoch Batteries' product page and manual.

🔍 Will It Work on My Boat?

3 × 12V trolling + 12V cranking
Four 12V batteries
Mixed lithium & AGM
Bass & fishing boats

📏 Quick check before you order:

Every bank charges one 12V battery. Don't connect a bank across a native 24V, 36V or 48V battery.
Charging a series string in place? Check the charger manual and your battery maker's instructions before leaving the jumpers connected.
You can mount it on a rigid surface with more than 30mm of clearance, near a grounded 120V outlet.

Have a single 36V battery instead? The Epoch 12V & 36V onboard charger is the better match.

Why This Charger

⚡

True 10A Per Bank

Each battery gets its own 10A channel instead of splitting one small output four ways.

⚖️

Keeps Series Banks Even

Charging each 12V battery individually helps keep a 24V, 36V or 48V string balanced.

🔧

Mix Battery Types

Run lithium trolling batteries and an AGM cranking battery, each on its own setting.

🔋

BMS Wake-Up

Wakes a compatible lithium battery that's gone into low-voltage protection.

💧

Marine-Tough

Epoxy-filled IP67 enclosure, aluminum cooling and a waterproof fan.

🛡️

Built-In Protection

Short-circuit, reverse-connection, overcharge, overtemperature and no-load protection.

📦 What's in the Box

🔌1 × Epoch 4-bank onboard chargerWith integrated grounded AC cord
🔴4 pairs of pre-wired leadsM8 ring terminals

Not included: batteries, M6 mounting screws, DC fusing and battery disconnects.

📋 Specifications

Input & Outputs
AC input	105–125VAC, 60Hz (not a 240V charger)

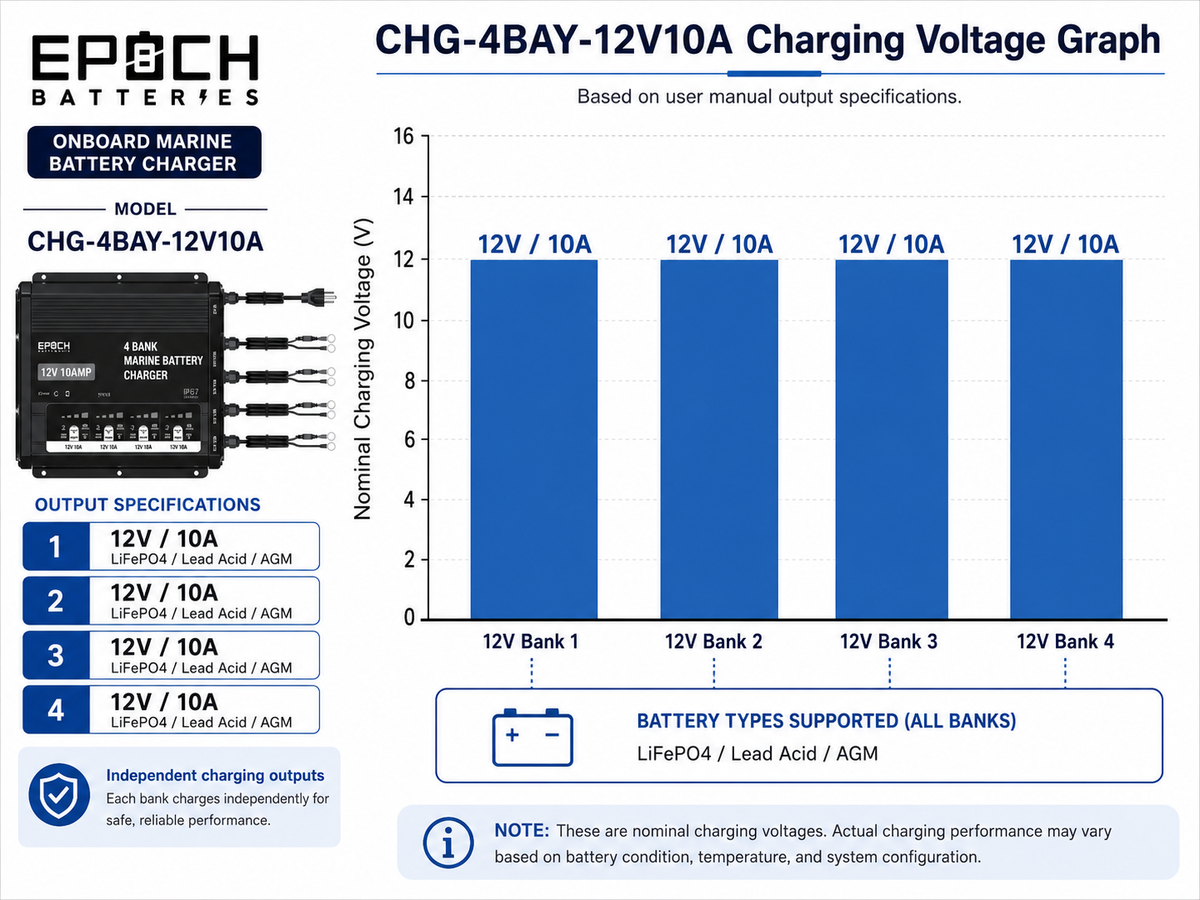

Outputs	4 × 12V / 10A (40A total)
Battery modes	LiFePO4, lead-acid or AGM, set per bank
Connections	Pre-wired M8 ring terminals
Replacement fuses	15A per bank
Build & Mounting
Protection rating	IP67, epoxy-filled
Working temperature	-4°F to 104°F (-20°C to 40°C)
Dimensions	About 11.18 × 9.65 × 3.90 in (284 × 245 × 99 mm)
Mounting	6.5mm holes, M6 screws; more than 30mm clearance
Warranty	2-year limited (Epoch)
Model / SKU	CHG-4BAY-12V10A

📄 Manuals & Downloads

📘 Epoch onboard charger manual (PDF) ↗

❓ Common Questions

How long does charging take?

Roughly divide each battery's amp-hours by 10A. A 100Ah battery needs about 10 hours, plus extra time as charging tapers.

Can I use two banks on one battery for 20A?

No. Epoch says to connect each bank to one battery only.

Can I charge an AGM cranking battery and three lithium trolling batteries?

Yes, as long as each is 12V and each bank is set to match its battery.

Can I charge a frozen lithium battery?

No. Don't charge LiFePO4 below 32°F unless the battery is self-heating or its manufacturer allows it.

Questions? Ask Us First.

Tell us your boat and batteries, and we'll confirm the right charger before you order.

📞 Call 833-664-7433 📧 Email Us
