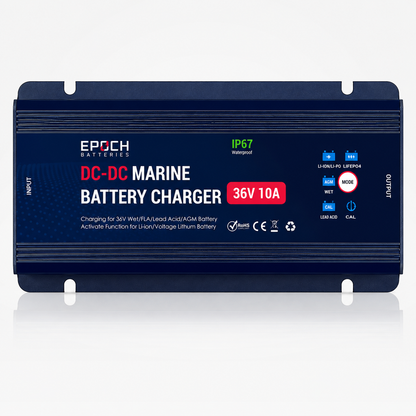

Epoch 12V to 36V Marine DC-DC Charger, Charge on the Run, 36V/10A Output, IP67

🚤 Charge Your 36V Battery While You Run|🔋 36V / 10A Output|🧠 Auto Start & Stop|💧 IP67 Onboard Mounting

Regular price: Price: $199.00
Regular price: List Price:
Sale price: Price: $199.00
Unit price: per

In Stock – Ready to Ship

Free Shipping – Lower 48

Authorized Dealer – Full manufacturer warranty

Pay Over Time – Shop Pay Installments

Ships From US Warehouses

Product variants

Quantity

🚤Charge on the RunFrom your outboard
🔋36V / 10A OutputAbout 360W
🧠Auto Start & StopVoltage-sensing
💧IP67 Epoxy-FilledOnboard mounting
🇺🇸Free ShippingContiguous 48 states
📞Real Human SupportWiring questions

Epoch 12V-to-36V Marine DC-DC Charger: recharge your 36V trolling-motor battery while the outboard runs. It draws from your 12V or 24V starter-battery system and delivers a regulated 36V/10A charge. It starts when the engine raises the starter voltage and stops when it drops, so your starting battery keeps its reserve.

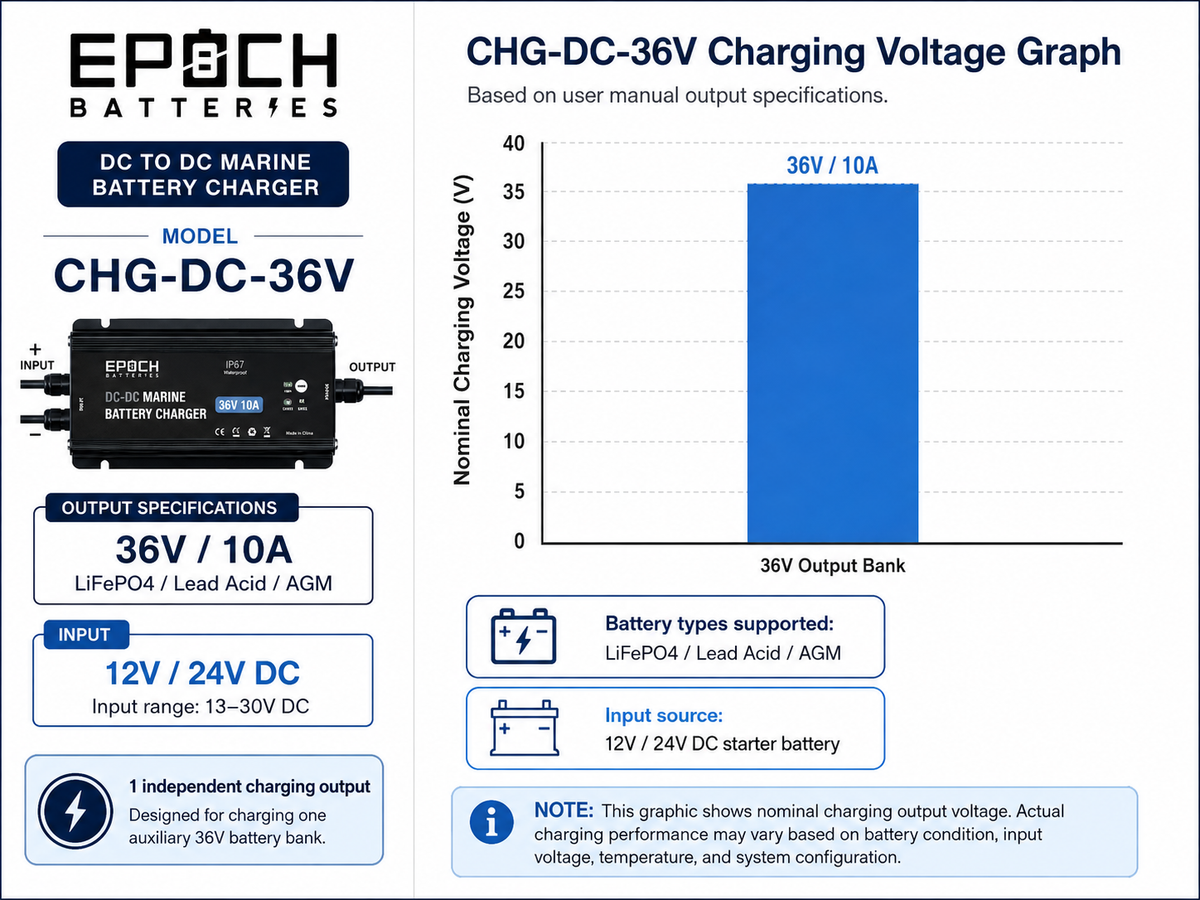

36V/10AOutput

12V or 24VStarter source

3 modesLiFePO4, AGM, lead-acid

IP67Epoxy-filled

Specs from Epoch Batteries' product page and manual.

📏 Quick check before you order:

Your starter system is 12V or 24V, and you have one 36V trolling-motor battery.
Your outboard's alternator has spare capacity: 36V at 10A is about 360W, which pulls a lot of current from a 12V system.
It's non-isolated, so follow Epoch's wiring diagram exactly, with proper fusing and grounding.

Need to charge a 12V electronics battery too? The Epoch Dual-Output 12V/36V DC-DC charger does both.

Why This Charger

🎣

More Trolling Time

Puts charge back into your 36V battery every time you run between spots.

🧠

Protects Your Starting Battery

On 12V it starts above 13.8V and stops below 13.0V; on 24V, above 26.8V and below 25.2V.

🔧

Three Battery Modes

Set it for a 36V LiFePO4, AGM or lead-acid battery, with lithium BMS wake-up.

💧

Marine-Tough

Epoxy-filled IP67 enclosure, aluminum cooling, waterproof fan and built-in protection.

📦 What's in the Box

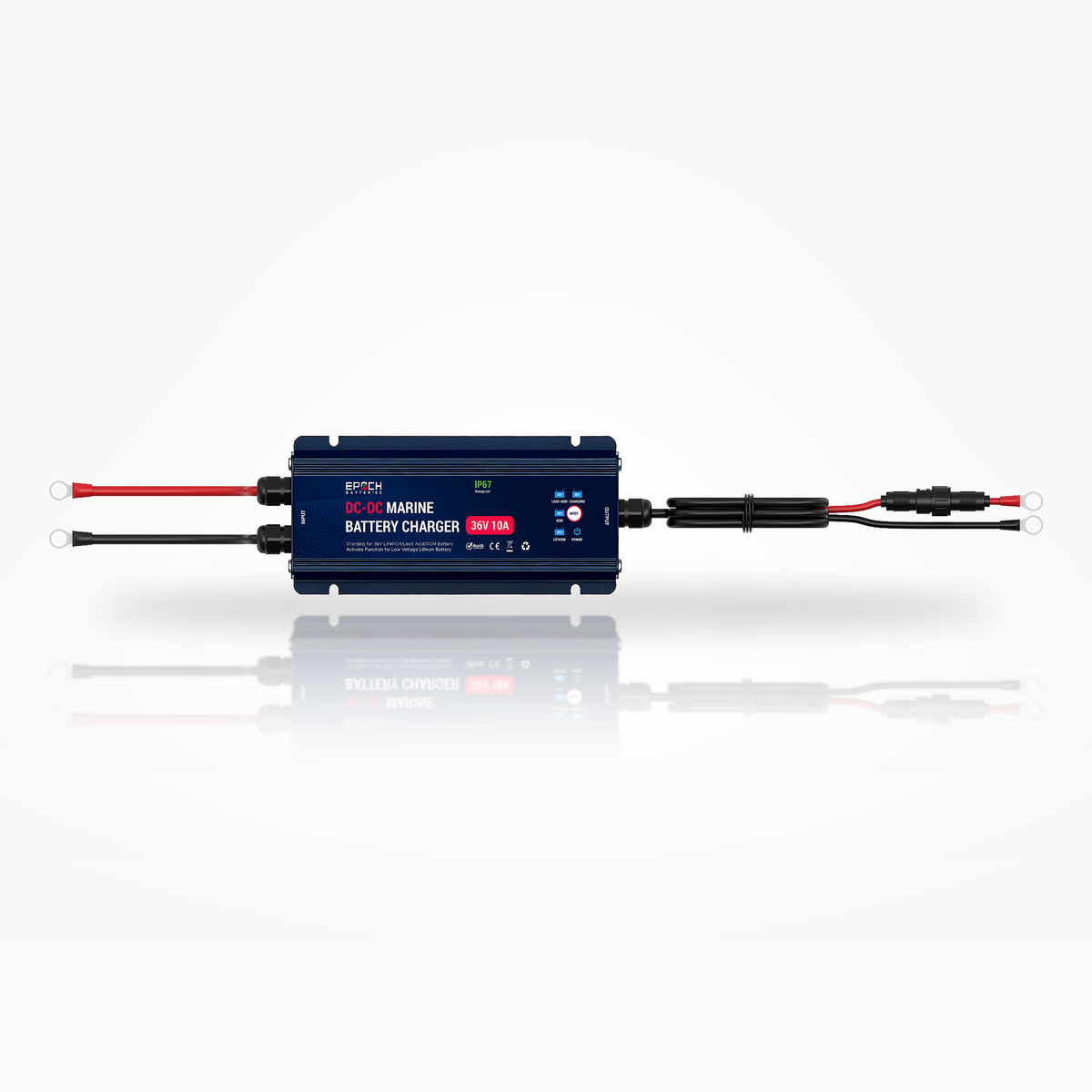

🔌1 × Epoch 12V-to-36V DC-DC chargerModel CHG-DC-36V
🔴Pre-wired input and output leadsRing terminals

Not included: batteries, DC fuses, disconnects and M6 mounting screws. It adds charge on the run but doesn't replace a full AC charge at the dock.

📋 Specifications

Source systems	12V or 24V starter battery (13–30VDC); 36V input not supported
12V source start / stop	Above 13.8V / below 13.0V
24V source start / stop	Above 26.8V / below 25.2V
Output	36V / 10A (about 360W)
Battery modes	36V LiFePO4, lead-acid or AGM
Idle hibernation	After about 20 minutes
Isolation	Non-isolated
Replacement fuse	15A
Protection rating	IP67, epoxy-filled
Working temperature	-4°F to 104°F (-20°C to 40°C)
Dimensions	About 9.84 × 3.74 × 2.68 in (250 × 95 × 68 mm)
Warranty	2-year limited (Epoch)
Model / SKU	CHG-DC-36V

📄 Manuals & Downloads

📘 Epoch DC-DC charger manual (PDF) ↗

❓ Common Questions

Will it drain my starting battery?

It stops charging when starter voltage drops below the cutoff and hibernates after about 20 idle minutes. A healthy starting battery and properly sized alternator are still required.

Can it charge three 12V batteries in series?

Epoch publishes it for one 36V battery. For a three-battery string, follow your battery maker's balancing instructions, or use the Epoch 4-bank charger at the dock.

Does it replace my AC charger?

No. Keep an AC onboard charger for full recharges at the dock.
