Dometic NRX 80C 80L Compressor Refrigerator Freezer 12/24V DC Dark Silver 9620017090

Dometic NRX 80C Compressor Refrigerator – 80L – 12/24V DC – Dark Silver – 9620017090

The Dometic NRX 80C Compressor Refrigerator is a compact, energy-efficient 80L class 12/24V DC refrigerator and freezer designed for RVs, camper vans, boats, yachts and off-grid applications. Providing approximately 75 liters of cool storage, the NRX 80C combines a versatile interior, removable 6.1L freezer compartment and variable-speed compressor technology in a space-efficient cabinet.

Designed as a flexible 3-in-1 cooling solution, the NRX 80C can be configured for refrigeration, freezing, or simultaneous refrigerator and freezer use. Its compact dimensions make it particularly attractive for camper vans, smaller RVs and marine installations where space and energy efficiency are important.

80L class compressor refrigerator

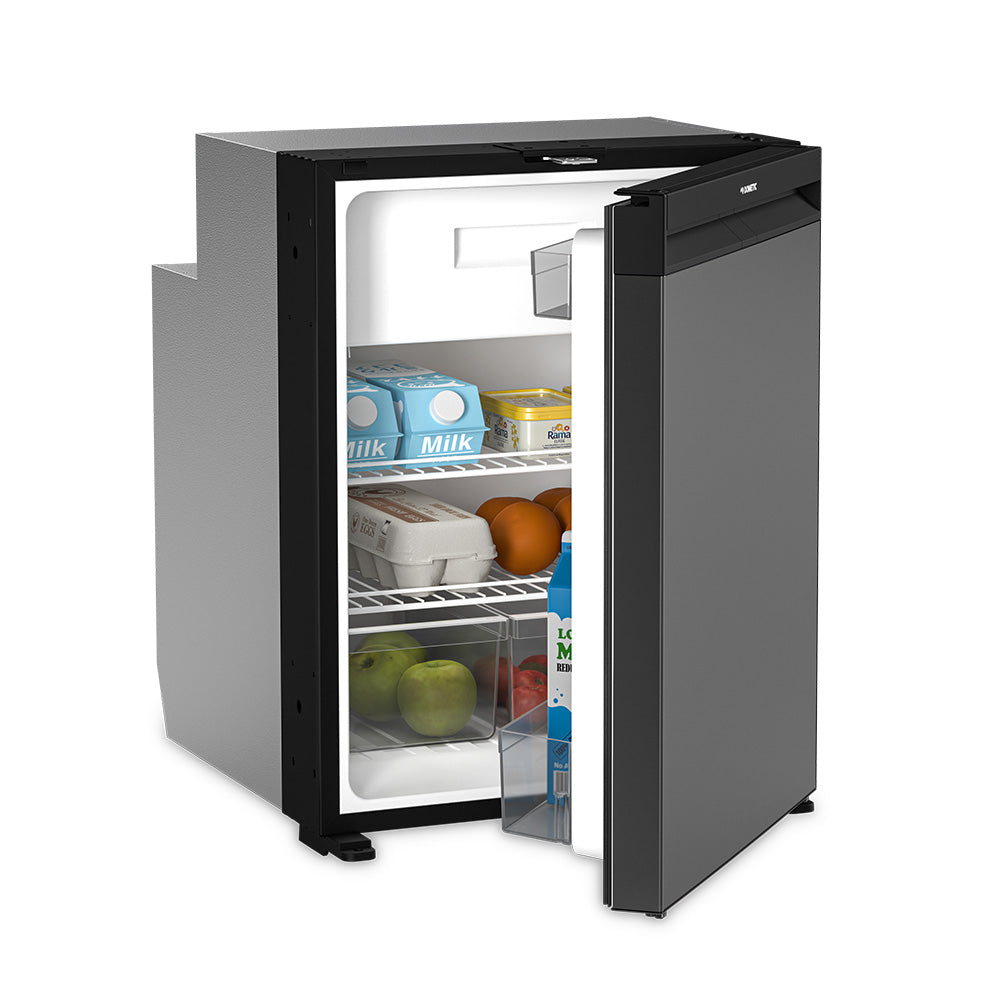

The Dometic NRX 80C provides approximately 75L of cool storage for food, beverages and travel provisions while maintaining relatively compact exterior dimensions. This balance of capacity and size makes it well suited for mobile applications where installation space is limited.

3-in-1 refrigerator and freezer

The NRX 80C offers Dometic's flexible 3-in-1 cooling configuration, allowing the unit to function as a refrigerator, freezer, or refrigerator and freezer simultaneously.

The included 6.1L freezer compartment is removable. When frozen-food storage is not required, the compartment can be removed to make additional space available for refrigerated food and beverages.

12/24V DC refrigerator

The Dometic NRX 80C operates from 12V or 24V DC power, making it ideal for onboard electrical systems commonly found in RVs, camper vans, boats and other mobile applications.

Important: Dometic NRX C Series refrigerators are DC only. An appropriate AC/DC converter is required when operating the refrigerator from an AC power source. Dometic AC/DC converter 9620013451 is specified for AC applications.

Energy-efficient variable-speed compressor

The NRX 80C features a premium variable-speed compressor engineered for efficient cooling while reducing unnecessary power consumption. This is particularly beneficial for battery-powered RV, marine and off-grid electrical systems.

Three selectable compressor modes allow performance to be adjusted for different operating conditions:

• Eco Mode: Prioritizes energy-efficient operation
• Performance Mode: Prioritizes cooling performance
• Silent Mode: Designed for quieter operation

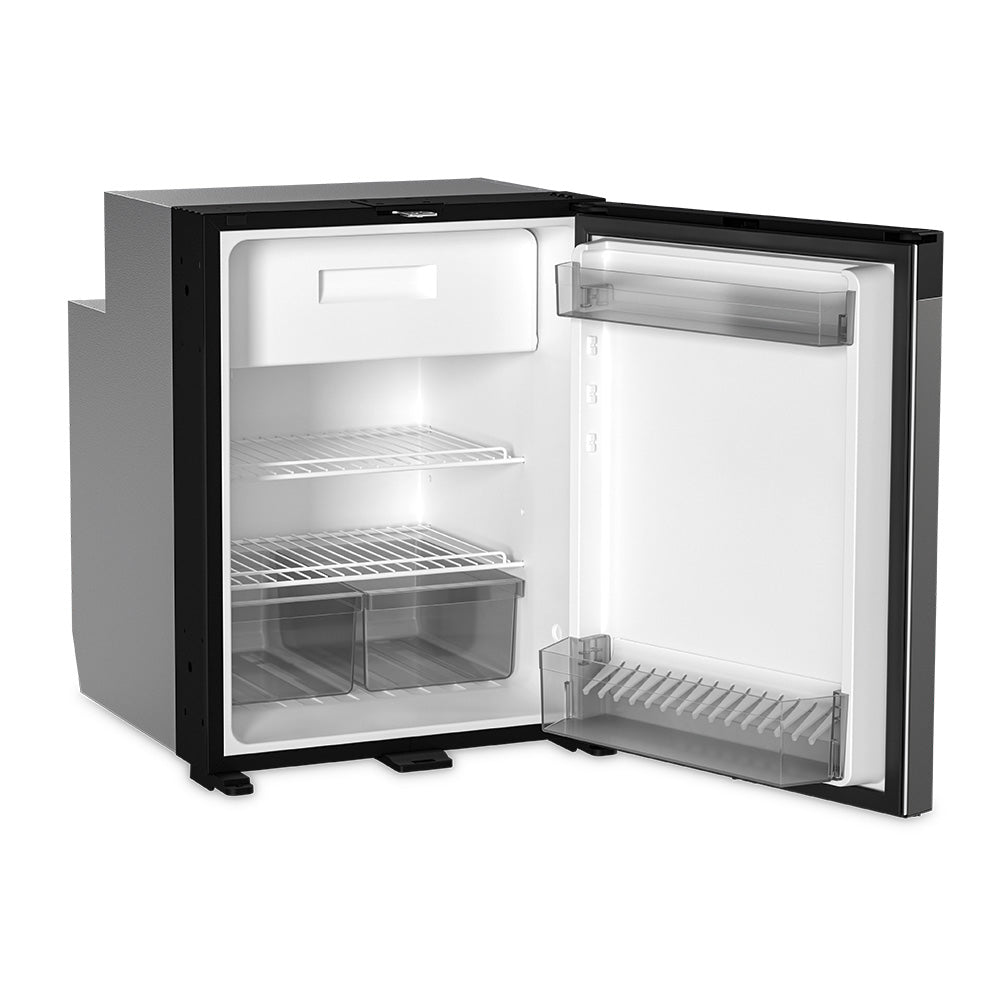

Removable 6.1L freezer compartment

The integrated 6.1-liter freezer compartment provides dedicated space for frozen items. It can be easily removed when additional refrigerated storage is preferred, giving users greater flexibility when packing for different trips.

Flush-mounted control panel

An easy-to-use control panel is flush-mounted inside the refrigerator cabinet for convenient access without interrupting the clean exterior design. An integrated LED light bar provides illumination inside the refrigerator.

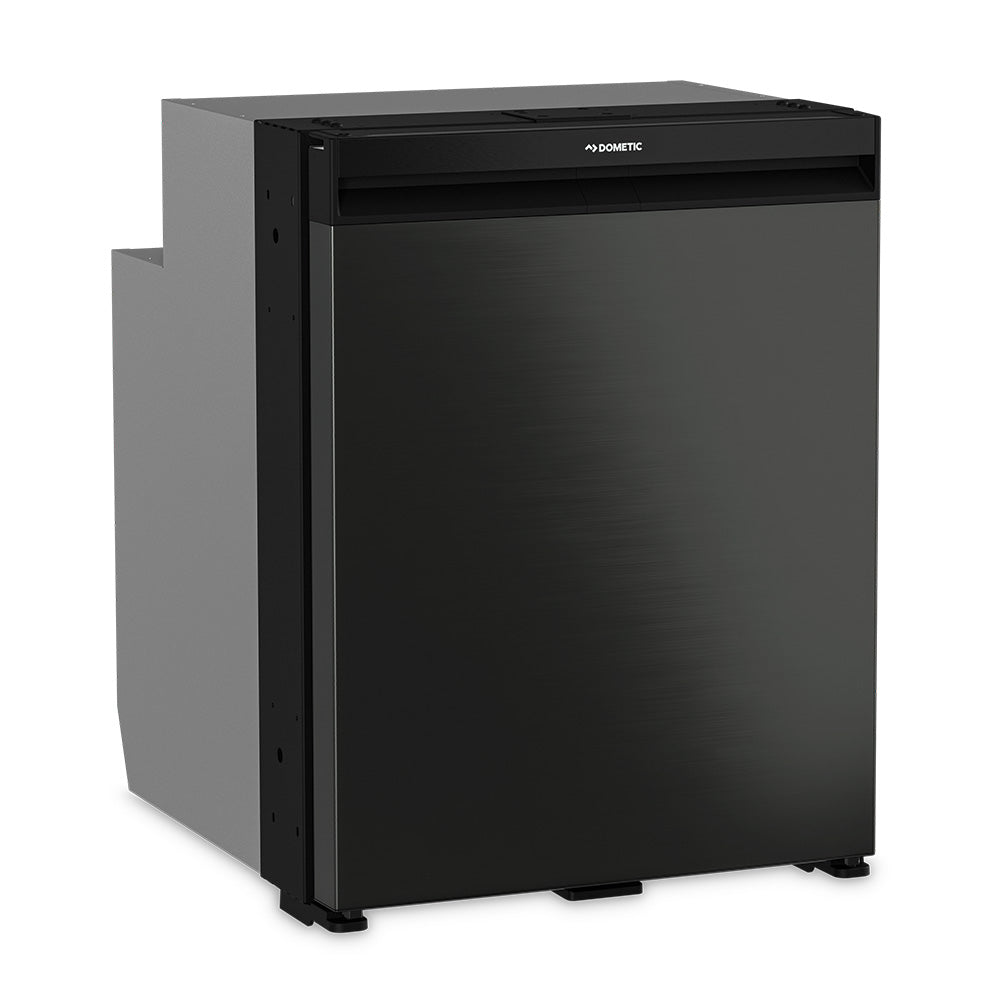

Dark silver frameless design

The NRX 80C features an elegant frameless door with a dark silver front panel and a convenient full-width handle. Its modern styling integrates cleanly into RV, camper van and marine interiors.

Reversible door hinge

The refrigerator's reversible door hinge allows the door to be installed for either left- or right-hand opening, providing greater flexibility when fitting the refrigerator into different cabinetry arrangements.

Space-efficient cabinet

A beveled rear section is designed to maximize available installation space. This is particularly useful aboard camper vans and boats where cabinetry depth and usable interior space can be limited.

Winter Mode

The integrated Winter Mode uses a smart closing mechanism that can create a small gap between the refrigerator and door to allow air circulation when the refrigerator is not in active use.

Dual-function locks

The NRX 80C incorporates dual-function locks that help secure the refrigerator door and can also act as ventilation aids during storage.

Key features

• Dometic NRX 80C compressor refrigerator
• 80L class capacity
• Approximately 75L of cool storage
• Removable 6.1L freezer compartment
• 3-in-1 refrigerator and freezer design
• 12/24V DC operation
• Energy-efficient variable-speed compressor
• Eco operating mode
• Performance operating mode
• Silent operating mode
• Flush-mounted interior control panel
• Integrated LED light bar
• Frameless dark silver front panel
• Integrated full-width handle
• Reversible left- or right-hand door hinge
• Beveled rear cabinet for efficient installation
• Winter Mode for ventilation during storage
• Dual-function door locks and vents
• Standard or flush-mount installation frame available separately

Technical specifications

• Brand: Dometic
• Model: NRX 80C
• Series: NRX C Series
• Product type: Compressor Refrigerator / Freezer
• Manufacturer part number: 9620017090
• Capacity class: 80L
• Cool storage: Approximately 75L
• Freezer compartment: 6.1L removable
• Input voltage: 12/24V DC
• Rated input power: 55W
• Refrigerant: R1234YF
• Height: 24.61 in.
• Width: 18.70 in.
• Depth: 21.14 in.
• Weight: 44.10 lbs.
• Color: Dark Silver
• Door: Frameless with reversible hinge
• Compressor modes: Eco / Performance / Silent

Recommended applications

• RV refrigerators
• Camper vans and van conversions
• Motorhomes
• Travel trailers
• Marine refrigerators
• Boats and yachts
• 12V DC refrigeration systems
• 24V DC refrigeration systems
• Off-grid refrigeration systems
• Overlanding vehicles
• Mobile living applications

Installation Note: The installation frame is not included. Standard and flush-mount installation frames are available separately. Verify the refrigerator's dimensions, ventilation requirements and available cabinet space before ordering.

AC Power Note: The Dometic NRX 80C is a 12/24V DC refrigerator. An AC/DC converter is required for operation from AC power. Dometic converter part number 9620013451 is specified for AC applications.

The Dometic NRX 80C 80L Compressor Refrigerator 9620017090 offers an excellent balance of compact dimensions, refrigerated storage and flexible cooling capability. Its removable 6.1L freezer, 3-in-1 cooling design, efficient 12/24V compressor, reversible door and dark silver finish make it a strong choice for compatible RVs, camper vans, boats and off-grid installations.
