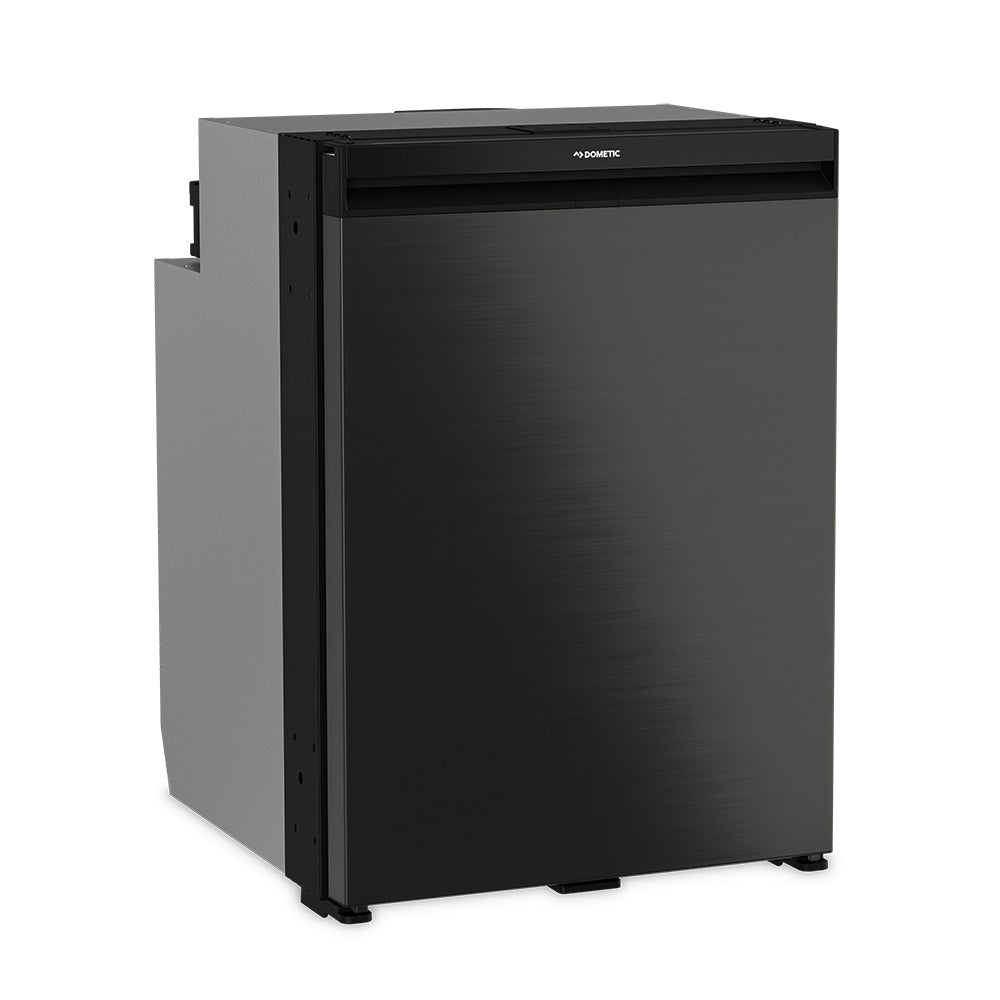

Dometic NRX 130C 130L Compressor Refrigerator Freezer 12/24V DC Dark Silver 9620017097

Dometic NRX 130C Compressor Refrigerator – 130L – 12/24V DC – Dark Silver – 9620017097

The Dometic NRX 130C Compressor Refrigerator is an energy-efficient 130L class 12/24V DC refrigerator and freezer designed for RVs, boats, camper vans, motorhomes and other mobile or off-grid applications. With approximately 126 liters of cool storage, a removable 8.2L freezer compartment and an energy-efficient variable-speed compressor, the NRX 130C provides flexible food and beverage storage in a modern built-in design.

The NRX 130C features Dometic's versatile 3-in-1 cooling configuration, allowing the cabinet to be used for refrigeration, freezing, or refrigerator and freezer storage at the same time. Its frameless dark silver front panel and integrated full-width handle provide a clean appearance for contemporary RV and marine interiors.

130L class compressor refrigerator

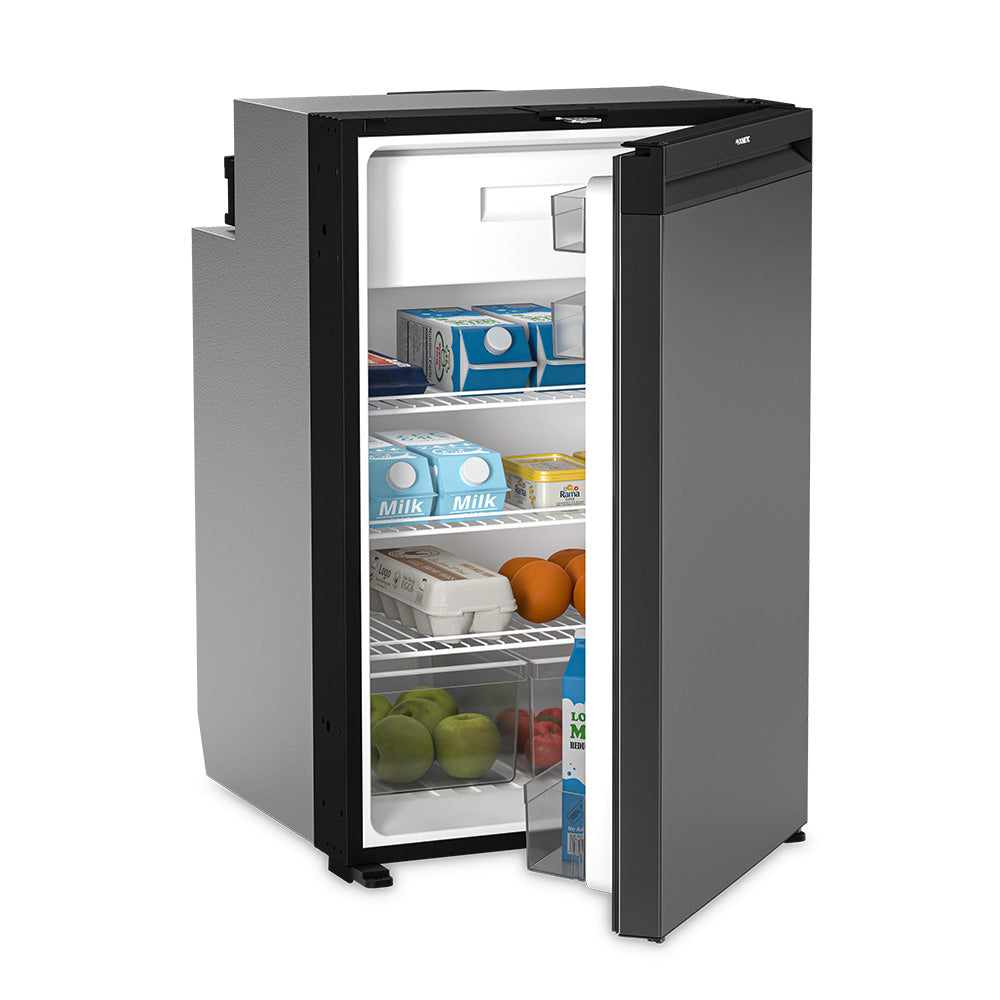

The Dometic NRX 130C provides approximately 126L of cool storage capacity for food, beverages and travel provisions. Its spacious cabinet makes it well suited for extended RV trips, boating, cruising, overlanding and other applications where substantial refrigerated storage is needed.

3-in-1 refrigerator and freezer

The NRX 130C offers a flexible 3-in-1 cooling solution that can be configured for refrigeration, freezing, or simultaneous refrigerator and freezer operation.

The included 8.2L freezer compartment can be easily removed when additional refrigerator space is preferred, allowing users to take advantage of more of the cabinet's available capacity.

12/24V DC operation

The NRX 130C operates from 12V or 24V DC power, making it ideal for mobile electrical systems commonly found aboard RVs, boats, yachts and camper vans.

Important: Dometic NRX C Series refrigerators are DC only. An appropriate AC/DC converter is required for operation from an AC electrical source. Dometic AC/DC converter 9620013451 is specified for AC applications.

Energy-efficient variable-speed compressor

A premium variable-speed compressor provides efficient cooling performance while allowing the refrigerator to adapt to different operating requirements. The compressor features three selectable operating modes:

• Eco Mode: Prioritizes reduced energy consumption
• Performance Mode: Prioritizes cooling performance
• Silent Mode: Designed for quieter operation

This flexibility makes the NRX 130C particularly useful for battery-powered and off-grid applications where power consumption can be an important consideration.

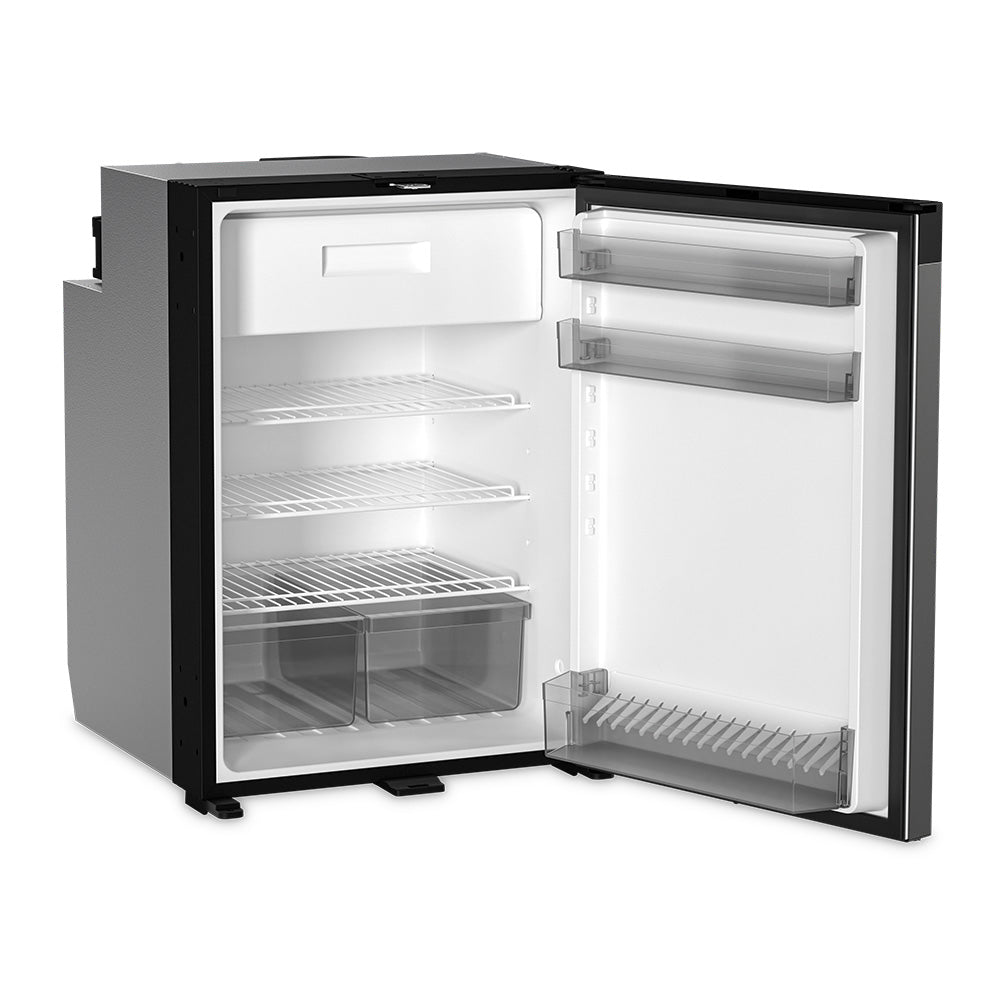

Removable 8.2L freezer compartment

The integrated 8.2-liter freezer compartment provides convenient frozen-food storage. When freezer space is not required, the compartment can be removed to create additional refrigerator capacity.

This adaptable interior allows users to configure the refrigerator according to changing food-storage requirements during travel, boating or extended stays.

Flush-mounted control panel

An easy-to-use control panel is flush-mounted inside the refrigerator cabinet for convenient access while maintaining a clean exterior appearance. An integrated LED light bar provides interior illumination for easier access to food and beverages.

Dark silver frameless door

The NRX 130C features an elegant frameless door with a dark silver front panel. A convenient full-width handle is integrated into the door, creating a streamlined appearance suitable for modern RV, yacht, boat and camper interiors.

Reversible door hinge

The reversible door hinge allows the refrigerator door to be configured for either left- or right-hand opening. This provides greater installation flexibility for different cabinetry arrangements and vehicle or vessel floor plans.

Space-efficient cabinet design

A beveled rear section helps maximize the use of available installation space. This space-conscious cabinet design is particularly useful aboard boats and RVs where cabinetry depth and interior room can be limited.

Winter Mode

The integrated Winter Mode uses a smart closing mechanism that can create a small gap between the refrigerator cabinet and door, allowing air circulation when the refrigerator is not in active use.

Dual-function locks

The refrigerator incorporates dual-function locks that help secure the door and can also act as vents, providing additional convenience during travel and storage.

Key features

• Dometic NRX 130C compressor refrigerator
• 130L class capacity
• Approximately 126L of cool storage
• Removable 8.2L freezer compartment
• 3-in-1 refrigerator and freezer configuration
• 12/24V DC operation
• Energy-efficient variable-speed compressor
• Eco operating mode
• Performance operating mode
• Silent operating mode
• Flush-mounted interior control panel
• Integrated LED light bar
• Frameless dark silver front panel
• Integrated full-width door handle
• Reversible left- or right-hand door hinge
• Beveled rear cabinet for efficient use of installation space
• Winter Mode for ventilation during storage
• Dual-function door locks and vents
• Standard or flush-mount installation frame available separately

Technical specifications

• Brand: Dometic
• Model: NRX 130C
• Series: NRX C Series
• Product type: Compressor Refrigerator / Freezer
• Manufacturer part number: 9620017097
• UPC: 6975399595168
• Capacity class: 130L
• Cool storage: Approximately 126L
• Freezer compartment: 8.2L removable
• Input voltage: 12/24V DC
• Rated input power: 70W
• Refrigerant: R1234YF
• Height: 31.97 in.
• Width: 20.67 in.
• Depth: 22.36 in.
• Weight: 59.54 lbs.
• Color: Dark Silver
• Door: Frameless with reversible hinge
• Compressor modes: Eco / Performance / Silent

Recommended applications

• RV refrigerators
• Motorhomes
• Travel trailers
• Fifth-wheel RVs
• Camper vans and van conversions
• Marine refrigerators
• Boats and yachts
• 12V DC refrigeration systems
• 24V DC refrigeration systems
• Off-grid refrigeration systems
• Overlanding and mobile living applications

Installation Note: The installation frame is not included. Standard and flush-mount installation frames are available separately. Verify cabinet dimensions, ventilation requirements and available installation space before purchase.

AC Power Note: The Dometic NRX 130C is a 12/24V DC refrigerator. An AC/DC converter is required when operating from AC power. Dometic converter part number 9620013451 is specified for AC applications.

The Dometic NRX 130C 130L Compressor Refrigerator 9620017097 combines spacious storage with flexible refrigerator/freezer operation and efficient 12/24V DC compressor technology. Its removable 8.2L freezer, Eco/Performance/Silent modes, reversible door and dark silver frameless design make it an excellent built-in refrigeration solution for compatible RVs, boats, yachts, camper vans and off-grid applications.
