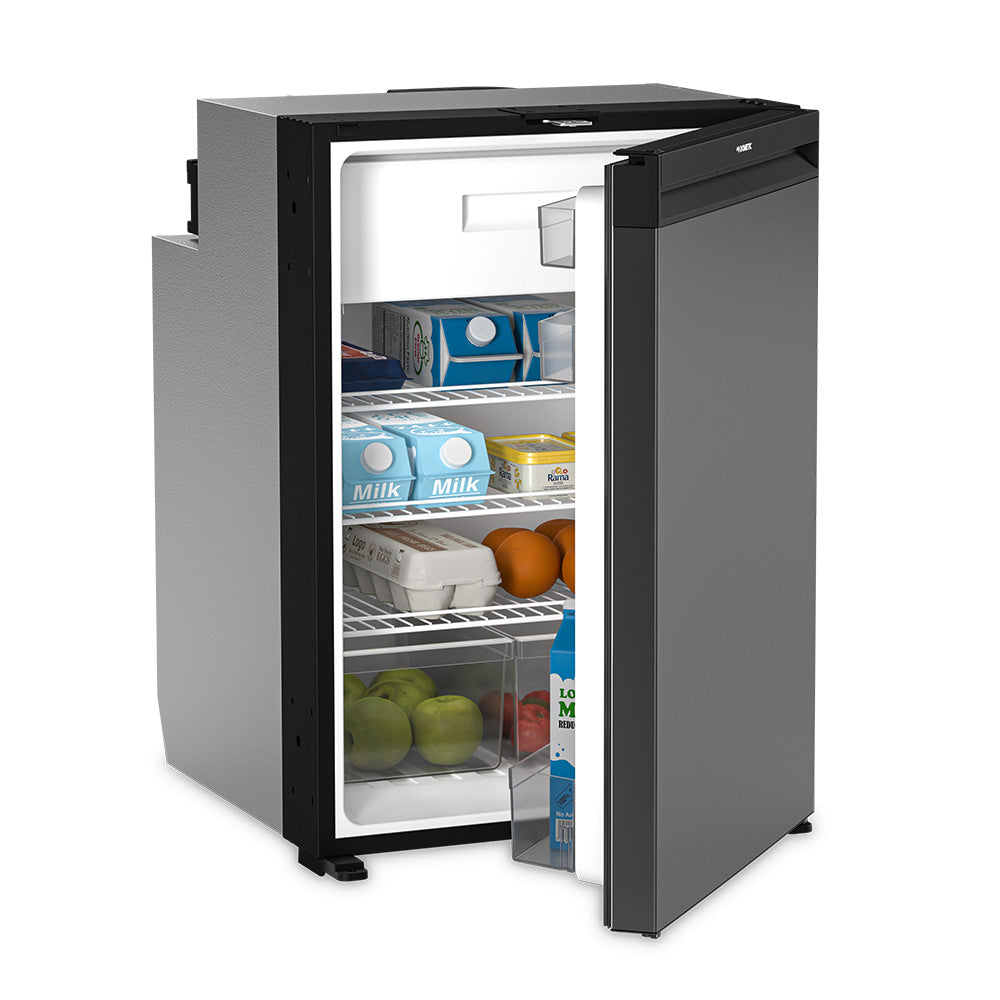

Dometic NRX 115C 115L Compressor Refrigerator Freezer 12/24V DC Dark Silver 9620017100

Dometic NRX 115C Compressor Refrigerator – 115L – 12/24V DC – Dark Silver – 9620017100

The Dometic NRX 115C Compressor Refrigerator is a versatile 115L 12/24V DC refrigerator and freezer designed for RVs, boats, camper vans and other mobile or off-grid installations. Featuring an energy-efficient variable-speed compressor, removable freezer compartment and sophisticated dark silver frameless door, the NRX 115C combines flexible food storage with efficient DC operation.

The refrigerator provides approximately 113 liters of refrigerated storage and includes a removable 8.2L freezer compartment. Remove the freezer when additional refrigerator space is needed, or leave it installed to conveniently store refrigerated and frozen foods at the same time.

3-in-1 refrigerator and freezer

The Dometic NRX 115C provides a flexible 3-in-1 cooling solution. Depending on your storage needs, the interior can be configured for refrigeration, freezing, or simultaneous refrigerator and freezer use.

The 8.2L freezer compartment is removable, allowing you to maximize the available refrigerated cabinet space when frozen-food storage is not required.

12/24V DC compressor refrigerator

The NRX 115C operates directly from 12V or 24V DC power, making it particularly well suited for RV, marine, camper van and off-grid electrical systems.

Important: Dometic C Series refrigerators are DC only. An appropriate AC/DC converter is required for operation from AC power. Dometic AC/DC converter 9620013451 is specified for AC applications.

Energy-efficient variable-speed compressor

The premium variable-speed compressor provides efficient cooling performance while offering three selectable operating modes:

• Eco Mode: Optimized for reduced energy consumption
• Performance Mode: Prioritizes cooling performance
• Silent Mode: Designed for quieter operation

These operating modes allow users to tailor refrigerator performance to their power availability and cooling requirements.

Easy-to-use interior control panel

An intuitive control panel is flush-mounted inside the refrigerator cabinet for a clean appearance. An integrated LED light bar provides interior illumination and complements the refrigerator's modern design.

Winter Mode for ventilation

The integrated Winter Mode uses a smart closing mechanism to maintain a small gap between the refrigerator cabinet and door when the unit is not being used. This allows the interior to air out during storage.

Space-saving design

The NRX 115C features a beveled rear section designed to maximize the use of available installation space aboard a boat, RV or camper van. Its efficient cabinet design provides substantial storage capacity while remaining suitable for built-in mobile applications.

Reversible door hinge

The reversible door can be configured with either a left- or right-side hinge, providing greater flexibility when integrating the refrigerator into different cabinetry and floor plans.

Dark silver frameless door

The refrigerator features an elegant frameless door with a dark silver front panel and convenient full-width handle. The modern exterior is designed to integrate cleanly into contemporary RV, marine and camper interiors.

Dual-function locking system

The refrigerator's dual-function locks help secure the door and can also function as vents, providing additional convenience when the refrigerator is stored or not in active use.

Key features

• Dometic NRX 115C compressor refrigerator
• 115L class capacity
• Approximately 113L of refrigerated storage
• Removable 8.2L freezer compartment
• 3-in-1 refrigerator and freezer configuration
• 12/24V DC operation
• Energy-efficient variable-speed compressor
• Eco, Performance and Silent operating modes
• Flush-mounted interior control panel
• Integrated LED light bar
• Winter Mode for ventilation during storage
• Frameless door
• Dark silver front panel
• Full-width integrated handle
• Reversible left- or right-hand door hinge
• Beveled rear design helps maximize installation space
• Dual-function locks can also provide ventilation
• Optional standard or flush-mount installation frames available separately

Technical specifications

• Brand: Dometic
• Model: NRX 115C
• Product type: Compressor Refrigerator / Freezer
• Manufacturer part number: 9620017100
• UPC: 6975399595151
• Capacity: 115L class
• Refrigerated storage: Approximately 113L
• Freezer compartment: 8.2L removable
• Input voltage: 12/24V DC
• Rated input power: 70W
• Refrigerant: R1234YF
• Height: 29.33 in.
• Width: 20.67 in.
• Depth: 22.36 in.
• Weight: 57.33 lbs.
• Color: Dark Silver
• Door: Frameless, reversible hinge
• Compressor modes: Eco / Performance / Silent

Recommended applications

• RV refrigerators
• Motorhomes
• Travel trailers
• Camper vans and van conversions
• Marine refrigerators
• Boats and yachts
• 12V and 24V DC electrical systems
• Off-grid refrigeration systems
• Mobile living and overlanding applications

Installation Note: The installation frame is not included. Standard and flush-mount installation frames are available separately. Verify installation dimensions and electrical requirements before purchase.

AC Power Note: The Dometic NRX 115C is a 12/24V DC refrigerator. For AC applications, an AC/DC converter is required. Dometic converter part number 9620013451 is specified for AC operation.

The Dometic NRX 115C 115L Compressor Refrigerator 9620017100 delivers flexible refrigeration and freezer storage in an efficient 12/24V DC design. With its removable freezer, variable-speed compressor, three operating modes, reversible door and modern dark silver finish, it is an excellent built-in refrigeration solution for compatible RVs, boats, camper vans and off-grid applications.
