Name: Bedrock Battery 48V 105Ah Slim LiFePO4 Golf Cart Battery Conversion Kit With Bluetooth
Brand: Bedrock Battery
SKU: BB-KIT-48105S-TXT-RY
Price: 2169.0 USD
Availability: InStock

🇺🇸Free ShippingContiguous 48 states
🛡️10-Year WarrantyTransferable
📏Slim DesignNarrow 9.76" profile
🎯Exact-Fit KitsBuilt for your cart
📱Bluetooth Built InCheck it from your phone
📞Real Human SupportFitment & install questions

Bedrock Battery's slim 48V 105Ah lithium conversion kit for narrow battery bays. The Slim fits 5.38kWh of LiFePO4 power into a long, narrow 9.76" × 10.89" × 22.01" steel IP67 case, made for EZGO TXT, EZGO RXV metal-tray, Yamaha G19–G22, ICON, Kandi, Star EV, Polaris Ranger EV and similar carts. Choose your cart and Bedrock builds the kit around it, with a cart-specific charge port adapter, 15A on-board charger, state-of-charge meter, install bracket and manual. Built-in Bluetooth and a 10-year transferable warranty come standard.

5.38 kWhStored energy

Up to 45 miEst. range per charge*

6,000Rated cycles

10 YearsTransferable warranty

*Range is Bedrock Battery's estimate and varies with cart, terrain, speed, load and tires.

⛳ Will It Fit Your Cart?

Made for 48V lead-acid golf carts with long, narrow battery bays. Pick your cart in the menu:

EZGO TXT
EZGO RXV (metal tray)
Yamaha G19–G22
ICON & Advanced EV
Kandi & Coleman
Star EV
Polaris Ranger EV
Other 48V carts

📏 Quick check before you order:

Your cart runs on 48V lead-acid.
Your battery bay fits about 9.76" × 10.89" × 22.01", plus room for cables.
EZGO RXV owners: the metal tray takes this Slim kit. The plastic tray takes the Bedrock 48V 105Ah Compact.
Your controller's draw stays within 250A continuous (300A for 30 seconds, 600A for 3 seconds).
The heated option is +$129 on the Slim.

Not sure? Tell us what you're powering and we'll help you size it before you buy.

Why Choose Bedrock Battery

📏

Slim, Narrow Case

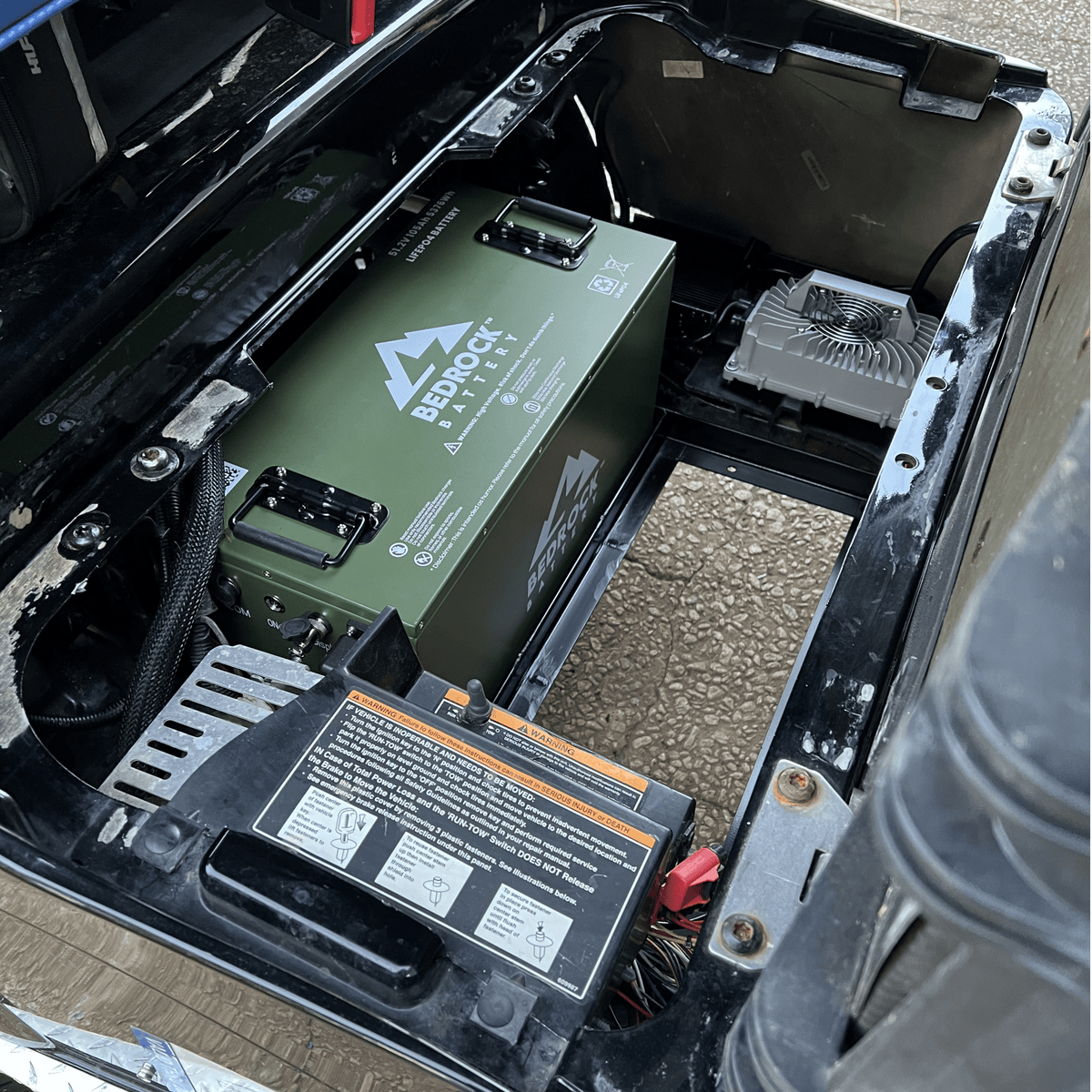

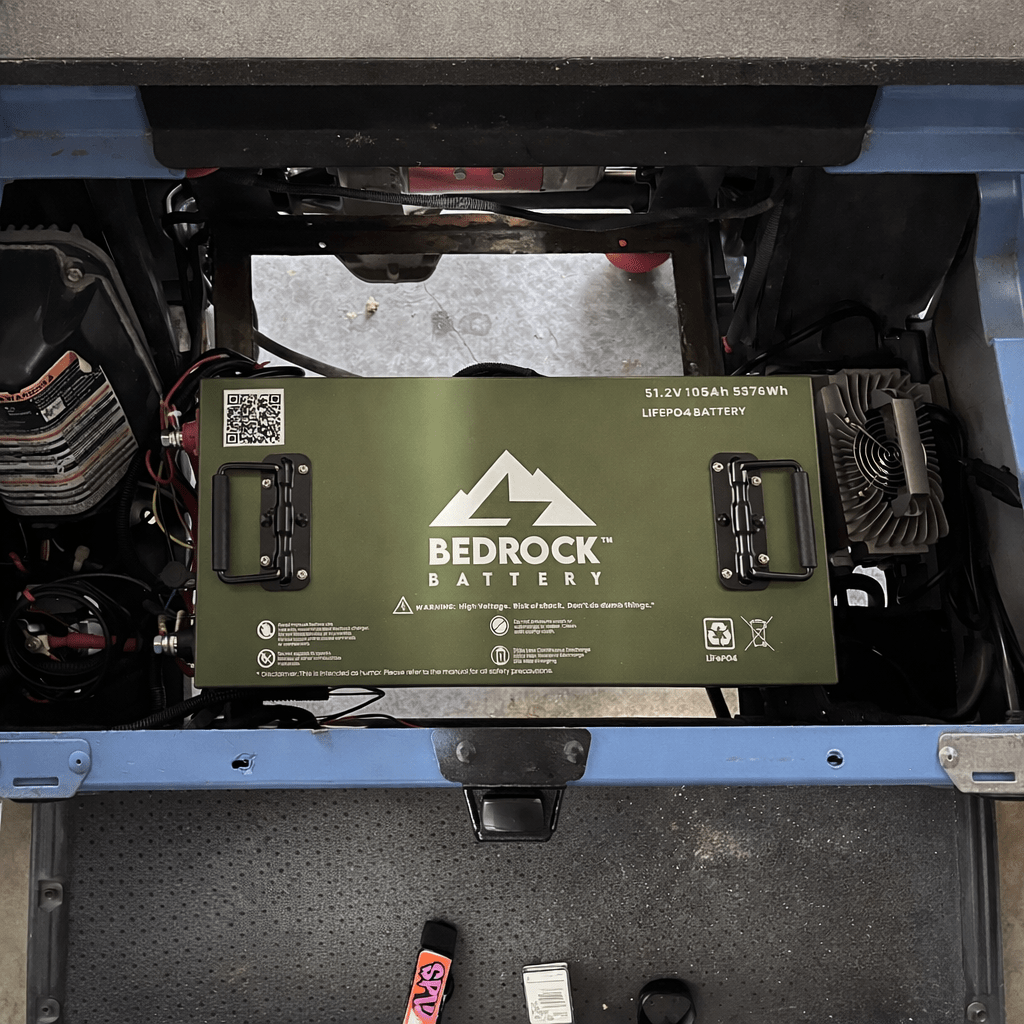

With a narrow 9.76" profile and 22" length, the Slim drops into long, narrow bays like the EZGO TXT and RXV metal tray.

🎯

Made for Your Exact Cart

Pick your cart and the kit comes with the matching charge port adapter and a manual written for it. No drilling at the charge port.

⚡

Steady, Strong Power

A 250A continuous BMS (600A for 3 seconds) keeps power strong on hills and steady as the battery drains.

🔋

EVE Grade-A Cells

LiFePO4 cells rated for up to 6,000 cycles in a steel IP67 case built to handle water, dust and rough paths.

🔌

Charger Built In

The 15A on-board charger mounts in the cart, so charging is as simple as plugging in at the wall.

🛡️

10-Year Warranty

Five years of free repair or replacement, then prorated coverage through year 10. Transferable once if you sell the cart.

🎥 See It in Action

Bedrock Battery 48V 105Ah Slim kit

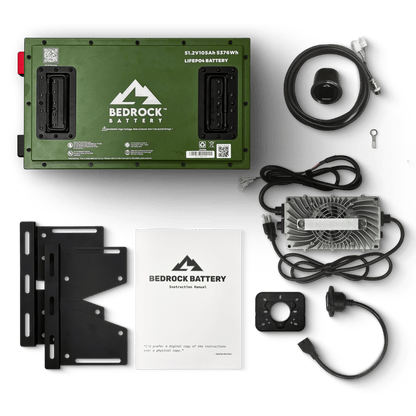

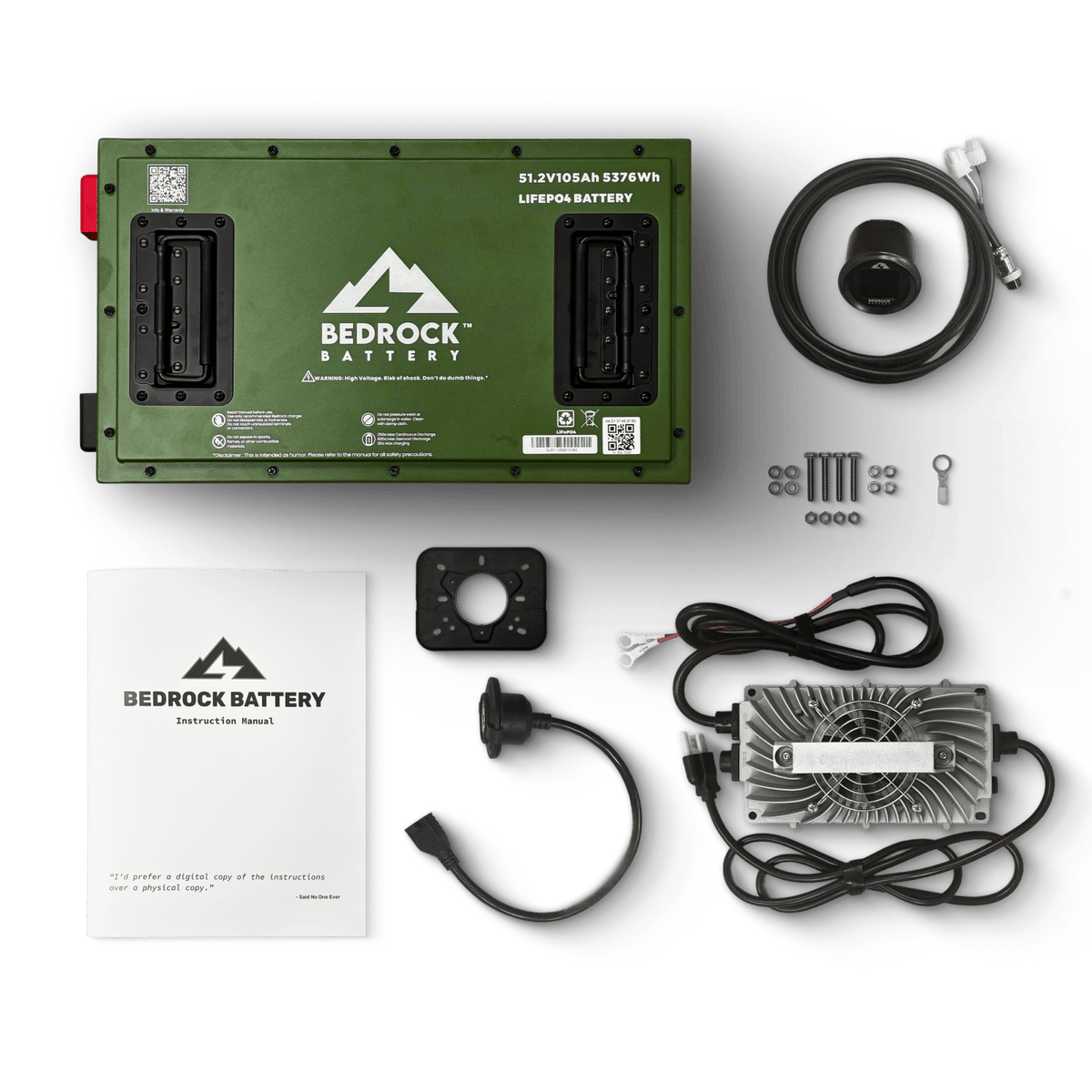

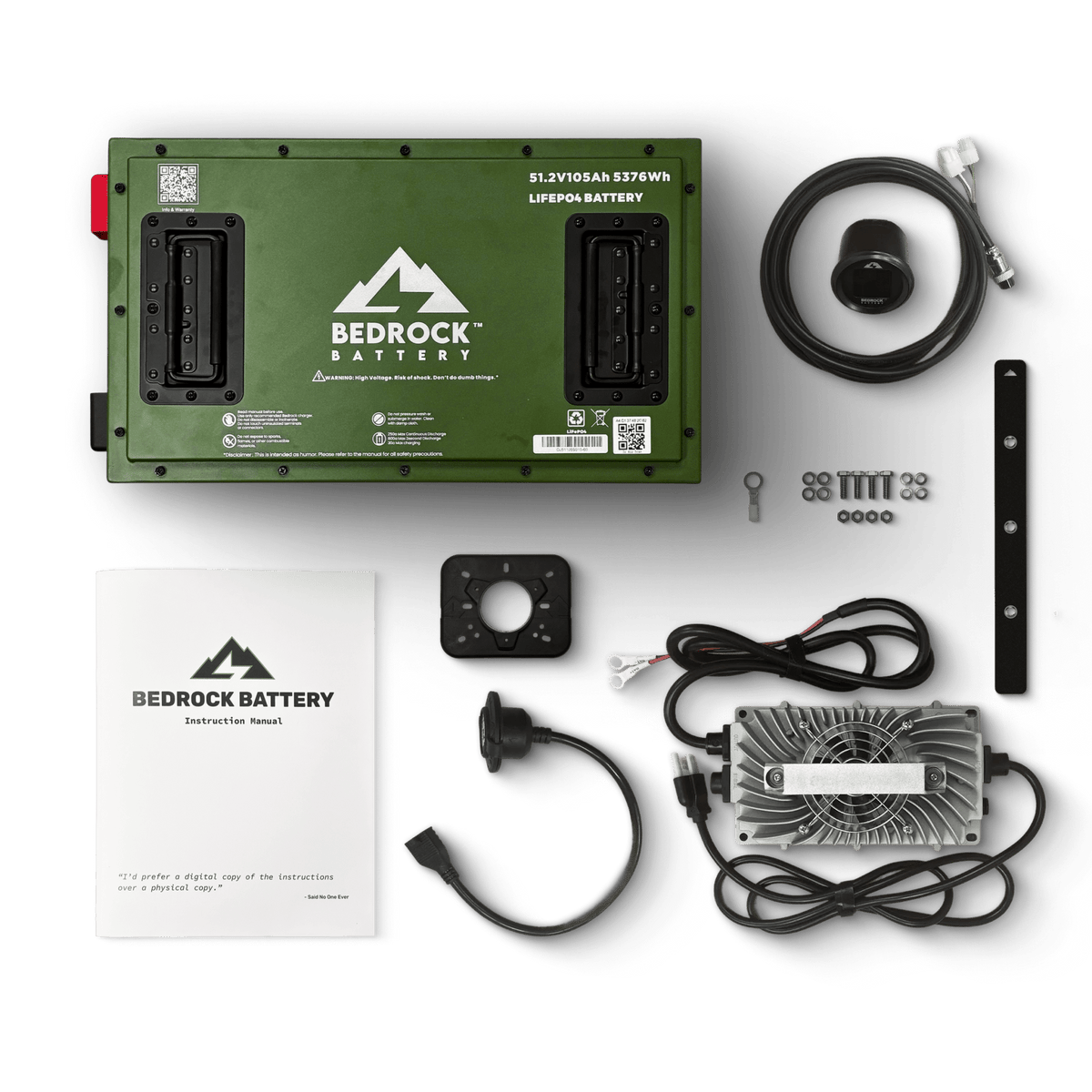

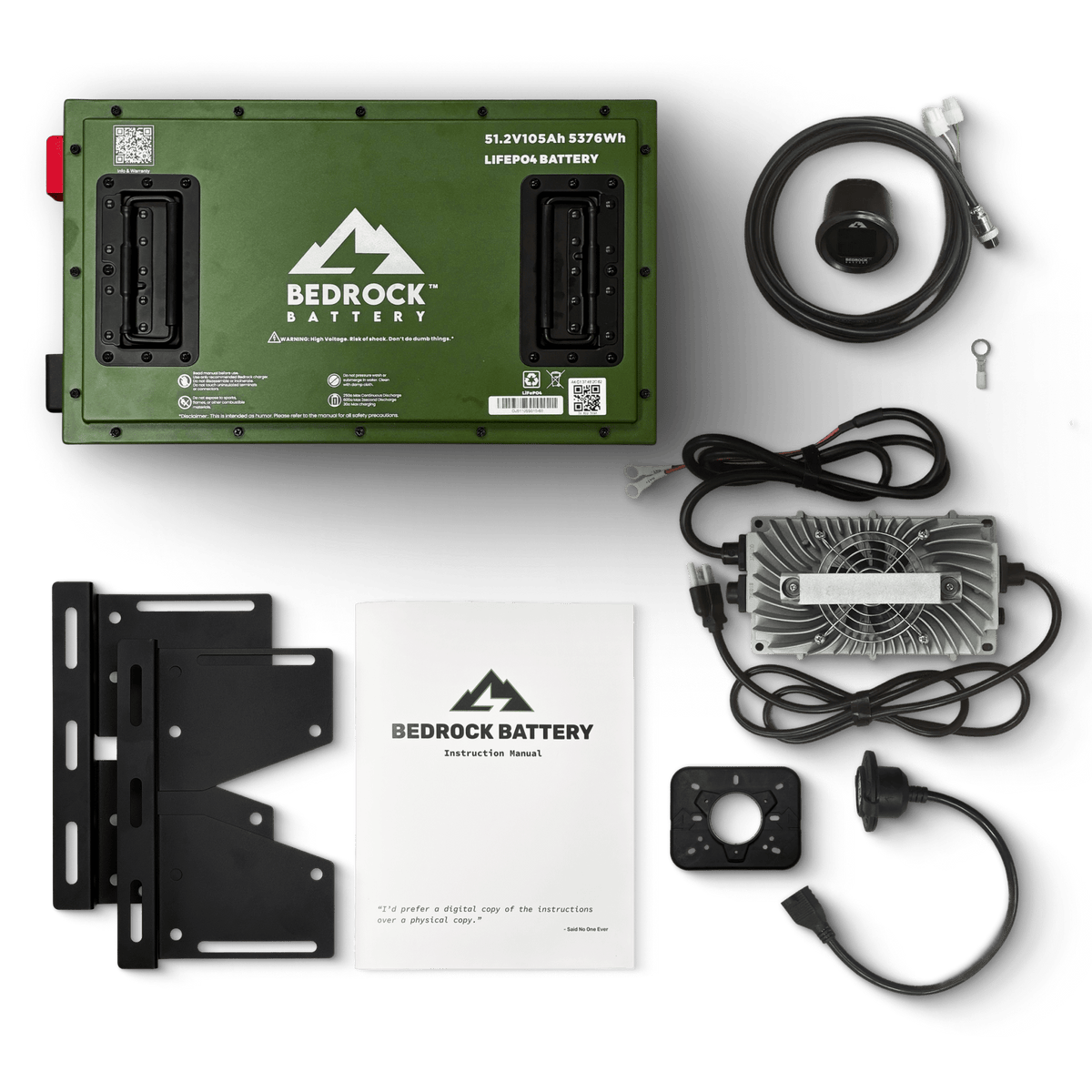

📦 What's in the Box

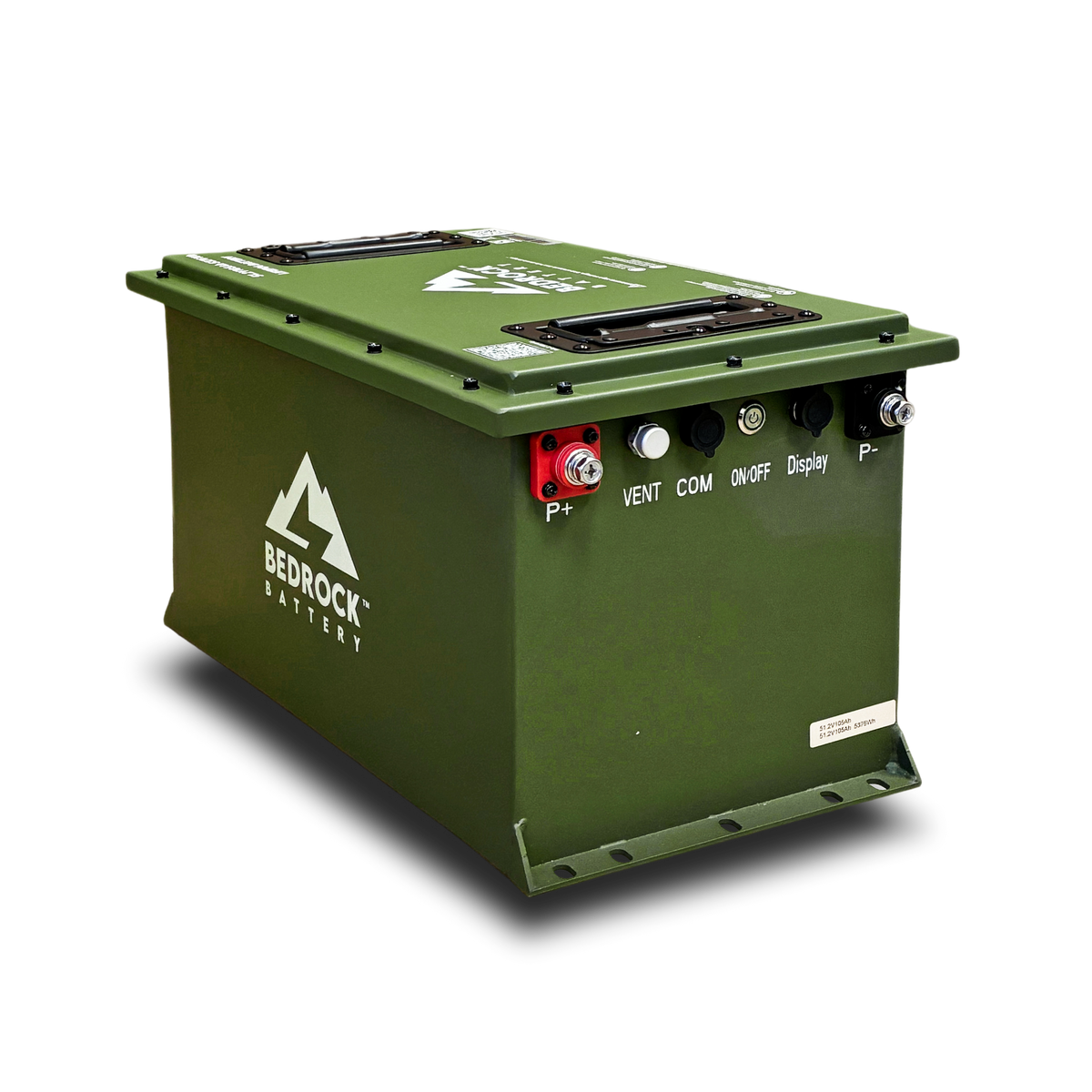

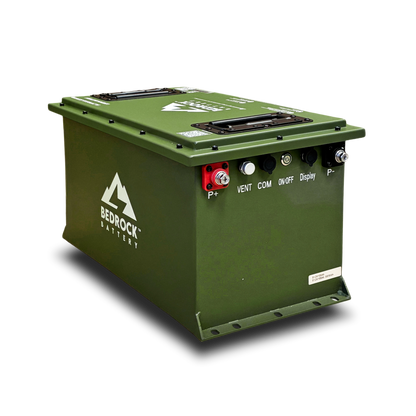

48V 105Ah Slim LiFePO4 Battery5.38kWh, IP67 steel case, Bluetooth

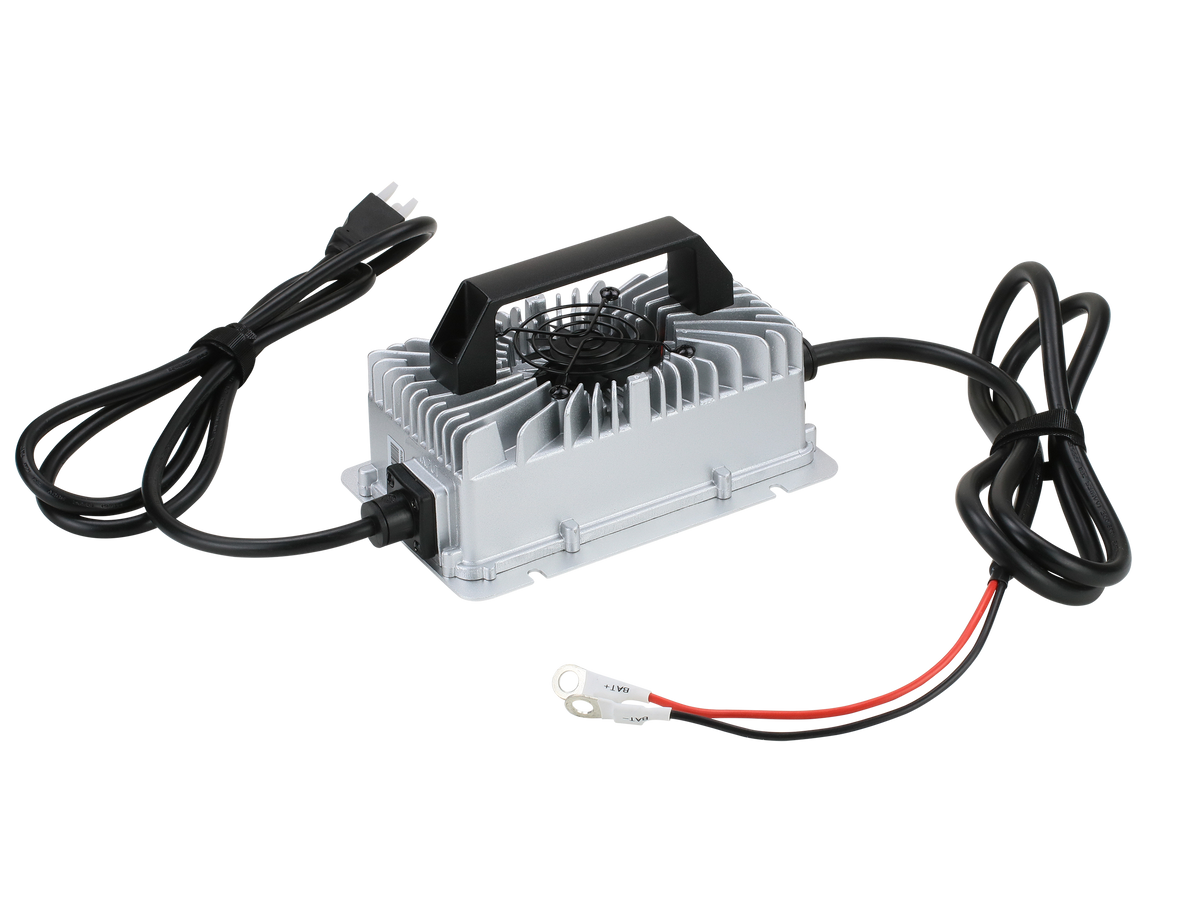

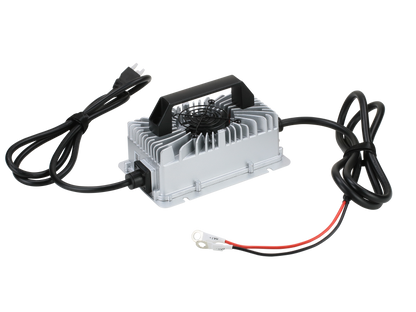

15A On-Board Lithium ChargerMounts in the cart, charges from a wall outlet

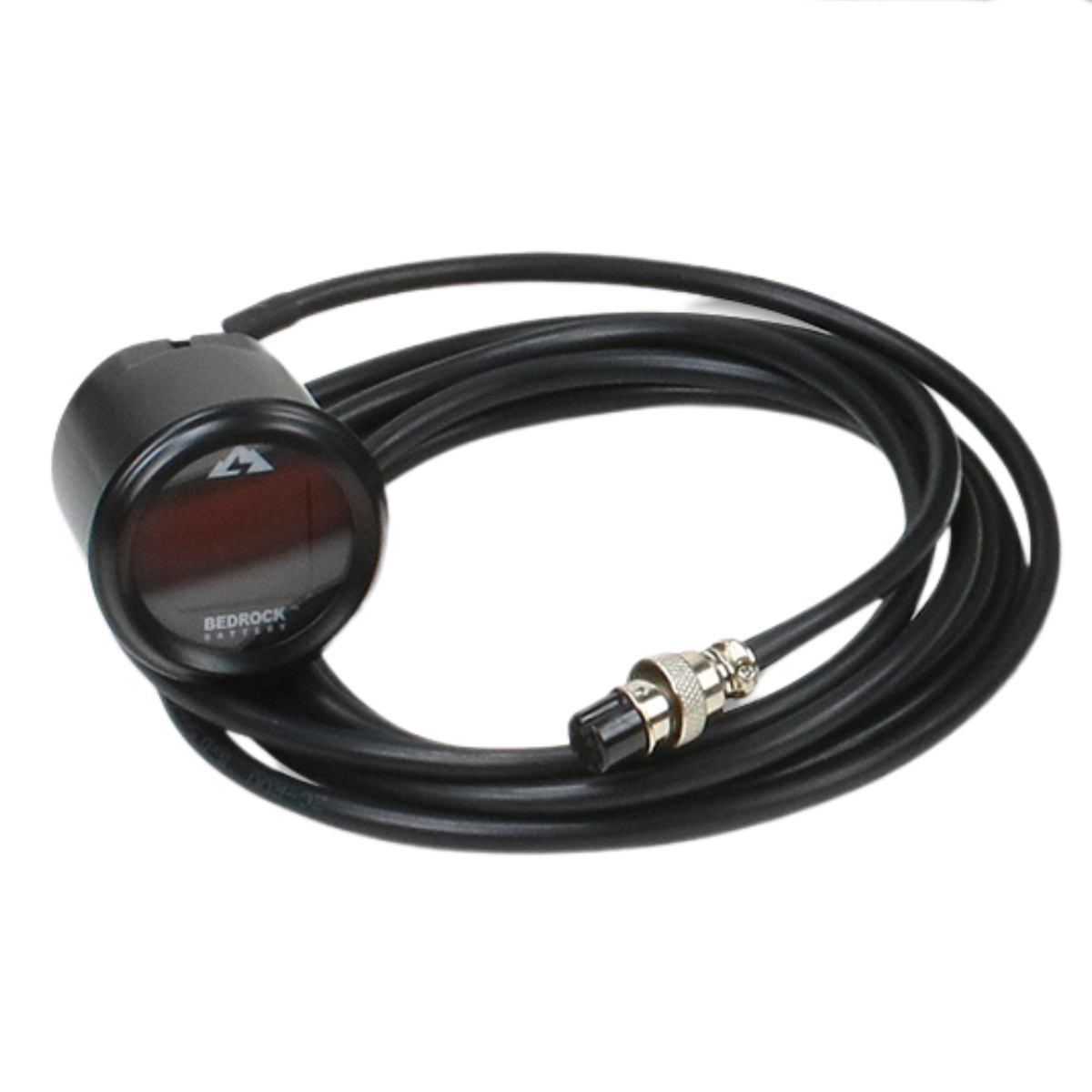

State-of-Charge MeterShows battery level on your dash

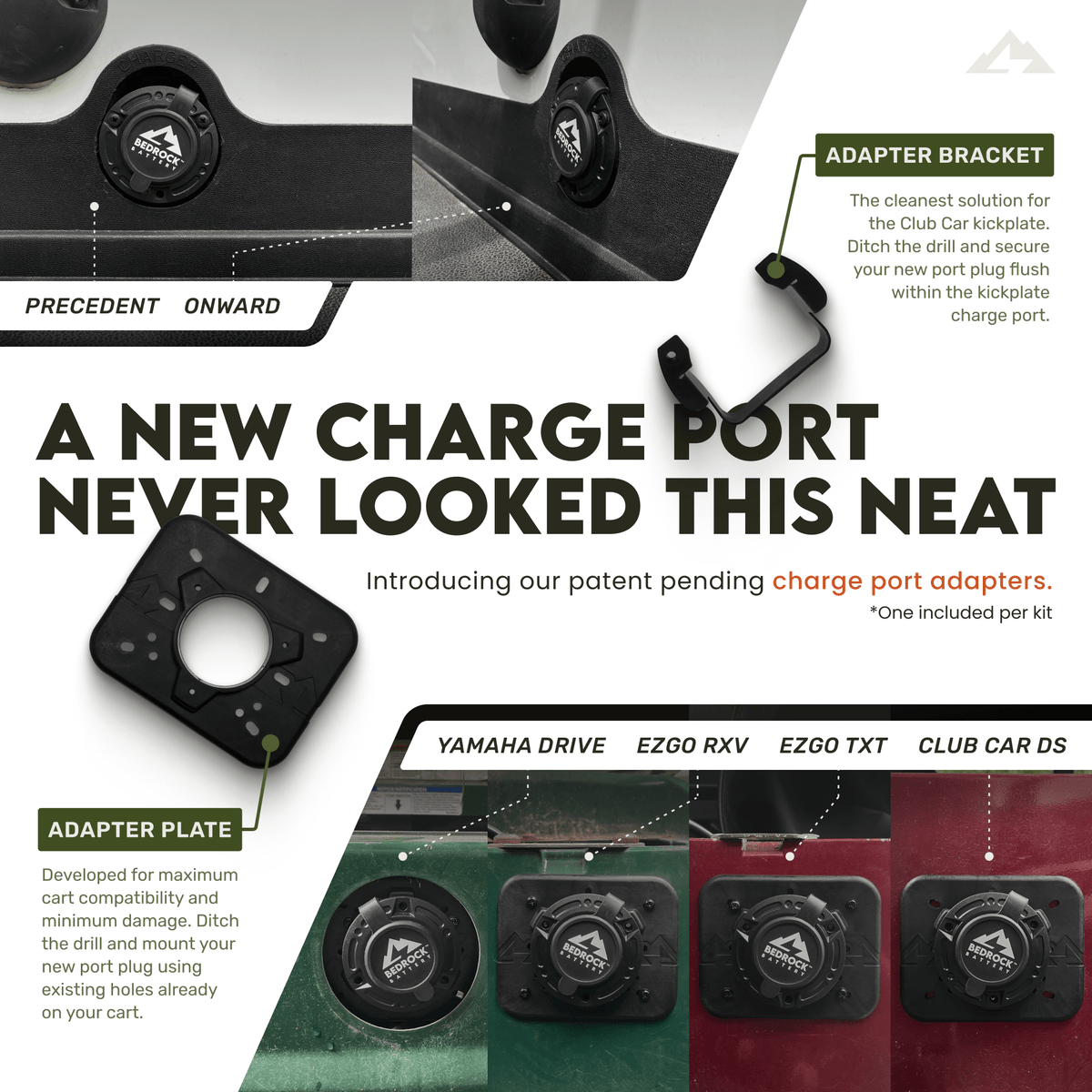

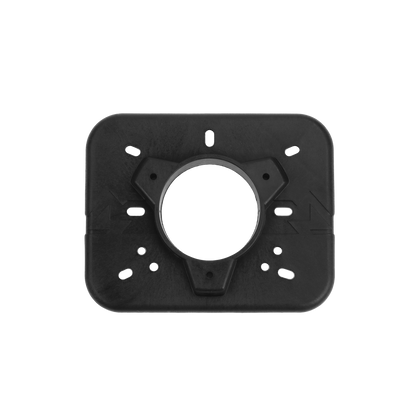

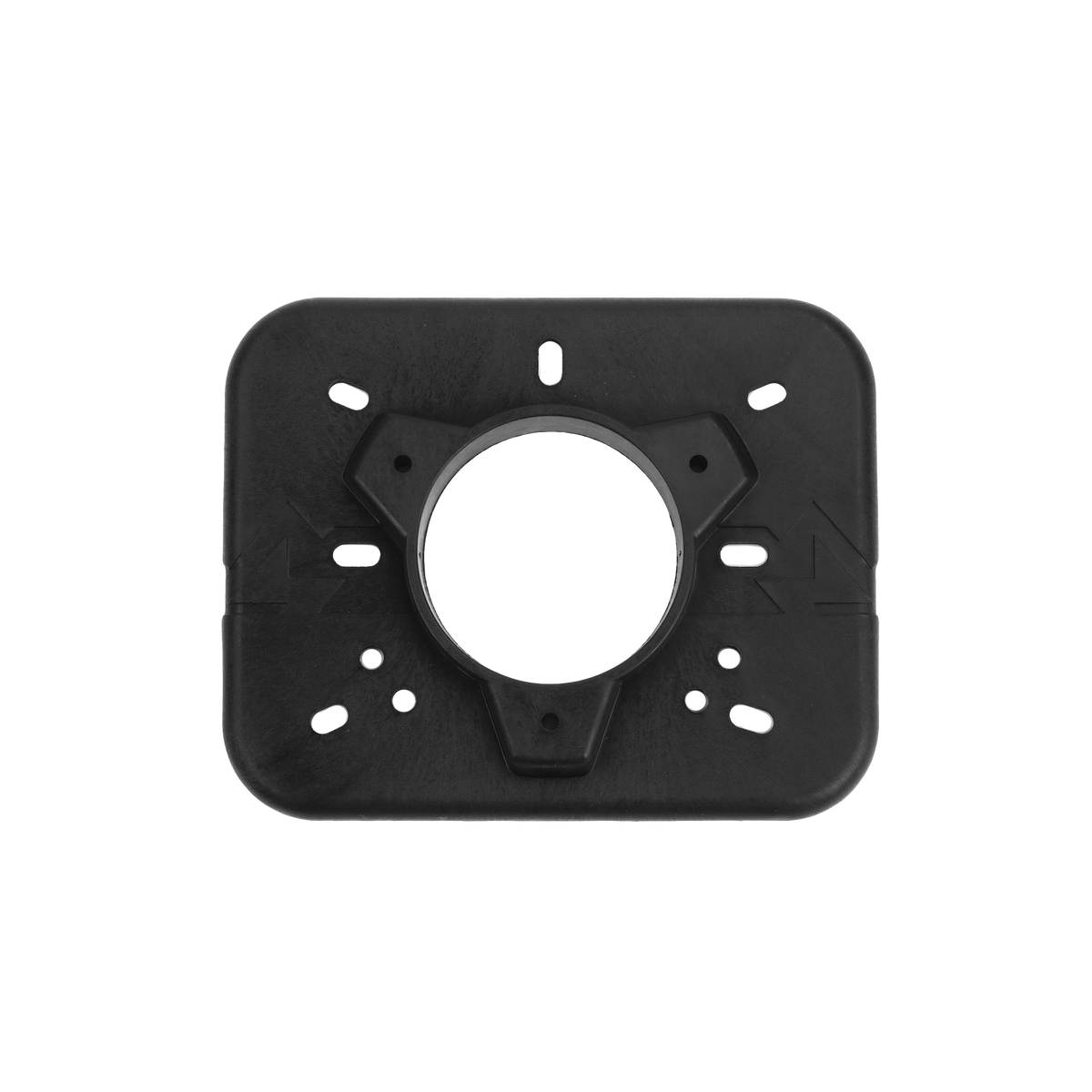

Cart-Specific Charge Port AdapterUses your cart's existing port, no drilling

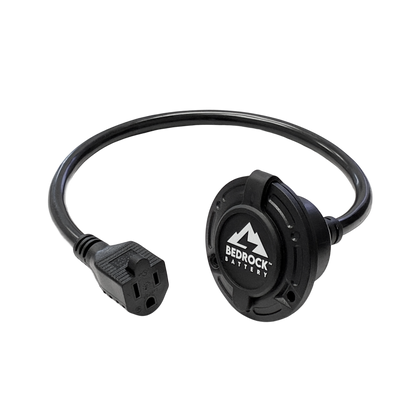

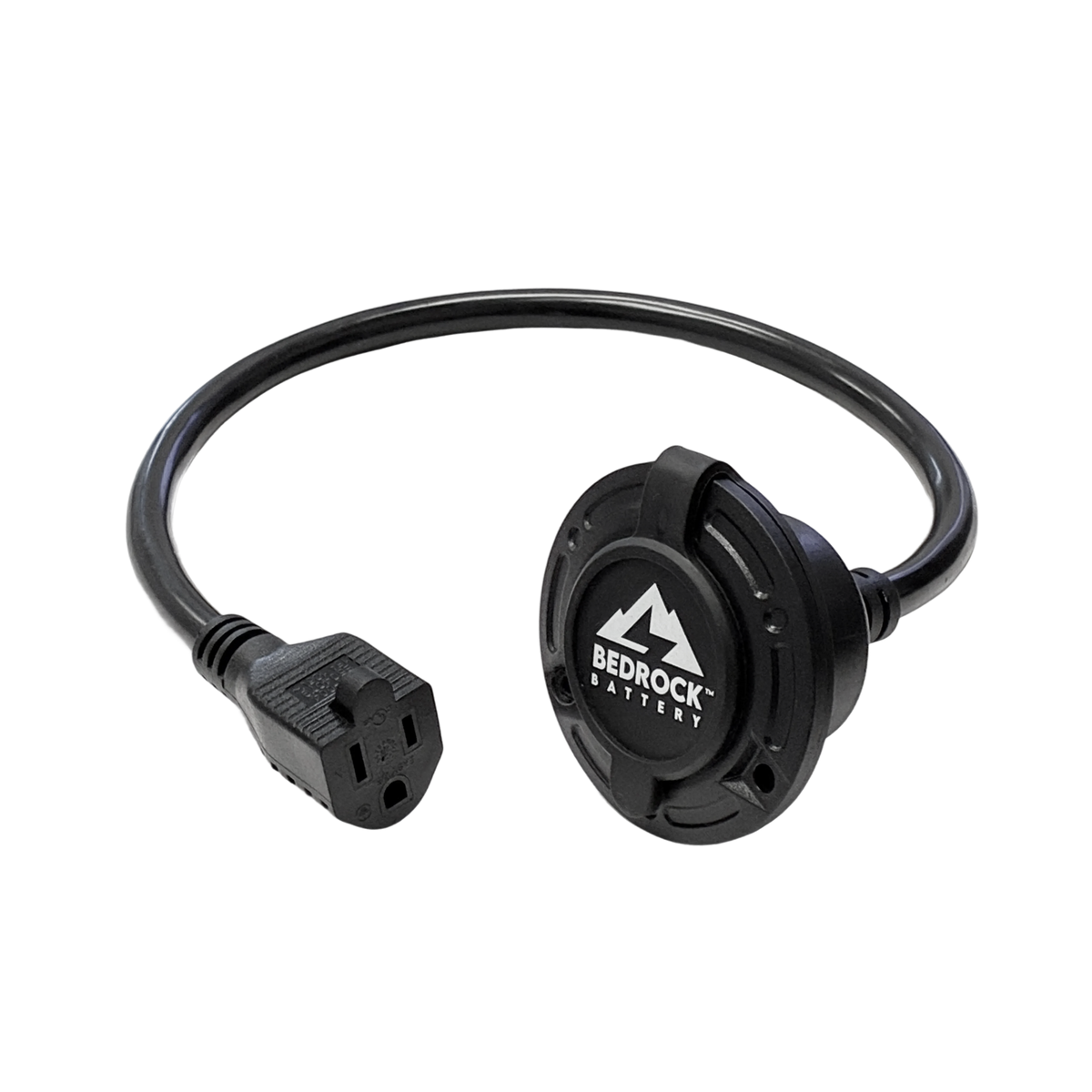

AC Port PlugConnects the on-board charger to wall power
Install Bracket & BoltsHolds the battery securely in the tray
Cart-Specific Instruction ManualWritten for the cart you select
Optional 12V Converter (+$70)Powers lights, horn & accessories. Choose "No" if your cart already has one

Sold separately: A heavy-duty extension cord (Bedrock suggests 15 ft), OBC bypass parts for older Club Cars, and controller or speed upgrades. Your old lead-acid batteries come out, and most local battery shops will recycle them, often for free.

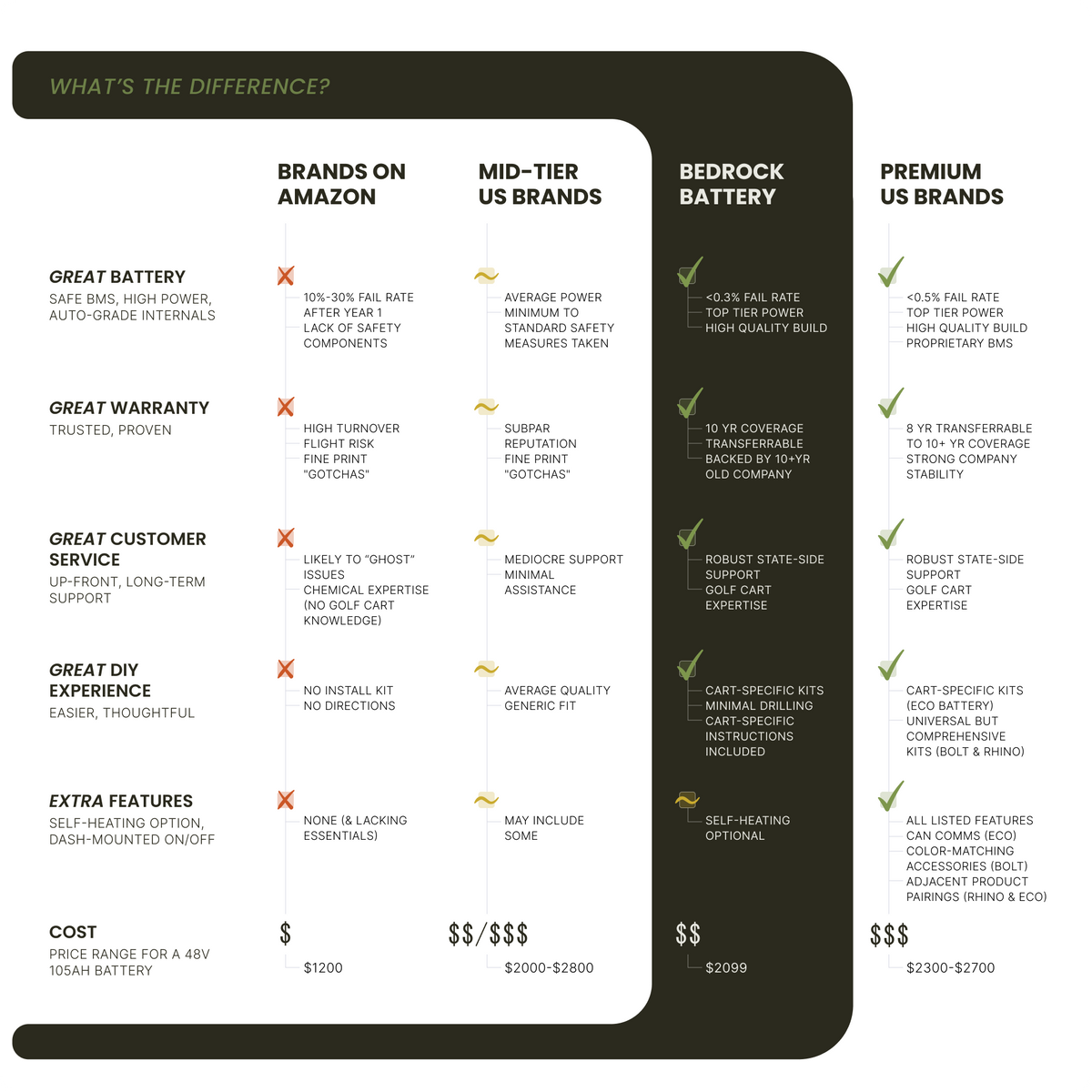

Bedrock Lithium vs. Lead-Acid

	Bedrock 48V 105Ah Slim	Typical Lead-Acid
Watering & terminal cleaning	Never	Regularly
Number of batteries	1	Several
Weight	A fraction of a lead-acid set	Much heavier
Rated cycle life	Up to 6,000 cycles	Varies by battery
Power as charge drops	Steady	Fades as voltage sags
Phone monitoring	Yes, built-in Bluetooth	No
Warranty	10-year prorated	Usually 1–2 years

🔌 Charging Made Simple

🔌

Built-In 15A Charger

The on-board charger lives in the cart. Plug the included AC port plug into a standard outlet with a heavy-duty extension cord and it charges itself.

🚫

Retire the Old Charger

Your old lead-acid charger isn't made for lithium. The kit's on-board charger replaces it.

📱

Check It From Your Phone

Built-in Bluetooth shows charge level and battery data in Bedrock's app, and the SOC meter shows charge on the dash.

❄️

Charging in the Cold

Standard Bedrock batteries charge between 32°F and 131°F. Store or charge below freezing? Choose the heated battery option.

🛡️ 10-Year Transferable Warranty

Years 1–5Free repair or replacement of a defective battery

Years 6–10Prorated replacement: 55% of MSRP in year 6, 65% in year 7, 75% in year 8, 85% in years 9–10

Register within 90 days of purchase to get the full 10 years (registering between day 91 and day 365 gets 5 years). The warranty can be transferred once, within the first 3 years, for a $100 fee. Claims need an RMA from Bedrock, and the customer prepays $300 for packaging and return shipping. Full terms at bedrockbattery.com.

📋 Full Specifications

Battery
Chemistry	LiFePO4, EVE Grade-A cells
System Voltage	48V (51.2V nominal)
Capacity	105Ah
Stored Energy	5,376Wh (5.38kWh)
Rated Cycle Life	Up to 6,000 cycles
BMS Rating	250A continuous / 300A (30 sec) / 600A (3 sec)
Estimated Range	Up to 45 miles
Case	Steel, IP67 water & dust rated
Charge Temperature	32°F to 131°F (heated option charges below freezing)
Dimensions	9.76" × 10.89" × 22.01"
Weight	98.1 lb
Kit Components
Charger	15A on-board lithium charger
Monitoring	Built-in Bluetooth app + state-of-charge meter
Charge Port	Cart-specific adapter (no drilling) & AC port plug
Mounting	Install bracket & bolts
12V Converter	Optional (+$70)
Ordering
SKU Prefix	BB-KIT-48105S
Warranty	10-year prorated, transferable (register within 90 days)

📄 Manuals & Downloads

📜Full Warranty Terms10-year prorated warranty detailsBEDROCK ↗ ✅Register Your BatteryRegister within 90 days for the full 10 yearsBEDROCK ↗ 🎥Install Video HubCart-by-cart install videosBEDROCK ↗ 🛠️Resources & ManualsManuals, wiring and guidesBEDROCK ↗ ⚙️Club Car OBC Bypass GuideWhat it means for DS & Precedent ownersBEDROCK ↗

Built-in Bluetooth connects to Bedrock Battery's app for charge level and battery data.

❓ Common Questions

How do I pick the right kit for my cart?

Choose your cart in the Cart menu. Bedrock builds each kit around that cart with a matching charge port adapter and a cart-specific manual. Not sure which to pick? Call or email us with your make, model and year and we'll confirm before you order.

Do I need the 12V converter?

If you run lights, a horn, a radio or other 12V accessories, you need a 12V converter once the lead-acid batteries come out. If your cart already has one, choose "No, I already have one" and save $70.

What does the heated battery option do?

It warms the cells so the battery can charge below freezing. Standard batteries charge between 32°F and 131°F. If your cart sits in a cold garage or you charge outdoors in winter, the heated option (+$129) is worth it.

Slim or Compact: which do I need?

Both are 48V 105Ah with the same BMS and warranty. The Slim is narrow and long (9.76" × 10.89" × 22.01") for EZGO TXT, RXV metal-tray, Yamaha G19–G22, ICON and similar carts. The Compact is shorter and wider for Club Car, Yamaha Drive and RXV plastic-tray bays.

Does my Club Car need an OBC bypass?

Club Car DS and Precedent carts from about 2004–2013 generally need the on-board computer (OBC) bypassed for lithium. Bypass parts aren't included. Bedrock's OBC bypass guide (linked above) explains how it works.

What's not included?

A heavy-duty extension cord (Bedrock suggests a 15 ft cord), OBC bypass parts, and controller or speed upgrades are sold separately.

How does the 10-year warranty work?

Years 1–5: free repair or replacement of a defective battery. Years 6–10: prorated replacement at 55% to 85% of MSRP. Register within 90 days for the full 10 years. It can be transferred once within 3 years for $100. Claims need an RMA, and the customer prepays $300 for packaging and return shipping.

What do I do with my old lead-acid batteries?

Most local battery shops will recycle them for free, and many will pay scrap value.
