Allied Drop-In-Ready 48V 36Ah LiFePO4 Golf Cart Battery Packages, 2-8 Batteries, Bluetooth, IP67, for Club Car, EZGO & Yamaha

🛺 48V 36Ah Drop-In Lithium Batteries|🧩 Fits Your Existing Battery Tray|📱 Bluetooth App Monitoring|🛡️ 5-Year Allied Warranty

Regular price: Price: $1,650.00
Regular price: List Price: $2,125.00
Sale price: Price: $1,650.00
Unit price: per

In Stock – Ready to Ship

Free Shipping – Lower 48

Authorized Dealer – Full manufacturer warranty

Pay Over Time – Shop Pay Installments

Ships From US Warehouses

Batteries 2 Batteries (72Ah total) 3 Batteries (108Ah total) 4 Batteries (144Ah total) 5 Batteries (180Ah total) 6 Batteries (216Ah total) 7 Batteries (252Ah total) 8 Batteries (288Ah total) 1 Battery (add-on or replacement)

Product variants

Quantity

🇺🇸Free ShippingContiguous 48 states
🛡️5-Year WarrantyAllied prorated warranty
🔋48V 36Ah LiFePO41,728 Wh per battery
📱Bluetooth AppMonitor every battery
🧩Drop-In-ReadyFits your existing tray
📞Real Human SupportSizing & install help

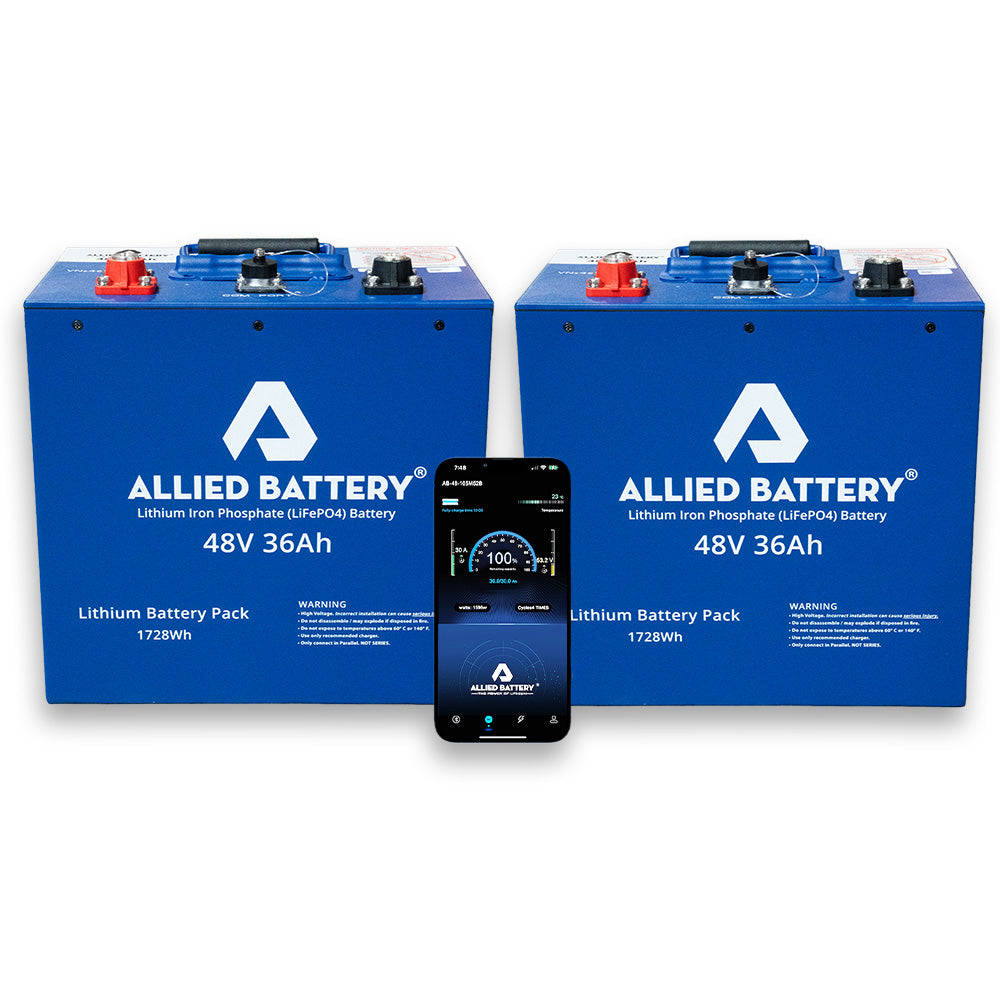

Allied Drop-In-Ready 48V 36Ah LiFePO4 golf cart batteries: compact 40 lb lithium modules that sit in your cart's existing battery tray and wire in parallel, so you choose how many to match your cart and how far you drive. Each battery stores 1,728 Wh in a 10.2 × 7 × 9.75 in IP67 steel case with M8 brass terminals and Bluetooth monitoring through the Allied Battery app. They install in the lead-acid tray with your factory hold-downs, replacing six 8V or four 12V lead-acid batteries. Packages of 2 or more include Allied's battery cutoff switch, which the warranty requires. Backed by Allied's 5-year prorated warranty.

1.73 kWhEnergy per battery

30AContinuous, per battery

40 lbPer battery

IP67Sealed steel case

Ratings from Allied's data sheet. Energy and output add up with each battery you wire in parallel.

🛺 Will It Fit My Cart?

Built for 48V golf carts. Allied lists:

Club Car 48V carts
EZGO 48V carts
Yamaha 48V carts
ICON & Advanced EV
48V lead-acid replacements

📏 Quick check before you order:

Your cart runs on 48V. Allied makes Drop-In-Ready batteries for 36V, 48V and 72V carts.

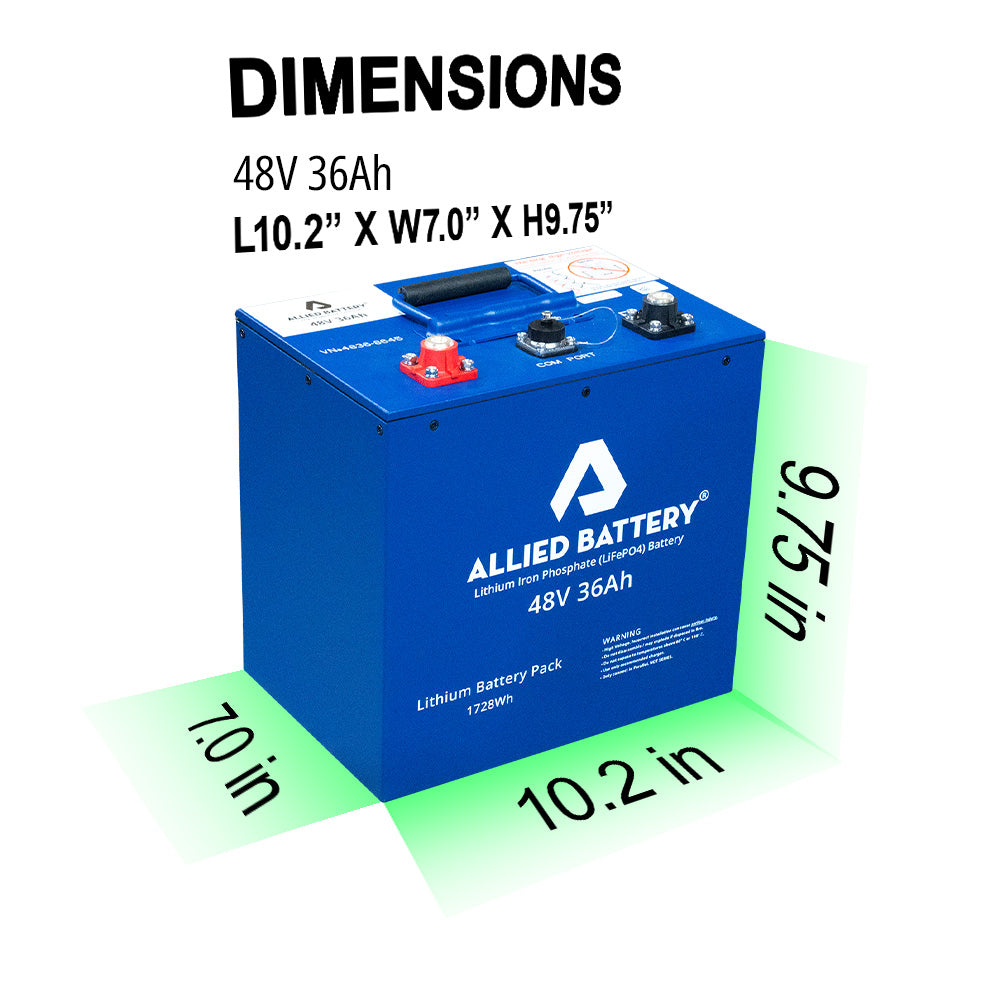

Each battery measures 10.2 × 7 × 9.75 in and weighs 40 lb. They sit in your lead-acid tray and use the factory hold-downs.
Choose the number of batteries above (2 to 8). More batteries add range and share the load; see Allied's sizing guidance below.
You'll need an Allied 48V lithium charger (sold separately). Allied's warranty doesn't cover batteries charged on other chargers, and lead-acid chargers can't be used.

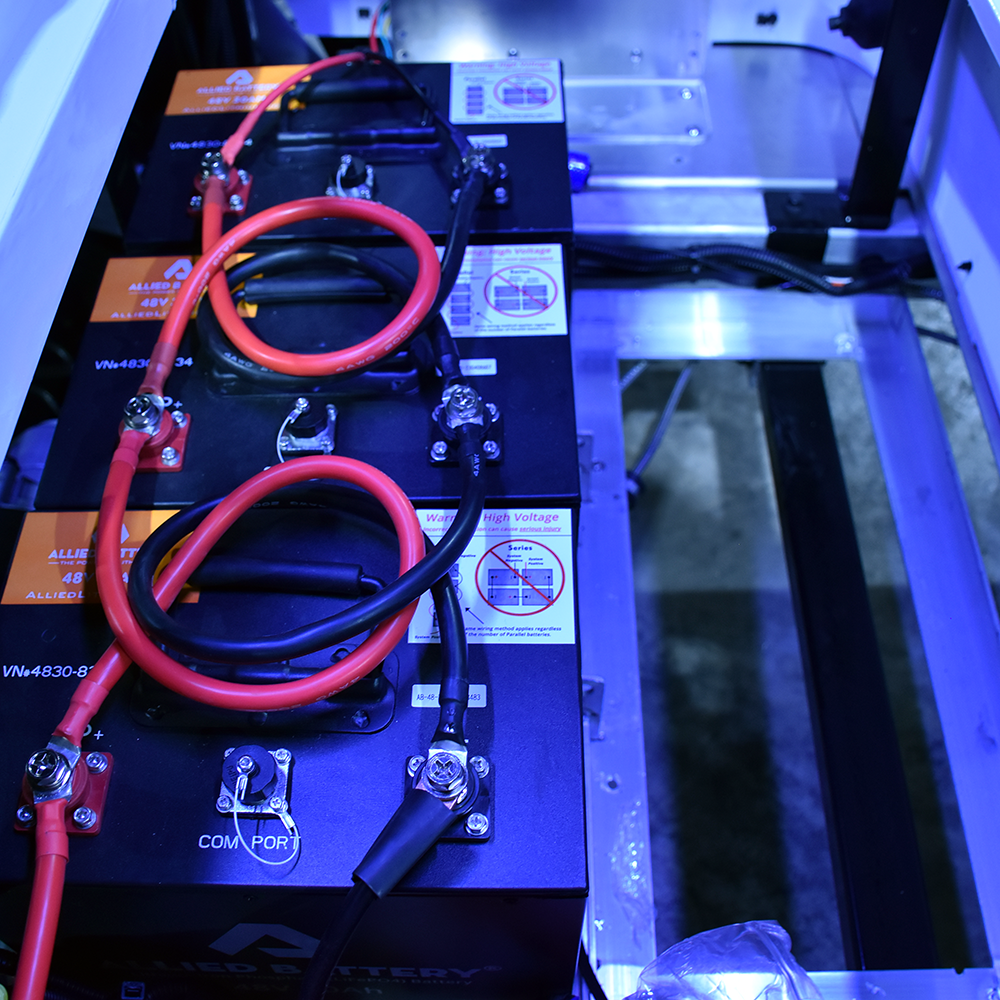

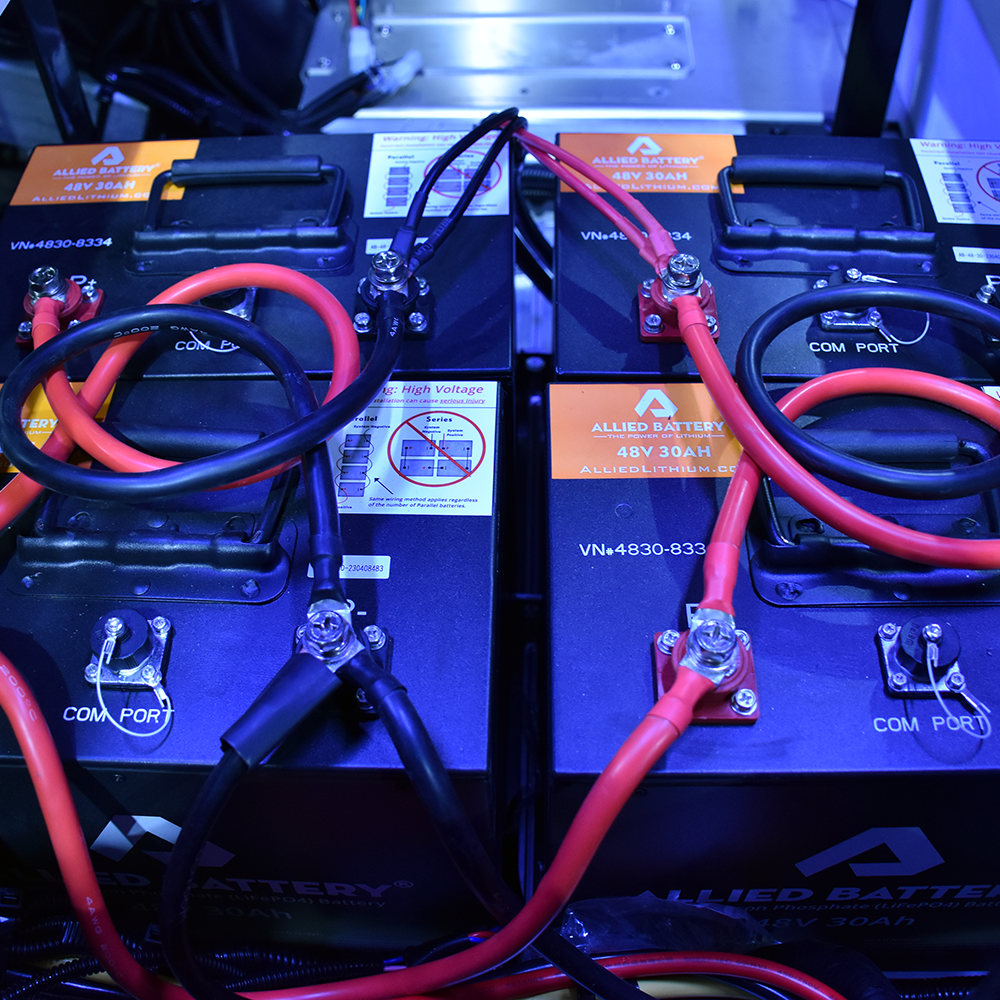

Batteries connect in parallel only. Never wire them in series.
Your 12V lights or accessories need a 12V converter once the lead-acid set is gone.
It has no heater. Allied rates charging from 32 to 131°F.

Not sure? Send us your cart's make, model, year and controller size, and we'll confirm the fit and battery count before you buy.

Why Cart Owners Choose Drop-In-Ready

🧩

Drops Into Your Tray

Modules sized like lead-acid batteries sit in your existing tray with the factory hold-downs. No custom brackets.

📈

Scale Your Range

Start with 2 to 8 batteries, and add matching batteries within a year of purchase if you want more range.

📱

Bluetooth Monitoring

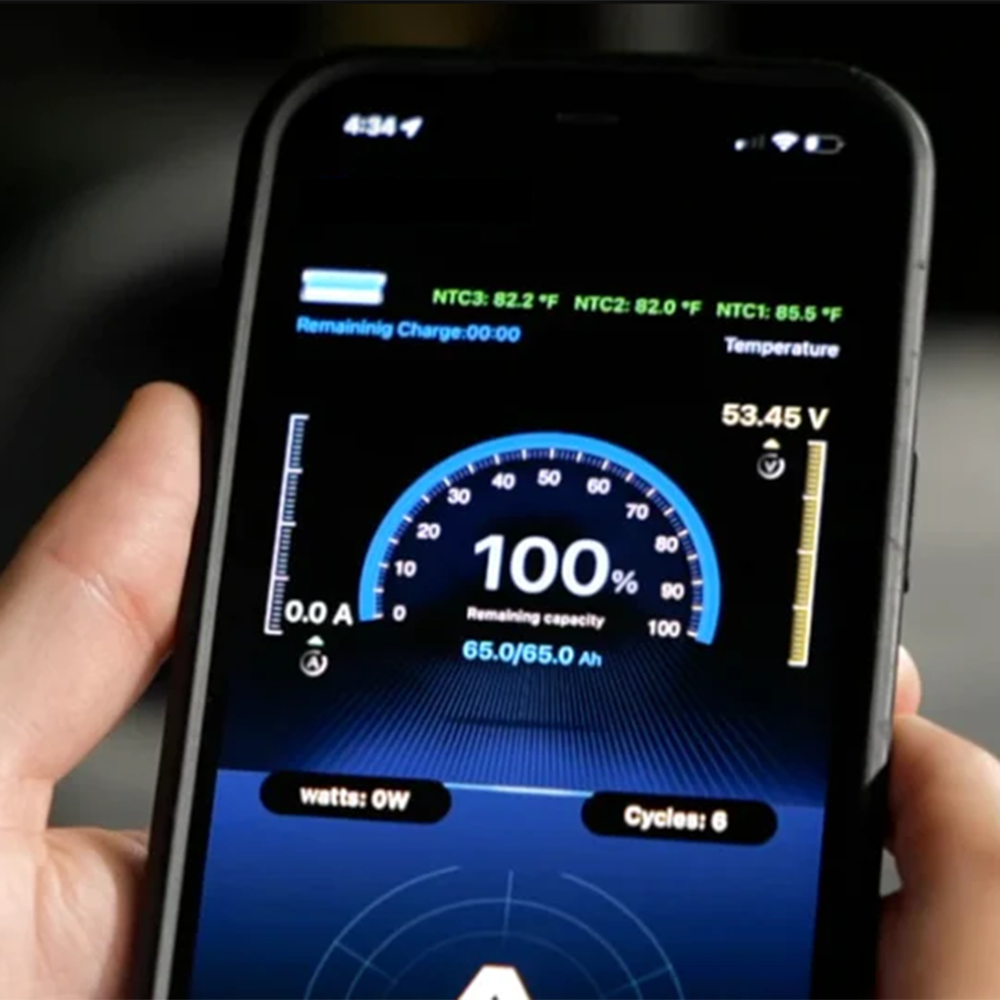

The Allied Battery app shows voltages, current draw, temperature, remaining run and charge time, and lifetime cycles.

⚖️

Lighter to Handle

Each battery weighs 40 lb, so they're easy to lift in and out, and far lighter than the lead-acid set they replace.

🧰

Zero Routine Maintenance

No watering, no acid and no corroded terminals. Charge after use and keep driving.

🔩

Built Tough

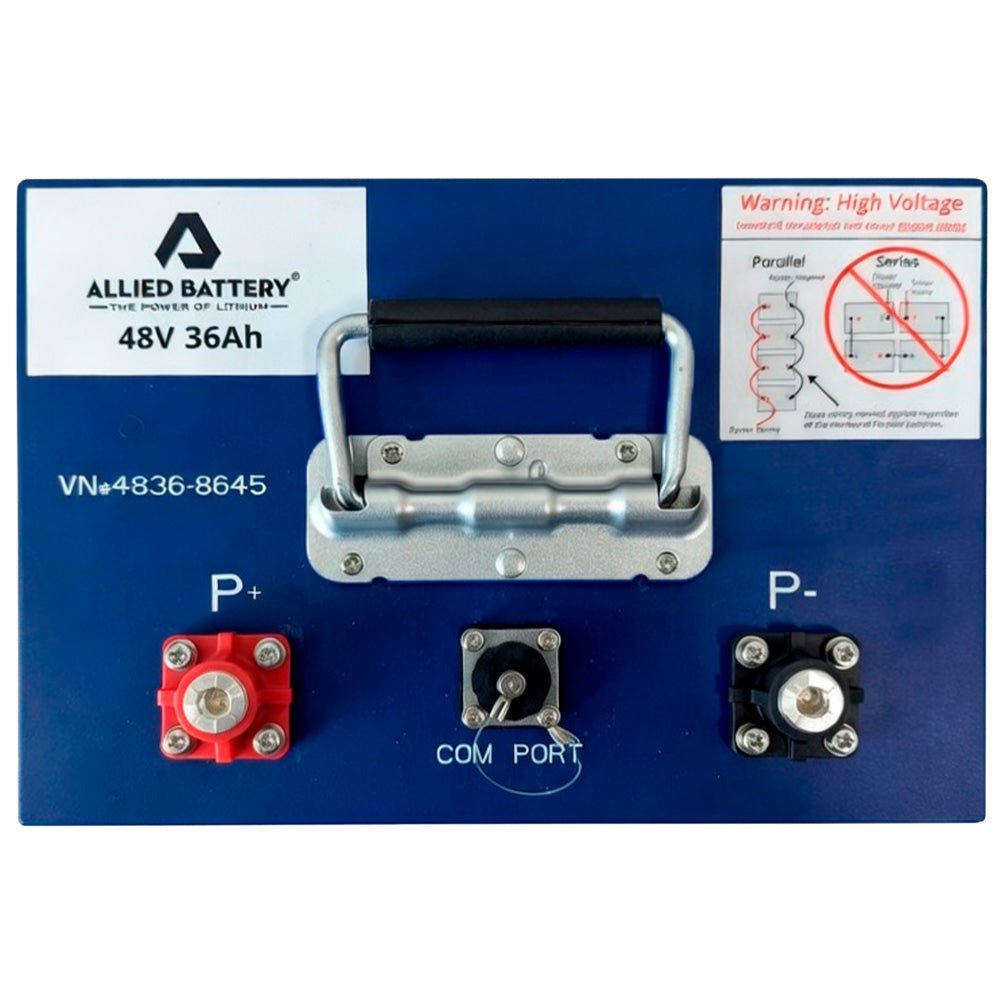

Steel cases rated IP67, M8 brass terminals and a BMS that guards against over-current, over- and under-voltage and temperature extremes.

🎥 Videos from Allied

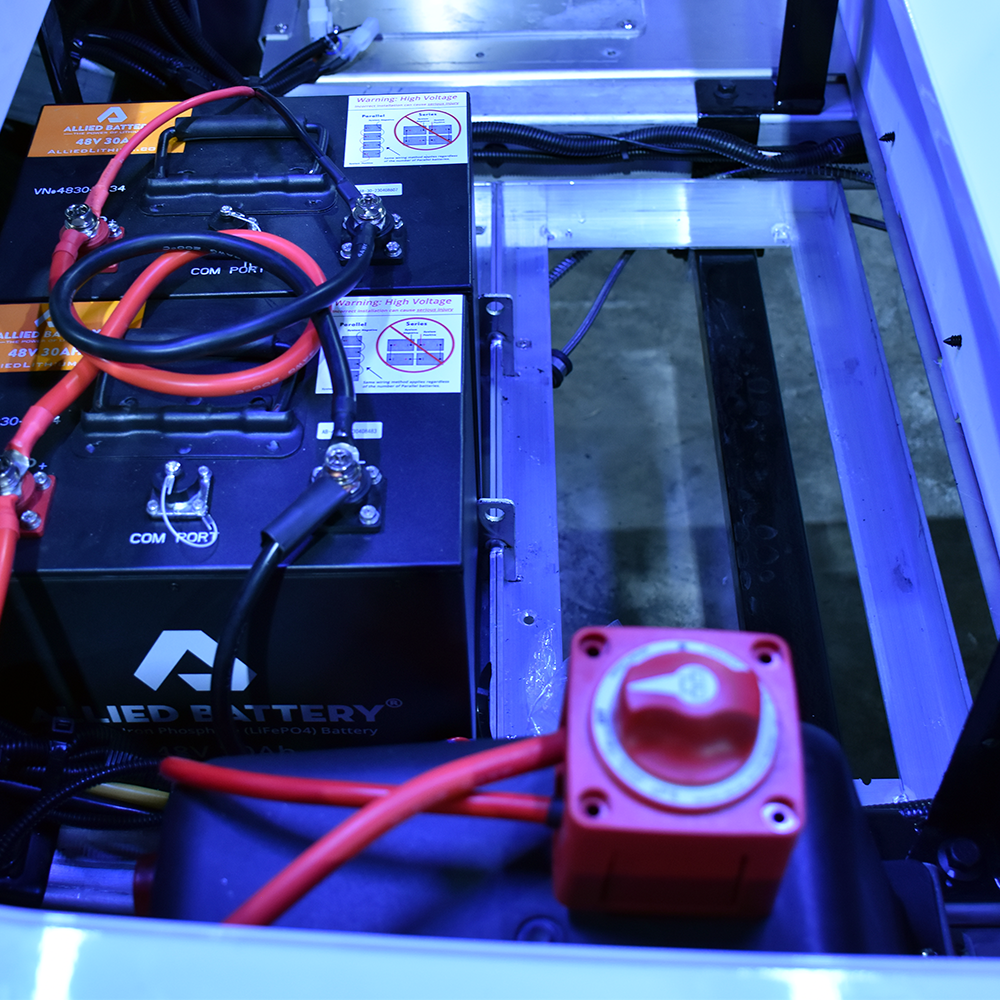

Installing Allied Drop-In-Ready batteries (from Allied)

The Allied Battery app and Bluetooth monitoring (from Allied)

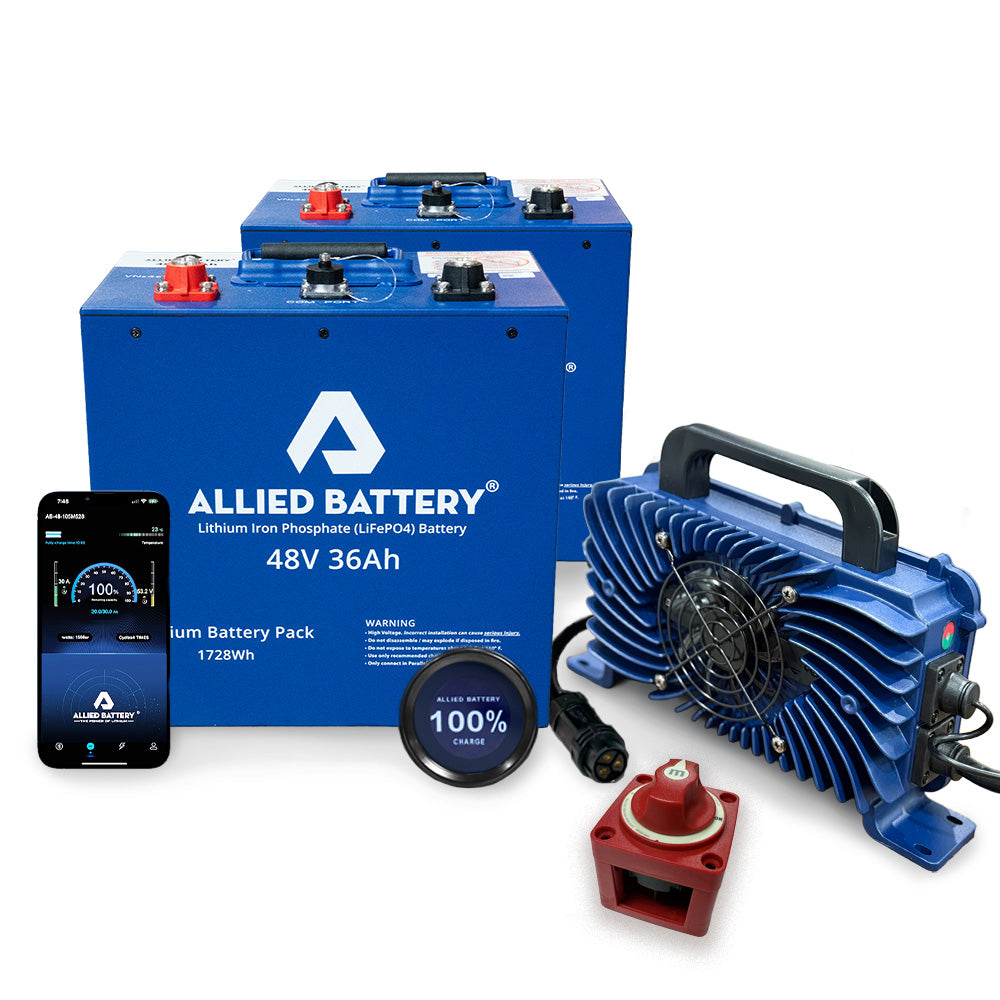

📦 What's in the Package

Allied Drop-In-Ready 48V 36Ah LiFePO4 batteriesThe quantity you choose; 1,728 Wh each
Allied battery cutoff switchIncluded with 2 or more batteries; required for the warranty

Plan to add: The Allied 48V 15A waterproof lithium charger, with an OEM or snap harness for your cart (required, sold separately). Many carts also need a 48V-to-12V converter for lights and accessories. Buying a single battery? Add Allied's battery cutoff switch, which the warranty requires.

📐 How Many Batteries Do I Need?

Allied sizes Drop-In-Ready packages by your cart's controller and how you drive:

Your cart	Allied recommends
Economy cart, 200–250A controller	2–3 batteries
Upgraded, lifted or speed-modified cart	3 or more
300A controller	3 batteries
400A controller	4 batteries
500A controller	5 batteries
600A controller	6 batteries

From Allied's 48V Drop-In-Ready sizing guidance; Allied quotes up to 30+ miles with larger packages. Not sure of your controller? Call 833-664-7433.

🔍 Compare Allied Drop-In-Ready Batteries

The three Drop-In-Ready models, per battery.

Model	Voltage	Capacity	Energy	Continuous	Weight	Packages
Drop-In-Ready 36V 48Ah	36V	48Ah	1,728 Wh	36A	35 lb	2–6
Drop-In-Ready 48V 36Ah (this model)	48V	36Ah	1,728 Wh	30A	40 lb	2–8
Drop-In-Ready 72V 18Ah	72V	18Ah	1,296 Wh	18A	30 lb	4–8

Ratings from Allied's data sheets. All three share the same 10.2 × 7 × 9.75 in case. Prefer a single large battery? See Allied's RS kits.

🖼️ Allied 48V Drop-In-Ready Sizing Guide

Allied's guide to matching a package to your cart. Tap the image to open it full size.

Sizing guide from Allied Lithium.

Lithium vs. Your Old Lead-Acid Pack

	Allied Drop-In-Ready 48V 36Ah	Typical Lead-Acid
Watering & terminal cleaning	Never	Regularly
Weight per battery	40 lb	Around 60–70 lb
Power as charge drops	Steady until nearly empty	Fades as voltage sags
Add capacity later	Yes, within 1 year	No
Phone monitoring	Yes, via Bluetooth	No
Warranty	5-year prorated	Usually 1–2 years

🔌 Charging Made Simple

🔌

Allied Charger Required

Use Allied's 48V 15A waterproof lithium charger with an OEM or snap harness for your cart. It's sold separately.

🚫

No Lead-Acid Chargers

Your old charger won't charge these batteries correctly, and Allied's warranty doesn't cover batteries charged on non-Allied chargers.

❄️

Charge Above Freezing

Allied rates charging from 32 to 131°F and discharging from 15 to 140°F. There's no heater, so let cold batteries warm up first.

🔋

Charge Ratings

Allied rates each battery for 7.5–30A of charge current at 40–59.2V.

🛡️ 5-Year Allied Warranty

5-Year TermProrated monthly over the warranty period

Register Within 30 DaysRegister with Allied after purchase to activate coverage

Coverage is void if the batteries are charged on a non-Allied charger or run without Allied's cutoff switch, and they must be wired in parallel, never in series. Contact us first and we'll help you start a claim with Allied. Full terms are on Allied's warranty page.

📋 Full Specifications

Electrical (per battery)
Model	Allied Drop-In-Ready 48V 36Ah
Chemistry	LiFePO4 (lithium iron phosphate), cylindrical cells
Nominal Voltage	51.2V
Capacity / Energy	36Ah / 1,728 Wh
Continuous Discharge	30A
Peak Discharge	60A (10 sec)
Charge Voltage	40–59.2V
Charge Current	7.5–30A
Charge Temperature	32 to 131°F
Discharge Temperature	15 to 140°F
Self-Discharge	3–5% per month
Parallel / Series	Parallel only, up to 8 batteries; never in series
Physical (per battery)
Dimensions (L × W × H)	10.2 × 7 × 9.75 in
Weight	40 lb
Case	Steel
Ingress Rating	IP67
Terminals	M8, brass
Package
Battery Options	2 to 8 batteries, or 1 as an add-on or replacement
Cutoff Switch	Included with 2 or more batteries
Charger	Allied 48V 15A lithium charger, sold separately
Expansion	Add matching batteries within 1 year of purchase
Features
Monitoring	Bluetooth, Allied Battery app
Heater	No
Certifications	Cells: UL 1642. Battery: CE, UN38.3

📄 Manuals & Downloads

🌐Allied Product PageAllied Drop-In-Ready 48V 36AhAllied ↗📄Data SheetAllied Drop-In-Ready 48V 36Ah (PDF)PDF ↗📘Quickstart & Install GuideDrop-In-Ready install steps & safetyPDF ↗🛡️Allied WarrantyFull terms & registrationAllied ↗

Specs are from Allied's data sheets and product pages. Documents above link straight to Allied.

❓ Common Questions

How many batteries do I need?

It depends on your controller and how you drive. Allied suggests 2–3 for economy carts with 200–250A controllers, 3 or more for upgraded or lifted carts, and roughly one battery per 100A of controller rating above that. Send us your cart details and we'll help you choose.

Is a charger included?

No. You'll need Allied's 48V 15A waterproof lithium charger with an OEM or snap harness for your cart. Allied's warranty requires it.

What's the cutoff switch for?

It disconnects the battery pack. Allied includes it with every package of 2 or more batteries, and the warranty requires it. Buying a single battery? Add the Allied cutoff switch.

Can I add batteries later?

Yes. Allied allows adding matching batteries within 1 year of purchase. Choose the single-battery option, and make sure all batteries in the cart are the same model.

Can I wire them in series?

No. Drop-In-Ready batteries connect in parallel only.

How do I power 12V lights and accessories?

Add Allied's 48V-to-12V converter. With the lead-acid set gone, there's no single 12V battery to tap.

Drop-In-Ready or RS kit?

Drop-In-Ready uses several compact batteries in your existing tray, and you choose how many. Allied's RS kits use one large battery with a charger and brackets included.

How do I register the warranty?
