Airmar
Airmar B75M Bronze Thru-Hull CHIRP Transducer, 0° Tilt, 600W, Medium Frequency 80-130 kHz, Depth & Temp, B75C-0-M-MM
Airmar B75M Bronze Thru-Hull CHIRP Transducer, 0° Tilt, 600W, Medium Frequency 80-130 kHz, Depth & Temp, B75C-0-M-MM
- Regular price
- Price: $744.00
- Regular price
- List Price: $0.00
- Sale price
- Price: $744.00
- Unit price
- / per
Notify me when this product is available:
Couldn't load pickup availability
PRODUCT DESCRIPTION

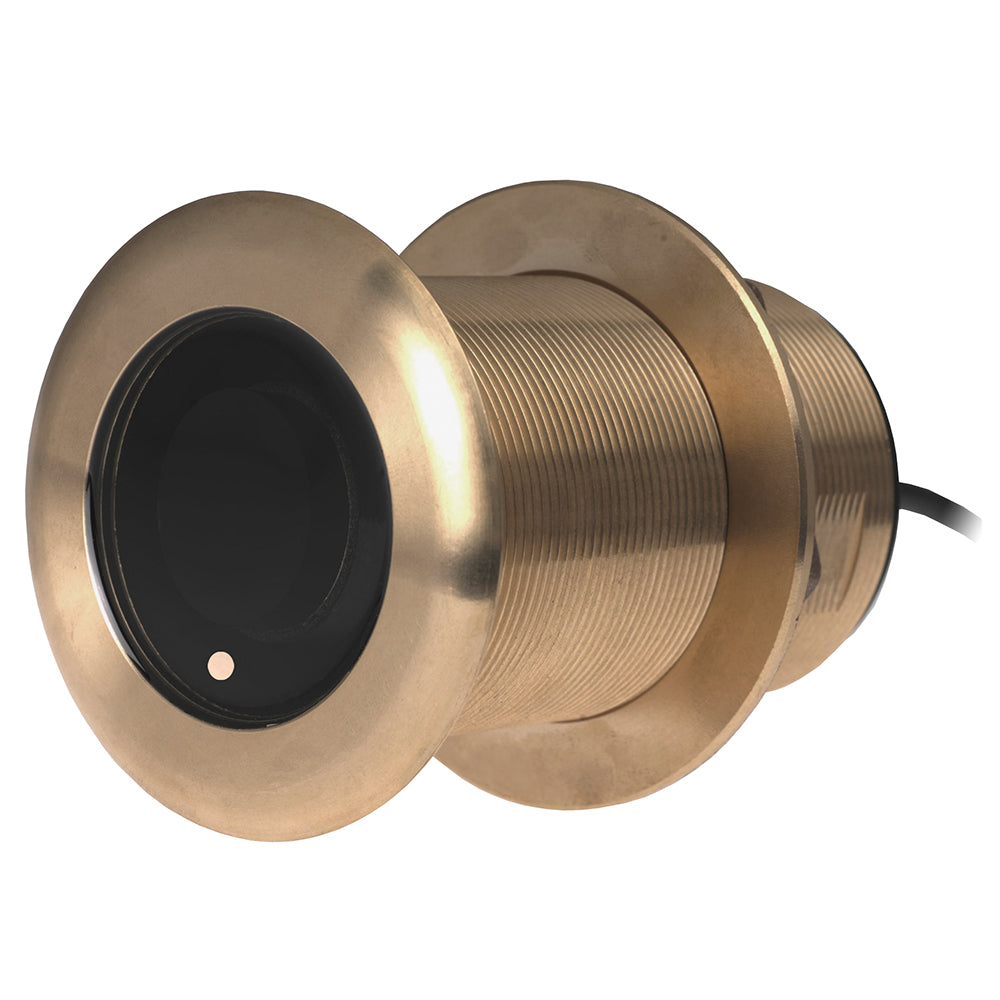

Airmar B75M 600W Bronze Thru-Hull CHIRP Transducer – 0° Tilt (B75C-0-M-MM)
The Airmar B75M is a 600-watt medium frequency CHIRP transducer built for commercial fishermen, charter captains, and tournament anglers. CHIRP technology delivers 5 to 10 times greater detail and resolution than traditional sonar, making it possible to distinguish individual baitfish, game fish, and underwater structure.
This bronze thru-hull transducer sweeps from 80 to 130 kHz, providing 50 kHz of total bandwidth from a single installation. It covers the popular 88 kHz and 107 kHz fishing frequencies plus everything in between, saving time and money compared with installing multiple transducers. The 0° (non-tilted) element is designed for flatter hull bottoms, and a built-in fast-response water temperature sensor and exclusive Xducer ID® technology round out this capable sonar upgrade.
Note: This transducer requires a Mix and Match cable (sold separately) to connect to your sounder.
Key Features
- Medium frequency CHIRP from 80 kHz to 130 kHz
- 50 kHz of total bandwidth from one transducer
- Covers 88 kHz and 107 kHz fishing frequencies
- 16° to 24° beamwidth for wide coverage
- 0° tilt (non-tilted element), 600W power
- Depth and fast-response water temperature sensor
- Durable bronze thru-hull housing
- Exclusive Xducer ID® technology
- Designed for fiberglass or wood hulls on boats up to 25 ft
Specifications
| Brand | Airmar |
| Model | B75M |
| Part Number | B75C-0-M-MM |
| UPC | 801769001778 |
| Power | 600W |
| Frequency | 80-130 kHz Medium Frequency CHIRP |
| Total Bandwidth | 50 kHz |
| Beamwidth | 16° to 24° |
| Element Tilt | 0° (Non-Tilted) |
| Housing Material | Bronze |
| Mount Type | Thru-Hull |
| Sensors | CHIRP Sonar, Depth, Water Temperature |
| Hull Type | Fiberglass or Wood |
| Boat Size | Up to 25 ft (8 m) |
| Cable | Requires Mix and Match cable (sold separately) |
