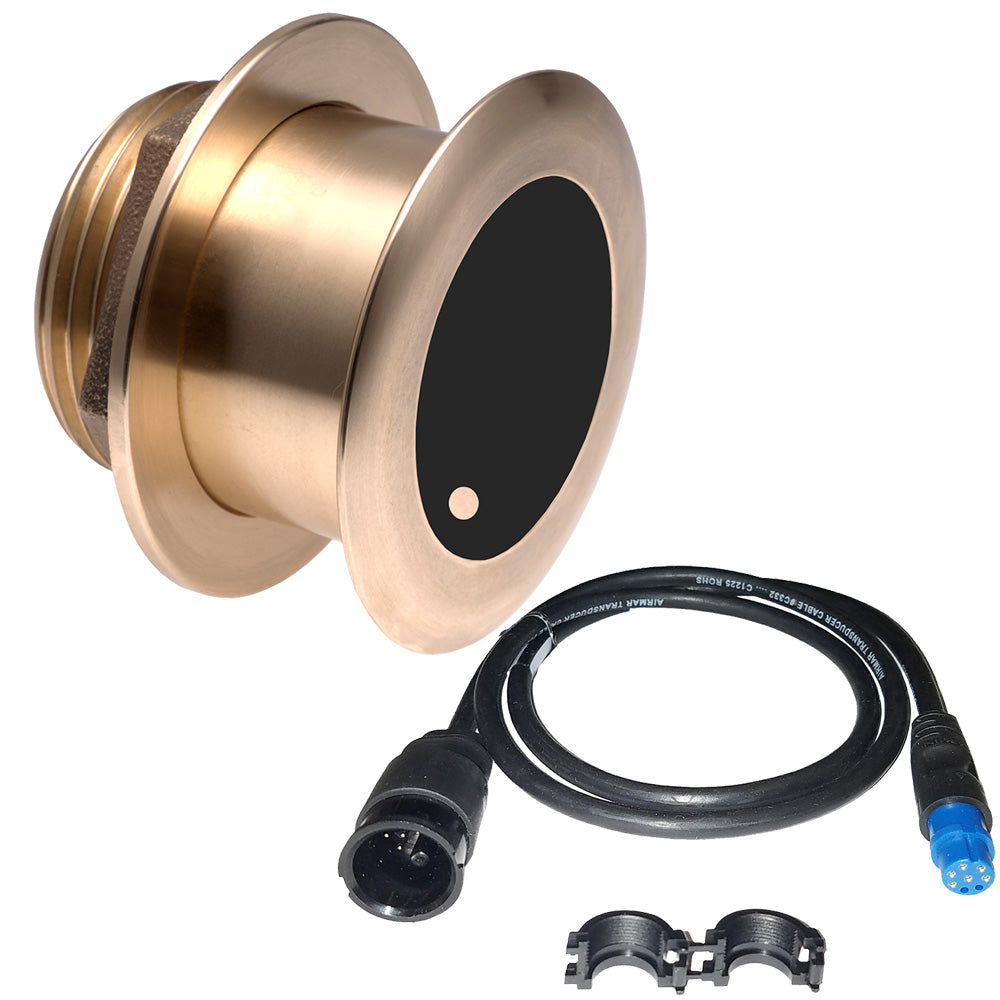

Airmar B175M Bronze Thru-Hull CHIRP Transducer for Garmin, 20° Tilt, 1kW, Medium Frequency 85-135 kHz, Depth & Temp, 8-Pin, B175C-20-M-8G

Airmar B175M 1kW Bronze Thru-Hull CHIRP Transducer for Garmin – 20° Tilt, 8-Pin (B175C-20-M-8G)

The Airmar B175M delivers the right combination of coverage under the boat, extended depth range, and clean, accurate target and structure returns in mid- to deeper water. Its medium frequency CHIRP operation from 85 to 135 kHz provides excellent shallow-to-mid-depth performance, detailed bottom definition, and strong fish-target separation, revealing fish at depths up to 1,500 feet with ultra-clear target resolution.

This Tilted Element™ transducer has its element fixed at a 20° angle inside the housing. Installed nearly flush to the hull, the tilt corrects for hull deadrise and orients the ceramic element horizontally for maximum echo returns. The low-profile bronze housing provides good display resolution at speed when properly installed, and it includes fast-response water temperature sensing and patented Xducer ID® technology. It comes configured for Garmin sounders with an 8-pin Mix & Match cable for CHIRP transducers.

The B175M is also available in a stainless steel housing (SS175M), as well as thru-hull (B285M) and in-hull (M135M) mounting options.

Key Features

• 1kW power rating
• Medium frequency CHIRP from 85 to 135 kHz
• 50 kHz of total bandwidth from one transducer
• 11° to 16° beamwidth
• Maximum depth of 1,500 ft (457 m)
• 20° Tilted Element™ design for near-flush installation
• Depth and fast-response water temperature sensing
• Garmin 8-pin Mix & Match cable for CHIRP transducers
• Low-profile bronze thru-hull housing
• Recommended for stepped, planing, or displacement hulls
• Patented Xducer ID® technology
