Airmar B175HW Bronze Thru-Hull Wide Beam CHIRP Transducer for Garmin, 0° Tilt, 1kW, 150-250 kHz, Depth & Temp, 8-Pin, B175C-0-HW-8G

Airmar B175HW Bronze Thru-Hull Wide Beam CHIRP Transducer for Garmin, 0° Tilt, 1kW, 150-250 kHz, Depth & Temp, 8-Pin, B175C-0-HW-8G

⭐ Unmatched Support💲 Price Match Policy✅ Reliable Products
Price: $1,899.99
List Price: $0.00
Price: $1,899.99
View Cart

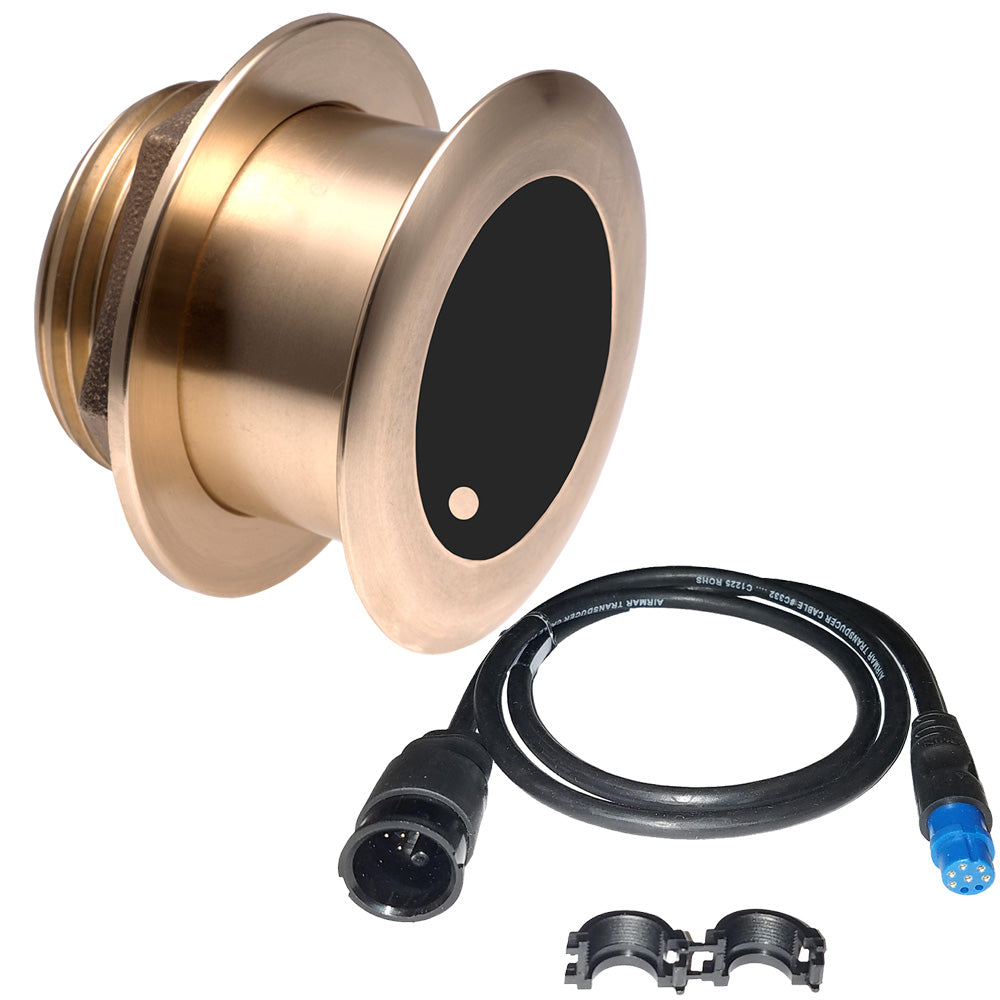

Airmar B175HW 1kW Bronze Thru-Hull Wide Beam CHIRP Transducer for Garmin – 0° Tilt, 8-Pin (B175C-0-HW-8G)

Get more coverage under your boat with the Airmar B175HW, a CHIRP-ready high frequency transducer with a constant 25° wide beam. Operating from 150 to 250 kHz, it delivers excellent shallow-water performance, detailed bottom definition, and strong fish-target separation. The consistently wide beam provides about twice the coverage of typical high frequency narrow-beam transducers, helping you detect fish in the upper water column and display clear fish arches.

The B175HW is well suited for both inshore and pelagic fishing where resolution and maximum coverage matter, with a depth range down to 500 feet. This version has its element fixed at 0° (non-tilted) inside the housing, part of Airmar's Tilted Element™ family that also includes 12° and 20° models. Installed nearly flush to the hull, it orients the ceramic element for maximum echo returns. The low-profile bronze housing provides good display resolution at speed when properly installed, and it includes fast-response water temperature sensing and patented Xducer ID® technology. It comes configured for Garmin sounders with an 8-pin Mix & Match cable for CHIRP transducers.

The B175HW is also available in a stainless steel housing (SS175HW), as well as thru-hull with fairing (B285HW), transom (TM185HW), and in-hull (M285HW) mounts.

Key Features

  • 1kW power rating
  • High frequency CHIRP from 150 to 250 kHz
  • 100 kHz of total bandwidth from one transducer
  • Covers the popular 200 kHz fishing frequency and everything in between
  • Constant 25° wide beam across all frequencies
  • Maximum depth of 500 ft (152 m)
  • 0° (non-tilted) element for near-flush installation
  • Depth and fast-response water temperature sensing
  • Garmin 8-pin Mix & Match cable for CHIRP transducers
  • Low-profile bronze thru-hull housing
  • Recommended for stepped, planing, or displacement hulls
  • Patented Xducer ID® technology

Specifications

Brand Airmar
Model B175HW
Part Number B175C-0-HW-8G
Compatibility Garmin (8-Pin)
Power Rating 1kW
Frequency 150-250 kHz High Frequency CHIRP
Total Bandwidth 100 kHz
Beamwidth 25° (Constant High-Wide)
Frequency Type CHIRP-Ready Single-Band
Element Tilt 0° (Non-Tilted)
Max Deadrise Up to
