Airmar

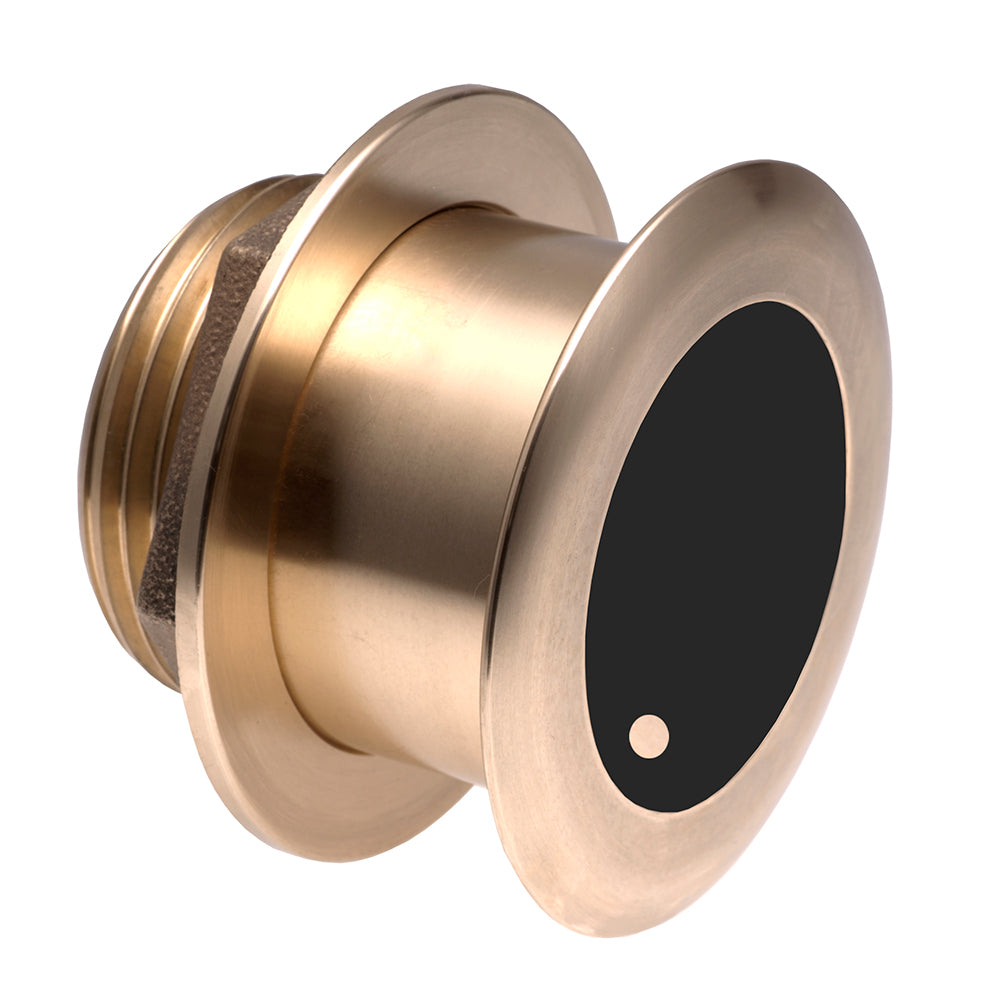

Airmar B175HW Bronze Thru-Hull Wide Beam CHIRP Transducer, 0° Tilt, 1kW, 150-250 kHz, Depth & Temp, B175C-0-HW-MM
Airmar B175HW Bronze Thru-Hull Wide Beam CHIRP Transducer, 0° Tilt, 1kW, 150-250 kHz, Depth & Temp, B175C-0-HW-MM
- Regular price
- Price: $1,764.99
- Regular price
- List Price: $0.00
- Sale price
- Price: $1,764.99
- Unit price
- / per
Notify me when this product is available:
Couldn't load pickup availability
PRODUCT DESCRIPTION
Airmar B175HW 1kW Bronze Thru-Hull Wide Beam CHIRP Transducer – 0° Tilt (B175C-0-HW-MM)
Get more coverage under your boat with the Airmar B175HW, a high frequency wide beam CHIRP transducer that operates from 150 to 250 kHz with a constant 25° beamwidth. Paired with a CHIRP-ready echosounder, it delivers about twice the coverage under the boat compared with Airmar's standard high frequency CHIRP transducers.
Unlike most transducers, the B175HW maintains the same 25° beam angle across its entire frequency band. That means broad bottom coverage and precise detection of fish in the upper water column that narrow-beam transducers can miss, along with crisper, larger return images on your display. A 0° (non-tilted) element, fast-response water temperature sensor, and exclusive Xducer ID® technology complete this 1kW bronze thru-hull transducer.
Key Features
- 1kW power rating
- High frequency CHIRP from 150 to 250 kHz
- 100 kHz of total bandwidth from one transducer
- Covers the popular 200 kHz fishing frequency and everything in between
- Constant 25° wide beam across all frequencies
- About twice the coverage of standard high frequency CHIRP transducers
- 0° (non-tilted) element
- Depth and fast-response water temperature sensing
- Durable bronze thru-hull housing
- Exclusive Xducer ID® technology
- Designed for fiberglass or wood hulls on boats 25 ft and larger
Specifications
| Brand | Airmar |
| Model | B175HW |
| Part Number | B175C-0-HW-MM |
| UPC | 801769002065 |
| Power | 1kW |
| Frequency | 150-250 kHz High Frequency CHIRP |
| Total Bandwidth | 100 kHz |
| Beamwidth | 25° (Constant) |
| Element Tilt | 0° (Non-Tilted) |
| Functions | Depth, Water Temperature |
| Housing Material | Bronze |
| Mount Type | Thru-Hull |
| Hull Material | Fiberglass or Wood |
| Boat Size | 25 ft (8 m) and larger |
