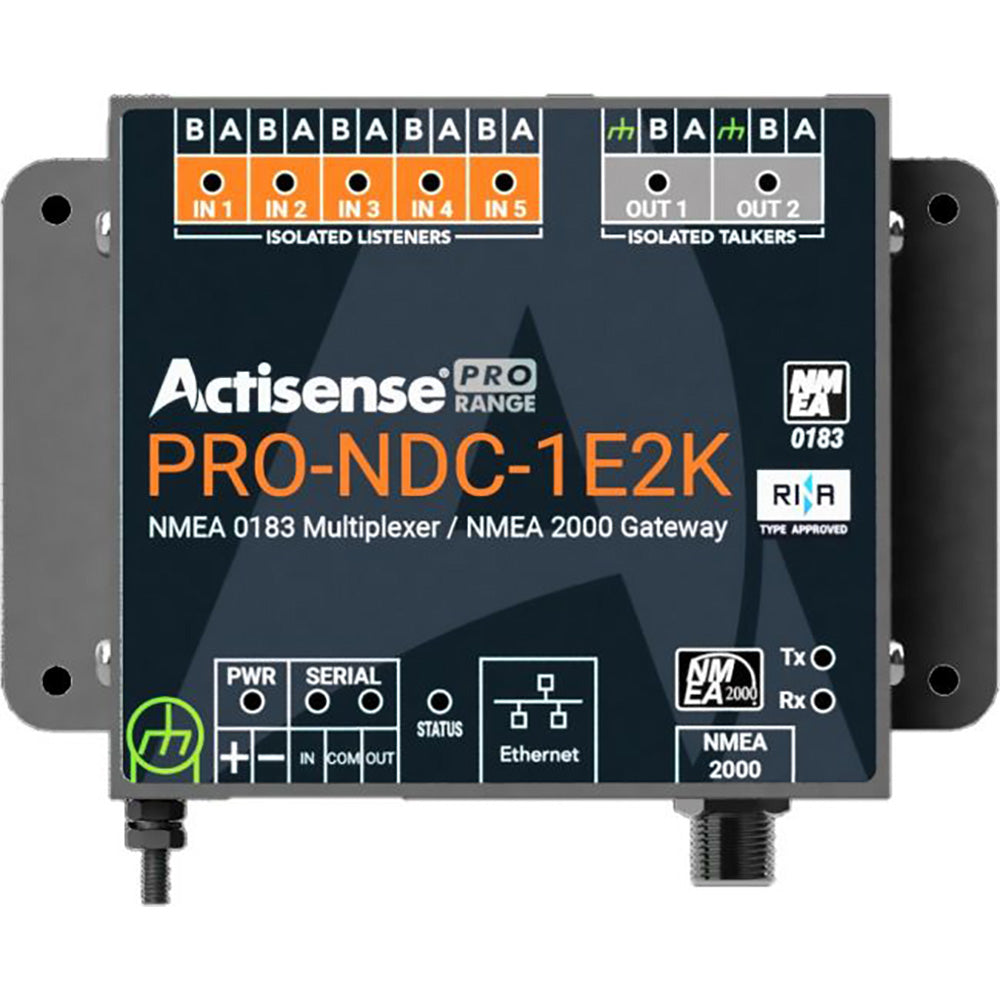

Actisense PRO-NDC-1E2K NMEA 0183 Multiplexer & NMEA 2000 Gateway with Ethernet – RINA Type Approved

The Actisense PRO-NDC-1E2K is a rugged, RINA type approved NMEA 0183 multiplexer with built-in NMEA 2000 connectivity, Ethernet data streaming, flexible configuration, auto-switching, and sentence-level filtering. Its type approval makes it suitable for leisure, commercial, and class/type-approved vessel installations, and its stainless steel housing adds durability.

A multiplexer combines data from multiple instruments into fewer outputs. Since two NMEA 0183 talkers can't connect directly to one listener, the PRO-NDC-1E2K merges their data into a single output. For example, a commercial vessel with separate NMEA 0183 GPS, wind, AIS, and depth instruments can combine all of that data and send it to one NMEA 0183 display. When the data is needed on an NMEA 2000 network, the built-in conversion matrix translates it and outputs it onto the N2K backbone, with bi-directional conversion for seamless integration between legacy and newer equipment.

Data can be filtered, passed, blocked, and monitored for full control over every instrument's output. The PRO-NDC-1E2K also streams NMEA 0183 and NMEA 2000 data over Ethernet, sharing vessel data with existing Ethernet systems, connected applications, and third-party devices. Configuration is handled through a web-based interface in any standard browser, with no software to install or text strings to edit by hand.

Key Features

• RINA type approved for leisure, commercial, and class installations
• Combines multiple NMEA 0183 talkers into fewer outputs
• Bi-directional NMEA 0183 to NMEA 2000 conversion
• Certified NMEA 2000 connectivity via M12 connector
• NMEA 0183 and NMEA 2000 data streaming over Ethernet
• 5 configurable opto-isolated NMEA 0183 inputs
• 2 configurable ISO-Drive isolated NMEA 0183 outputs
• 1 bi-directional, configurable, isolated serial port
• Auto-switching between primary, secondary, and tertiary inputs for redundancy
• Configurable baud rates let 4800 and 38400 baud devices share one multiplexer
• Automatic baud rate matching on inputs
• Sentence filtering blocks unwanted data to limit bandwidth use
• Web browser configuration with no PC operating system compatibility issues
• Diagnostic LEDs on all inputs and outputs plus bi-color status LED
• Free firmware updates
• Stainless steel housing, panel or DIN rail mountable
