Trelino Evo M Dark Gray Portable Composting Toilet

Trelino Evo M Dark Gray Portable Composting Toilet

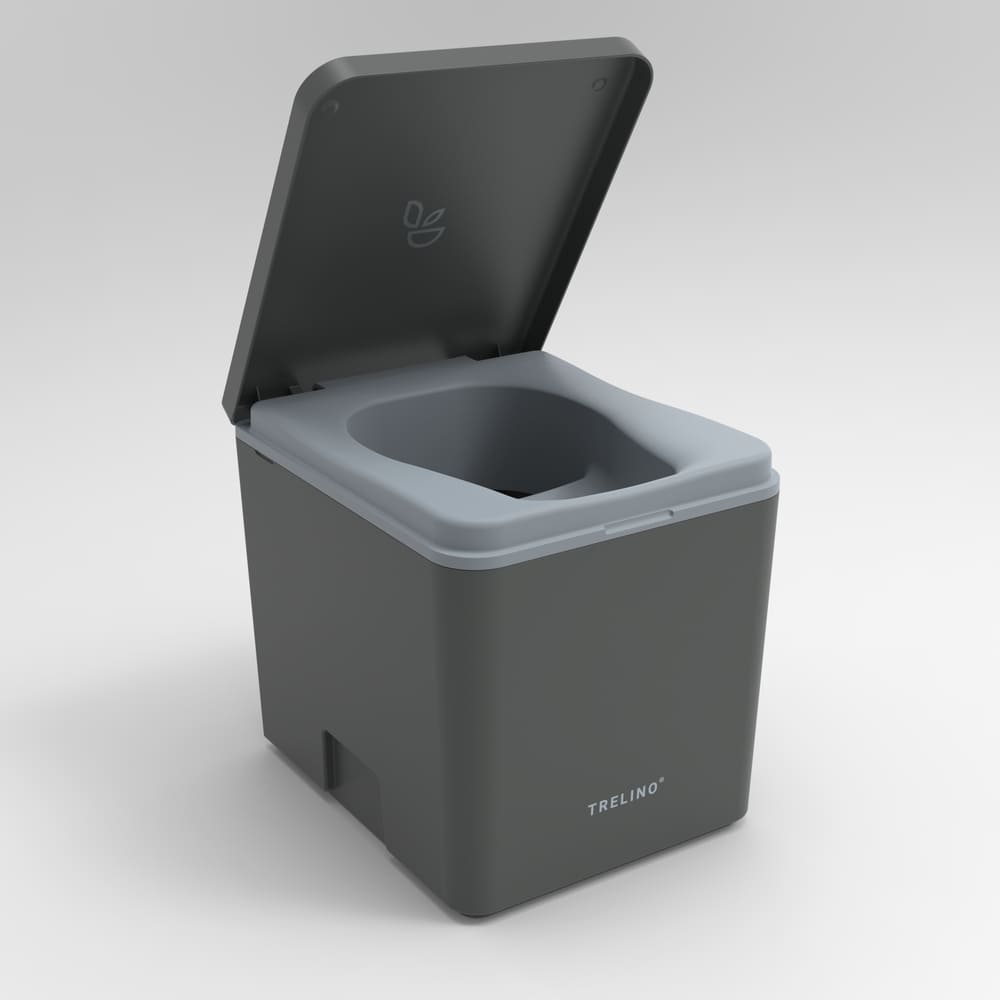

The Trelino Evo M is a compact portable composting toilet designed for vans, trailers, boats, RVs, camping, and other mobile or off-grid applications. Its urine-separating design uses separate containers for liquid and solid waste, while the 9.5 lb construction and 13.0 × 15.4 × 14.2 inch dimensions provide a portable format for space-conscious installations. The toilet features a soft-close lid, removable containers, recyclable plastic construction, and operation without flushing water or chemical additives.

Key Features

• Portable Composting Toilet: Designed for use in vans, trailers, boats, RVs, camping setups, and other mobile or off-grid environments.
• Urine-Separating Design: Separates liquid and solid waste into individual containers for separate emptying and cleaning.
• 1.3 US Gallon Urine Container: The urine canister has a 1.3 US gallon capacity and is specified to hold approximately 9–11 liquid uses.
• 2.1 US Gallon Solids Container: The solids container provides a 2.1 US gallon capacity and is specified to hold approximately 6–12 bowel movements.
• 9.5 lb Weight: Lightweight construction makes the toilet easier to transport and position in mobile spaces.

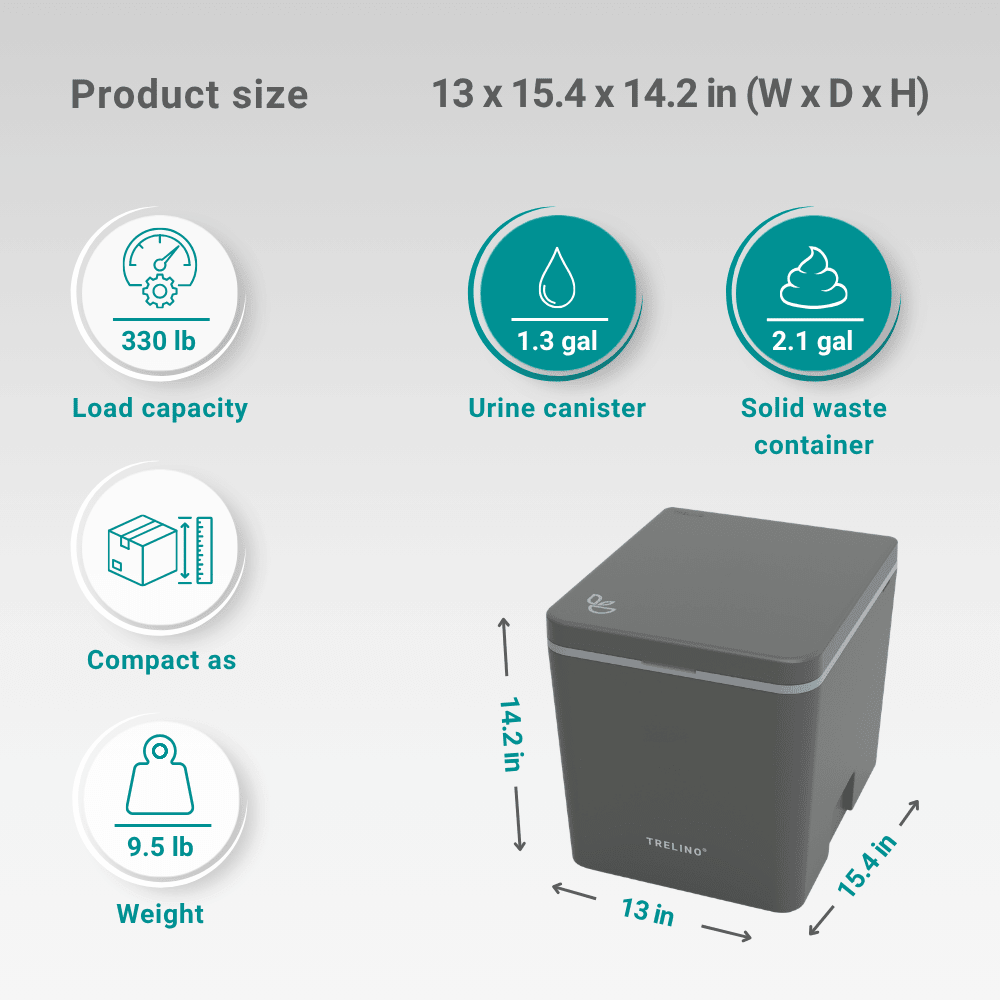

• Compact Dimensions: Measures 13.0 inches wide, 15.4 inches deep, and 14.2 inches high.

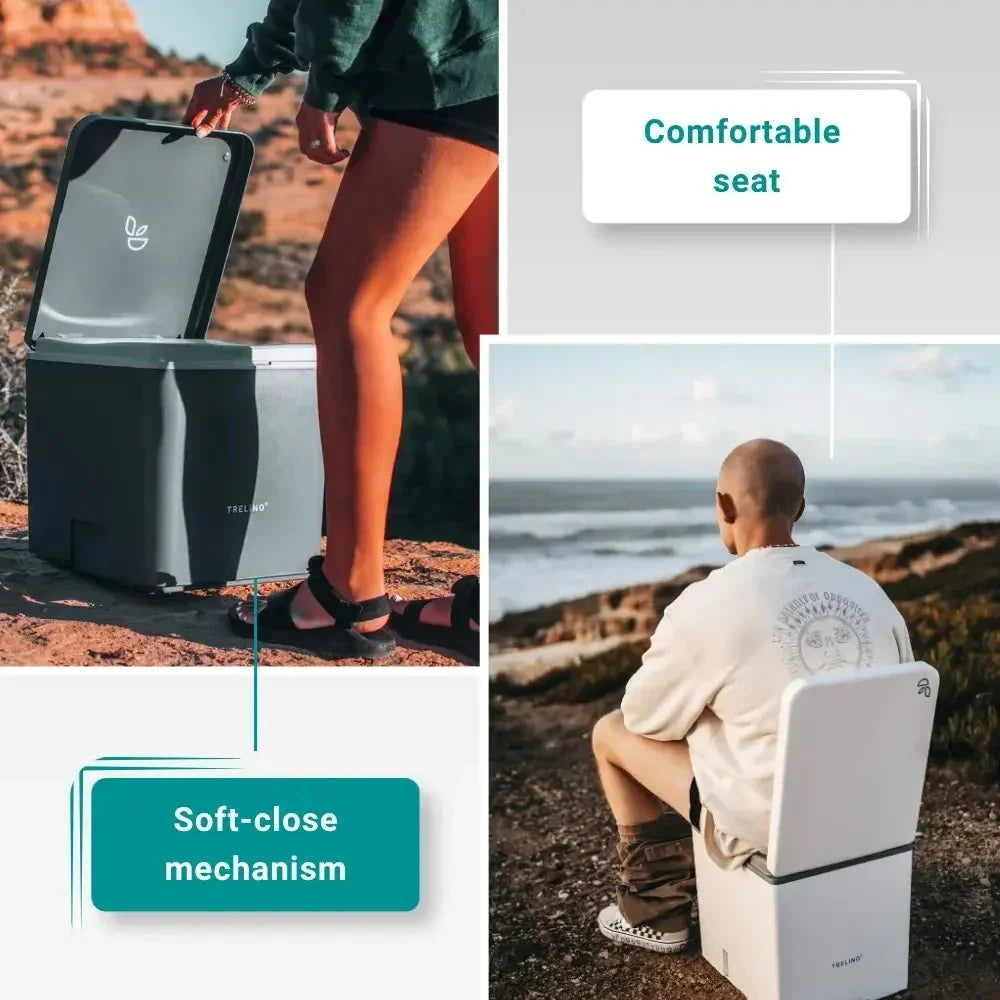

• Soft-Close Lid: Features a hinged lid with an automatic soft-close mechanism.
• Removable Containers: Separate urine and solids containers can be removed individually for emptying and cleaning.

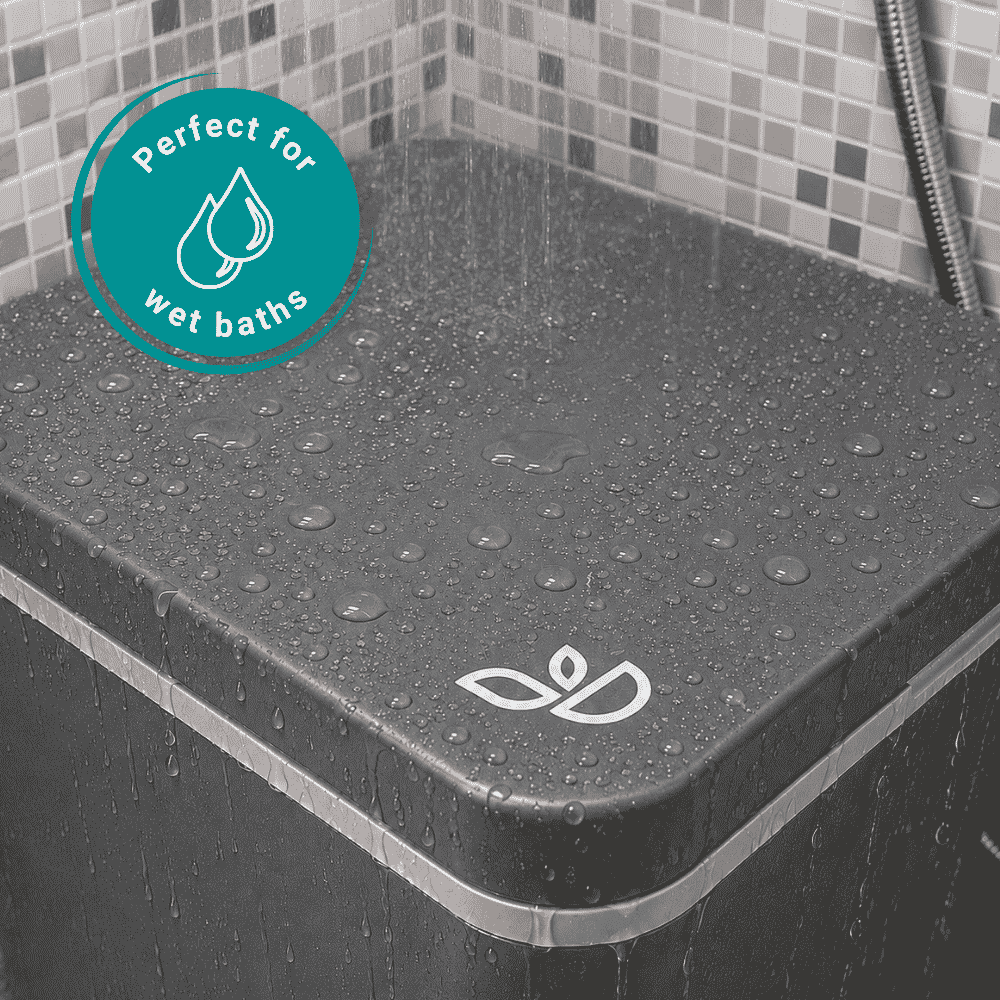

• Water-Resistant Exterior: The polyethylene exterior is described as water resistant and suitable for use in areas such as showers.
• Recyclable Plastic Construction: The body is made from ABS plastic and the containers are made from polypropylene.
• Odor Reduction: The separation and drying system is designed to reduce unpleasant odors during use.
• Optional Fan Installation: A fan can be installed to support faster drying of the solids. The manufacturer specifies that the opening must be drilled during installation.

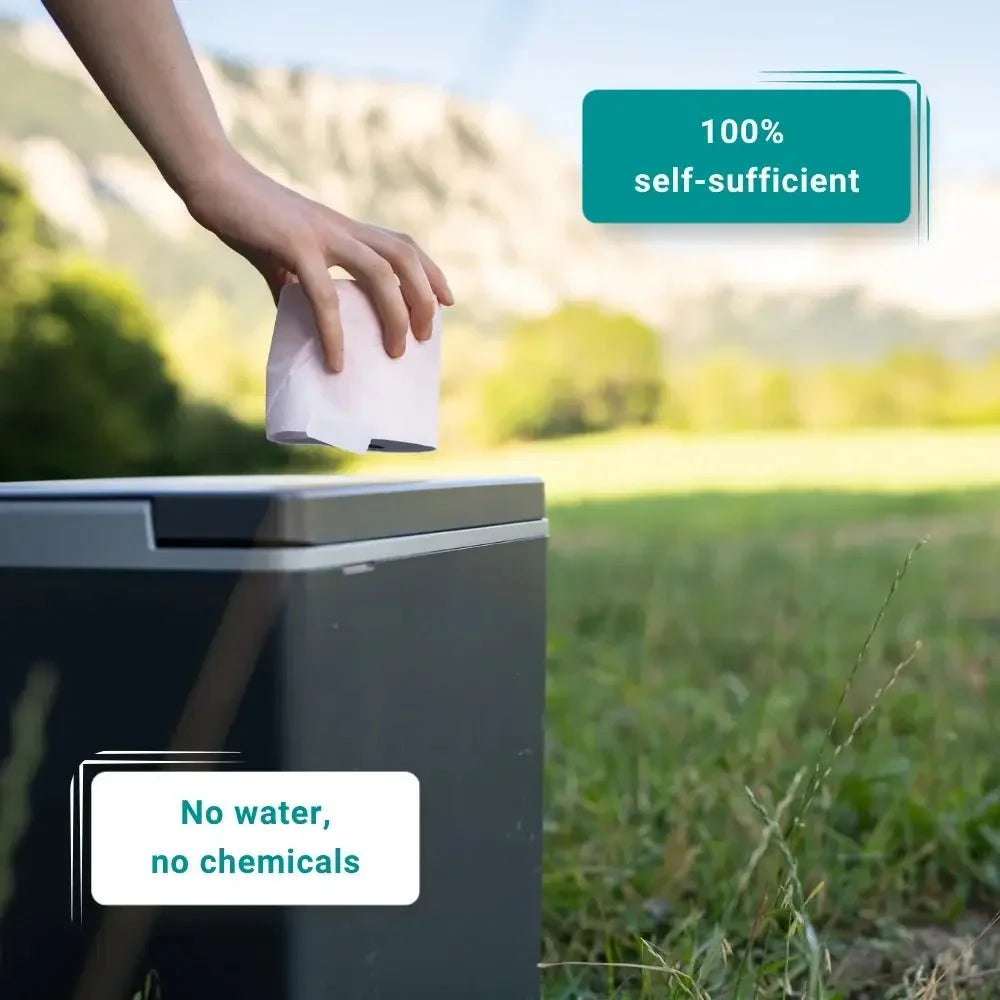

• No Flushing Water: The separating toilet operates without conventional flushing water.
• No Chemical Additives: The toilet is designed to operate without chemical additives.
• Leakage Protection: The manufacturer describes the exterior as leak-proof for transportation and mobile use.
• Stable Construction: Designed for stable placement and use in mobile environments.
• German Production: Production is carried out exclusively in Germany according to the supplied product information.
• Dark Gray Finish: This version features a dark gray exterior.
• Replacement Lid Included: An additional replacement lid is included with the toilet.
• Recycled Material Bags: Includes 10 bags made from recycled materials.

Specifications

• Brand: Trelino
• Color: Dark Gray
• Toilet Type: Portable urine-separating composting toilet
• Width: 13.0 inches
• Depth: 15.4 inches
• Height: 14.2 inches
• Weight: 9.5 lb
• Urine Container Capacity: 1.3 US gallons
• Solids Container Capacity: 2.1 US gallons
• Body Material: Acrylonitrile Butadiene Styrene (ABS)
• Container Material: Polypropylene
• Exterior Material: Polyethylene
• Lid Type: Hinged soft-close lid
• Fan: Optional; installation requires drilling the designated opening
• Water Use: No flushing water required
• Chemical Use: No chemical additives required
• Container Design: Individually removable urine and solids containers
• Production: Germany

Suitable Applications

The Trelino Evo M is designed for mobile sanitation applications where a compact toilet without conventional plumbing is required. Suitable uses include camper vans, trailers, boats, RVs, camping setups, and other mobile or off-grid spaces.

Waste Separation System

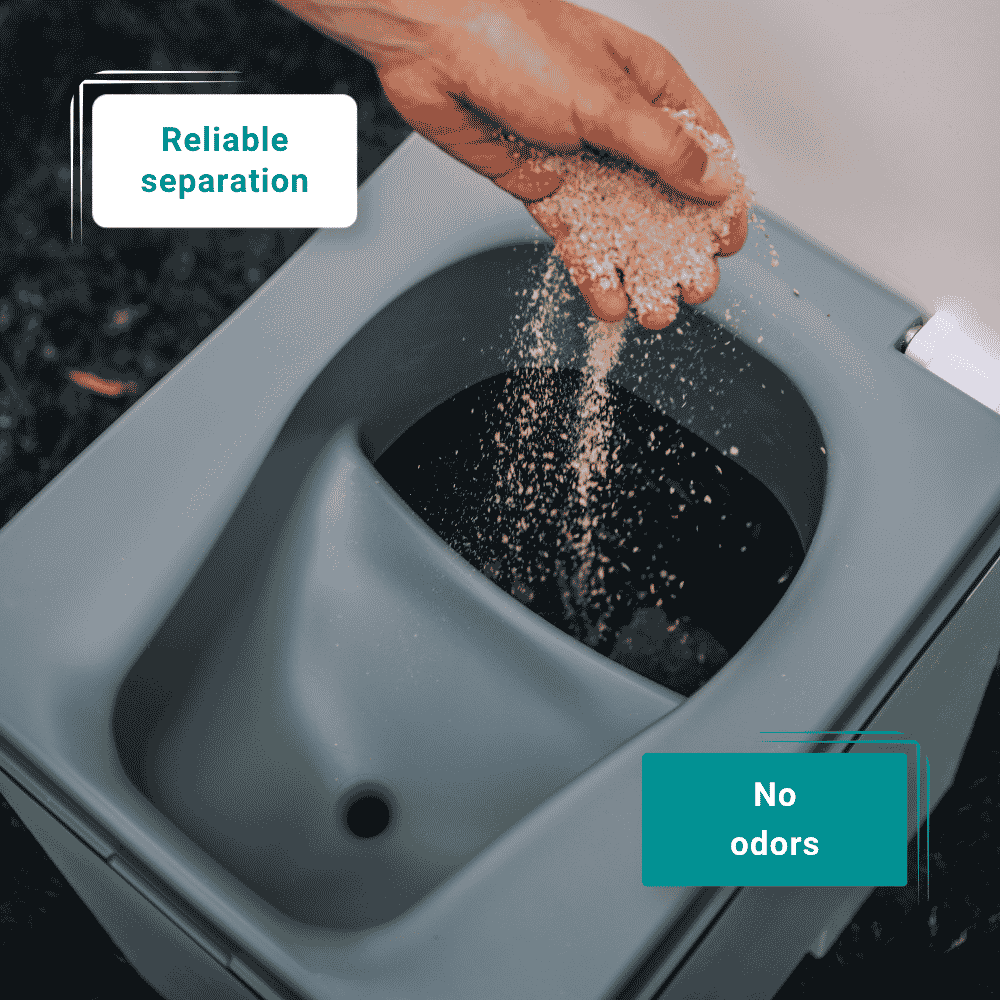

The Evo M separates urine and solid waste into two removable containers. The 1.3 US gallon urine canister and 2.1 US gallon solids container can each be removed independently for emptying and cleaning.

Compact & Portable Design

Measuring 13.0 × 15.4 × 14.2 inches and weighing approximately 9.5 lb, the Evo M is designed for compact installation and convenient transportation. Its dimensions provide additional container capacity while maintaining a portable format for mobile environments.

Materials & Construction

The main toilet body is made from ABS plastic, while the removable containers use polypropylene. The exterior is made from polyethylene and is described as water resistant. The supplied product information also specifies recyclable plastic construction and resistance to aqueous chemicals.

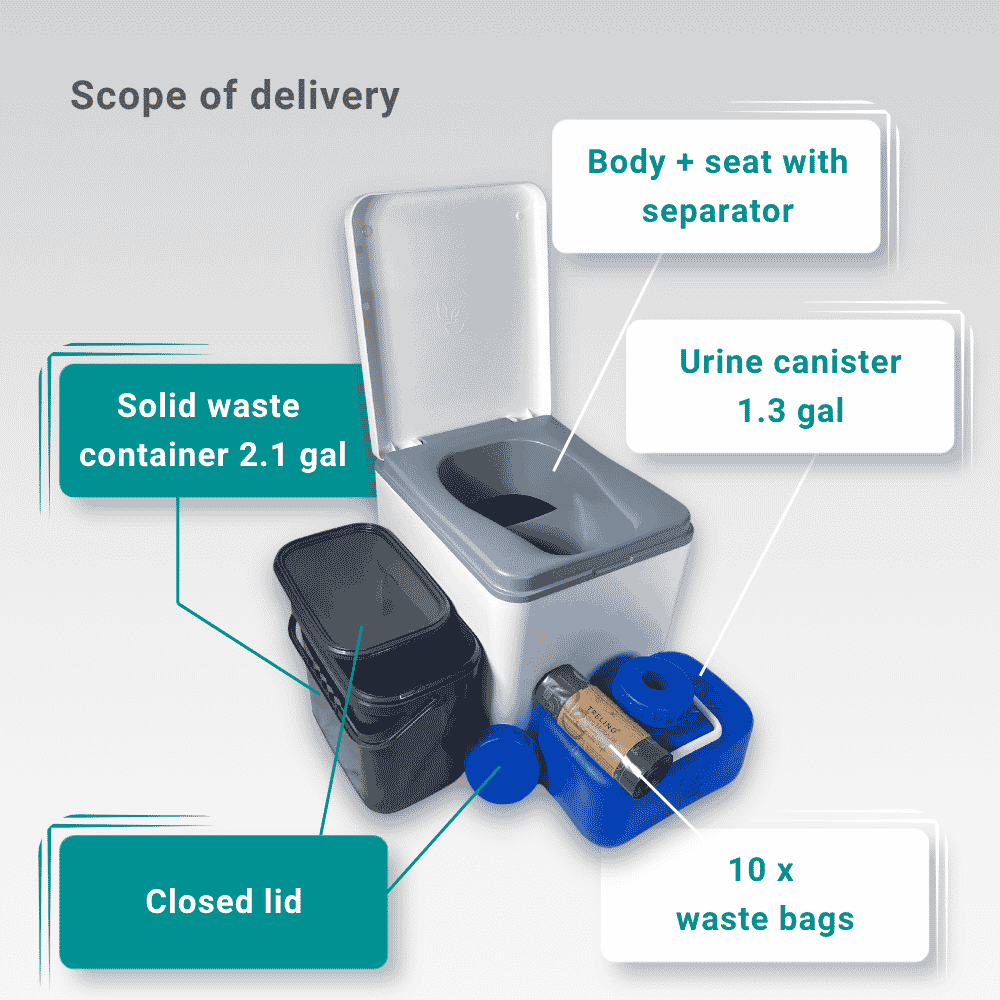

Included Components

• 1 × Exterior Body & Seat: Main toilet body with integrated urine separator.
• 1 × Soft-Close Lid: Hinged lid with automatic soft-close function.
• 1 × Urine Canister: 1.3 US gallon removable liquid container.
• 1 × Solids Container: 2.1 US gallon removable solids container.
• 1 × Membrane Closure Lid: Included with the toilet system.
• 1 × Replacement Lid: Spare lid included.
• 10 × Recycled Material Bags: Waste-management bags included with the package.

Fan Installation Option

The Trelino Evo M can accommodate a fan to support faster drying of the solids. The manufacturer states that the opening for the fan must be drilled during installation and recommends a 1.53-inch step drill for the process.

Installation & Use

The Trelino Evo M is intended to be used only as a toilet and should not be used as a seat. The manufacturer specifies that the lightweight soft-close lid is not designed to support sitting and should be allowed to close gently on its own without manually pressing it down. The removable containers can be taken out separately for emptying and cleaning.

Important Usage Note

Use the Trelino Evo M according to the manufacturer's instructions and intended toilet function. Do not sit or stand on the lid. Allow the soft-close mechanism to close without manually forcing it. When installing an optional fan, follow the manufacturer's drilling and installation instructions. Empty and clean the urine and solids containers according to the recommended maintenance procedures for the product.
