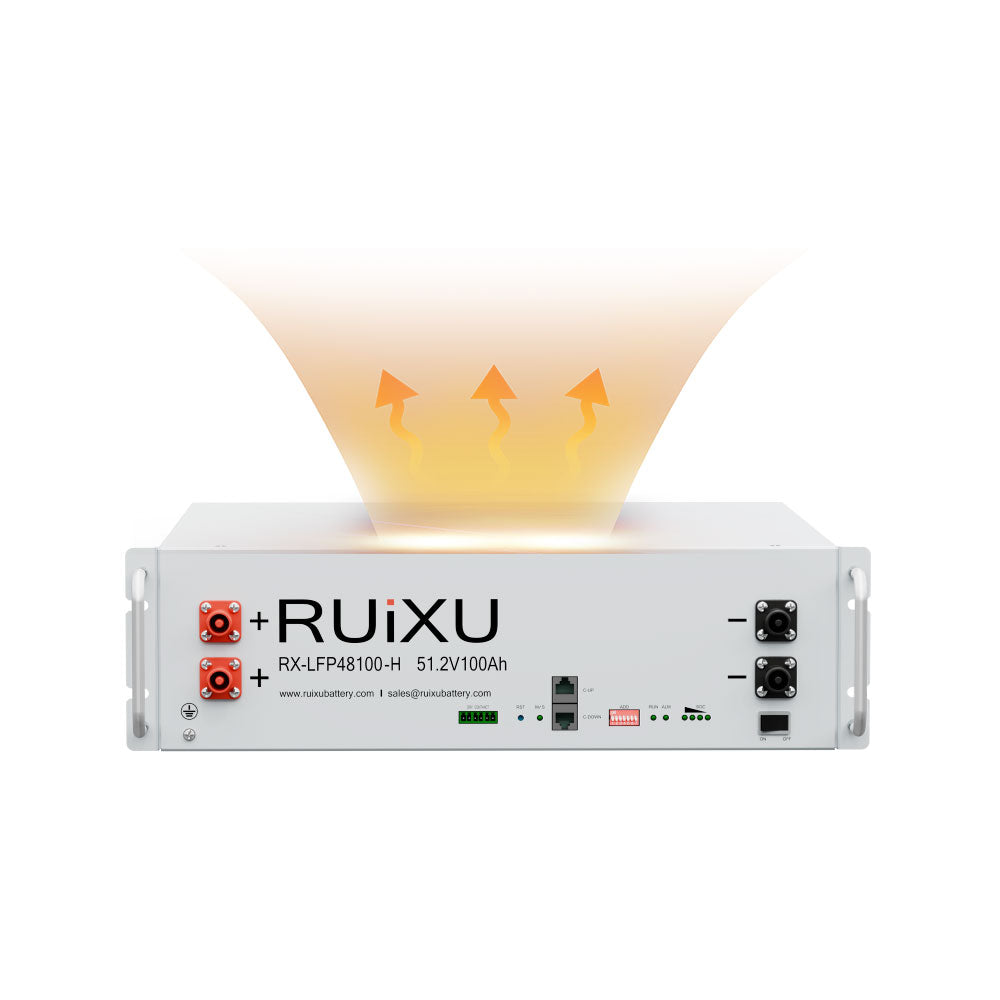

RUiXU RX-LFP48100-H 48V 100Ah 5.12kWh Self-Heating 3U Server Rack LiFePO4 Battery

RUiXU RX-LFP48100-H 48V 100Ah 5.12kWh Self-Heating 3U Server Rack LiFePO4 Battery

The RUiXU RX-LFP48100-H is a 48V 100Ah self-heating LiFePO4 server rack battery designed for residential energy storage, solar backup, and off-grid applications. It provides 51.2V nominal voltage, 5.12kWh of nominal energy, 4.92kWh of usable energy, RS485/CAN communication, and a 3U rack-mounted form factor. The battery supports up to 32 units in parallel and includes an integrated 480W heating system for cold-weather charging support.

Key Features

• 5.12kWh Energy Storage: Provides 100Ah capacity at 51.2V nominal voltage for compatible 48V energy storage systems.
• 4.92kWh Usable Energy: Provides approximately 4.92kWh of usable energy under the specified test conditions.
• Self-Heating Technology: Built-in 480W heating elements draw power from the charger to support charging in cold temperatures.
• Cold-Weather Charging Support: The supplied product information describes charging support in low-temperature conditions with the integrated heating system.
• 3U Server Rack Design: Uses a standard 3U form factor with a 133.5mm height for rack and battery-cabinet installations.
• 19-Inch Rack Compatibility: The battery is designed around a 19-inch rack-mounted format for organized energy-storage installations.
• 32-Battery Parallel Expansion: Supports up to 32 units in parallel for scalable battery-bank configurations.
• LiFePO4 Chemistry: Uses Lithium Iron Phosphate battery cells for residential and stationary energy-storage applications.
• Intelligent BMS: Built-in Battery Management System provides over-charge, over-discharge, and over-current protection while supporting cell balancing.
• RS485 & CAN Communication: Provides communication interfaces for compatible inverter and energy-management systems.
• Inverter Protocol Selection: DIP address settings can be used to select the RS485 baud rate and inverter communication protocol.
• Broad Inverter Compatibility: CAN communication is listed for compatible Victron, SMA, Studer Innotec, Sofar, Sol-Ark, Solis, GoodWe, Deye, Growatt, SAJ, LuxPower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, and Schneider systems.
• RS485 Compatibility: RS485 communication is listed for compatible MPP, Voltronic, RCT, and Alpha Outback systems.
• 250A Quick-Plug Capacity: Quick-plug connections provide up to 250A continuous overcurrent capacity and tool-less connection.
• Cell Balancing: The Battery Management System supports balancing functions to help maintain cell consistency.
• Maintenance Access: A dedicated inspection port provides access to the BMS and fuse for maintenance requirements.
• Multiple Installation Options: Supports wall-mounted, floor-mounted, stacked, and rack-mounted installation configurations.
• Long Cycle Life: Rated for at least 6,000 cycles at 90% depth of discharge under the specified test conditions.
• Extended Cycle Rating: The supplied documentation also specifies at least 9,500 cycles at 80% depth of discharge.
• 10-Year Warranty: The supplied product information specifies a 10-year warranty.
• Compact Rack Dimensions: Measures approximately 482 × 133.5 × 460mm for rack-based energy-storage installations.
• 103.6 lb Weight: Weighs approximately 47kg per battery module.

Specifications

• Brand: RUiXU
• Model: RX-LFP48100-H
• Battery Type: Rack-mounted self-heating LiFePO4 battery
• Chemistry: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Nominal Energy: 5.12kWh
• Usable Energy: 4.92kWh
• Operating Voltage Range: 44.8V–56.0V
• Charge Voltage: 56.0V
• Float Voltage: 54.6V
• Recommended Charge Current: 50A
• Maximum Charge Current: 70A
• Recommended Discharge Current: 50A
• Maximum Discharge Current: 100A
• Peak Discharge Current: 101–119A for 5 minutes; 120–149A for 15 seconds
• Communication: RS485 / CAN
• Parallel Connections: Up to 32 batteries
• Rack Format: 3U
• Rack Height: 133.5mm
• Dimensions: 482 × 133.5 × 460mm / approximately 18.9 × 5.2 × 18.1 inches
• Weight: Approximately 47kg / 103.6 lb
• Enclosure Protection: IP20
• Installation: Wall mounted, floor mounted, stacked, or rack mounted
• Self-Heating: Yes
• Heater Voltage: 56V
• Heater Power: 480W
• Self-Heating Start: At or below 41°F (5°C)
• Self-Heating Stop: At or above 53.6°F (12°C)
• Operating Temperature: -10°C to 50°C / 14°F to 122°F
• Storage Temperature: -10°C to 45°C / 14°F to 113°F
• Relative Humidity: 5%–90%, non-condensing
• Maximum Installation Altitude: 4,000m
• Cycle Life: ≥6,000 cycles at 90% DOD under specified test conditions
• Extended Cycle Rating: ≥9,500 cycles at 80% DOD
• Design Life: 15 years
• Certifications: UL9540A, CE, IEC62619, UL1973, UN38.3
• Warranty: 10 years

Suitable Applications

The RUiXU RX-LFP48100-H is designed for compatible residential energy storage, solar battery systems, backup power, and off-grid installations. Its 3U rack format, self-heating function, communication interfaces, and 32-unit parallel capability make it suitable for modular battery banks in racks and compatible battery cabinets.

Self-Heating & Cold-Weather Charging

The RX-LFP48100-H includes a 480W heating system operating at 56V. The heating elements draw power from the charger and begin heating when the battery temperature is at or below approximately 41°F (5°C), stopping when the battery reaches approximately 53.6°F (12°C). The supplied product information identifies the battery as a cold-weather charging model with integrated heating support.

Rack Mounting & Installation

The battery uses a 3U, 19-inch rack-mounted format measuring approximately 482 × 133.5 × 460mm. It supports wall-mounted, floor-mounted, stacked, and rack-mounted installation methods. Optional bracket kits can be used for different installation scenarios.

Parallel Expansion

Up to 32 compatible RX-LFP48100-H batteries can be connected in parallel. This allows a single 5.12kWh battery module to be expanded into a much larger energy-storage bank when appropriate battery cables, communication wiring, overcurrent protection, and compatible inverter equipment are used.

Inverter Communication

The battery includes RS485 and CAN communication interfaces. DIP address settings allow selection of the RS485 baud rate and compatible inverter communication protocol. CAN communication is listed for Victron, SMA, Studer Innotec, Sofar, Sol-Ark, Solis, GoodWe, Deye, Growatt, SAJ, LuxPower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, and Schneider systems. RS485 compatibility is listed for MPP, Voltronic, RCT, and Alpha Outback systems.

Smart BMS & Protection

The integrated Battery Management System provides protection against over-charge, over-discharge, and over-current conditions while supporting battery cell balancing. The battery also includes a maintenance and inspection port for access to the BMS and fuse.

Included Components

• 1 × RUiXU RX-LFP48100-H Battery: 48V 100Ah self-heating server rack LiFePO4 battery.
• 1 × RJ45/CAT5e Patch Cable: Communication cable for compatible battery and inverter connections.
• 1 × Ground Cable: Grounding cable for battery installation.
• 1 × Set of Parallel 4AWG Cables: Parallel connection cables supplied for the battery installation.

Installation & Operation

The supplied technical specification identifies the RX-LFP48100-H as an IP20 battery intended for indoor installation. Install the battery in a dry, protected location with suitable clearance, ventilation, grounding, overcurrent protection, and communication connections. Configure the connected inverter and charger according to the battery's voltage, current, and communication requirements.

Important Usage Note

Actual usable energy, charging performance, discharge capability, cycle life, and system capacity can vary with inverter selection, depth of discharge, charge and discharge rate, temperature, wiring, and installation conditions. The manufacturer's documentation notes that system usable energy may vary by inverter brand and that derating can occur at certain temperatures. Verify battery, inverter, charger, communication, wiring, protection, and installation requirements before commissioning.
