RUiXU 48V Self-Heating Server Rack LiFePO4 Battery Kits – 15.36kWh to 30.72kWh

RUiXU 48V Self-Heating Server Rack LiFePO4 Battery Kits – 15.36kWh to 30.72kWh

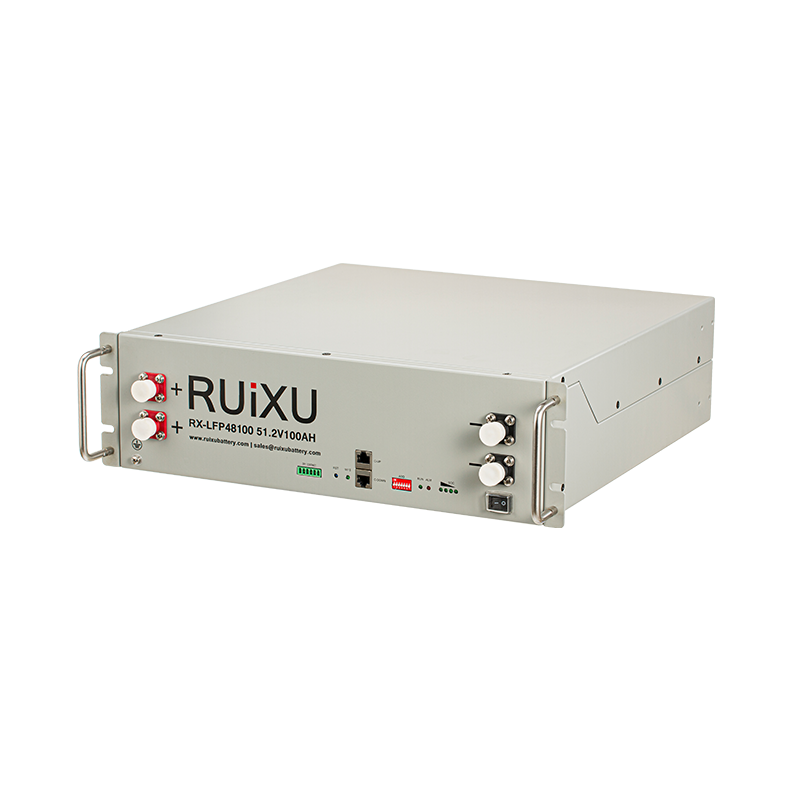

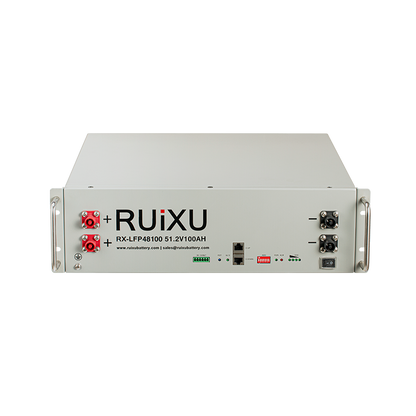

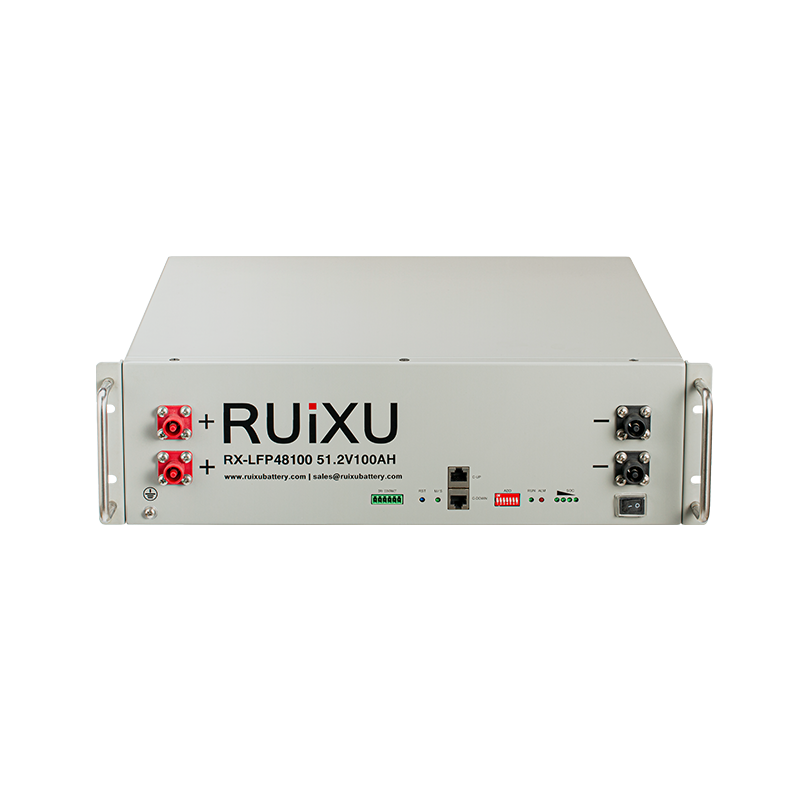

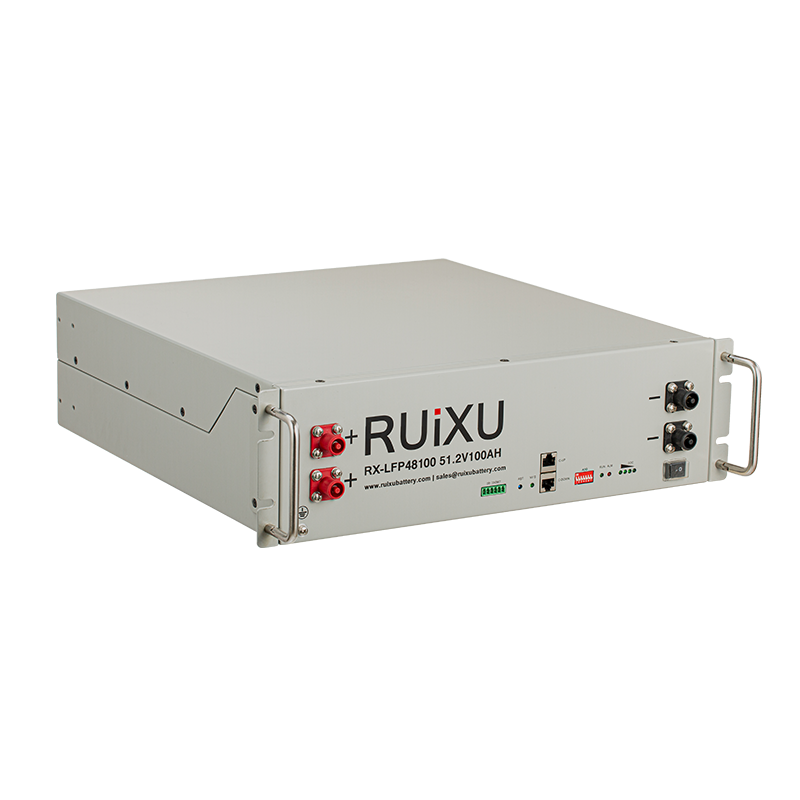

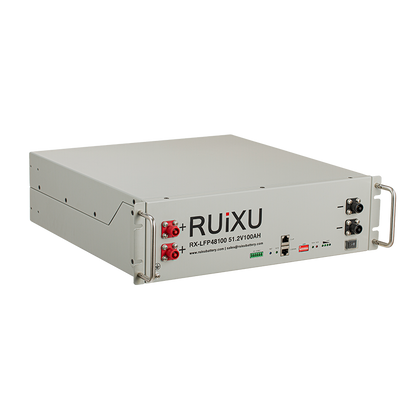

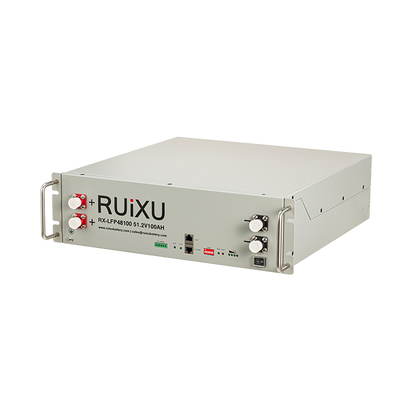

The RUiXU lithium battery kits provide modular 48V energy storage using RX-LFP48100-H self-heating server rack batteries. Available in configurations from three to six battery modules, these kits provide approximately 15.36kWh, 20.48kWh, 25.60kWh, or 30.72kWh of combined nominal energy. Each battery delivers 51.2V, 100Ah, and 5.12kWh of nominal storage and includes self-heating, RS485/CAN communication, and an intelligent Battery Management System for compatible residential, solar, backup, and off-grid energy storage systems.

Key Features

• Modular 48V Energy Storage: Each RX-LFP48100-H battery provides 51.2V nominal voltage, 100Ah capacity, and 5.12kWh of nominal energy.
• 15.36kWh Kit: Includes three 5.12kWh battery modules for approximately 15.36kWh of combined nominal energy.
• 20.48kWh Kit: Includes four battery modules for approximately 20.48kWh of combined nominal energy.
• 25.60kWh Kit: Includes five battery modules for approximately 25.60kWh of combined nominal energy.
• 30.72kWh Kit: Includes six battery modules for approximately 30.72kWh of combined nominal energy.
• Self-Heating Battery Technology: Integrated heating elements use power from the charger to support charging in cold conditions.
• Cold-Weather Charging Support: The self-heating design is intended for low-temperature charging applications.
• 3U Server Rack Format: Each battery uses a 3U rack-mounted form factor for organized cabinet and rack installations.
• 32-Unit Parallel Expansion: The battery platform supports up to 32 units connected in parallel for larger storage configurations.
• RS485 & CAN Communication: Built-in communication interfaces support compatible inverter and energy-management systems.
• Configurable Inverter Protocols: DIP address settings allow selection of RS485 baud rate and inverter communication protocol.
• Wide Inverter Compatibility: CAN communication is listed for Victron, SMA, Studer Innotec, Sofar, Sol-Ark, Solis, GoodWe, Deye, Growatt, SAJ, LuxPower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, and Schneider systems.
• RS485 Compatibility: RS485 communication is listed for MPP, Voltronic, RCT, and Alpha Outback systems.
• Intelligent BMS: Provides protection against over-charge, over-discharge, and over-current conditions while supporting battery cell balancing.
• 250A Quick-Plug Capacity: Quick-plug connections provide up to 250A continuous overcurrent capacity and tool-less battery connections.
• Service Access: A maintenance and inspection port provides access to the BMS and fuse.
• Multiple Installation Options: Supports wall-mounted, floor-mounted, stacked, and rack-mounted battery configurations.
• Indoor Rack Design: The battery specification identifies the RX-LFP48100-H as an IP20 battery intended for indoor installation.
• Long Cycle Life: Rated for at least 6,000 cycles at 90% depth of discharge under the specified test conditions.
• Extended Cycle Rating: The supplied specifications also list at least 9,500 cycles at 80% depth of discharge.
• 10-Year Warranty: The supplied product information specifies a 10-year warranty.

Specifications

• Brand: RUiXU
• Battery Model: RX-LFP48100-H
• Chemistry: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 51.2V per battery
• Nominal Capacity: 100Ah per battery
• Nominal Energy: 5.12kWh per battery
• Usable Energy: 4.92kWh per battery under specified conditions
• Operating Voltage Range: 44.8V–56.0V
• Charge Voltage: 56.0V
• Float Voltage: 54.6V
• Recommended Charge Current: 50A per battery
• Maximum Charge Current: 70A per battery
• Recommended Discharge Current: 50A per battery
• Maximum Discharge Current: 100A per battery
• Peak Discharge Current: 101–119A for 5 minutes; 120–149A for 15 seconds
• Communication: RS485 / CAN
• Maximum Parallel Connection: 32 batteries
• Battery Dimensions: 482 × 133.5 × 460mm / approximately 18.9 × 5.2 × 18.1 inches
• Battery Weight: Approximately 47kg / 103.6 lb per module
• Enclosure Protection: IP20
• Installation: Wall mounted, floor mounted, stacked, or rack mounted
• Self-Heating: Yes
• Heater Voltage: 56V
• Heater Power: 480W
• Self-Heating Start: At or below 41°F (5°C)
• Self-Heating Stop: At or above 53.6°F (12°C)
• Operating Temperature: -10°C to 50°C / 14°F to 122°F
• Storage Temperature: -10°C to 45°C / 14°F to 113°F
• Relative Humidity: 5%–90%, non-condensing
• Maximum Installation Altitude: 4,000m
• Cycle Life: ≥6,000 cycles at 90% DOD under specified test conditions
• Extended Cycle Rating: ≥9,500 cycles at 80% DOD
• Design Life: 15 years
• Certifications: UL9540A, CE, IEC62619, UL1973, UN38.3
• Warranty: 10 years

Kit Configurations

• 15.36kWh Kit: 3 × RX-LFP48100-H batteries, 3 × RJ45/CAT5e patch cables, 3 × ground cables, 3 × sets of 30cm parallel 4AWG cables, and 1 × pre-assembled 6-slot battery cabinet.
• 20.48kWh Kit: 4 × RX-LFP48100-H batteries, 4 × RJ45/CAT5e patch cables, 4 × ground cables, 4 × sets of 30cm parallel 4AWG cables, and 1 × pre-assembled 6-slot battery cabinet.
• 25.60kWh Kit: 5 × RX-LFP48100-H batteries, 5 × RJ45/CAT5e patch cables, 5 × ground cables, 5 × sets of 30cm parallel 4AWG cables, and 1 × pre-assembled 6-slot battery cabinet.
• 30.72kWh Kit: 6 × RX-LFP48100-H batteries, 6 × RJ45/CAT5e patch cables, 6 × ground cables, 6 × sets of 30cm parallel 4AWG cables, and 1 × pre-assembled 6-slot battery cabinet.

Suitable Applications

These RUiXU battery kits are designed for compatible residential energy storage, solar battery systems, backup power, and off-grid installations. The rack-based modular configuration allows multiple 48V LiFePO4 batteries to be installed together in a cabinet and expanded as energy-storage requirements increase.

Self-Heating & Cold-Weather Charging

The RX-LFP48100-H includes a 480W heating system that draws power from the charger. The self-heating function starts at or below approximately 41°F (5°C) and stops when the battery reaches approximately 53.6°F (12°C), providing cold-weather charging support within the battery's specified operating conditions.

Battery Cabinet Installation

Each listed configuration includes a pre-assembled 6-slot battery cabinet. The RUiXU platform also supports optional bracket-rack and larger cabinet installation methods, allowing different battery-bank layouts based on available space and system capacity.

Inverter Communication

The RX-LFP48100-H uses RS485 and CAN communication interfaces for compatible inverter systems. DIP address settings allow configuration of the RS485 baud rate and inverter communication protocol. CAN compatibility is listed for Victron, SMA, Studer Innotec, Sofar, Sol-Ark, Solis, GoodWe, Deye, Growatt, SAJ, LuxPower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, and Schneider. RS485 compatibility is listed for MPP, Voltronic, RCT, and Alpha Outback systems.

Parallel Expansion

The battery platform supports up to 32 units connected in parallel. Parallel expansion allows larger energy-storage configurations beyond the supplied 15.36kWh, 20.48kWh, 25.60kWh, and 30.72kWh kits when additional compatible batteries, wiring, protection equipment, and installation capacity are available.

Smart BMS & Protection

The integrated Battery Management System provides protection against over-charge, over-discharge, and over-current conditions while supporting cell balancing. Quick-plug connections provide up to 250A continuous overcurrent capacity and are designed for convenient tool-less battery connections.

Included Components

Each kit includes the specified number of RX-LFP48100-H self-heating server rack batteries, matching RJ45/CAT5e communication cables, ground cables, 30cm parallel 4AWG cables, and one pre-assembled 6-slot battery cabinet.

Installation & Operation

The RX-LFP48100-H is specified as an IP20 indoor battery. Install the battery cabinet in a dry, protected location with appropriate clearance, ventilation, grounding, overcurrent protection, and communication connections. Ensure the selected inverter and charging equipment are configured for the battery's voltage, current, and communication requirements before commissioning.

Important Usage Note

Actual usable energy, charging performance, discharge capability, cycle life, and system capacity can vary with inverter selection, depth of discharge, charge and discharge rate, temperature, wiring, and installation conditions. Follow the manufacturer's battery, inverter, cabinet, wiring, protection, and communication requirements when installing and configuring the system.
