RUiXU RX-LFP48100 48V 100Ah 5.12kWh Rack Mount LiFePO4 Battery

RUiXU RX-LFP48100 48V 100Ah 5.12kWh Rack Mount LiFePO4 Battery

The RUiXU RX-LFP48100 is a 48V 100Ah rack-mounted Lithium Iron Phosphate (LiFePO4) battery designed for residential energy storage, solar backup, and off-grid applications. It provides 51.2V nominal voltage, 5.12kWh of nominal energy, 4.92kWh of usable energy, RS485 and CAN communication, and a standard 3U rack-mount form factor. The modular design supports up to 32 batteries connected in parallel for larger energy-storage systems.

Key Features

• 5.12kWh Energy Storage: Provides 100Ah capacity at 51.2V nominal voltage for compatible 48V energy-storage systems.
• 4.92kWh Usable Energy: Provides approximately 4.92kWh of usable energy under the specified test conditions.
• 3U Rack-Mount Design: Uses a standard 3U form factor measuring approximately 133.5mm in height for rack and battery-cabinet installations.
• 32-Battery Parallel Expansion: Supports up to 32 units in parallel for modular energy-storage configurations from approximately 5kWh to 160kWh.
• LiFePO4 Chemistry: Uses Lithium Iron Phosphate battery cells for residential and stationary energy-storage applications.
• Intelligent BMS: Built-in Battery Management System provides over-charge, over-discharge, and over-current protection while supporting battery cell balancing.
• RS485 & CAN Communication: Includes communication interfaces for compatible inverter and energy-management systems.
• Inverter Protocol Selection: DIP address settings allow selection of the RS485 baud rate and inverter communication protocol.
• Broad Inverter Compatibility: CAN communication supports compatible systems from Victron, SMA, Studer Innotec, Sofar, Sol-Ark, Solis, GoodWe, Deye, Growatt, SAJ, LuxPower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, and Schneider.
• RS485 Compatibility: RS485 communication supports compatible MPP, Voltronic, RCT, and Alpha Outback inverter systems.
• Quick-Plug Connections: Quick-plug connections provide convenient battery installation and up to 250A continuous overcurrent capacity.
• Intelligent Cell Balancing: Battery balancing functions help maintain cell consistency during system operation.
• Maintenance & Inspection Access: A dedicated inspection port provides access to the BMS and fuse for maintenance requirements.
• Multiple Installation Methods: Supports wall-mounted, floor-mounted, stacked, and rack-mounted installation.
• IP20 Protection: The supplied technical specification identifies the battery as an IP20 product intended for indoor installation.
• Long Cycle Life: Rated for at least 6,000 cycles at 90% depth of discharge under the specified test conditions.
• Extended Cycle Rating: The product literature also specifies at least 9,500 cycles at 80% depth of discharge.
• 10-Year Warranty: Supplied product documentation specifies a 10-year warranty.
• Compact Construction: Measures approximately 18.9 × 5.2 × 18.1 inches for rack-based energy-storage installations.
• 103.6 lb Weight: Weighs approximately 47kg per battery module.

Specifications

• Brand: RUiXU
• Model: RX-LFP48100
• Battery Type: Rack-mounted residential energy-storage battery
• Chemistry: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Nominal Energy: 5.12kWh
• Usable Energy: 4.92kWh
• Operating Voltage Range: 44.8V–56.0V
• Charge Voltage: 56.0V
• Float Voltage: 54.6V
• Recommended Charge Current: 50A
• Maximum Charge Current: 70A
• Recommended Discharge Current: 50A
• Maximum Discharge Current: 100A
• Peak Discharge Current: 101–119A for 5 minutes; 120–149A for 15 seconds
• Communication: RS485 / CAN
• Maximum Parallel Connection: 32 batteries
• Installation: Wall mounted, floor mounted, stack mounted, or rack mounted
• Rack Format: 3U
• Dimensions: 482 × 133.5 × 460mm / 18.9 × 5.2 × 18.1 inches
• Weight: Approximately 47kg / 103.6 lb
• IP Rating: IP20
• Operating Temperature: -10°C to 50°C / 14°F to 122°F
• Storage Temperature: -10°C to 45°C / 14°F to 113°F
• Relative Humidity: 5%–90%, non-condensing
• Maximum Installation Altitude: 4,000m
• Cycle Life: ≥6,000 cycles at 90% DOD under specified test conditions
• Extended Cycle Rating: ≥9,500 cycles at 80% DOD
• Design Life: 15 years
• Certification: UL9540A, CE, IEC62619, UL1973, UN38.3
• Warranty: 10 years

Suitable Applications

The RUiXU RX-LFP48100 is designed for compatible 48V residential energy storage, solar backup, off-grid power systems, and stationary battery-storage applications. Its 3U rack format, communication interfaces, and parallel expansion capability make it suitable for modular battery banks installed in racks, cabinets, or other approved mounting configurations.

Rack Mounting & Installation

The RX-LFP48100 uses a 3U form factor measuring approximately 482 × 133.5 × 460mm. It supports wall-mounted, floor-mounted, stacked, and rack-mounted installation methods. Optional bracket racks and battery cabinets can be used for different installation configurations.

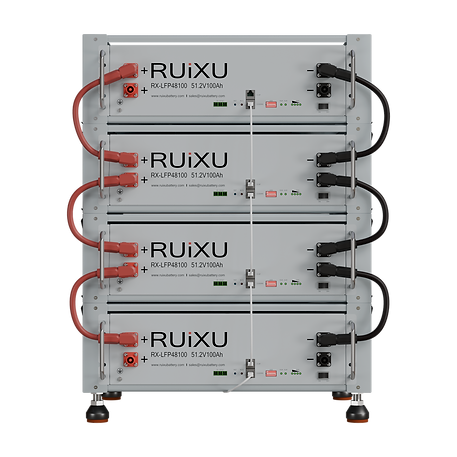

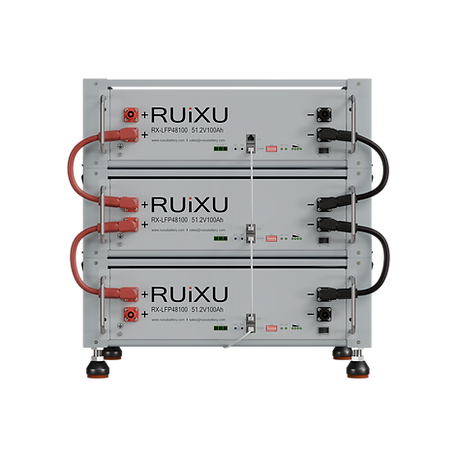

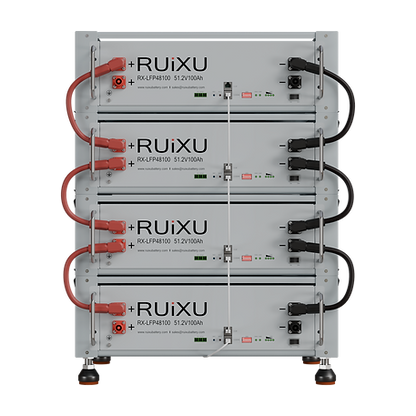

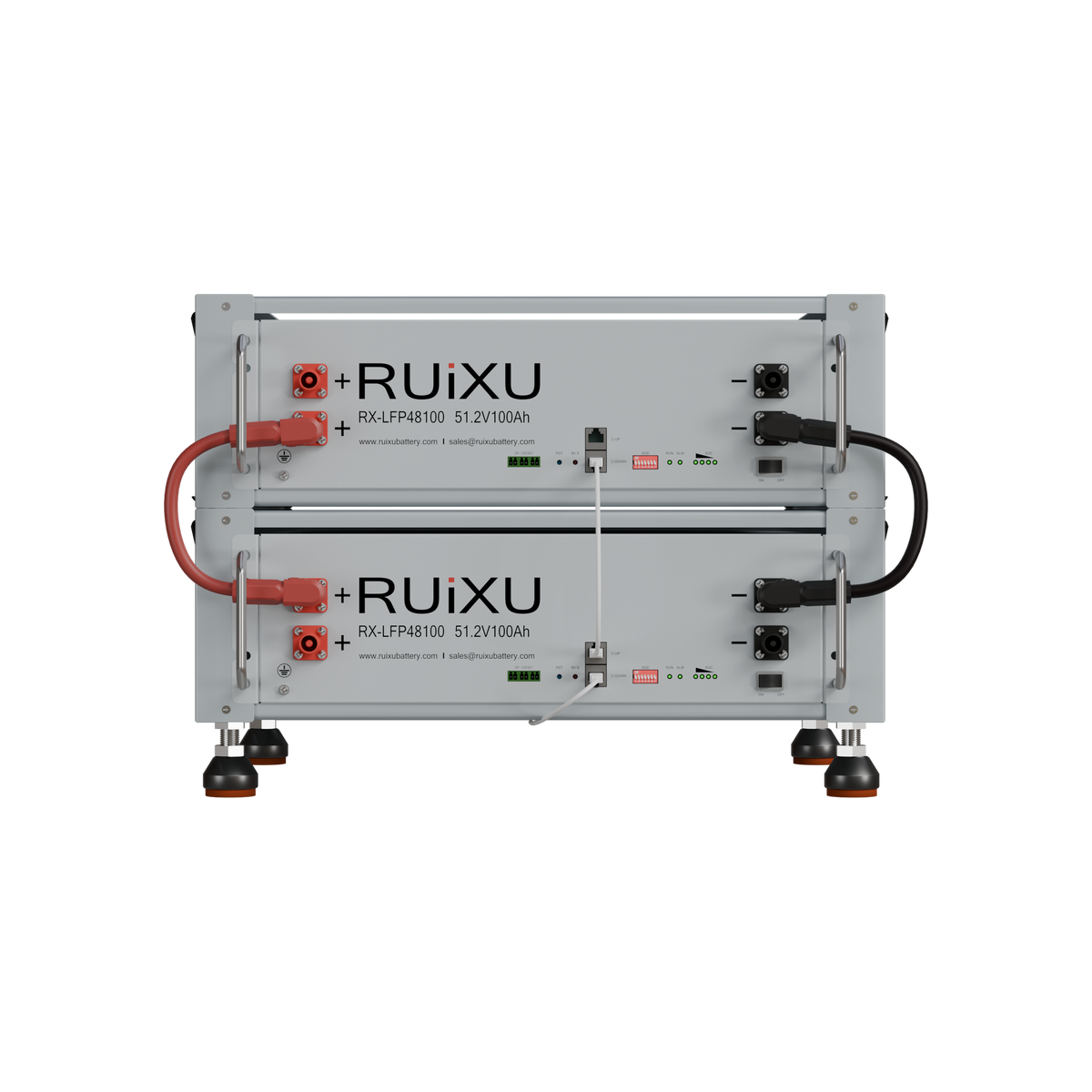

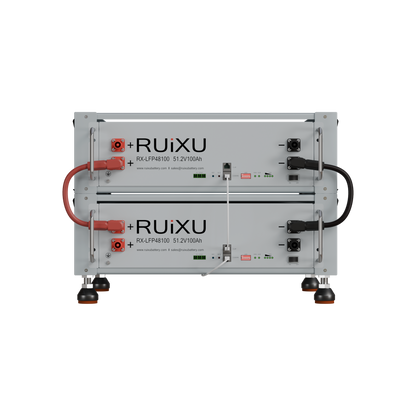

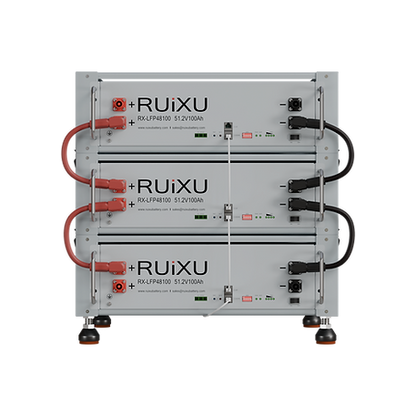

Parallel Expansion

Up to 32 compatible RX-LFP48100 batteries can be connected in parallel. This allows the system to expand from a single approximately 5kWh battery module to a much larger energy-storage bank. Use appropriate parallel cables, communication connections, overcurrent protection, and compatible system components when expanding the battery bank.

Inverter Communication

The battery includes RS485 and CAN communication interfaces. DIP address settings are used to select the RS485 baud rate and compatible inverter communication protocol. Supported CAN inverter brands listed in the supplied documentation include Victron, SMA, Studer Innotec, Sofar, Sol-Ark, Solis, GoodWe, Deye, Growatt, SAJ, LuxPower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, and Schneider. RS485 support is listed for MPP, Voltronic, RCT, and Alpha Outback systems.

Smart BMS & Cell Balancing

The integrated Battery Management System provides protection against over-charge, over-discharge, and over-current conditions. The BMS also supports cell balancing to help maintain consistency between battery cells during operation.

Quick-Plug & Maintenance Access

The battery uses quick-plug connections designed for convenient installation and includes up to 250A continuous overcurrent capacity. A dedicated maintenance and inspection port provides access to the BMS and fuse for service requirements.

Indoor Installation

The supplied technical specification identifies the RX-LFP48100 as an IP20 battery intended for indoor installation. Install the battery in a dry, protected location with appropriate ventilation and secure mounting, and keep it away from rain, standing water, and direct environmental exposure.

Important Usage Note

Actual usable energy, cycle life, charging performance, and battery output can vary with inverter compatibility, depth of discharge, charge and discharge rate, temperature, wiring, and installation conditions. The supplied documentation notes that system usable energy may vary by inverter brand and that derating can occur at certain operating temperatures. Verify battery voltage, charge and discharge limits, communication protocol, inverter compatibility, and installation requirements before commissioning.
