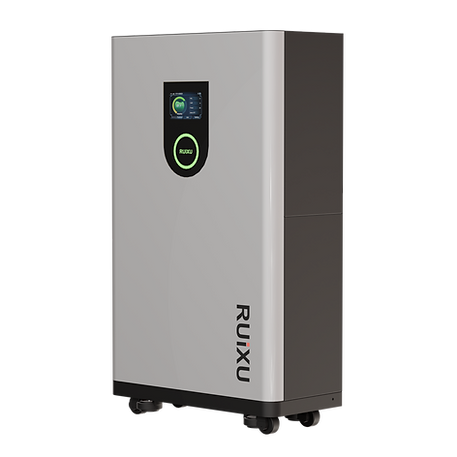

RUiXU Lithi2-16 51.2V 314Ah 16.07kWh Self-Heating LiFePO4 Battery

RUiXU Lithi2-16 51.2V 314Ah 16.07kWh Self-Heating LiFePO4 Battery

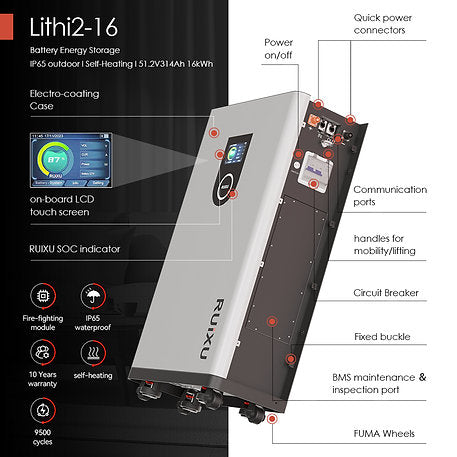

The RUiXU Lithi2-16 is a 51.2V 314Ah Lithium Iron Phosphate (LiFePO4) energy storage battery designed for residential and commercial solar, backup power, and off-grid applications. It provides 16.07kWh of nominal energy, up to 16kWh of usable capacity at 100% depth of discharge, integrated self-heating, RS485 and CAN communication, an onboard 5-inch LCD touch screen, four concealed wheels, and wall-fixation support for flexible installation and system expansion.

Key Features

• 16.07kWh Nominal Energy: Provides 314Ah of capacity at 51.2V nominal voltage for large residential and commercial energy storage systems.
• 51.2V 314Ah LiFePO4 Battery: Uses Lithium Iron Phosphate chemistry with a 16S1P cell configuration.
• 16kWh Usable Capacity: The supplied technical specification lists 16kWh usable battery capacity at 100% depth of discharge.
• Self-Heating Function: Built-in 480W heating support helps prepare the battery for charging in cold conditions.
• Cold-Weather Charging Support: The specified charging operating temperature extends down to -25°C (-13°F).
• 5-Inch LCD Touch Screen: Provides battery information and allows intuitive adjustment of available battery settings.
• RS485 & CAN Communication: Provides communication interfaces for compatible inverter and energy-management systems.
• 32-Battery Parallel Expansion: Supports up to 32 units connected in parallel for scalable energy storage.
• 10kW Maximum Discharge Power: Supports a maximum discharge power rating of up to 10kW.
• 200A Maximum Charge Current: Supports up to 200A maximum charging current within the specified battery limits.
• 200A Maximum Discharge Current: Supports up to 200A maximum continuous discharge current.
• 240A Peak Discharge: Supports 240A peak discharge for up to 15 seconds and 360A for up to 1 second.
• 250A Quick-Plug Capacity: Quick-plug connections provide up to 250A continuous overcurrent capacity with tool-less connection.
• Intelligent Cell Balancing: Uses a balancing approach based on cell capacity differences and charging-process data.
• Dual-Protection Architecture: Includes a fuse on the negative terminal and a micro circuit breaker on the positive terminal.
• Gas Aerosol Fire Protection: An integrated gas aerosol fire-protection module is designed to provide additional protection inside the battery pack.
• Maintenance Access: A side inspection port provides access to the BMS and fuse for maintenance requirements.
• Wheeled Design: Four concealed heavy-duty wheels make the battery easier to move within an installation area.
• Wall-Fixation Support: A rear anti-tipping mounting point allows the battery to be anchored to a wall.
• Electro-Coated Enclosure: Electrophoretic coating is used on the battery enclosure for corrosion protection in outdoor applications.
• IP55 Protection: The enclosure is rated IP55 for protected indoor and outdoor installation.
• Long Cycle Life: Rated for at least 9,500 cycles at 80% depth of discharge under the specified test conditions.

Specifications

• Brand: RUiXU
• Model: Lithi2-16
• Battery Type: Self-heating LiFePO4 energy storage battery
• Chemistry: Lithium Iron Phosphate (LiFePO4)
• Cell Configuration: 16S1P
• Nominal Voltage: 51.2V
• Nominal Capacity: 314Ah
• Nominal Energy: 16.07kWh
• Usable Battery Capacity: 16kWh at 100% DOD
• Operating Voltage Range: 43.2V–58.4V
• Charge Voltage: 56.8V
• Maximum Charge Voltage: 58.4V
• Recommended Charge Current: 140A
• Maximum Charge Current: 200A
• Recommended Discharge Current: 140A
• Maximum Continuous Discharge Current: 200A
• Maximum Discharge Power: 10kW
• Rated DC Power: 7kW
• Peak Discharge Current: 240A for 15 seconds; 360A for 1 second
• Low-Voltage Cut-Off: 43.2V
• Communication: RS485 / CAN
• Parallel Expansion: Up to 32 batteries
• Self-Heating: Yes
• Heater Voltage: 56V
• Heater Power: 480W
• Self-Heating Start: At or below 41°F (5°C)
• Self-Heating Stop: At or above 53.6°F (12°C)
• Charge Operating Temperature: -25°C to 55°C / -13°F to 131°F
• Discharge Operating Temperature: -20°C to 55°C / -4°F to 131°F
• Storage Temperature: -20°C to 45°C / -4°F to 113°F

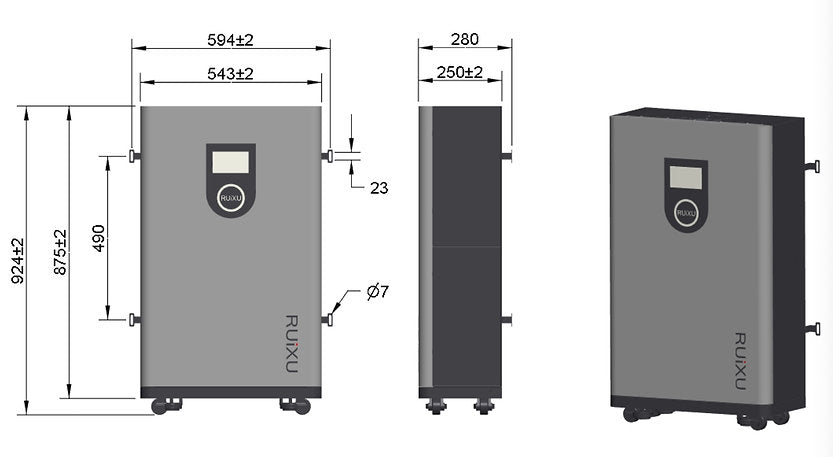

• Dimensions: 924 × 543 × 250mm / approximately 36.3 × 21.3 × 9.8 inches
• Dimensions Including Wheels: Approximately 36.3 × 21.3 × 9.8 inches
• Weight: Approximately 145kg / 319.7 lb
• Enclosure Protection: IP55
• Mounting: Floor, wheeled, and wall-fixation supported
• Cycle Life: ≥9,500 cycles at 80% DOD
• Design Life: 15 years
• Certifications: CE, IEC62619, UN38.3, UL1973, UL9540
• Country of Manufacture: China
• Warranty: 10 years

Suitable Applications

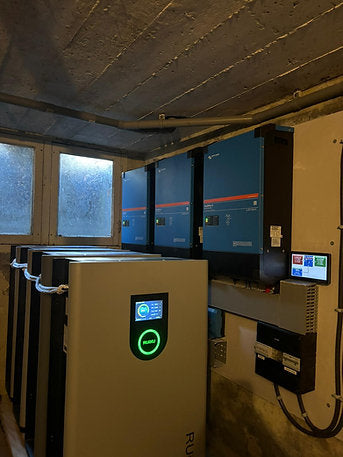

The RUiXU Lithi2-16 is designed for compatible residential and commercial energy storage systems, including solar battery storage, backup power, off-grid installations, and larger battery-bank configurations. Its 16kWh capacity, self-heating function, integrated display, and parallel expansion capability make it suitable for energy-storage projects that require substantial capacity in a movable floor-standing enclosure.

Self-Heating & Cold-Weather Operation

The integrated 480W heater operates from a 56V supply and uses charging power to warm the battery in low-temperature conditions. Self-heating starts when the battery temperature is at or below 41°F (5°C) and stops when the battery reaches approximately 53.6°F (12°C). The specified charging operating temperature extends down to -25°C (-13°F).

LCD Touch Screen

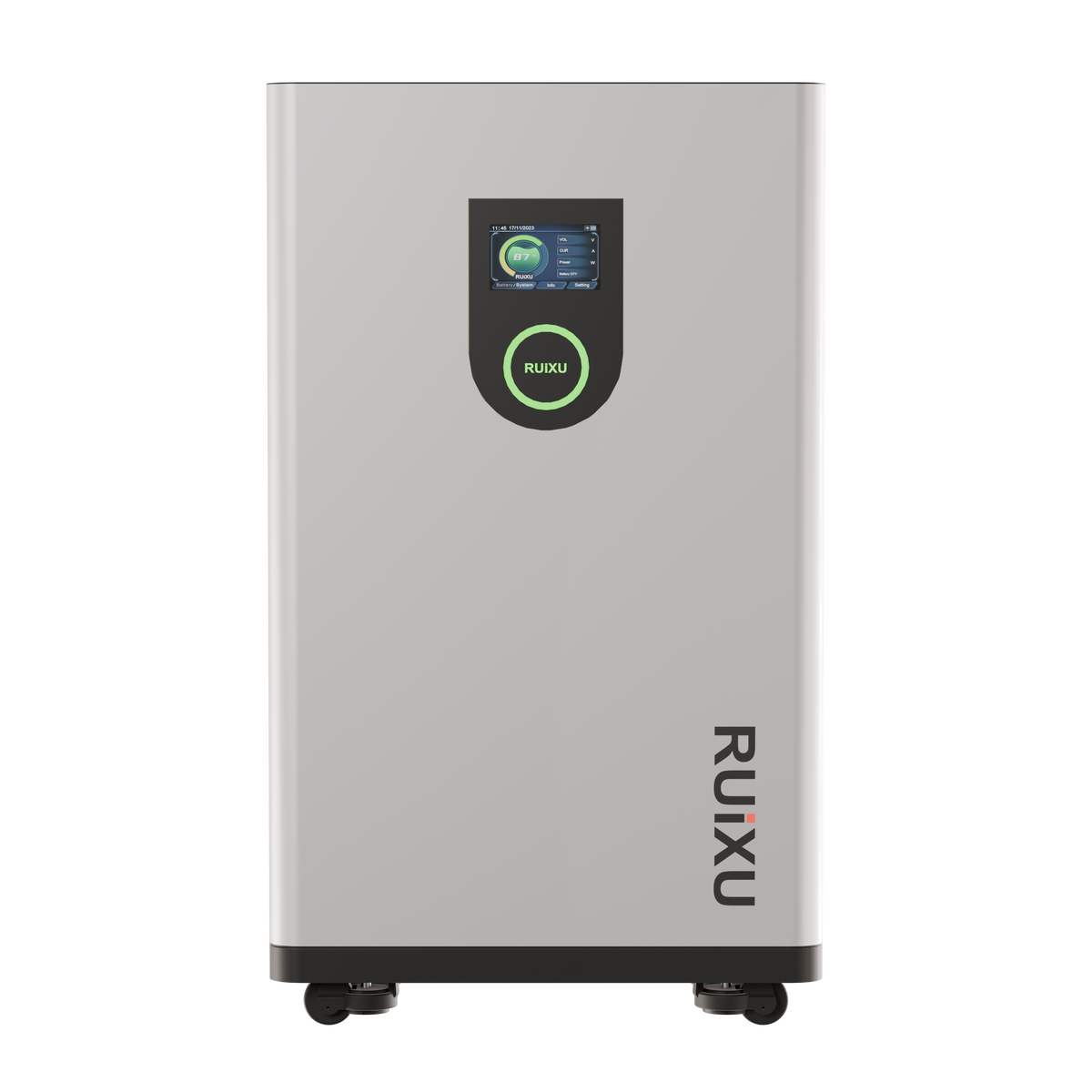

The Lithi2-16 includes a 5-inch capacitive LCD touch screen that displays battery information and allows adjustment of available battery settings. The integrated display provides direct access to battery information without requiring a separate external monitoring device.

Inverter Communication

The battery includes RS485 and CAN communication interfaces for compatible inverter and energy-management equipment. The supplied product information lists CAN communication compatibility with systems from Victron, SMA, Studer Innotec, Sofar, Sol-Ark, Solis, GoodWe, Deye, Growatt, SAJ, LuxPower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, and Schneider. RS485 compatibility is listed for MPP, Voltronic, RCT, and Alpha Outback systems.

Parallel Expansion

Up to 32 compatible batteries can be connected in parallel for larger energy-storage installations. Parallel expansion should use appropriately sized battery cables, communication connections, overcurrent protection, and compatible inverter equipment according to the manufacturer's installation requirements.

Safety & Protection

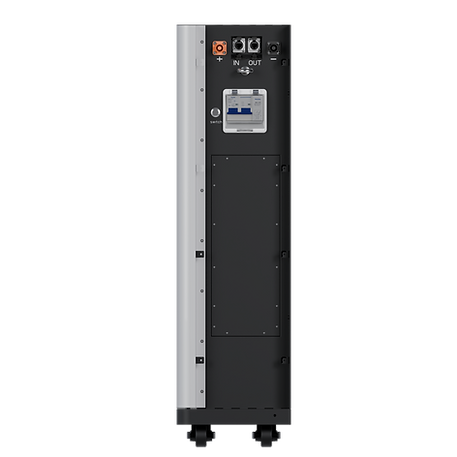

The battery includes a Battery Management System, intelligent cell-balancing functions, a negative-terminal fuse, and a positive-terminal micro circuit breaker. Quick-plug connections provide up to 250A continuous overcurrent capacity. A gas aerosol fire-protection module is also included for additional internal protection, while a side inspection port provides access to the BMS and fuse for maintenance.

Installation & Mobility

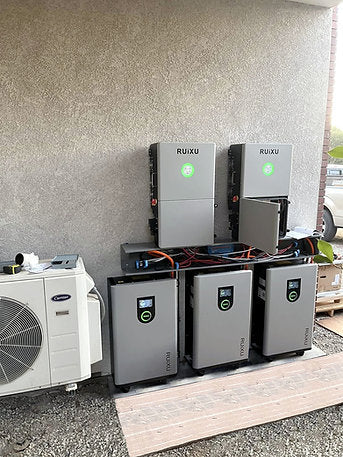

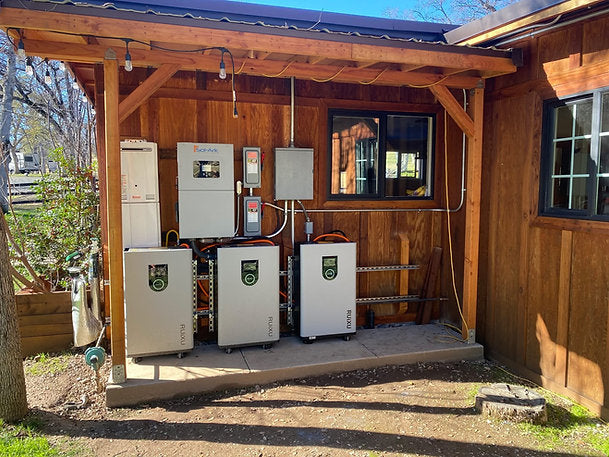

The Lithi2-16 includes four concealed heavy-duty wheels for movement within the installation area and a rear anti-tipping mounting point for wall fixation. The electro-coated enclosure provides corrosion protection, while the IP55 rating supports protected indoor and outdoor installations. When installed outdoors, provide appropriate shelter and protection from direct weather exposure.

Important Usage Note

Actual battery performance, usable capacity, charging time, cycle life, and output depend on inverter configuration, depth of discharge, charge and discharge rates, temperature, wiring, and installation conditions. Do not exceed the specified battery voltage, charge current, discharge current, or operating-temperature limits. Verify inverter communication, system protection, cable sizing, grounding, mounting, and local installation requirements before commissioning.
