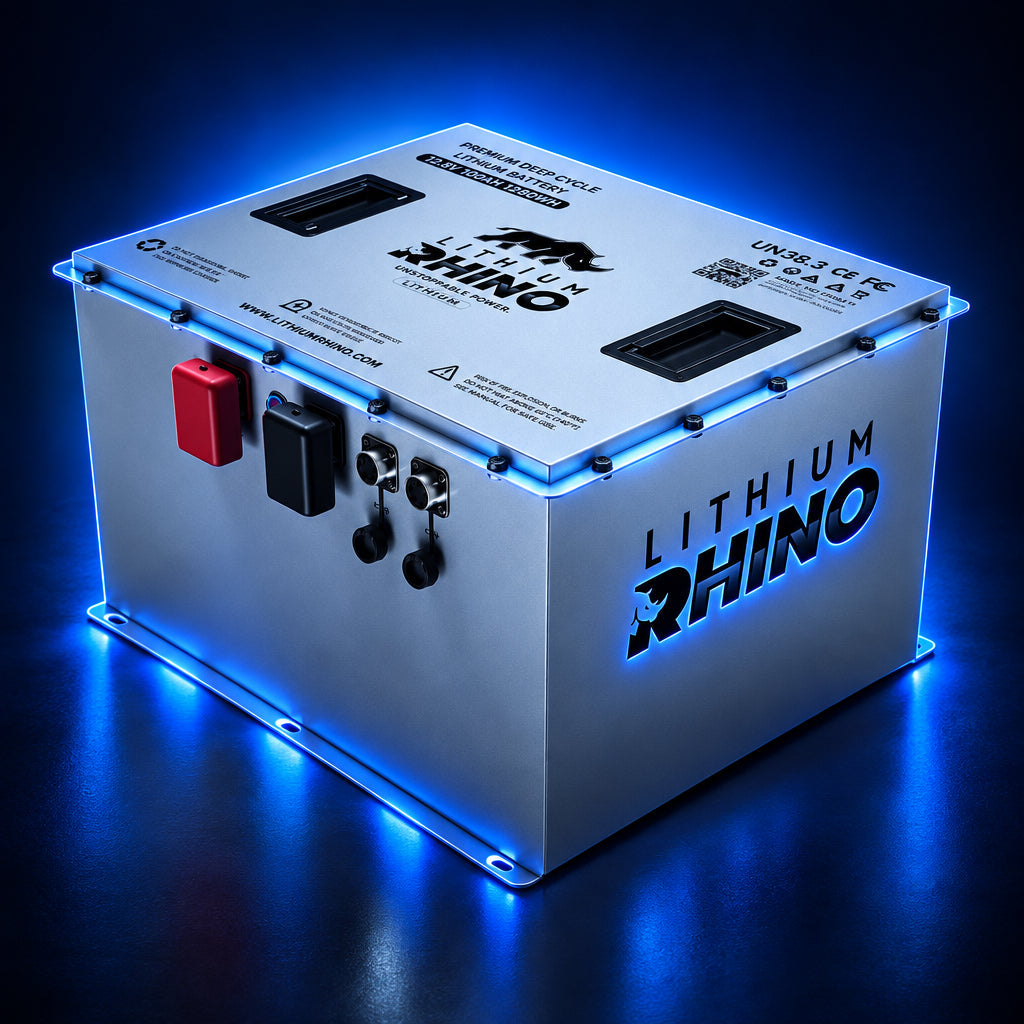

• Lithium Rhino 76V 170Ah Godzilla lithium golf cart battery
  • Lithium Rhino 76V 170Ah Godzilla battery, front
  • Lithium Rhino 76V 170Ah spec sheet
  • Lithium Rhino 300A BMS graphic
  • Lithium Rhino remote BMS support
  • Lithium Rhino Bluetooth app screens

Lithium Rhino

Lithium Rhino 76V 170Ah Godzilla Self-Heated LiFePO4 Golf Cart Battery Kit for 72V Carts

Lithium Rhino 76V 170Ah Godzilla Self-Heated LiFePO4 Golf Cart Battery Kit for 72V Carts

πŸ¦– 13kWh Godzilla, Lithium Rhino's Biggest|πŸš€ 76.8V, 300A BMS for 72V Carts|❄️ Self-Heated for Winter Charging|πŸ›‘οΈ 8-Year Rhino Warranty
Price: $4,199.00
List Price: $4,799.00
Price: $4,199.00
You Save: $600.00 (13%)
View Cart
In Stock – Ready to Ship
Free Shipping, Lower 48
Manufacturer Warranty
Call Us 833-664-7433
  • πŸ‡ΊπŸ‡ΈFree ShippingContiguous 48 states
  • πŸ›‘οΈ8-Year Warranty6 years full coverage
  • πŸš€72V-Class Power76.8V nominal
  • ❄️Self-HeatedCharges safely below freezing
  • πŸ’ͺ300A BMS800A for 1 sec
  • πŸ“žReal Human SupportSizing & install questions

Godzilla: Lithium Rhino's biggest battery, with 13kWh of 76.8V power for 72V carts. The 76V 170Ah Godzilla kit is built for 72V systems and owners who want the most performance possible. One LiFePO4 battery stores 13,056Wh, charges to 87V, and runs a 300A continuous BMS (600A for 30 seconds, 800A for 1 second) with a high-current relay. Below freezing, it warms its cells to 32Β°F before charging. The kit includes a high-voltage lithium charger, a 50A 600W 12V reducer, 4 ft 2AWG copper cables, a color dash gauge, a Bluetooth app module and install hardware, all backed by Lithium Rhino's 8-year warranty.

13.1 kWhStored energy
76.8VNominal voltage
300AContinuous BMS
8 YearsBattery warranty

β›³ Is Your Cart 72V-Ready?

Made for 72V golf carts and high-performance builds, including:

  • EZGO TXT
  • Bad Boy Buggies
  • Other 72V carts (tray modification may be needed)
πŸ“ Quick check before you order:
  • Your cart runs a 72V system, with a controller and motor rated for a 76.8V lithium pack.
  • Converting a 48V cart? Call us first. Your controller and motor need to handle 72V-class power, so it's more than a battery swap.
  • The battery measures 21" Γ— 18" Γ— 12.2". It fits TXT-size trays like Bad Boy Buggies; other carts may need tray modification.
  • Your controller's draw stays within 300A continuous (600A for 30 sec, 800A for 1 sec).
Not sure? Tell us what you're powering and we'll help you size it before you buy.

Why Switch to Lithium Rhino

πŸš€

72V-Class Performance

76.8V nominal and 300A continuous for more speed and torque on carts built for it.

πŸ¦–

Godzilla Capacity

13,056Wh in one battery, Lithium Rhino's largest, for maximum range.

❄️

Self-Heated for Winter

LiFePO4 cells can be damaged if charged below 32Β°F. This battery warms its cells first, then charges once it's safe.

πŸ”Œ

Heavier-Duty Kit Parts

A 50A 600W 12V reducer and 4 ft 2AWG pure copper cables to match the extra power.

πŸ“±

Rhino App + Color Gauge

Check battery parameters on your phone over Bluetooth, and see charge on the color dash gauge with its power button.

πŸ›‘οΈ

8-Year Full Protection

Six years of repair or replacement with shipping included, then a flat $500 replacement in years 7–8. Not prorated.

πŸŽ₯ Meet Lithium Rhino

Lithium Rhino in 30 seconds

πŸ“¦ What's in the Box

  • Lithium Rhino 76V 170Ah Godzilla battery76V 170Ah Godzilla LiFePO4 Battery13.1 kWh, 300A BMS, self-heating
  • Lithium Rhino round color gauge2-Page Round Color GaugeWith dash power button
  • Lithium Rhino 25 amp chargerHigh-Voltage Lithium ChargerMatched to the 76.8V battery
  • Lithium Rhino 12V reducer50A 600W 12V ReducerWith trigger wire, for lights & accessories
  • Lithium Rhino extension cord15 ft 12AWG Extension CordHeavy-duty lithium charging cord
  • Lithium Rhino charge port adapter plugHeavy-Duty Charge Port AdapterConverts your cart's port for 110V charging
  • Lithium Rhino charge port plateCharge Port Adapter PlateFits every cart
  • Lithium Rhino copper cables4 ft 2AWG Pure Copper CablesHeavy-gauge main cables
  • Lithium Rhino charging cablesCharging CableBattery-to-charge-port wiring
  • Lithium Rhino universal mounting bracketsUniversal Mounting BracketsPlus pre-cut template
  • Lithium Rhino kit hardwareAll Hardware NeededBolts, nuts & heavy-duty zip ties
  • Lithium Rhino bracket drill bitBracket Drill BitFor mounting the brackets
  • Lead-acid removal strap and safety glassesLead-Acid Removal Strap & Safety GlassesFor pulling the old batteries
  • Lithium Rhino work glovesRhino Work GlovesPU-coated
  • Lithium Rhino app screensBluetooth App ModuleFree Rhino app for iOS & Android
  • Lithium Rhino shipping crateWooden Metal-Reinforced CrateShips your kit protected
Not included: A 72V-rated controller and motor, if your cart doesn't already have them. Your old lead-acid batteries come out, and most local battery shops will recycle them, often for free.

Lithium Rhino vs. Lead-Acid

Lithium Rhino 76V 170Ah Godzilla Typical Lead-Acid
Watering & terminal cleaning Never Regularly
Number of batteries 1 Several
Weight 60% lighter Much heavier
Power as charge drops Steady from full down to about 30% Fades as voltage sags
Charge time Fast lithium charger Varies by charger
Phone monitoring Yes, via Bluetooth No
Warranty 8-year limited Usually 1–2 years

πŸ”Œ Charging Made Simple

πŸ”Œ

High-Voltage Charger Included

Charges the battery to 87V through the included 110V charge port adapter and 15 ft 12AWG cord. The battery accepts up to 50A.

🚫

Use the Included Charger

Your old lead-acid charger won't work. Lithium Rhino's warranty requires an approved charger, so stick with the one in the kit.

❄️

Cold-Weather Charging

Below freezing, the battery warms its cells to 32Β°F first, then starts charging once they're at a safe temperature.

πŸ“¦

Storing Your Cart

Don't store the battery fully discharged or go 12 months without charging. Both are excluded from the warranty.

πŸ›‘οΈ 8-Year Full Protection Limited Warranty

Years 1–6Repair or replacement of a defective battery, shipping included
Years 7–8Flat $500 replacement, ground freight included. Not prorated.

Register within 120 days of purchase to get the full 8 years (unregistered batteries are covered for 1 year). Kit parts (charger, reducer, gauge, wiring and modules): free replacement for 2 years, then 50% off current MSRP for the life of the model. Commercial, fleet or rental use needs Lithium Rhino's written approval. Full terms at lithiumrhino.com.

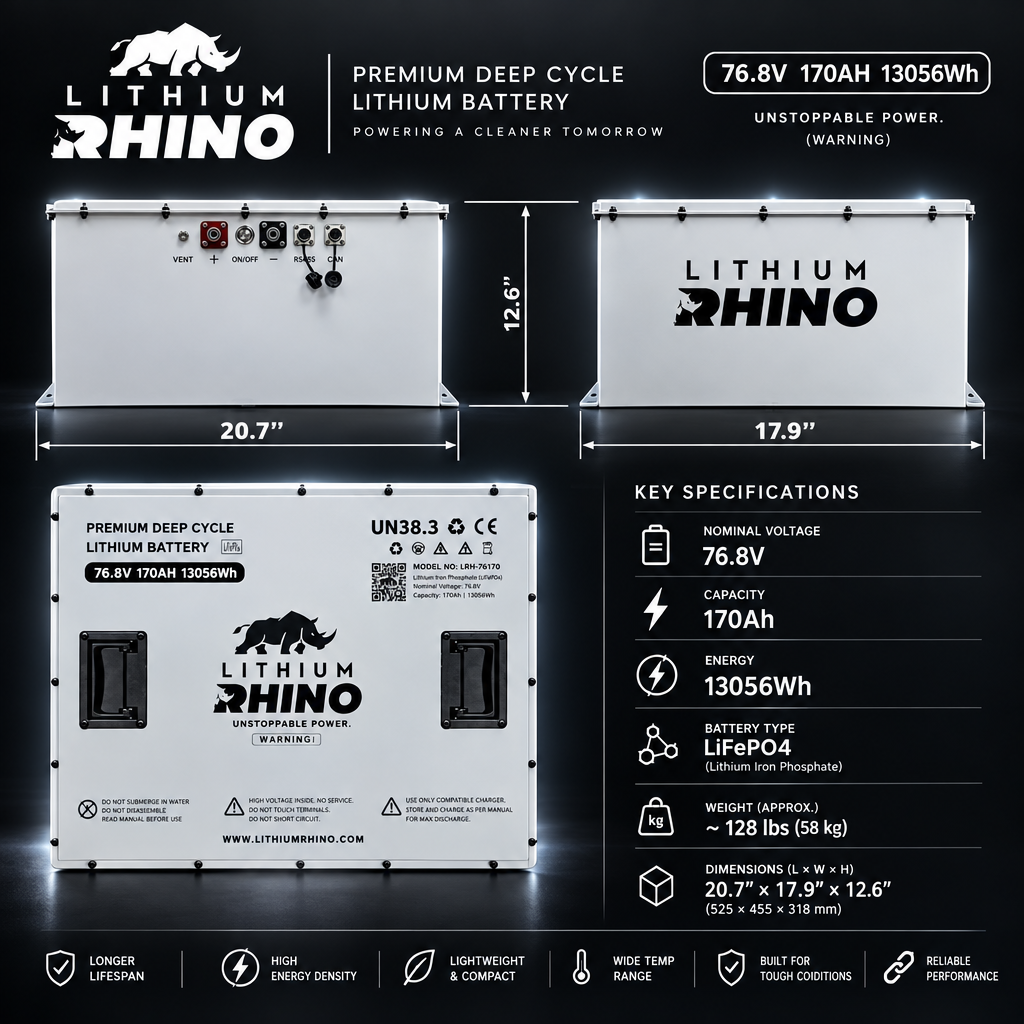

πŸ“‹ Full Specifications

Battery
Chemistry Grade-A LiFePO4 prismatic cells
Nominal Voltage 76.8V
Capacity 170Ah
Stored Energy 13,056Wh (13.1kWh)
Rated Cycle Life 6,000+ cycles

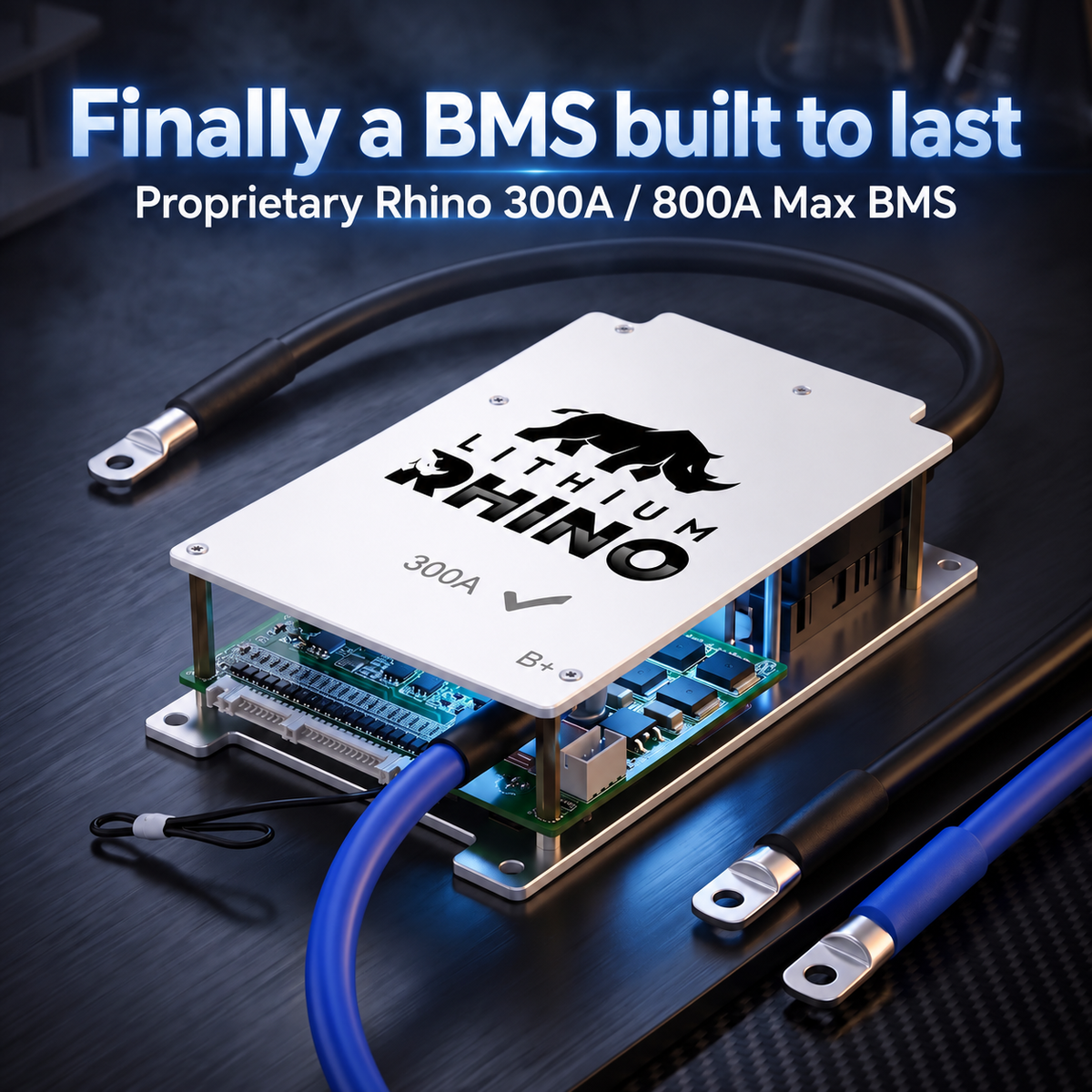

BMS Rating 300A continuous / 600A for 30 sec / 800A for 1 sec, high-current relay
Max Charge Current 50A
Max Charge Voltage 87V
Self-Heating Warms cells to 32Β°F before charging when below freezing
Water Resistance IP65 (splash-proof)
Operating Temperature -4Β°F to 140Β°F
Dimensions 21" Γ— 18" Γ— 12.2" (Lithium Rhino listing)
Monitoring
Bluetooth App Free Rhino app, iOS & Android
Dash Gauge 2-page round color gauge with dash power button
Kit Components
Charger High-voltage lithium charger, dual mount
12V Converter 50A, 600W reducer with trigger wire
Extension Cord 15 ft, 12AWG
Charge Port Heavy-duty 110V adapter plug & adapter plate
Install Time 2–4 hours for most owners
Ordering
SKU LR76V170AH
Warranty 8-year limited (battery); 2-year free replacement (kit parts)

πŸ“„ Manuals & Downloads

πŸ“œFull Warranty Terms8-Year Full Protection Limited WarrantyLITHIUM RHINO β†— βœ…Register Your BatteryRegister within 120 days for full coverageLITHIUM RHINO β†— πŸŽ₯Install VideosStep-by-step videos on Lithium Rhino's YouTube channelYOUTUBE β†— πŸ› οΈLithium Rhino SupportHelp center and install supportLITHIUM RHINO β†—

❓ Common Questions

Will this kit fit my cart?
Lithium Rhino says it fits EZGO TXT, Bad Boy Buggies and similar TXT-size trays, and other carts with tray modification. It's for 72V systems. Tell us your make, model and year and we'll confirm fit before you order.
How long does the install take?
Lithium Rhino says most owners finish in 2–4 hours. Step-by-step videos cover every major cart brand, and a free 30-minute video support call is available if you get stuck.
Can I put this in my 48V cart?
Not as a simple swap. The 76.8V pack needs a controller and motor rated for 72V-class power. Call us and we'll talk through what your cart would need.
How long does it take to charge?
It depends on how low the battery is. The included high-voltage lithium charger plugs into your cart's charge port, and the battery accepts up to 50A.
Can I use my old charger?
No. Lead-acid chargers aren't made for lithium, and Lithium Rhino's warranty requires an approved charger. Use the charger included in the kit.
Can I charge it in freezing weather?
Yes. LiFePO4 cells can be damaged if charged below 32Β°F, so this battery warms its cells to 32Β°F first and starts charging once they're at a safe temperature.
What do I do with my old lead-acid batteries?
Most local battery shops will recycle them for free, and many will pay scrap value.
How does the 8-year warranty work?
Years 1–6: repair or replacement of a defective battery, shipping included. Years 7–8: a flat $500 replacement with ground freight included, not prorated. Register within 120 days for full coverage. Kit parts get free replacement for 2 years.

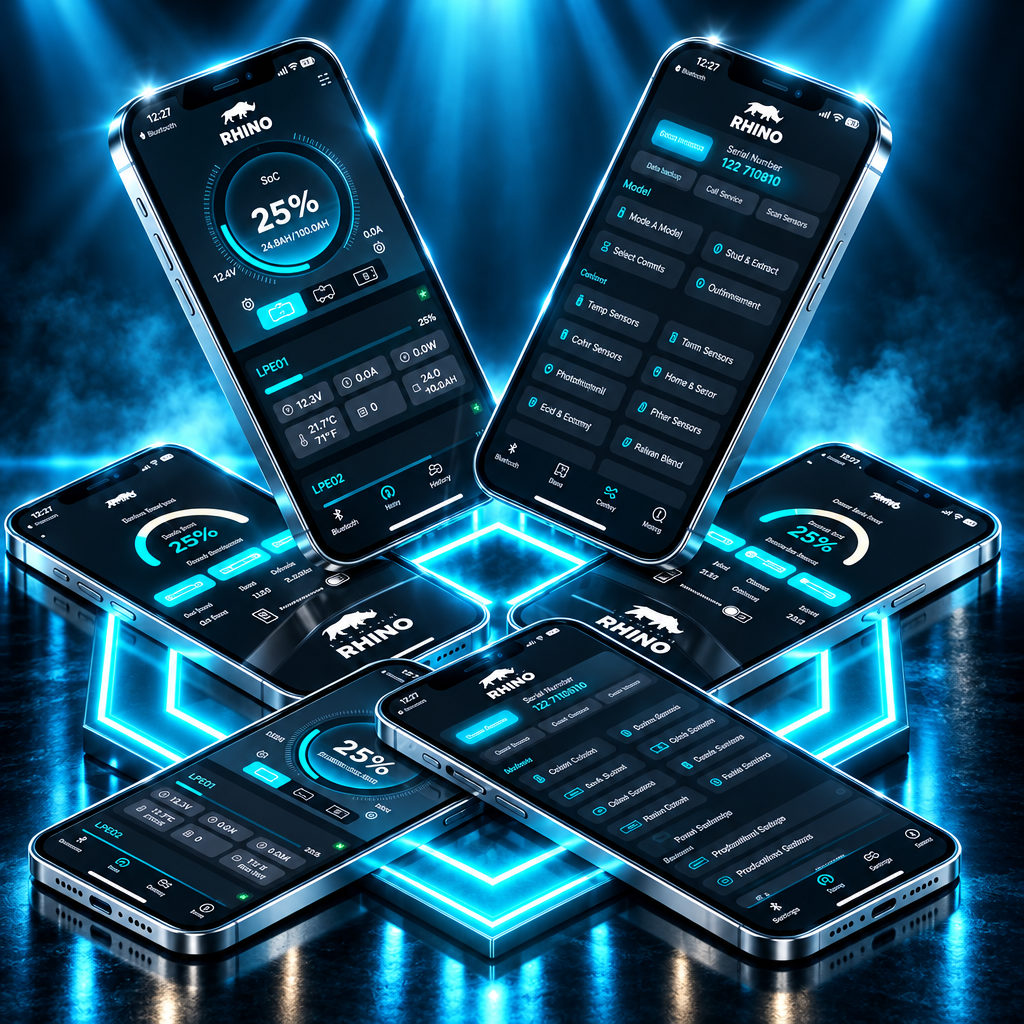

Can I check the battery from my phone?
Yes. The included Bluetooth module connects to the free Rhino app for iOS and Android.

Questions About Your Setup? Ask Us First.

Tell us your cart's make, model and year, and we'll confirm the right Lithium Rhino kit before you order.

πŸ“ž Call 833-664-7433 πŸ“§ Email Us
