Lithium Rhino

Lithium Rhino 48V 170Ah Self-Heated LiFePO4 Golf Cart Battery Conversion Kit, 300A BMS

💪 300A BMS, 8.7kWh 48V Power|🛣️ Up to 74 Mile Range|❄️ Self-Heated for Winter Charging|🛡️ 8-Year Rhino Warranty

Regular price: Price: $3,499.00
Regular price: List Price: $3,899.00
Sale price: Price: $3,499.00
Unit price: per

In Stock – Ready to Ship

Free Shipping, Lower 48

Manufacturer Warranty

Product variants

Quantity

🇺🇸Free ShippingContiguous 48 states
🛡️8-Year Warranty6 years full coverage
💪300A BMS800A max
❄️Self-HeatedCharges safely below freezing
📱Bluetooth AppiOS & Android
📞Real Human SupportSizing & install questions

Lithium Rhino's biggest 48V kit: 8.7kWh and a 300A BMS for lifted carts, hills and long days. The 48V 170Ah kit puts 8,704Wh in one 150 lb LiFePO4 battery, with a 300A continuous BMS (800A max), a high-current relay and self-heating for below-freezing charging. Lithium Rhino rates it for up to 74 miles. The kit includes a fast lithium charger, a heavier 50A 600W 12V reducer, 4 ft 2AWG copper cables, a color dash gauge, a Bluetooth app module and every part you need, all backed by Lithium Rhino's 8-year warranty.

8.7 kWhStored energy

Up to 74 miEst. range per charge*

300AContinuous BMS

8 YearsBattery warranty

*Range is Lithium Rhino's estimate and varies with cart, terrain, speed, load and tires.

⛳ Will It Fit Your Cart?

Made for 48V lead-acid golf carts and utility vehicles. Lithium Rhino says it fits most carts, including:

Most 48V golf carts
Lifted & street-legal builds
Bad Boy Buggies (48V)
Polaris EV (48V)

📏 Quick check before you order:

Your cart runs on 48V lead-acid. It isn't for 36V or 72V carts, or carts that came with lithium from the factory.
It's a large, 150 lb battery. Send us your cart's make, model and battery-bay measurements and we'll confirm it fits before you order.
The round gauge works with the Bad Boy Buggies and Polaris EV factory dash.
Built for high-draw carts: 300A continuous (800A max).
Club Car carts with an on-board computer (OBC) may need an OBC bypass, and EZGO carts have a charge-port interlock wire to handle during install.

Not sure? Tell us what you're powering and we'll help you size it before you buy.

Why Switch to Lithium Rhino

💪

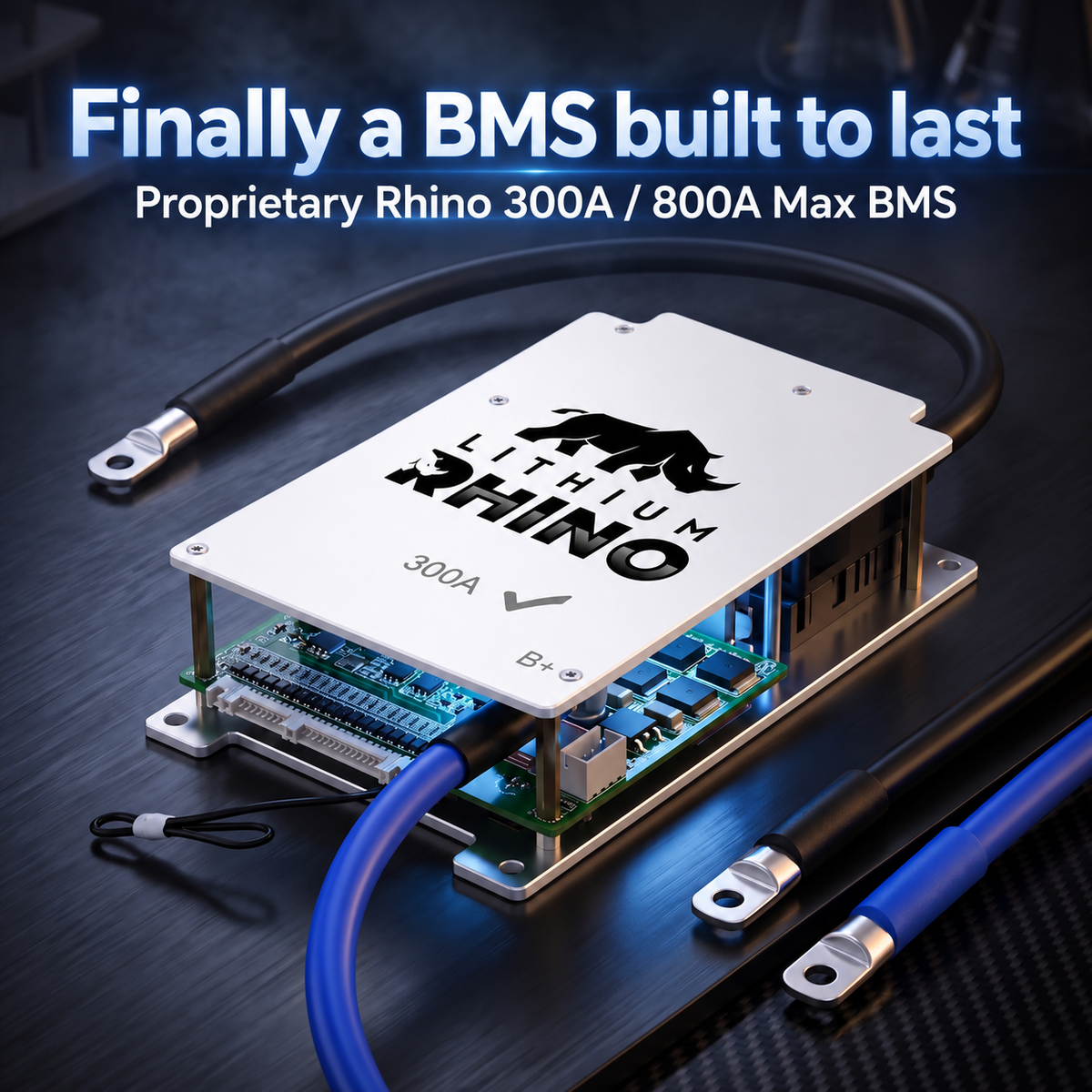

300A BMS for Big Power

A 300A continuous BMS (800A max) with a high-current relay handles lifted carts, big tires and hills.

🛣️

Up to 74 Miles

8,704Wh in one battery. Lithium Rhino rates it for up to 74 miles of range.

❄️

Self-Heated for Winter

LiFePO4 cells can be damaged if charged below 32°F. This battery warms its cells first, then charges once it's safe.

🔌

Heavier-Duty Kit Parts

A 50A 600W 12V reducer and 4 ft 2AWG pure copper cables to match the extra power.

📱

Rhino App + Color Gauge

Check battery parameters on your phone over Bluetooth, and see charge on the color dash gauge with its power button.

🛡️

8-Year Full Protection

Six years of repair or replacement with shipping included, then a flat $500 replacement in years 7–8. Not prorated.

🎥 Meet Lithium Rhino

Lithium Rhino in 30 seconds

📦 What's in the Box

48V 170Ah LiFePO4 Battery8.7kWh, 300A BMS, self-heating
2-Page Round Color GaugeWith dash power button
Fast Lithium ChargerMatched to this battery's voltage
50A 600W 12V ReducerWith trigger wire, for lights & accessories
15 ft 12AWG Extension CordHeavy-duty lithium charging cord
Heavy-Duty Charge Port AdapterConverts your cart's port for 110V charging
Charge Port Adapter PlateFits every cart
4 ft 2AWG Pure Copper CablesHeavy-gauge main cables
Charging CableBattery-to-charge-port wiring
Universal Mounting BracketsPlus pre-cut template
All Hardware NeededBolts, nuts & heavy-duty zip ties
Bracket Drill BitFor mounting the brackets
Lead-Acid Removal Strap & Safety GlassesFor pulling the old batteries
Rhino Work GlovesPU-coated
Bluetooth App ModuleFree Rhino app for iOS & Android
Wooden Metal-Reinforced CrateShips your kit protected

Good to know: Lithium Rhino says everything needed for a complete install is in the box, with nothing extra to buy. Your old lead-acid batteries come out, and most local battery shops will recycle them, often for free.

Lithium Rhino vs. Lead-Acid

	Lithium Rhino 48V 170Ah	Typical Lead-Acid
Watering & terminal cleaning	Never	Regularly
Number of batteries	1	Several
Weight	60% lighter	Much heavier
Power as charge drops	Steady from full down to about 30%	Fades as voltage sags
Charge time	Fast lithium charger	Varies by charger
Phone monitoring	Yes, via Bluetooth	No
Warranty	8-year limited	Usually 1–2 years

🔌 Charging Made Simple

🔌

Fast Lithium Charger Included

Plugs into your cart's charge port through the included 110V adapter and 15 ft 12AWG cord. The battery accepts up to 50A.

🚫

Use the Included Charger

Your old lead-acid charger won't work. Lithium Rhino's warranty requires an approved charger, so stick with the one in the kit.

❄️

Cold-Weather Charging

Below freezing, the battery warms its cells to 32°F first, then starts charging once they're at a safe temperature.

📦

Storing Your Cart

Don't store the battery fully discharged or go 12 months without charging. Both are excluded from the warranty.

🛡️ 8-Year Full Protection Limited Warranty

Years 1–6Repair or replacement of a defective battery, shipping included

Years 7–8Flat $500 replacement, ground freight included. Not prorated.

Register within 120 days of purchase to get the full 8 years (unregistered batteries are covered for 1 year). Kit parts (charger, reducer, gauge, wiring and modules): free replacement for 2 years, then 50% off current MSRP for the life of the model. Commercial, fleet or rental use needs Lithium Rhino's written approval. Full terms at lithiumrhino.com.

📋 Full Specifications

Battery
Chemistry	Grade-A LiFePO4 prismatic cells
Nominal Voltage	48V system (51.2V)
Capacity	170Ah
Stored Energy	8,704Wh (8.7kWh)
Rated Cycle Life	6,000+ cycles
BMS Rating	300A continuous / 800A max, high-current relay
Max Charge Current	50A
Cell Balance Accuracy	±20mV
Self-Heating	Warms cells to 32°F before charging when below freezing
Communication	Bluetooth, CAN & RS485
Water Resistance	IP65 (splash-proof)
Operating Temperature	-4°F to 140°F

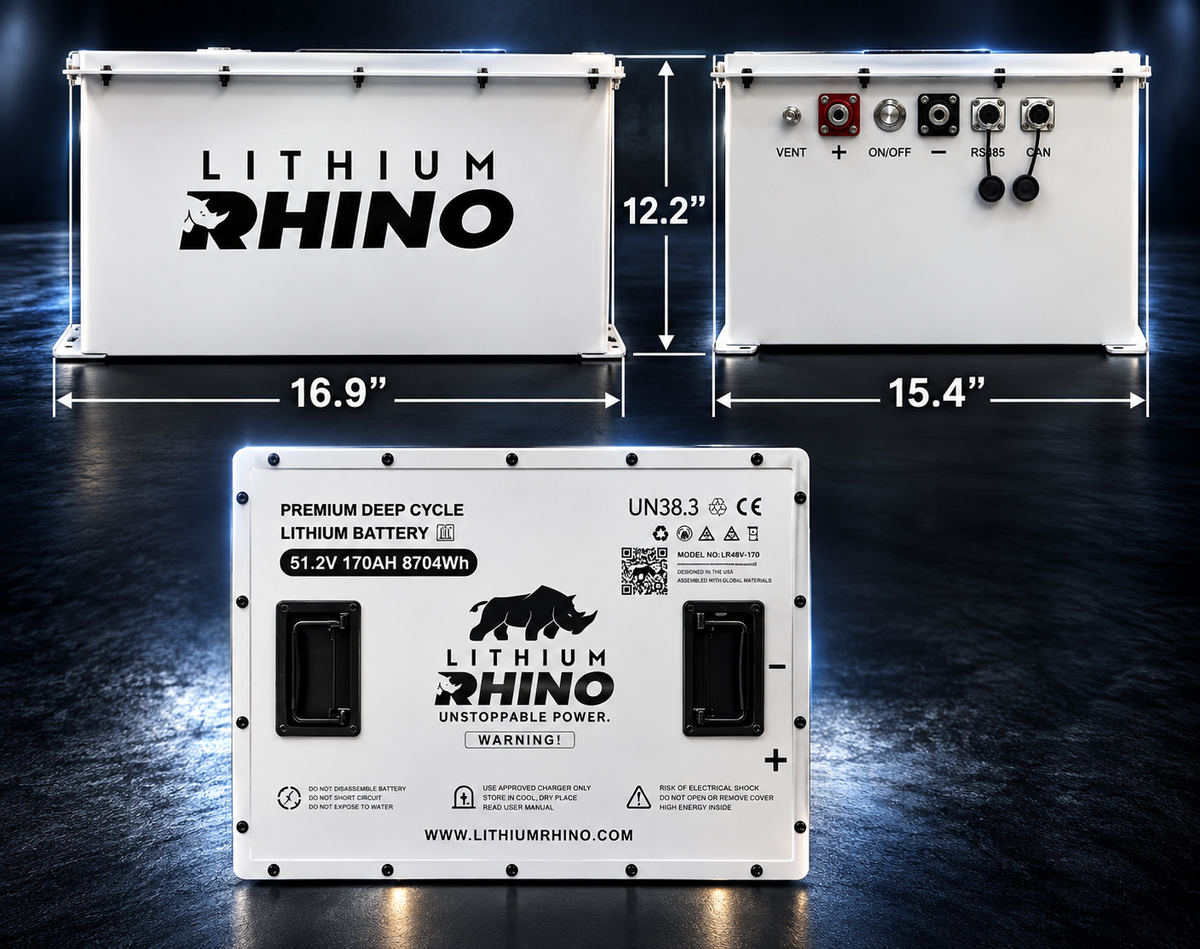

Listed Weight	150 lb
Monitoring
Bluetooth App	Free Rhino app, iOS & Android
Dash Gauge	2-page round color gauge with dash power button
Kit Components
Charger	Fast lithium charger, dual mount
12V Converter	50A, 600W reducer with trigger wire
Extension Cord	15 ft, 12AWG
Charge Port	Heavy-duty 110V adapter plug & adapter plate
Install Time	2–4 hours for most owners
Ordering
SKU	LR51V170AH
Warranty	8-year limited (battery); 2-year free replacement (kit parts)

📄 Manuals & Downloads

📜Full Warranty Terms8-Year Full Protection Limited WarrantyLITHIUM RHINO ↗ ✅Register Your BatteryRegister within 120 days for full coverageLITHIUM RHINO ↗ 🎥Install VideosStep-by-step videos on Lithium Rhino's YouTube channelYOUTUBE ↗ 🛠️Lithium Rhino SupportHelp center and install supportLITHIUM RHINO ↗

❓ Common Questions

Will this kit fit my cart?

Lithium Rhino says it fits most 48V carts, and the gauge works with Bad Boy Buggies and Polaris EV factory dashes. Because it's a large battery, send us your make, model and battery-bay measurements and we'll confirm fit before you order.

How long does the install take?

Lithium Rhino says most owners finish in 2–4 hours. Step-by-step videos cover every major cart brand, and a free 30-minute video support call is available if you get stuck.

Who is the 170Ah kit for?

Owners who want the most range and power from a 48V cart: lifted carts, big tires, hills, heavy loads or long days. Lithium Rhino rates it for up to 74 miles.

How long does it take to charge?

It depends on how low the battery is. The included fast lithium charger plugs into your cart's charge port, and the battery accepts up to 50A.

Can I use my old charger?

No. Lead-acid chargers aren't made for lithium, and Lithium Rhino's warranty requires an approved charger. Use the charger included in the kit.

Can I charge it in freezing weather?

Yes. LiFePO4 cells can be damaged if charged below 32°F, so this battery warms its cells to 32°F first and starts charging once they're at a safe temperature.

What do I do with my old lead-acid batteries?

Most local battery shops will recycle them for free, and many will pay scrap value.

How does the 8-year warranty work?

Years 1–6: repair or replacement of a defective battery, shipping included. Years 7–8: a flat $500 replacement with ground freight included, not prorated. Register within 120 days for full coverage. Kit parts get free replacement for 2 years.

Can I check the battery from my phone?

Yes. The included Bluetooth module connects to the free Rhino app for iOS and Android.
