Lithium Rhino

Lithium Rhino 48V 120Ah Self-Heated LiFePO4 Golf Cart Battery Conversion Kit

❄️ Self-Heated for Cold-Weather Charging|🛣️ 6.14kWh, 40–50 Mile Range|📦 Complete Kit With 25A Charger|🛡️ 8-Year Rhino Warranty

Regular price: Price: $2,749.00
Regular price: List Price: $3,199.00
Sale price: Price: $2,749.00
Unit price: per

In Stock – Ready to Ship

Free Shipping, Lower 48

Manufacturer Warranty

Product variants

Quantity

🇺🇸Free ShippingContiguous 48 states
🛡️8-Year Warranty6 years full coverage
❄️Self-HeatedCharges safely below freezing
📦Complete KitEverything to install
📱Bluetooth AppiOS & Android
📞Real Human SupportSizing & install questions

Lithium Rhino's long-range 48V kit, self-heated so it charges safely through cold winters. The 48V 120Ah Self-Heated kit packs 6.14kWh into one LiFePO4 battery for 40–50 miles of estimated range. When it's below freezing, the battery warms its cells to 32°F before it starts charging, so you can charge in a cold garage without risking the cells. It comes with a 25A fast charger, 12V reducer, color dash gauge, Bluetooth app module, brackets and every part you need, all backed by Lithium Rhino's 8-year warranty.

6.14 kWhStored energy

40–50 miEst. range per charge*

6,000+Rated cycles

8 YearsBattery warranty

*Range is Lithium Rhino's estimate and varies with cart, terrain, speed, load and tires.

⛳ Will It Fit Your Cart?

Made for 48V lead-acid golf carts. This is a larger battery, so check fit first:

Yamaha (most models)
ICON
EZGO TXT
Club Car Precedent (minor tray mod)
Many other 48V carts

📏 Quick check before you order:

Your cart runs on 48V lead-acid. It isn't for 36V or 72V carts, or carts that came with lithium from the factory.
Your battery bay fits about 18.9" L × 13.1" W × 9.3" H (Lithium Rhino's listing), plus room for cables.
Fits most Yamaha, ICON and EZGO TXT carts with no modification.
Fits Club Car Precedent with a minor battery tray modification.
Does not fit Club Car DS or EZGO RXV.
Your controller's draw stays within 200A continuous (700A max).
Club Car carts with an on-board computer (OBC) may need an OBC bypass, and EZGO carts have a charge-port interlock wire to handle during install.

Not sure? Tell us what you're powering and we'll help you size it before you buy.

Why Switch to Lithium Rhino

🛣️

More Range

120Ah gives about 10 more miles than Lithium Rhino's 105Ah kit, for 40–50 miles of estimated range.

⚖️

60% Lighter

One lithium battery replaces a full set of lead-acid batteries, so your cart carries far less weight.

⚡

Steady Power

A 200A continuous (700A max) BMS keeps power steady from a full charge down to about 30%, so the cart doesn't slow as the battery drains.

❄️

Self-Heated for Winter

LiFePO4 cells can be damaged if charged below 32°F. This battery warms its cells first, then charges once it's safe.

📱

Rhino App + Color Gauge

Check battery parameters on your phone over Bluetooth, and see charge on the color dash gauge with its power button.

🛡️

8-Year Full Protection

Six years of repair or replacement with shipping included, then a flat $500 replacement in years 7–8. Not prorated.

🎥 Meet Lithium Rhino

Lithium Rhino in 30 seconds

📦 What's in the Box

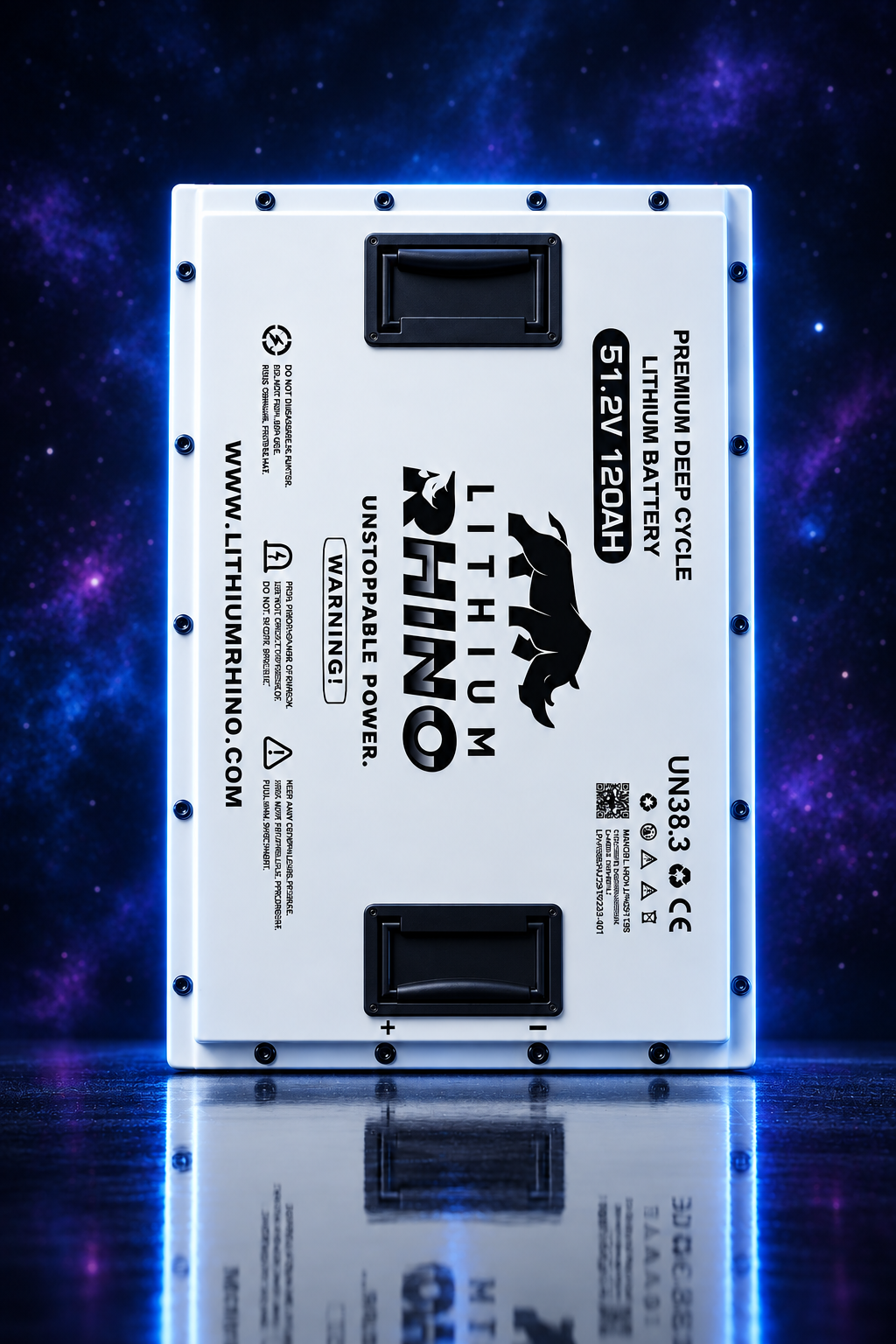

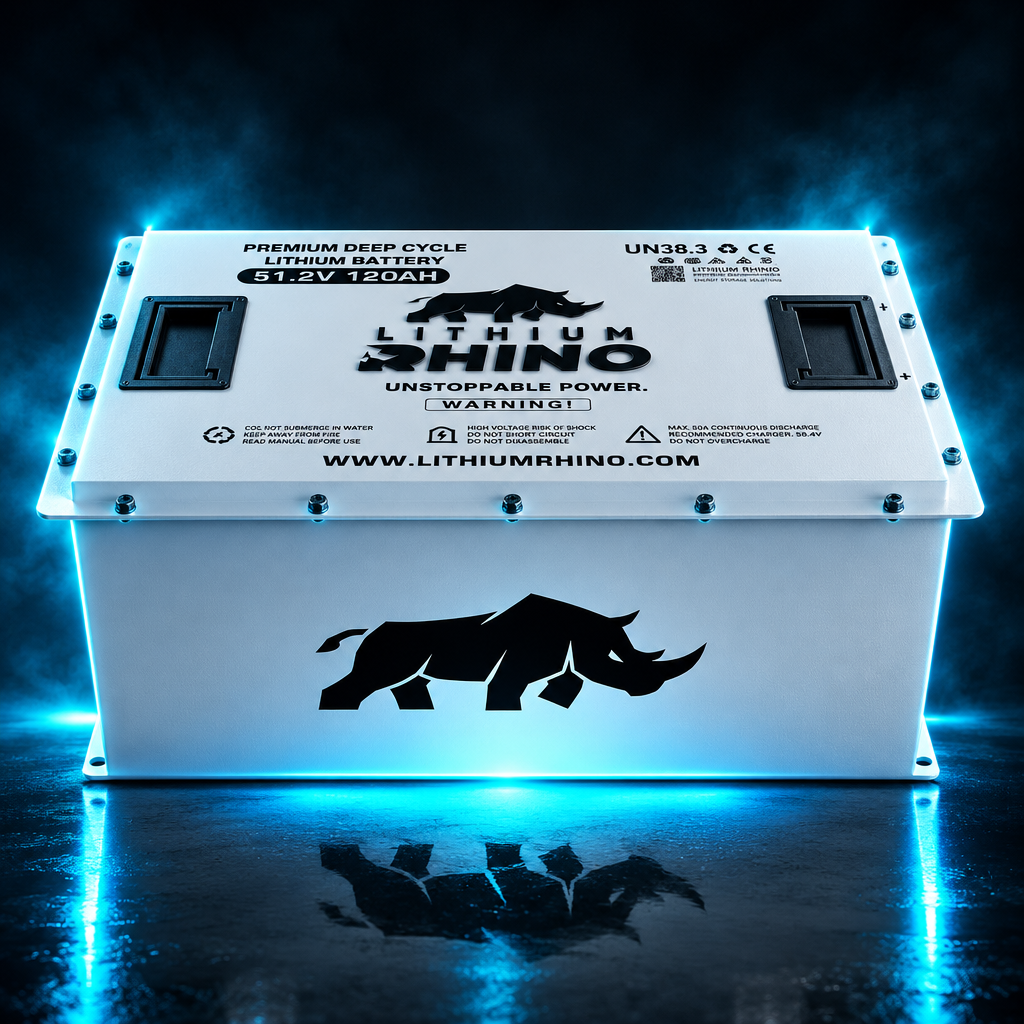

48V 120Ah Self-Heated LiFePO4 Battery6.14kWh, IP65, self-heating
2-Page Round Color GaugeWith dash power button
25A Fast Lithium ChargerDual-mount design, about 4 hours to full
40A 500W 12V ReducerWith trigger wire, for lights & accessories
15 ft 12AWG Extension CordHeavy-duty lithium charging cord
Heavy-Duty Charge Port AdapterConverts your cart's port for 110V charging
Charge Port Adapter PlateFits every cart
Pure Copper Battery CablesHeavy-gauge main cables
Charging CableBattery-to-charge-port wiring
Universal Mounting BracketsPlus pre-cut template
All Hardware NeededBolts, nuts & heavy-duty zip ties
Bracket Drill BitFor mounting the brackets
Lead-Acid Removal Strap & Safety GlassesFor pulling the old batteries
Rhino Work GlovesPU-coated
Bluetooth App ModuleFree Rhino app for iOS & Android
Wooden Metal-Reinforced CrateShips your kit protected

Good to know: Lithium Rhino says everything needed for a complete install is in the box, with nothing extra to buy. Your old lead-acid batteries come out, and most local battery shops will recycle them, often for free.

Lithium Rhino vs. Lead-Acid

	Lithium Rhino 48V 120Ah Self-Heated	Typical Lead-Acid
Watering & terminal cleaning	Never	Regularly
Number of batteries	1	Several
Weight	60% lighter	Much heavier
Power as charge drops	Steady from full down to about 30%	Fades as voltage sags
Charge time	About 4 hours (25A charger)	Varies by charger
Phone monitoring	Yes, via Bluetooth	No
Warranty	8-year limited	Usually 1–2 years

🔌 Charging Made Simple

⏱️

About 4 Hours to Full

The included 25A fast charger and 15 ft 12AWG cord plug into your cart's charge port through the included 110V adapter.

🚫

Use the Included Charger

Your old lead-acid charger won't work. Lithium Rhino's warranty requires an approved charger, so stick with the one in the kit.

❄️

Cold-Weather Charging

Below freezing, the battery warms its cells to 32°F first, then starts charging once they're at a safe temperature.

📦

Storing Your Cart

Don't store the battery fully discharged or go 12 months without charging. Both are excluded from the warranty.

🛡️ 8-Year Full Protection Limited Warranty

Years 1–6Repair or replacement of a defective battery, shipping included

Years 7–8Flat $500 replacement, ground freight included. Not prorated.

Register within 120 days of purchase to get the full 8 years (unregistered batteries are covered for 1 year). Kit parts (charger, reducer, gauge, wiring and modules): free replacement for 2 years, then 50% off current MSRP for the life of the model. Commercial, fleet or rental use needs Lithium Rhino's written approval. Full terms at lithiumrhino.com.

📋 Full Specifications

Battery
Chemistry	Grade-A LiFePO4 prismatic cells
Nominal Voltage	48V system (51.2V)
Capacity	120Ah
Stored Energy	6,144Wh (6.14kWh)
Rated Cycle Life	6,000+ cycles
BMS Rating	200A continuous / 700A max
Max Charge Current	50A
Cell Balance Accuracy	±20mV
Self-Heating	Warms cells to 32°F before charging when below freezing
Water Resistance	IP65 (splash-proof)
Operating Temperature	-4°F to 140°F
Dimensions	18.9" × 13.1" × 9.3" (Lithium Rhino listing)
Listed Weight	120 lb
Monitoring

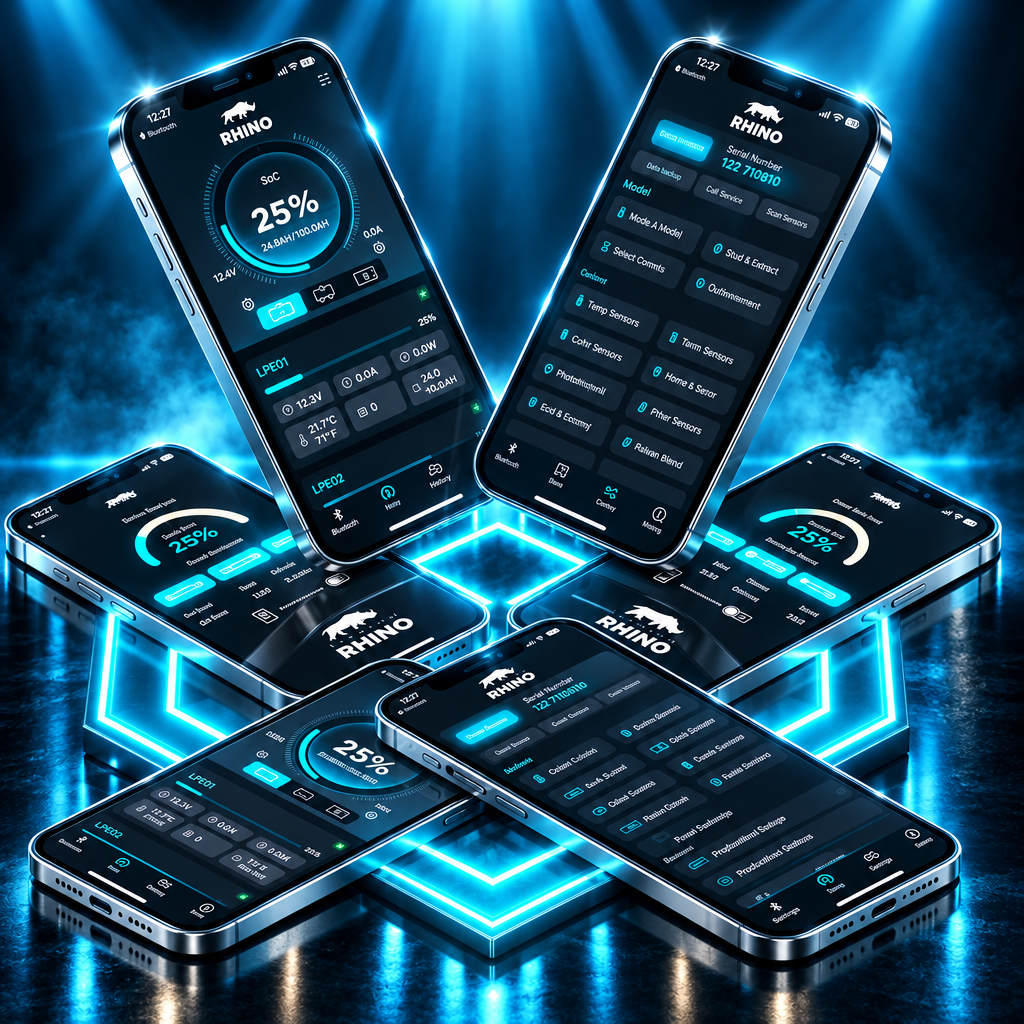

Bluetooth App	Free Rhino app, iOS & Android

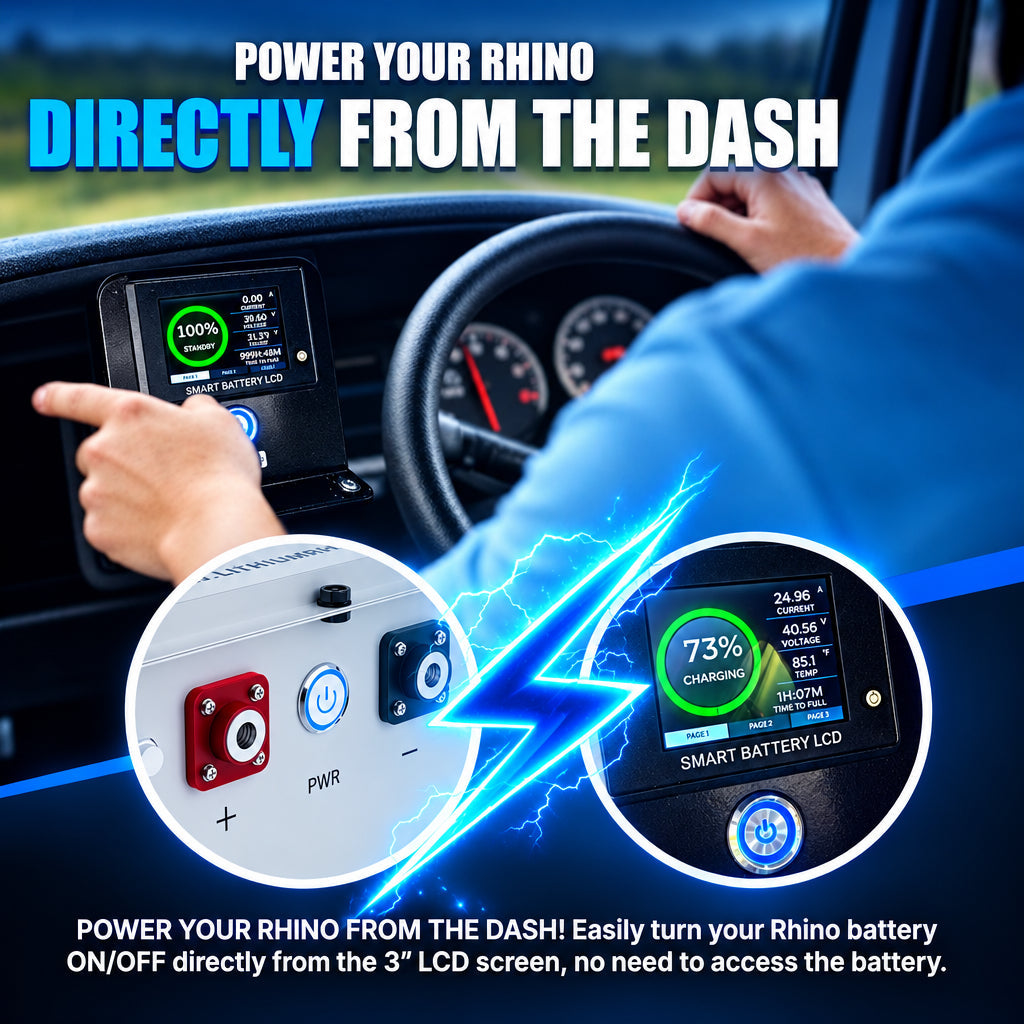

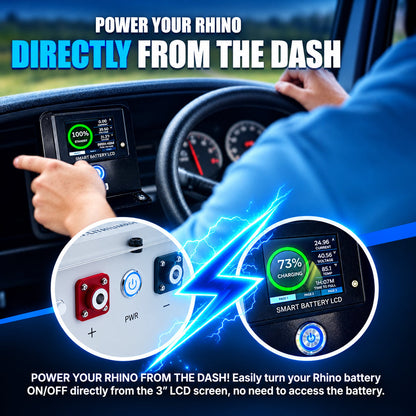

Dash Gauge	2-page round color gauge with dash power button
Kit Components
Charger	25A fast lithium charger, dual mount
12V Converter	40A, 500W reducer with trigger wire
Extension Cord	15 ft, 12AWG
Charge Port	Heavy-duty 110V adapter plug & adapter plate
Install Time	2–4 hours for most owners
Ordering
SKU	LR51V120AH-H
Warranty	8-year limited (battery); 2-year free replacement (kit parts)

📄 Manuals & Downloads

📜Full Warranty Terms8-Year Full Protection Limited WarrantyLITHIUM RHINO ↗ ✅Register Your BatteryRegister within 120 days for full coverageLITHIUM RHINO ↗ 🎥Install VideosStep-by-step videos on Lithium Rhino's YouTube channelYOUTUBE ↗ 🛠️Lithium Rhino SupportHelp center and install supportLITHIUM RHINO ↗

❓ Common Questions

Will this kit fit my cart?

It fits most Yamaha, ICON and EZGO TXT carts with no modification, and Club Car Precedent with a minor battery tray modification. It does not fit Club Car DS or EZGO RXV. It's for 48V lead-acid carts only. Tell us your make, model and year and we'll confirm fit before you order.

How long does the install take?

Lithium Rhino says most owners finish in 2–4 hours. Step-by-step videos cover every major cart brand, and a free 30-minute video support call is available if you get stuck.

How far will it go?

Lithium Rhino estimates 40–50 miles, about 10 more than their 105Ah kit. Real range depends on your cart, terrain, speed, load and tires.

How long does it take to charge?

About 4 hours with the included 25A charger.

Can I use my old charger?

No. Lead-acid chargers aren't made for lithium, and Lithium Rhino's warranty requires an approved charger. Use the charger included in the kit.

Can I charge it in freezing weather?

Yes. LiFePO4 cells can be damaged if charged below 32°F, so this battery warms its cells to 32°F first and starts charging once they're at a safe temperature.

What do I do with my old lead-acid batteries?

Most local battery shops will recycle them for free, and many will pay scrap value.

How does the 8-year warranty work?

Years 1–6: repair or replacement of a defective battery, shipping included. Years 7–8: a flat $500 replacement with ground freight included, not prorated. Register within 120 days for full coverage. Kit parts get free replacement for 2 years.

Can I check the battery from my phone?

Yes. The included Bluetooth module connects to the free Rhino app for iOS and Android.
