Epoch Batteries 48V 105Ah MINI LiFePO4 Golf Cart Kit Bluetooth

Epoch Batteries 48V 105Ah MINI LiFePO4 Golf Cart Kit Bluetooth

🔋 5.38 kWh MINI Lithium|🛺 Fits Club Car DS & More|📱 Bluetooth Monitoring|🛡️ 11-Year Battery Warranty
Price: $2,299.00
List Price:
Price: $2,299.00
View Cart
In Stock – Ready to Ship
Free Shipping, Lower 48
Manufacturer Warranty
Call Us 833-664-7433
Configuration
  • 🇺🇸Free ShippingContiguous 48 states
  • 🛡️11-Year Battery WarrantyBacked by Epoch
  • 📦Complete KitEverything to convert
  • 📱Bluetooth AppiOS & Android
  • 💧IP67 SealedDust-tight & water-resistant
  • 📞Real Human SupportFit & install questions

Ditch the water checks, corroded terminals and heavy lead-acid packs for good. The Epoch 48V 105Ah MINI is a compact, all-in-one lithium conversion kit for Club Car DS and many other 48V carts. One sealed battery replaces your whole lead-acid set, and the kit includes the charger, gauge, 12V converter and cart-specific brackets so you're not hunting for parts.

5.38 kWhUsable energy
35–45+ miEst. range per charge*
3,500+Rated cycles
99 lbOne battery, total

*Manufacturer estimate for many standard 48V carts. Terrain, load, tire size, lift kits, controller settings and accessories all affect real-world range.

🛺 Will It Fit My Cart?

Choose Club Car DS or Other 48V Carts above so you get the right brackets. Compatible 48V carts include:

  • Club Car DS
  • Club Car Precedent / Onward-style
  • EZGO TXT & RXV-style
  • Yamaha Drive / Drive2-style
  • ICON
  • Evolution
  • Bintelli
  • Advanced EV
  • Other 48V carts, NEVs & utility vehicles
📏 Quick fit check before you order:
  • Your battery bay fits 15.8" L × 11.1" W × 10.9" H, plus room for cables.
  • Your controller's current draw stays within 200A continuous.
  • Club Car carts with an On-Board Computer (OBC) may need an OBC bypass.
  • Stretched or 6-passenger carts may need the 13 ft harness (sold separately).
Not sure? Send us your cart's make, model and year and we'll confirm fit before you buy.

Why Cart Owners Make the Switch

📐

MINI Footprint

At 15.8" × 11.1" × 10.9", it's built for tighter battery bays and leaves room for cables and storage.

⚡

Serious Power

200A continuous with 300A (15 sec) and 700A (2 sec) bursts. That's plenty for hills, rear seats, lifted carts and upgraded controllers within rating.

📱

See Everything From Your Phone

The Epoch Li-Ion app shows state of charge, voltage, current, temperature and BMS alerts. BMS firmware updates over the air.

🧠

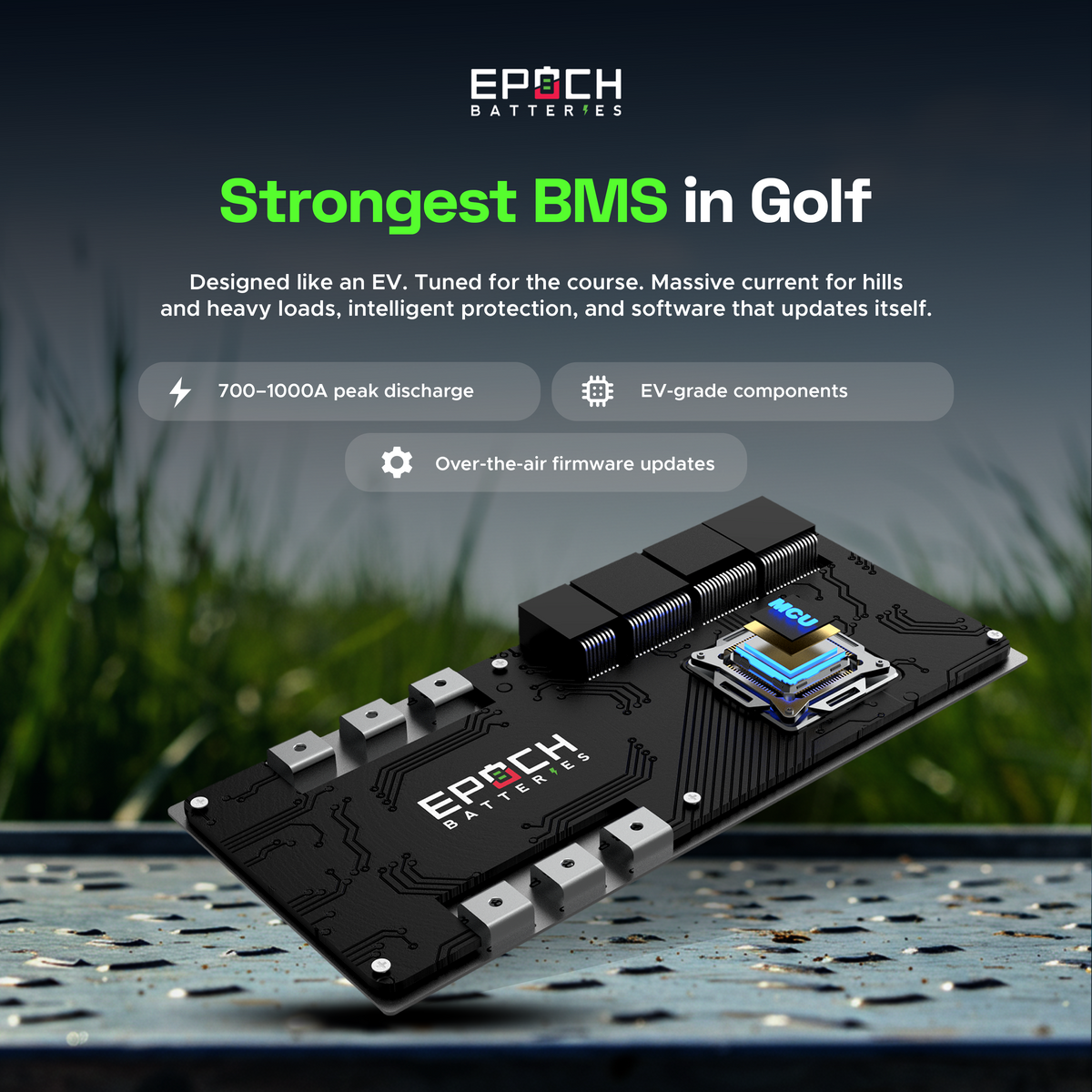

Smart BMS Protection

Guards against over/under-voltage, over-current, short circuit, over/under-temperature and MOSFET overheating. Cell balancing is built in.

🧰

Zero Routine Maintenance

No watering, no acid, no terminal cleaning. Charge it after use and keep driving.

🔩

Built Tough

Stainless steel case rated IP67 under IEC 60529: dust-tight and protected against temporary immersion (1 m for 30 min).

🎥 See It in Action

Golf cart lithium conversion

What comes in the kit

📦 What's in the Box

  • Epoch 48V 105Ah MINI LiFePO4 battery48V 105Ah MINI LiFePO4 BatteryBluetooth + smart BMS built in
  • Epoch 48V 15A waterproof lithium charger48V 15A Waterproof Lithium Charger85–265V AC input, 10 ft heavy-duty extension cord
  • Epoch digital Bluetooth battery gaugeDigital Bluetooth Battery GaugeSOC %, voltage, current, temp & warnings
  • Epoch remote on/off switch with harnessRemote On/Off Switch + 6 ft Harness13 ft harness available for stretch carts
  • Epoch 48V to 12V step-down converter48V→12V Step-Down Converter (25A)Regulated 13.5V for lights, radios & accessories
  • Epoch cart-specific charge port plugsCart-Specific Charge Port PlugReplaces the factory lead-acid receptacle
  • Epoch cart-specific mounting bracketsCart-Specific Mounting BracketsClub Car DS or "Other 48V Carts" version
  • Epoch Li-Ion Bluetooth appFree Epoch Li-Ion AppiOS & Android
Not included: main fuse or DC-rated breaker. Epoch recommends installing one as close as practical to the battery's positive terminal, sized for the 200A continuous rating.

Lithium vs. Your Old Lead-Acid Pack

Epoch 105Ah MINI Typical Lead-Acid Set
Watering & terminal cleaning Never Regularly
Number of batteries 1 4–8
Weight 99 lb Several hundred lb
Power as charge drops Steady until nearly empty Fades as voltage sags
Phone monitoring Yes, via Bluetooth No
Warranty 11-year limited Usually 1–2 years

🔌 Charging Made Simple

⏱️

About 7 Hours, Empty to Full

With the included 48V 15A charger. Partial top-offs are fine, and there's no "memory effect."

🚫

No Lead-Acid Chargers

Your old charger won't charge or balance this battery correctly. Use the included lithium charger or a properly set LiFePO4 charger.

❄️

Charge Above Freezing

Charging is rated 0°C to 55°C (32°F to 131°F). There's no internal heater, so let a cold battery warm up first.

🔋

Smart Low-Charge Alerts

The buzzer and gauge warn you below 20%. Charge after each day's use, or at least weekly with light use.

🛡️ 11-Year Limited Warranty

Years 1–5Free repair or replacement of a defective battery
Years 6–1140% off MSRP on a replacement battery

Charger: 2 years. Other kit components: 1 year. Register with Epoch within 90 days of purchase or keep your proof of purchase (otherwise coverage starts from the manufacturing date). Non-transferable. Full terms at epochbatteries.com.

📋 Full Specifications

Electrical
Chemistry LiFePO4 (lithium iron phosphate), prismatic cells
Configuration 16S1P
Nominal Voltage 51.2V (48V class)
Capacity / Energy 105Ah / 5.376 kWh
Operating Voltage 40V – 58.4V
Max Charge Voltage 58.4V
Continuous Discharge 200A
Peak Discharge 300A (15 sec) / 700A (2 sec)
Continuous Charge 100A
Regen Charge Peak 300A (15 sec)
Cycle Life 3,500+ cycles
Self-Discharge ~3% per month
Parallel / Series Up to 2 in parallel (210Ah, 10.75 kWh) / series not supported
Physical
Dimensions (L × W × H) 15.8" × 11.1" × 10.9" (401 × 282 × 277 mm)
Weight 99 lb (45 kg)
Case Stainless steel
Ingress Rating IP67 (IEC 60529)
Terminals M8 female
Built-In Bluetooth, smart BMS, on/off switch, comm port, vent
Temperature
Charge 0°C to 55°C (32°F to 131°F), no internal heater
Discharge −10°C to 55°C (14°F to 131°F)
Storage (recommended) 0°C to 35°C (32°F to 95°F), up to 12 months
Charger Settings (if not using the included charger)
Bulk / Absorption 56.8V – 57.6V
Absorption End ≤ C/20 (5.25A) or 15 minutes
Float Disabled (preferred) or 53.3V – 54.4V
Re-Bulk 52.8V
Temp Compensation / Equalization Off / Off
Certifications
Cells UL 1642, IEC 62619:2022
Product CE, RoHS
Transport UN 38.3
Ordering
SKU BB51105A_MINI-kit-1 (Club Car DS) / BB51105A_MINI-kit-2 (Other 48V Carts)

📄 Manuals & Downloads

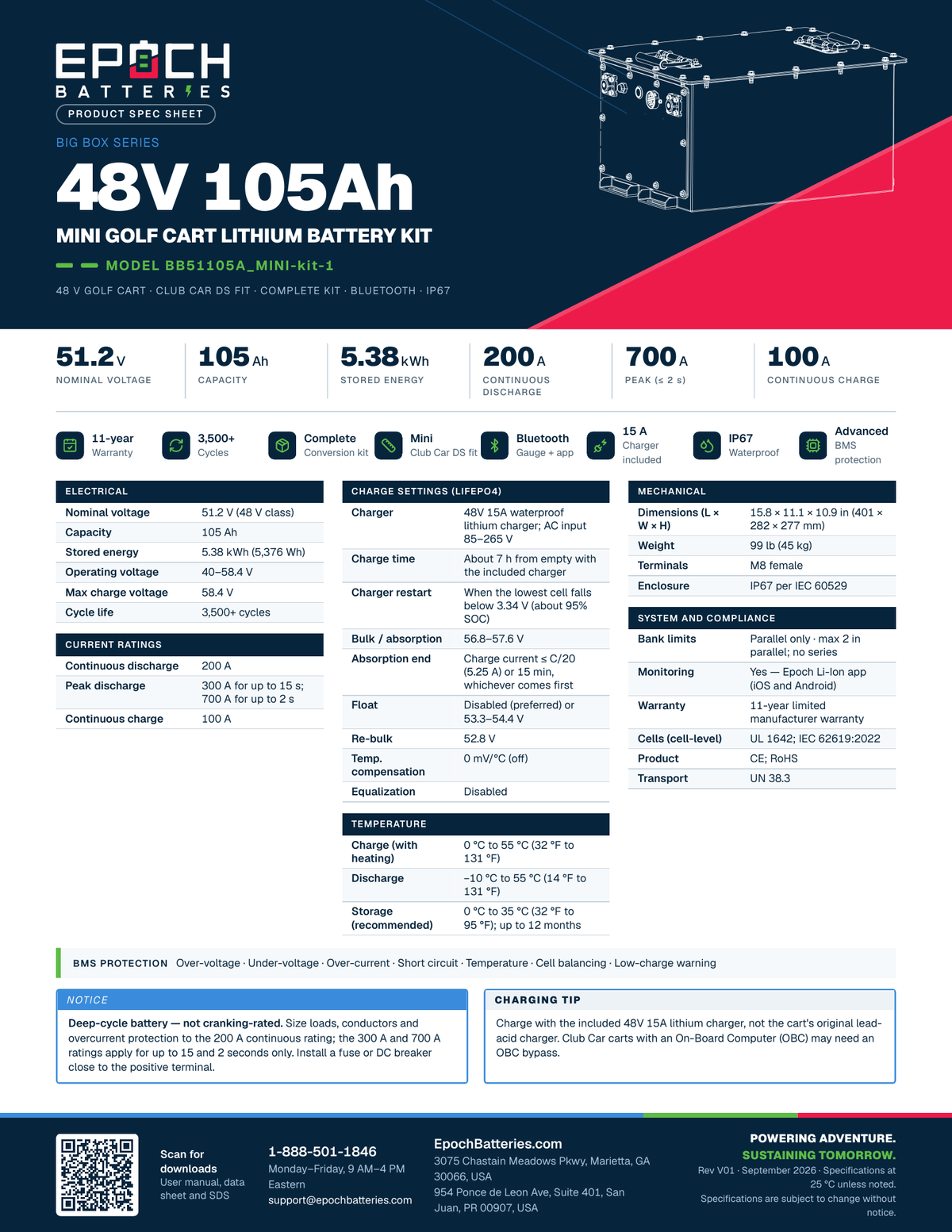

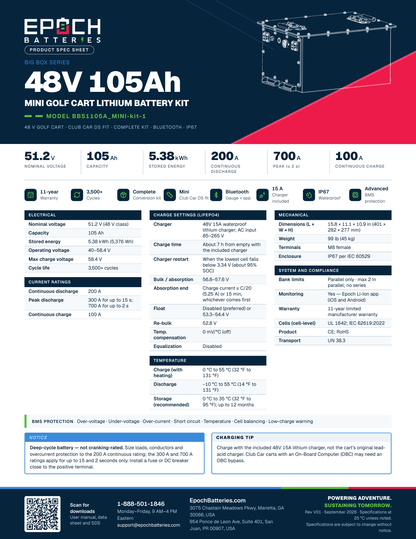

📋Quick Spec SheetKey specs on one pagePDF ↗ 📊Technical Data SheetFull electrical, charging & BMS detailsPDF ↗ 📘User & Installation ManualWiring, setup, gauge warnings & carePDF ↗ ⚠️Safety Data Sheet (SDS)LiFePO4 handling, storage & transportPDF ↗ 🛡️Register Your WarrantyRegister with Epoch within 90 days of purchaseEPOCH ↗ 📜Full Warranty Terms11-year limited warranty detailsEPOCH ↗

📱 Get the free Epoch Li-Ion app: App Store · Google Play

❓ Common Questions

Can I keep using my old lead-acid charger?
No. Lead-acid chargers won't charge or balance a LiFePO4 battery correctly, and equalization or desulfation modes can damage it. Use the included 48V 15A lithium charger.
How far will I go on a charge?
Epoch estimates 35 to 45+ miles for many standard 48V carts. Hills, passengers, larger tires, lift kits, performance controllers and accessories will lower that.
Will it make my cart faster?
Top speed is set by your motor and controller, not the battery. What you'll notice is steady power that doesn't fade as the battery drains, and a cart that's a lot lighter.
Can I install it myself?
Epoch specifies installation by an authorized mechanic or qualified technician. The kit includes cart-specific brackets and a replacement charge port, and you'll also need to add a main fuse or DC-rated breaker (not included). Call us if you have questions about your cart.
Can I charge it in the winter?
Not below freezing. Charging is rated 0°C to 55°C (32°F to 131°F), and there's no internal heater. Let the battery warm above freezing before plugging in.
Is it waterproof? Can I hose off my cart?
It's IP67, which means dust-tight and protected against temporary immersion (1 m for 30 minutes). Don't submerge it on purpose, and don't pressure-wash it or use solvents.
The battery shut off on its own. What happened?
To protect itself, the battery powers down after 7 days of inactivity above 20% charge, or 24 hours at or below 20%. Press the on/off switch twice to wake it.
Will my 12V lights and radio still work?
Yes. The included 25A 48V-to-12V converter powers your accessories. Keep your total 12V load within 25A.
How should I store it over the off-season?
Store it at 60–90% charge, ideally between 50°F and 95°F, and check the charge at least every 3 months.
Can I add a second battery for more range?
Yes. You can run up to two identical units in parallel (210Ah / 10.75 kWh), matched and at the same state of charge. Series connection isn't supported.

Not Sure It Fits? Ask Us First.

Send us your cart's make, model and year, and we'll help you pick the right version before you order.

📞 Call 833-664-7433 📧 Email Us
🔋

LiFePO4 Chemistry

Lithium iron phosphate cells, one of the most stable lithium chemistries available

🧠

Built-In Smart BMS

Guards against overcharge, over-discharge, over-current, short circuit & temperature extremes

🧰

Zero Maintenance

No watering, no acid, no terminal cleaning

🛡️

Backed by Epoch

Manufacturer warranty, plus real help from our team at 833-664-7433
