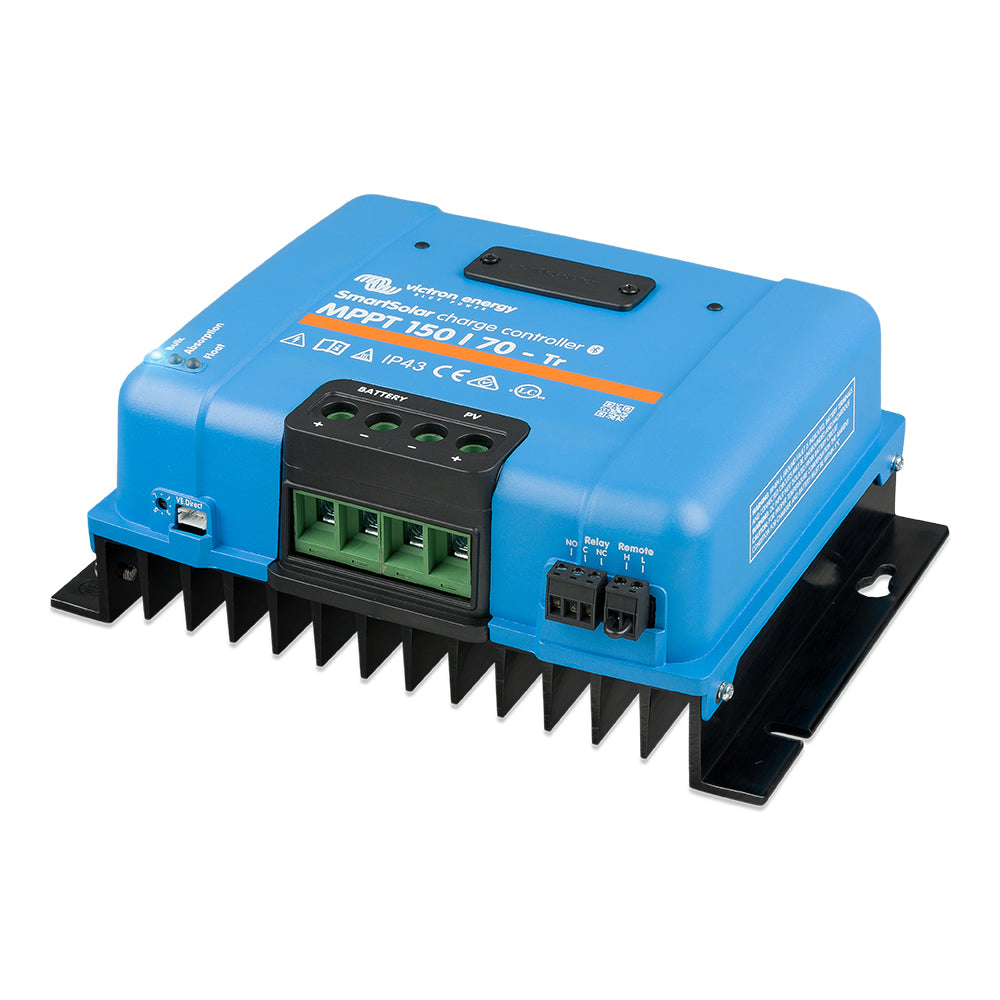

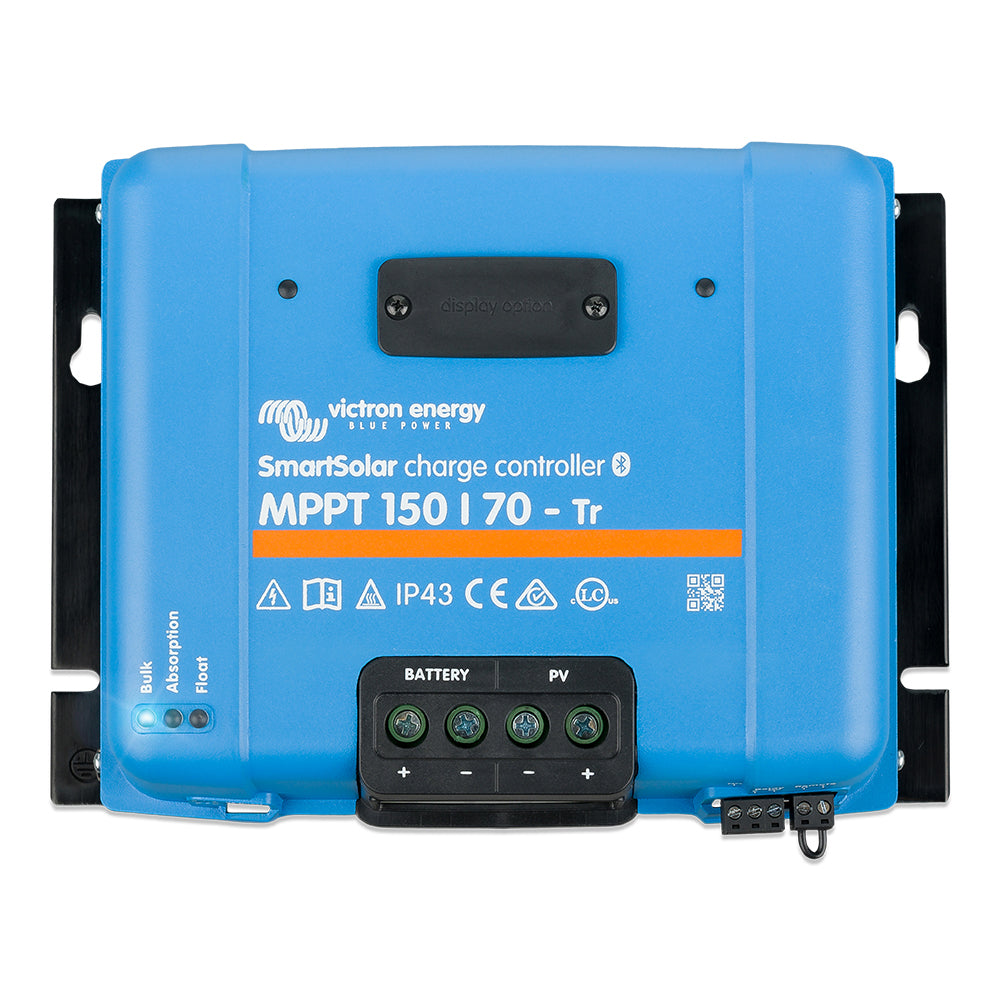

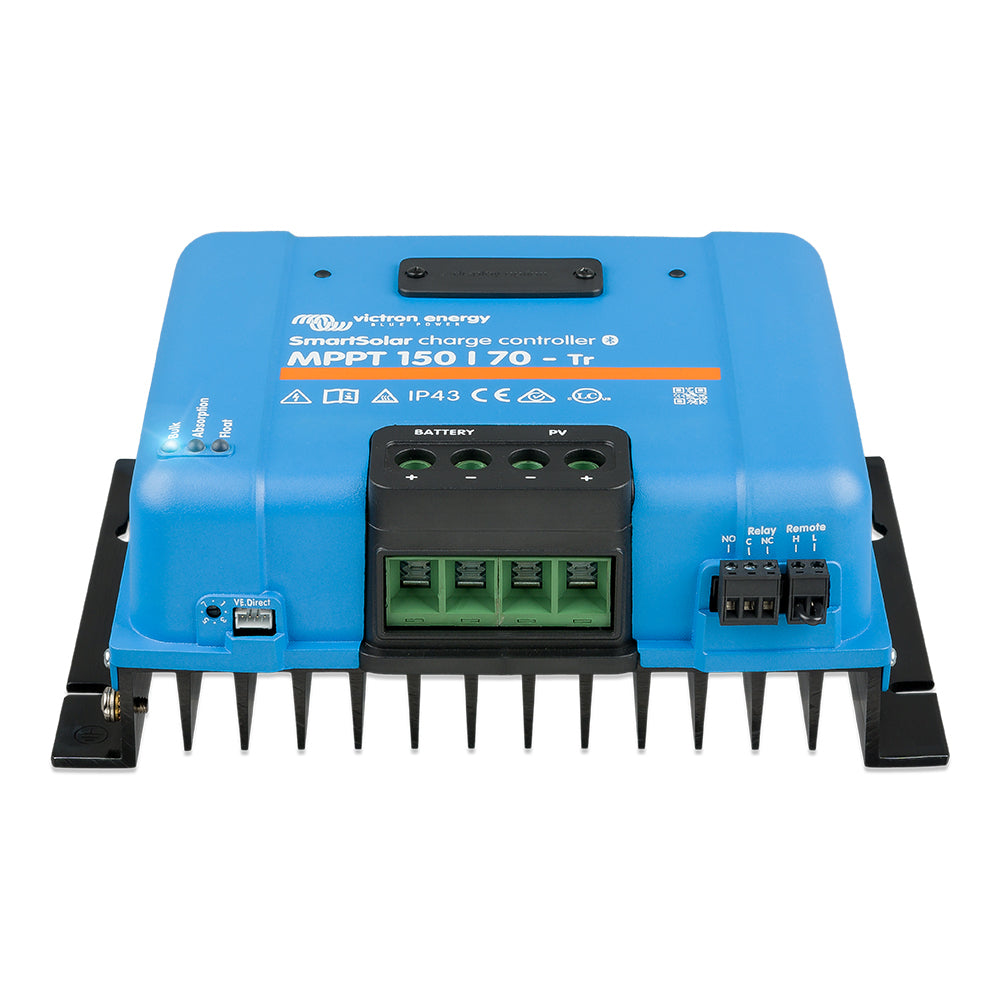

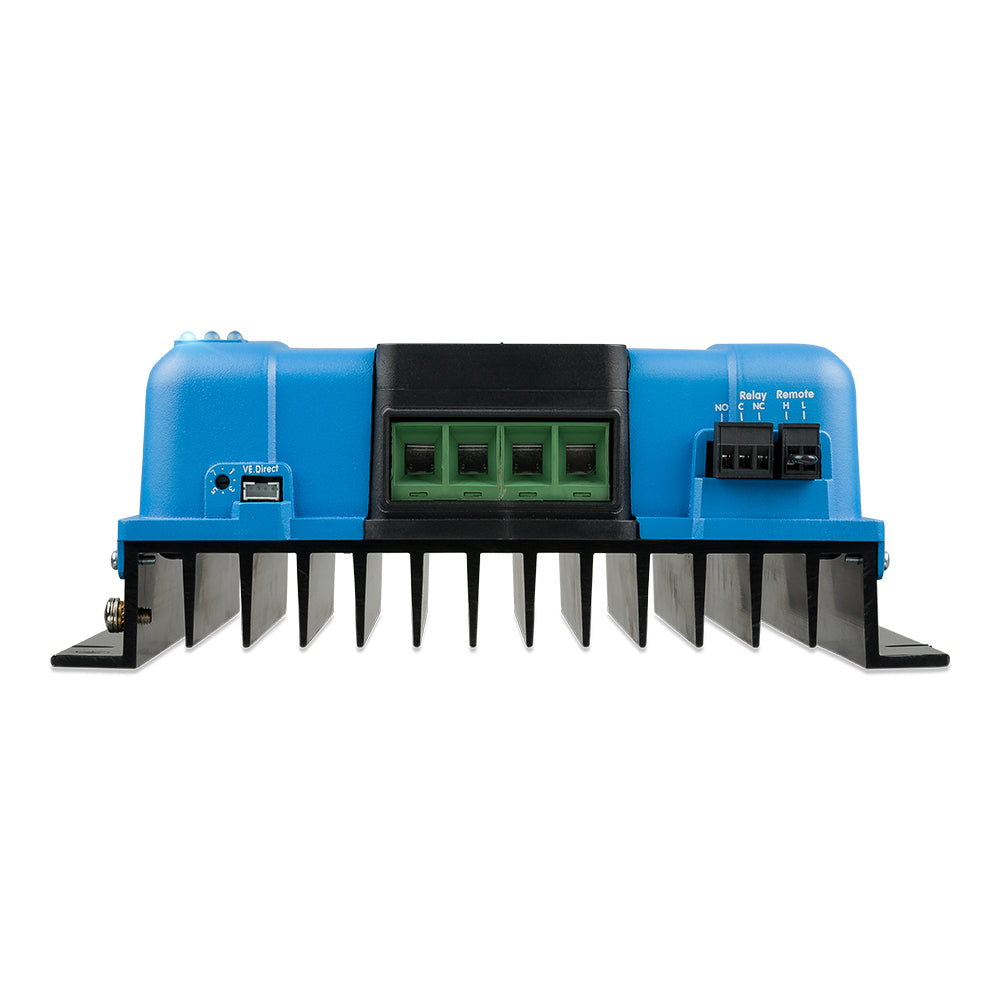

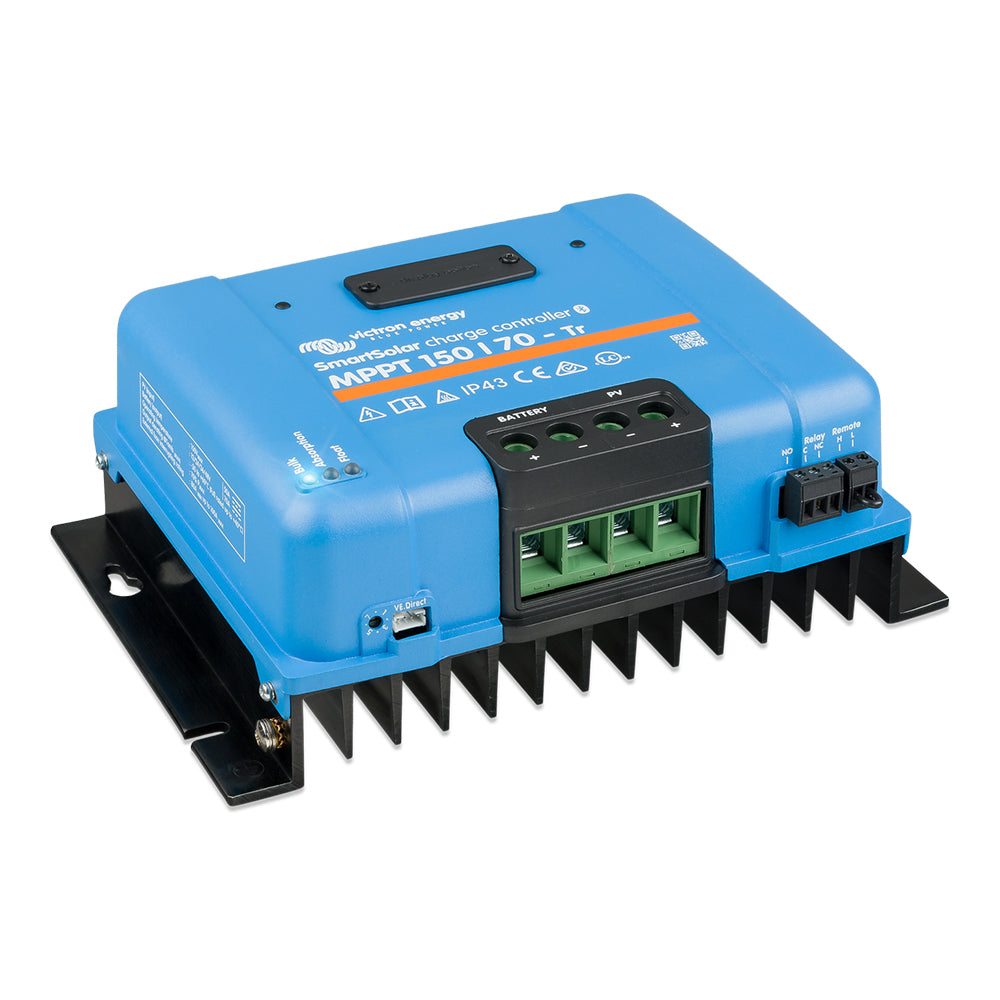

Victron Energy SmartSolar MPPT 150/70-TR Solar Charge Controller, 70A, 150V PV, 12V 24V 36V 48V, Bluetooth, SCC115070211

Victron Energy SmartSolar MPPT 150/70-TR Solar Charge Controller, 70A, 150V PV, 12V 24V 36V 48V, Bluetooth, SCC115070211

⚡ High Performance | ↗ More Efficiency | ✓ Reliable Power
Regular price
Price: $402.05
Regular price
List Price: $0.00
Sale price
Price: $402.05
View Cart
In Stock – Ready to Ship
Free US Delivery
Manufacturer Warranty
Call Us +(833) 664-7433

The Victron Energy SmartSolar MPPT 150/70-TR Solar Charge Controller (MPN SCC115070211) delivers 70A of high-output solar charging with ultra-fast Maximum Power Point Tracking, built-in Bluetooth, and intelligent battery management. Compatible with 12V, 24V, 36V, and 48V battery systems and solar arrays up to 150V, this MPPT charge controller maximizes solar harvest for off-grid, RV, marine, and residential solar storage systems while protecting and extending battery life.

Ultra-Fast MPPT Solar Charging

The SmartSolar 150/70-TR continuously tracks solar panel voltage and current to capture the maximum available energy, even during rapidly changing weather. Advanced partial shading detection locates the optimal power point when uneven sunlight creates multiple power peaks, and conversion efficiency exceeds 98% with silent, fanless operation.

70A Charging for 12V, 24V, 36V, and 48V Systems

With a 70A rated charge current and 150V maximum PV input, the controller supports larger battery banks and solar arrays. Fully programmable charging settings and multiple built-in presets accommodate different battery chemistries, including lithium, and a built-in temperature sensor automatically adjusts charging voltage for better battery performance.

Built-In Bluetooth and VE.Direct Monitoring

Use the VictronConnect app to configure, monitor, and update the controller wirelessly. View real-time solar production, battery voltage, charge status, and historical data from a smartphone or tablet. VE.Direct communication enables integration with Victron GX devices, Color Control GX, VE.Bus BMS, and other Victron energy management products.

Advanced Protection and Programmable Relay

Protection features include over-temperature, PV short circuit, PV reverse polarity, and PV reverse current protection. A programmable relay can be configured for alarms, events, or custom system functions.

Key Features

  • Ultra-fast MPPT solar charge controller
  • 70A rated charge current
  • 150V maximum PV input voltage
  • 12V, 24V, 36V, and 48V battery compatible
  • Built-in Bluetooth with VictronConnect app
  • VE.Direct communication port
  • Partial shading detection
  • Over 98% conversion efficiency, fanless operation
  • Programmable charging with built-in battery presets
  • Built-in temperature compensation
  • Over-temperature and PV short circuit, reverse polarity, and reverse current protection
  • Programmable relay

Applications

  • Off-grid solar systems
  • RV and camper solar installations
  • Boats and marine electrical systems
  • Cabins and remote power systems
  • Lithium battery charging systems
  • Residential solar battery storage

Specifications

Brand Victron Energy
Product Type MPPT Solar Charge Controller
Model SmartSolar MPPT 150/70-TR
MPN SCC115070211
UPC / GTIN 8719076051404
Rated Charge Current 70A
Maximum PV Voltage 150V
Battery Voltage 12V / 24V / 36V / 48V
Communication Bluetooth Smart, VE.Direct
Maximum Efficiency Over 98%
Cooling Fanless

The Victron Energy SmartSolar MPPT 150/70-TR delivers efficient 70A solar charging, Bluetooth monitoring, and flexible battery support for off-grid, RV, marine, and residential solar power systems.
