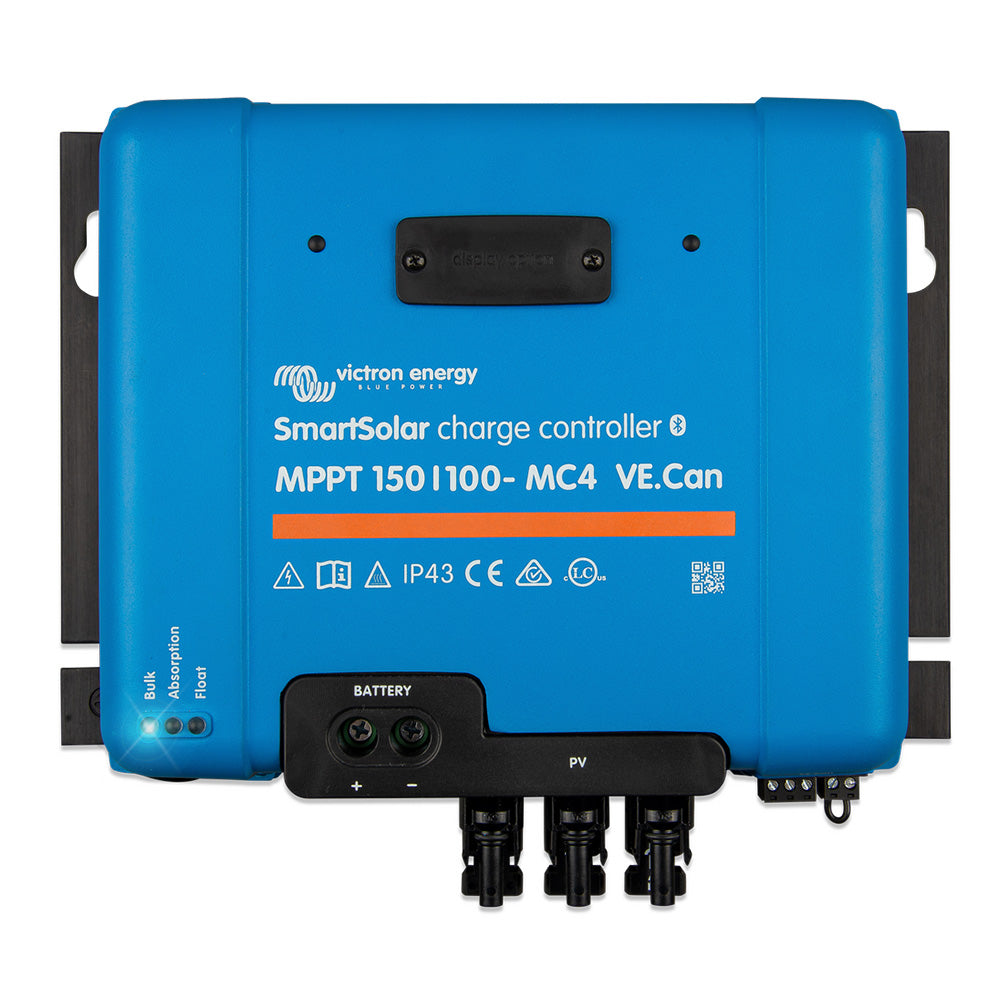

Victron Energy SmartSolar MPPT 150/100-MC4 VE.Can Solar Charge Controller, 100A, 150V PV, 12V 24V 36V 48V, Bluetooth, SCC115110511

The Victron Energy SmartSolar MPPT 150/100-MC4 VE.Can Solar Charge Controller (MPN SCC115110511) delivers 100A of high-capacity solar charging with Ultra-Fast Maximum Power Point Tracking, built-in Bluetooth, and VE.Can networking. Compatible with 12V, 24V, 36V, and 48V battery systems and solar arrays up to 150V, this MPPT charge controller with MC4 PV connections maximizes solar harvest for residential, off-grid, RV, marine, and commercial energy systems.

Ultra-Fast MPPT with Partial Shade Detection

The SmartSolar 150/100 continuously tracks the optimal solar power point to maximize energy harvest, even during changing weather. Advanced partial shade detection maintains strong power output when panels are unevenly lit, so your battery bank charges faster and more efficiently.

100A Charging for 12V, 24V, 36V, and 48V Systems

With a 100A maximum charge current and 150V maximum PV input, the controller supports large battery banks and high-voltage panel configurations. Adaptive multi-stage charging is optimized for lithium and lead-acid batteries, a battery recovery function attempts to recharge deeply discharged batteries, and a built-in temperature sensor provides automatic temperature compensation.

VE.Can Networking for Multi-Controller Systems

VE.Can lets multiple SmartSolar controllers connect for synchronized charging in larger solar installations. VE.Direct communication provides easy integration with Victron GX devices and advanced monitoring systems.

Built-In Bluetooth Monitoring

Use the VictronConnect app to configure charging settings, monitor system performance, and view historical data wirelessly. Optional Bluetooth-connected accessories add external battery voltage and temperature sensing for even greater charging precision, and an optional SmartSolar plug-in LCD display provides local monitoring.

System Control and Electronic Protection

A programmable relay and remote on/off capability support custom automation and integration with complete Victron energy systems. Extensive electronic protection guards against overheating, overload, reverse polarity, and other electrical faults.

Key Features

• Ultra-fast MPPT solar charge controller
• 100A maximum charge current
• 150V maximum PV input voltage
• 12V, 24V, 36V, and 48V battery compatible
• MC4 PV connections
• Built-in Bluetooth with VictronConnect app
• VE.Can networking for multiple controllers
• VE.Direct communication port
• Partial shade detection
• Adaptive multi-stage charging for lithium and lead-acid batteries
• Battery recovery function
• Built-in temperature compensation
• Optional external voltage and temperature sensing via Bluetooth
• Programmable relay and remote on/off
• Optional SmartSolar plug-in LCD display
• Overheat, overload, and reverse polarity protection

Applications

• Off-grid solar systems
• Residential solar energy storage
• RV and camper solar installations
• Marine solar charging systems
• Industrial battery charging
• Backup power systems
• Commercial solar applications

Specifications

The Victron Energy SmartSolar MPPT 150/100-MC4 VE.Can delivers efficient 100A solar charging, Bluetooth monitoring, and scalable VE.Can networking for off-grid, residential, RV, marine, and commercial solar power systems.
