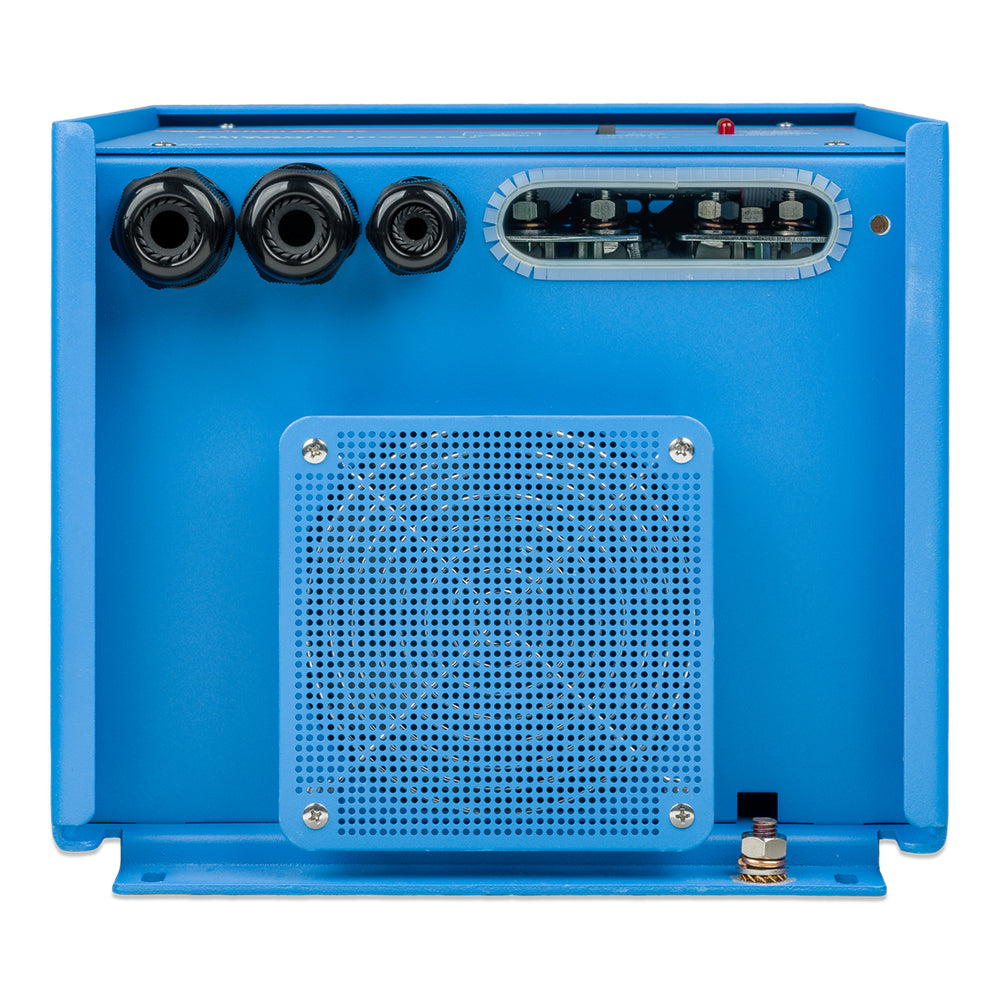

Victron Energy Phoenix Inverter 24/3000 120V VE.Bus, 3000VA 2400W Pure Sine Wave, 6000W Peak, Parallel & Split-Phase Capable, PIN243020100

⚡ 3000VA Pure Sine Inverter|💪 6000W Peak Power|🔗 Parallel & Split-Phase Capable|🛡️ 5-Year Victron Warranty

Regular price: Price: $1,088.85
Regular price: List Price: $0.00
Sale price: Price: $1,088.85
Unit price: per

In Stock – Ready to Ship

Free Shipping, Lower 48

Manufacturer Warranty

Product variants

Quantity

🇺🇸Free ShippingContiguous 48 states
🛡️5-Year WarrantyVictron limited warranty
💪6000 W PeakStarts motors & compressors
🔗Grows With YouParallel, split & 3-phase
🌙Search ModeStandby as low as 10 W
📞Real Human SupportSystem sizing & setup help

Victron Energy Phoenix Inverter 24/3000 120V VE.Bus (PIN243020100): a heavy-duty 3000 VA pure sine wave inverter for hardwired 120V systems. Run 120V AC loads from your 24V battery bank with 3000 VA / 2400 W of continuous pure sine wave power and 6000 W peak for motors, pumps and compressors. It wires straight into your AC panel through screw terminals. Run up to 6 in parallel for more power, or pair two for 120/240V split phase. AES and search modes cut standby draw to as low as 10 W, and the VE.Bus port connects to Victron's GX devices and setup tools. Backed by Victron's 5-year limited warranty.

3000 VA2400 W continuous

6000 WPeak power

24VBattery input

Up to 6Units in parallel

Ratings at 25°C (77°F) ambient, from Victron's datasheet. Output drops at higher temperatures, see the table below.

⚡ Is It Right for Your System?

Built for 24V battery banks feeding a hardwired 120V AC panel. Common uses:

RVs & motorhomes
Boats & yachts
Off-grid cabins & homes
Work trucks & mobile service
Solar backup systems

📏 Quick check before you order:

Your battery bank is 24V (inverter input range 19–33 V). Victron recommends 200–700 Ah.
Your AC loads stay within 2400 W continuous at 25°C, with short surges up to 6000 W.
You'll hardwire it to your AC panel (screw terminals, no outlets).
This is an inverter only. It doesn't charge batteries or switch to shore power. For that, see our Victron MultiPlus inverter/chargers.
Plan for battery cables, a DC fuse and AC wiring sized per Victron's manual (not included).
Need UL for an RV, inspection or permit? This model isn't UL listed. Victron's UL 458 options are the MultiPlus and MultiPlus-II UL models.

Not sure? Tell us what you want to power and your battery bank and we'll help you size it before you buy.

Why Choose a Victron Phoenix VE.Bus Inverter

〰️

Pure Sine Wave Output

Clean 120V power for electronics, appliances and tools, with 6000 W peak to start motors and compressors.

🔗

Parallel & Split-Phase

Up to 6 units in parallel for more power, two units for 120/240V split phase, or three for three-phase (wye).

🌙

AES & Search Modes

Standby draw drops from 20 W to 15 W in AES mode or 10 W in search mode, saving battery when loads are light.

🧰

Programmable Relay

Use the relay for an alarm, low battery warning or automatic generator start.

🖥️

VE.Bus & GX Ready

Set it up with VEConfigure or VictronConnect, and connect a Cerbo GX for remote monitoring on Victron's VRM portal.

🛡️

5-Year Victron Warranty

Victron covers it for 5 years from purchase by the original end user, and warranty claims go through us.

🎥 Setup & Firmware Videos from Victron

VEConfigure basics: setting up a Victron VE.Bus inverter

Update VE.Bus firmware from an Android phone

🌡️ Output vs. Temperature

Ambient temperature	Continuous output
25°C (77°F)	3000 VA / 2400 W
40°C (104°F)	2200 W
65°C (149°F)	1700 W
Peak (short surges)	6000 W

Per Victron's datasheet. Mount it somewhere cool and well ventilated to get the most out of it.

📦 What's Included & What You'll Need

Victron Phoenix Inverter 24/3000 120V VE.BusPart number PIN243020100
Battery Cables & DC FuseNot included. Victron's manual calls for a 300 A DC fuse and 50 mm² (about 1/0 AWG) cable for runs up to 5 m
Programming InterfaceMK3-USB for VEConfigure or VictronConnect on a computer; a VE.Bus Smart dongle adds Bluetooth monitoring. Sold separately
GX Device (optional)e.g. Cerbo GX for VRM remote monitoring. Sold separately

Plan to add: Victron doesn't publish a box contents list. Expect the inverter itself; battery cables, fusing, AC wiring and a programming interface are bought separately. Ask us and we'll put together everything your install needs.

🔍 Compare Victron Phoenix Inverters

Every Phoenix inverter we carry, side by side. Ratings are Victron's, at 25°C.

Model	Part #	Battery	Continuous	Peak	AC output	UL
Phoenix Inverter 12/800 120V VE.Direct	PIN121800500	12V	800 VA / 650 W	1500 W	NEMA 5-15R outlet	Not UL listed
Phoenix Inverter 12/800 120V VE.Direct GFCI	PIN121800510	12V	800 VA / 650 W	1500 W	GFCI duplex outlet	UL 458
Phoenix Inverter 12/1200 120V VE.Direct	PIN122122500	12V	1200 VA / 1000 W	2200 W	NEMA 5-15R outlet	Not UL listed
Phoenix Inverter 12/1200 120V VE.Direct GFCI	PIN122122510	12V	1200 VA / 1000 W	2200 W	GFCI duplex outlet	UL 458
Phoenix Inverter 24/1200 120V VE.Direct	PIN242122500	24V	1200 VA / 1000 W	2200 W	NEMA 5-15R outlet	Not UL listed
Phoenix Inverter 24/1200 120V VE.Direct GFCI	PIN242122510	24V	1200 VA / 1000 W	2200 W	GFCI duplex outlet	UL 458
Phoenix Inverter 24/1600 120V VE.Direct	PIN242161500	24V	1500 W	2100 W (15 s)	NEMA 5-15R outlet	Not UL listed
Phoenix Inverter 12/3000 120V VE.Bus	PIN123020100	12V	3000 VA / 2400 W	6000 W	Hardwired screw terminals	Not UL listed
Phoenix Inverter 24/3000 120V VE.Bus (this model)	PIN243020100	24V	3000 VA / 2400 W	6000 W	Hardwired screw terminals	Not UL listed

Need help choosing? Call 833-664-7433 and we'll size it to your loads.

🧰 Control & Monitoring

🎚️

Remote On/Off

Connect a remote switch or Victron's inverter control panel to the remote on/off terminals.

🔧

VEConfigure & VictronConnect

Program output, low-battery and standby settings with an MK3-USB interface on a computer.

📱

VE.Bus Smart Dongle

Adds Bluetooth monitoring in the VictronConnect app on your phone.

🖥️

GX & VRM Monitoring

A Cerbo GX on the VE.Bus port gives remote monitoring and alarms on Victron's VRM portal.

🛡️ 5-Year Victron Limited Warranty

Years 1–5Victron limited warranty from the original end user's purchase date (max 66 months from Victron's invoice date)

Up to Year 10Optional extension to 10 years, sold through Victron's direct customers. Ask us about eligibility.

Warranty claims are made through the place of purchase, which is us. Victron's warranty doesn't cover physical damage or alteration, misuse (reversed polarity, poor or loose connections, liquid or condensation, lightning), improper installation, repairs by anyone other than Victron or an authorized repair centre, or the cost of removal, shipping and reinstallation. Full terms in Victron's warranty policy below.

📋 Full Specifications

Inverter
Model / Part Number	Phoenix Inverter 24/3000 120V VE.Bus / PIN243020100
Battery Voltage	24V (input range 19–33 V)
AC Output	120 VAC ±2%, 60 Hz ±0.1% (50 Hz selectable per the manual), pure sine wave
Continuous Power at 25°C	3000 VA / 2400 W
Continuous Power at 40°C / 65°C	2200 W / 1700 W
Peak Power	6000 W
Max Efficiency	94%
Zero-Load / AES / Search Mode	20 W / 15 W / 10 W
Low-Battery Shutdown & Restart	Adjustable in VEConfigure (Victron doesn't list defaults for this model)
Connections & Control
AC Connection	Screw terminals, 13 mm² (6 AWG); no outlets
Battery Connection	2+2 M8 bolts
Recommended DC Fuse & Cable	300 A DC fuse and 50 mm² (about 1/0 AWG) cable for runs up to 5 m (per Victron's manual)
Recommended Battery Bank	200–700 Ah (per Victron's manual)
Parallel / 3-Phase	Up to 6 in parallel; 2 units for 120/240V split phase; 3 units for three-phase (wye, not delta)
Programmable Relay	1 relay (120 VAC / 4 A; 4 A up to 35 VDC, 1 A up to 60 VDC)
Ports	VE.Bus, remote on/off
Bluetooth	Not built in; add the VE.Bus Smart dongle
Protection	Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 120 VAC on inverter output, input voltage ripple too high
Enclosure & Certifications
Enclosure	Aluminium, blue (RAL 5012)
Protection Category	IP21
Operating Temperature	-40 to +65°C, fan assisted
Humidity	Max 95%, non-condensing
Weight	18 kg (38 lb); the manual lists 19 kg
Dimensions (H × W × D)	362 × 258 × 218 mm (14.3 × 10.2 × 8.6 in)
Certifications	Not UL or CSA listed (Victron lists EN/IEC safety and EMC standards)
Warranty	5-year Victron limited warranty

📄 Manuals & Downloads

🌐Victron Product PagePhoenix Inverter 800VA–3kVAVICTRON ↗ 📄DatasheetPhoenix Inverter 3000VA 120V (PDF)PDF ↗ 📘Owner's ManualPhoenix Inverter 3k 120V (PDF)PDF ↗ 📐Dimension Drawing3000VA enclosure, 12V/24V/48V (PDF)PDF ↗ 📜Victron Limited WarrantyFull warranty policy (PDF)PDF ↗

Victron doesn't publish a box contents list for this inverter. Manuals and drawings above link straight to Victron.

❓ Common Questions

Will it start my air conditioner, microwave or pump?

Motors and compressors pull a short surge when they start. This model handles surges up to 6000 W, with 2400 W continuous. Send us the appliance labels and we'll confirm.

Does it charge my batteries?

No, it's an inverter only. To charge from shore power or a generator and switch over automatically, look at our Victron MultiPlus or Quattro inverter/chargers.

Can I get 240V from it?

One unit gives 120V. Two identical units can be set up for 120/240V split phase with VEConfigure.

Does it have Bluetooth?

Not built in. Add a VE.Bus Smart dongle for monitoring in the VictronConnect app, or use an MK3-USB interface on a computer for full setup.

Is it UL listed?

No. This 120V Phoenix isn't UL or CSA listed. If you need UL 458 for an RV or inspection, look at the Victron MultiPlus or MultiPlus-II UL models.

What size cables and fuse do I need?

For this model, Victron's manual calls for a 300 A DC fuse and 50 mm² (about 1/0 AWG) cable for runs up to 5 m, with a battery bank of 200–700 Ah. Ask us and we'll spec your wiring.

How does the warranty work?

Victron covers it for 5 years from the original end user's purchase date. Warranty claims go through the place of purchase, so contact us and we'll handle it with Victron.

Questions About Your Setup? Ask Us First.

Tell us your battery bank and the AC loads you want to run, and we'll confirm the right Phoenix inverter before you order.

📞 Call 833-664-7433 📧 Email Us
