Victron Energy

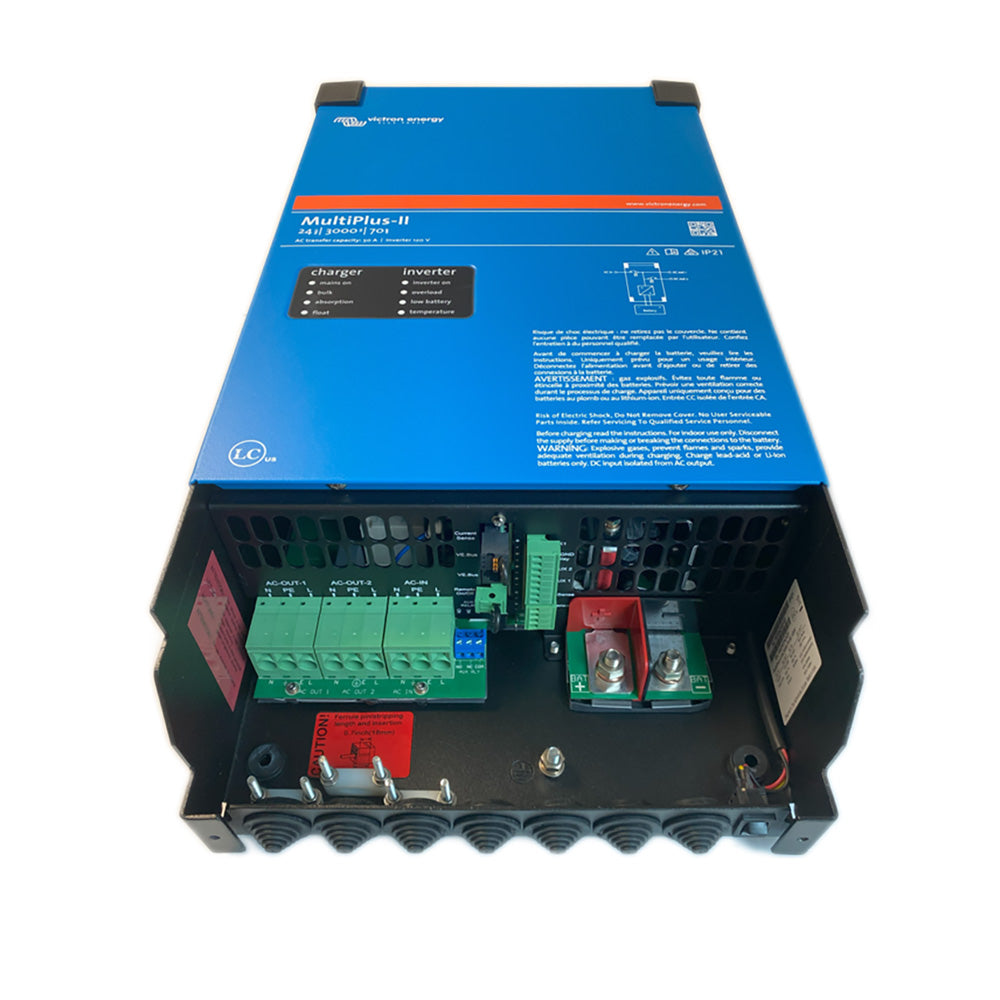

Victron Energy MultiPlus-II 24/3000/70-50 120V 50/60Hz Pure Sine Wave Inverter Charger, 3000VA 2400W, 70A Charger, 50A, UL 458, PMP242305102

Victron Energy MultiPlus-II 24/3000/70-50 120V 50/60Hz Pure Sine Wave Inverter Charger, 3000VA 2400W, 70A Charger, 50A, UL 458, PMP242305102

⚑ 3000VA Pure Sine Inverter|πŸ”‹ 70A Charger, ESS Ready|πŸ” 50A Transfer, PowerAssist|πŸ›‘οΈ 5-Year Victron Warranty
Price: $997.05
List Price: $0.00
Price: $997.05
View Cart
In Stock – Ready to Ship
Free Shipping, Lower 48
Manufacturer Warranty
Call Us 833-664-7433
  • πŸ‡ΊπŸ‡ΈFree ShippingContiguous 48 states
  • πŸ›‘οΈ5-Year WarrantyVictron limited warranty
  • ⚑3-in-1 UnitInverter, charger & transfer switch
  • βœ…UL 458 ListedPer Victron
  • πŸ”€Grows With YouParallel, split & 3-phase
  • πŸ“žReal Human SupportSystem sizing & setup help

Victron Energy MultiPlus-II 24/3000/70-50 120V UL (PMP242305102): a pure sine wave inverter, battery charger and automatic transfer switch built for modern solar and lithium systems. Run 120V AC loads from your 24V battery bank with 3000 VA / 2400 W of continuous pure sine wave power and 5500 W peak. When shore power, a generator or the grid is connected, the 70 A charger refills your batteries and the 50 A transfer switch takes over in less than 20 ms. PowerControl, PowerAssist, ESS support and a built-in ground relay make it a favorite for RV, marine, off-grid and home backup systems. Backed by Victron's 5-year limited warranty.

3000 VA2400 W continuous
70 ABattery charger
50 AAC input / transfer
5500 WPeak power

Ratings at 25Β°C (77Β°F) ambient, from Victron's datasheet. Output drops at higher temperatures, see the table below.

⚑ Is It Right for Your System?

Built for 24V battery banks powering standard 120V 60 Hz North American AC loads. Common uses:

  • RVs & campers
  • Boats & yachts
  • Off-grid cabins & solar
  • Home backup & ESS
  • Work trucks & vans
πŸ“ Quick check before you order:
  • Your battery bank is 24V (inverter input range 19–33 V).
  • You need 120V single-phase output. Need 240V? Stack two units for 120/240V split phase, or look at the 2x120V models in the table below.
  • Your AC loads stay within 2400 W continuous at 25Β°C, with short surges up to 5500 W.
  • Your shore, generator or grid input is up to 50 A. PowerControl lets you set a lower limit.
  • Plan for battery cables, a DC fuse and AC wiring sized per Victron's manual (not included).
  • Need UL? This model carries UL 458.
Not sure? Tell us your loads and battery bank and we'll help you size it before you buy.

Why Choose a Victron MultiPlus-II

πŸ”

Three Units in One

A pure sine wave inverter, an adaptive battery charger and an automatic transfer switch share one box, saving space and wiring.

πŸ”Œ

PowerControl & PowerAssist

Set a maximum shore or generator current. When loads spike past it, the MultiPlus-II adds battery power so the breaker doesn't trip.

β˜€οΈ

Built for Solar & ESS

Supports Victron's Energy Storage System (ESS) mode for self-consumption, and works with Victron GX devices, MPPT solar chargers and lithium battery BMS integration.

⚑

Fast, Smooth Transfer

Switches to battery power in less than 20 ms. A built-in ground relay connects neutral to chassis automatically when running on batteries.

πŸ”—

Expandable

Up to 6 units in parallel, and 3 units for three-phase output. Two units can be stacked for 120/240V split phase.

πŸ›‘οΈ

5-Year Victron Warranty

Victron covers the MultiPlus-II for 5 years from purchase by the original end user, and warranty claims go through us.

πŸŽ₯ Victron MultiPlus-II Videos

Introduction: MultiPlus-II

Update MultiPlus firmware from an Android phone

🌑️ Output vs. Temperature

Ambient temperature Continuous output
25Β°C (77Β°F) 3000 VA / 2400 W
40Β°C (104Β°F) 2200 W
65Β°C (149Β°F) 1700 W
Peak (short surges) 5500 W

Per Victron's datasheet. Mount it somewhere cool and well ventilated to get the most out of it.

πŸ“¦ What's Included & What You'll Need

  • Victron Energy MultiPlus-II 24/3000/70-50 120V ULVictron MultiPlus-II 24/3000/70-50 120V ULPart number PMP242305102
  • Battery Cables & DC FuseNot included. Size them per Victron's manual
  • GX Device (recommended)e.g. Cerbo GX for ESS, lithium BMS integration and VRM remote monitoring. Sold separately
  • Programming InterfaceMK3-USB (VEConfigure) or VE.Bus Smart dongle (VictronConnect). Sold separately
  • External AC Current Sensor (optional)100 A sensor for grid metering, ordered separately
Plan to add: Victron doesn't publish a box contents list. Expect the inverter/charger itself; wiring, fusing, a GX device, programming interface and sensors are bought separately. Ask us and we'll put together everything your install needs.

πŸ” Compare Victron MultiPlus-II Models

Every MultiPlus-II we carry, side by side. Ratings are Victron's, at 25Β°C.

Model Part # Battery Inverter Charger AC input AC type UL
MultiPlus-II 12/3000/120-50 120V PMP122305120 12V 3000 VA / 2400 W 120 A 50 A 120V Not UL listed
MultiPlus-II 12/3000/120-50 120V UL PMP122305122 12V 3000 VA / 2400 W 120 A 50 A 120V UL 458
MultiPlus-II 12/3000/120-50 2x120V PMP122305100 12V 3000 VA / 2400 W 120 A 50 A 2Γ—120V (split-phase input) Not UL listed
MultiPlus-II 12/3000/120-50 2x120V UL PMP122305102 12V 3000 VA / 2400 W 120 A 50 A 2Γ—120V (split-phase input) UL 458
MultiPlus-II 12/4k/160-50 120V PMP122405100 12V 3400 W 160 A 50 A 120V Not UL listed
MultiPlus-II 24/3000/70-50 120V UL (this model) PMP242305102 24V 3000 VA / 2400 W 70 A 50 A 120V UL 458
MultiPlus-II 24/3000/70-50 2x120V UL PMP242305132 24V 3000 VA / 2400 W 70 A 50 A 2Γ—120V (split-phase input) UL 458
MultiPlus-II 24/5000/120-95 120V PMP242505110 24V 5000 VA / 4000 W 120 A 95 A 120V Not UL listed
MultiPlus-II 48/3000/35-50 120V PMP482305100 48V 3000 VA / 2400 W 35 A 50 A 120V Not UL listed
MultiPlus-II 48/3000/35-50 120V UL PMP482305102 48V 3000 VA / 2400 W 35 A 50 A 120V UL 1741 & UL 458
MultiPlus-II 48/5000/70-95 120V PMP482505110 48V 5000 VA / 4000 W 70 A 95 A 120V Not UL listed
MultiPlus-II 48/5000/70-95 120V 50/60Hz PMP482505300 48V 5000 VA / 4000 W 70 A 95 A 120V Not UL listed
MultiPlus-II 48/5000/70-95 120V UL PMP482505120 48V 5000 VA / 4000 W 70 A 95 A 120V UL 1741

Need help choosing? Call 833-664-7433 and we'll size it to your loads.

πŸ”‹ Charging Your Batteries

πŸ”‹

Lithium or Lead-Acid

Default charge voltages are 28.8 V / 27.6 V / 26.4 V (absorption / float / storage). Adjust them with VEConfigure or VictronConnect, or let a GX device and your lithium BMS control charging.

πŸ”Œ

Shore, Generator or Grid

Charges from 120V shore, generator or grid power, and PowerControl keeps it within your shore or generator limit.

🚀

Starter Battery Output

A separate 4 A output keeps an engine or starter battery charged.

🌑️

Temperature Compensation

A battery temperature sensor input adjusts charging for hot and cold conditions.

πŸ›‘οΈ 5-Year Victron Limited Warranty

Years 1–5Victron limited warranty from the original end user's purchase date (max 66 months from Victron's invoice date)
Up to Year 10Optional extension to 10 years, sold through Victron's direct customers. Ask us about eligibility.

Warranty claims are made through the place of purchase, which is us. Victron's warranty doesn't cover physical damage or alteration, misuse (reversed polarity, poor or loose connections, liquid or condensation, lightning), improper installation, repairs by anyone other than Victron or an authorized repair centre, or the cost of removal, shipping and reinstallation. Full terms in Victron's warranty policy below.

πŸ“‹ Full Specifications

Inverter
Model / Part Number MultiPlus-II 24/3000/70-50 120V UL / PMP242305102
Battery Voltage 24V (input range 19–33 V)
AC Output 120 VAC Β±2%, 60 Hz Β±0.1%
Continuous Power at 25Β°C 3000 VA / 2400 W
Continuous Power at 40Β°C / 65Β°C 2200 W / 1700 W
Peak Power 5500 W
Max Efficiency 94%
Zero-Load / AES / Search Mode 13 W / 9 W / 3 W
Charger & AC
AC Input 90–140 VAC, 45–65 Hz (50/60 Hz model)
Charge Voltage (absorption / float / storage) 28.8 V / 27.6 V / 26.4 V
Max Charge Current 70 A (at 25Β°C)
Starter Battery Charge Current 4 A
Battery Temperature Sensor Yes
Transfer Switch / Max AC Input 50 A
Transfer Time Less than 20 ms
AC-out-1 / AC-out-2 50 A / 32 A (AC-out-2 switches off when no AC source is connected)
PowerControl / PowerAssist Yes
System & Control
ESS (Energy Storage System) Supported. Victron notes grid feed-in isn't UL 1741 or CSA 107.1 certified
Parallel / 3-Phase Up to 6 in parallel; 3 units for three-phase (wye only)
Ground Relay Built in, connects neutral to chassis when no AC source is present
External Current Sensor Optional 100 A, ordered separately
Programmable Relay Yes (120 V / 4 A AC; 4 A up to 35 VDC, 1 A up to 60 VDC); alarm, low DC voltage or genset start/stop
Ports VE.Bus, 2Γ— general-purpose com ports, remote on/off
Protection Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 120 VAC on inverter output, input voltage ripple too high
Operating Temperature -40 to +60Β°C (-40 to 140Β°F)
Humidity Max 95%, non-condensing
Enclosure & Certifications
Enclosure Steel, blue (RAL 5012)
Protection Category IP22 (the manual lists IP21)
Battery Connection 2 M8 bolts
AC Connection Screw terminals, 13 mmΒ² (6 AWG)
Weight 19 kg (42 lb)
Dimensions (H Γ— W Γ— D) 536 Γ— 277 Γ— 147 mm (21.1 Γ— 10.9 Γ— 5.8 in)
Safety Standards UL 458; EN-IEC 60335-1, EN-IEC 60335-2-29, CSA 22.2 107.1-16
Warranty 5-year Victron limited warranty

πŸ“„ Manuals & Downloads

🌐Victron Product PageMultiPlus-II 120VVICTRON β†— πŸ“„DatasheetMultiPlus-II 120V (PDF)PDF β†— πŸ“˜Owner's ManualMultiPlus-II 120V (PDF)PDF β†— πŸ“ŠOnline ManualMultiPlus-II 120V, full technical specsVICTRON β†— πŸ“Dimension DrawingMultiPlus-II 24V 3000VA 120V (PDF)PDF β†— βœ…UL 458 CertificateMultiPlus-II 12/24/48V 3000VA 120V (PDF)PDF β†— πŸ“œVictron Limited WarrantyFull warranty policy (PDF)PDF β†—

Victron doesn't publish a box contents list for the MultiPlus-II. Manuals, drawings and certificates above link straight to Victron.

❓ Common Questions

What's the difference between the MultiPlus-II and the original MultiPlus?
The MultiPlus-II adds ESS (Energy Storage System) support, a built-in ground relay, an option for an external AC current sensor and tighter integration with Victron GX devices, which is why it's the usual choice for solar, lithium and home backup systems.
Will it start my air conditioner, microwave or pump?
Motors and compressors pull a short surge when they start. This model handles surges up to 5500 W, with 2400 W continuous. Send us the appliance labels and we'll confirm.
Will it work on smaller shore power or a small generator?
Yes. PowerControl lets you set the maximum AC input current (up to 50 A), and PowerAssist adds battery power during peaks so a small shore connection or generator doesn't trip.
Can I get 240V from it?
One unit gives 120V single phase. Two identical units can be configured for 120/240V split phase, or choose a 2x120V model if you have split-phase shore or generator power.
Can I use it with lithium batteries?
Yes. Charge voltages are adjustable, and with a GX device the MultiPlus-II can take charge commands directly from a compatible lithium battery's BMS over Victron's communication ports.
How do I program and monitor it?
Use an MK3-USB interface with Victron's free VEConfigure software, or a VE.Bus Smart dongle with the VictronConnect app. A GX device like the Cerbo GX adds ESS control and remote monitoring on Victron's VRM portal. All are sold separately.
Is it UL listed?
Yes, this model carries UL 458. Victron notes that the ESS grid feed-in function isn't UL 1741 or CSA certified, so check with your utility before exporting power.
What size cables and fuse do I need?
Victron's manual lists the recommended battery cable size and DC fuse for this model. Ask us and we'll spec your wiring.
How does the warranty work?
Victron covers it for 5 years from the original end user's purchase date. Warranty claims go through the place of purchase, so contact us and we'll handle it with Victron.

Questions About Your Setup? Ask Us First.

Tell us your battery bank, your biggest AC loads and your shore, generator or grid power, and we'll confirm the right MultiPlus-II before you order.

πŸ“ž Call 833-664-7433 πŸ“§ Email Us
