Allied Battery

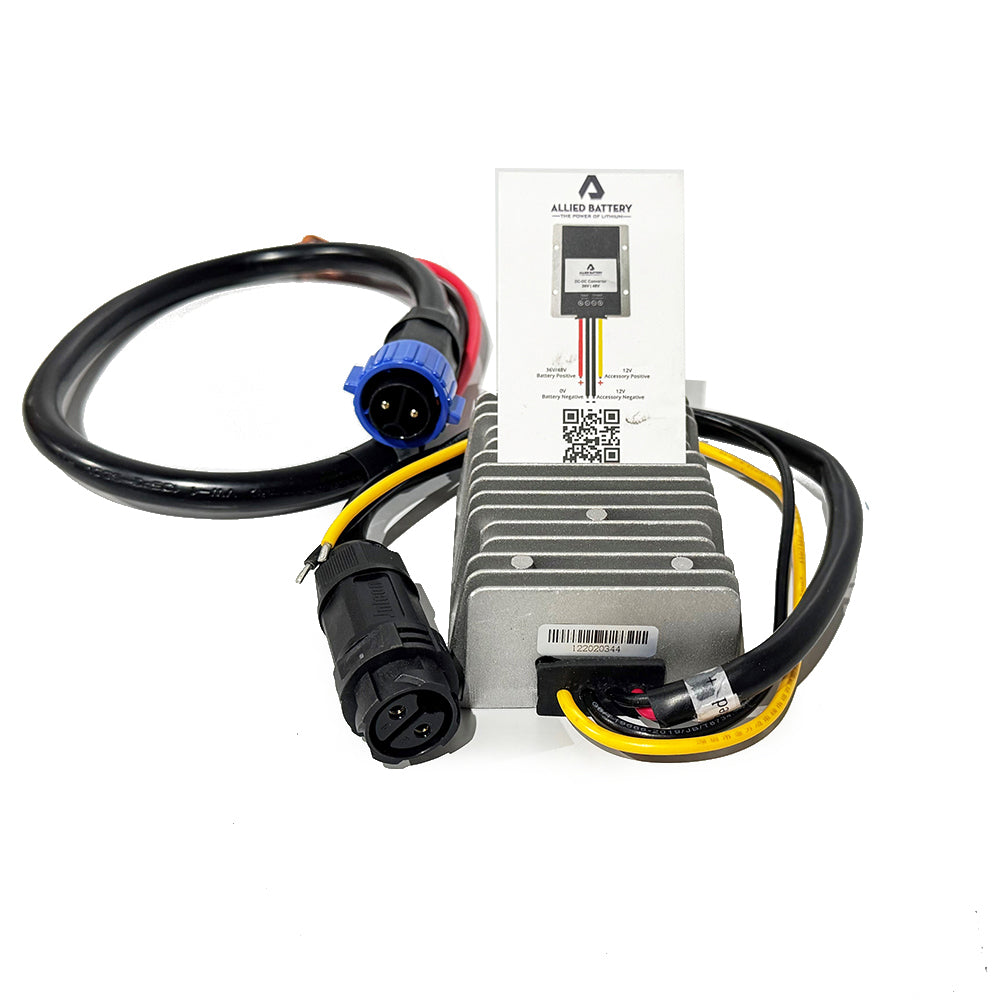

Allied 36V/48V to 12V Step-Down Converter, 30A, Waterproof, for Golf Cart Lights & Accessories, AB-CVTR-3648V-30A

⚡ 36V/48V to 12V, 30A Max|💡 Powers Lights, Radios & USB|💧 Waterproof Die-Cast Case|🛡️ Allied Component Warranty

Regular price: Price: $72.00
Regular price: List Price: $81.00
Sale price: Price: $72.00
Unit price: per

In Stock – Ready to Ship

Free Shipping – Lower 48

Authorized Dealer – Full manufacturer warranty

Pay Over Time – Shop Pay Installments

Ships From US Warehouses

Product variants

Quantity

🇺🇸Free ShippingContiguous 48 states
⚡12V OutputFrom your 36V or 48V battery
🔋30A MaxLights, radios & more
💧WaterproofDie-cast aluminum
🛡️Allied Warranty1-year component coverage
📞Real Human SupportFit & install questions

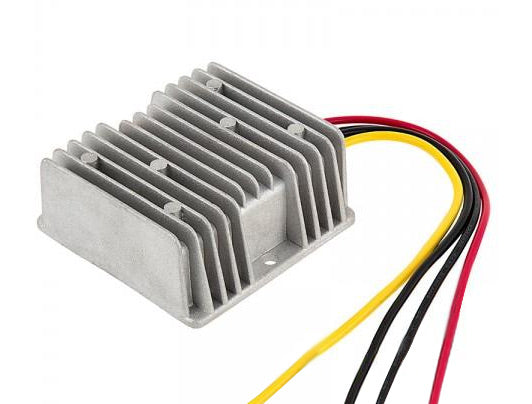

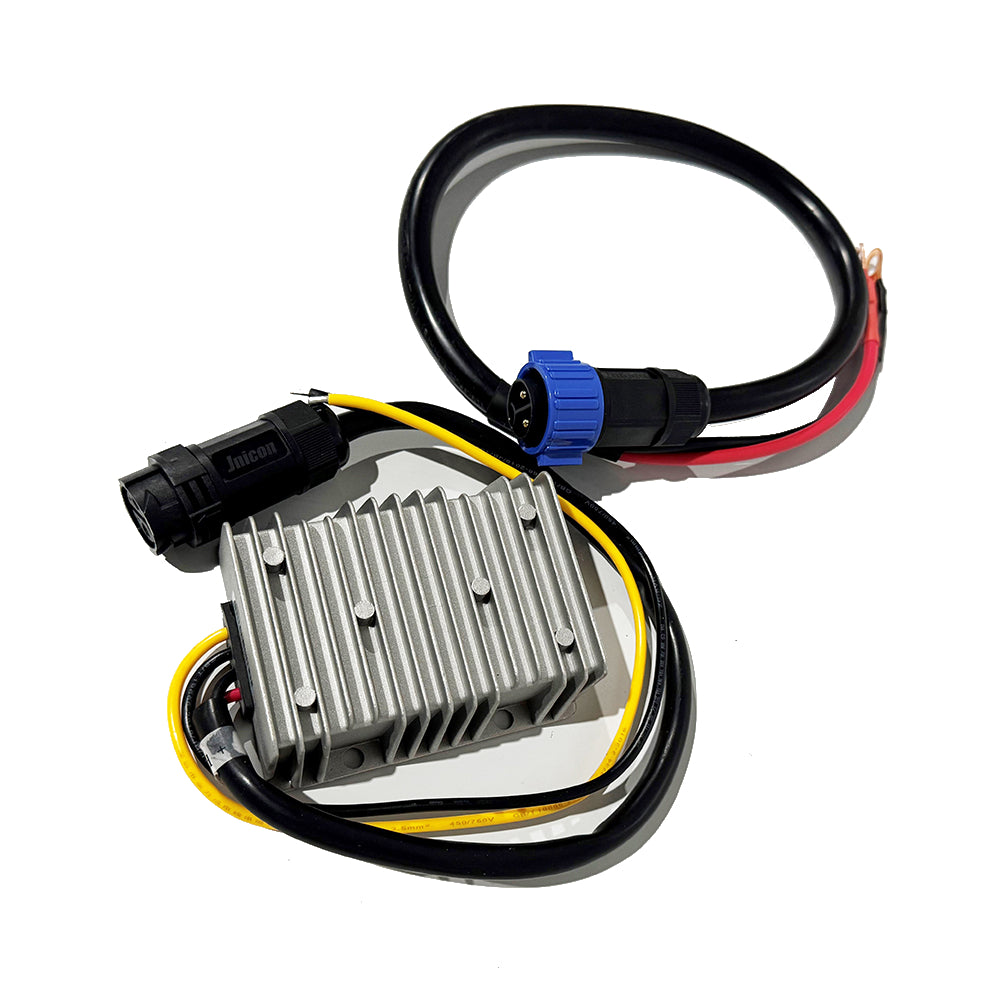

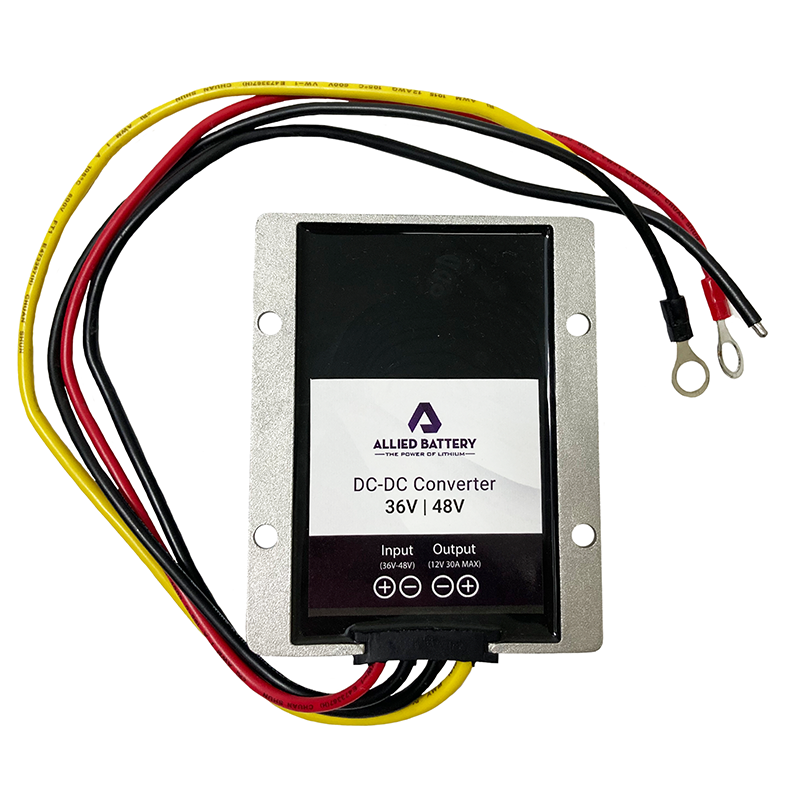

Allied 36V/48V to 12V Step-Down Converter: powers your cart's 12V lights, radio, USB chargers and other accessories from an Allied 36V or 48V lithium battery, up to 30 amps. Once the lead-acid set is gone, there's no single 12V battery left to tap, so 12V accessories need a converter. Allied's is waterproof, with a die-cast aluminum case, and it's sized for Allied's own batteries.

12VOutput

30AMax output

36V or 48VBattery input

WaterproofDie-cast case

From Allied's product page. Keep your total 12V load under 30A.

⚡ Is It Right for Your Cart?

Made for Allied 36V or 48V lithium batteries. Common uses:

LED light kits
Radios & sound bars
USB & phone chargers
Fans & horns
Other 12V accessories

📏 Quick check before you order:

Your cart runs an Allied 36V or 48V lithium battery. Allied makes a separate 72V converter.
Your 12V accessories draw 30A or less combined. Add up the amp ratings of everything that runs at once.
You're switching from lead-acid and used to tap one 12V battery for accessories. That battery is gone now, so the converter takes its place.
You'll mount it somewhere protected from impact. The case is waterproof.

Not sure? Send us a list of your 12V accessories and we'll check the load before you buy.

Why Add a 12V Converter

💡

Keep Your Accessories

Run lights, radios and chargers after switching to a single lithium voltage.

⚖️

Even Draw on the Pack

Draws from the whole lithium pack, so there is no single 12V battery to wear out.

🔋

30A Capacity

Enough for a typical light kit, radio and USB chargers together.

💧

Waterproof

Die-cast aluminum case that stands up to weather and washdowns.

🔗

Ready to Wire

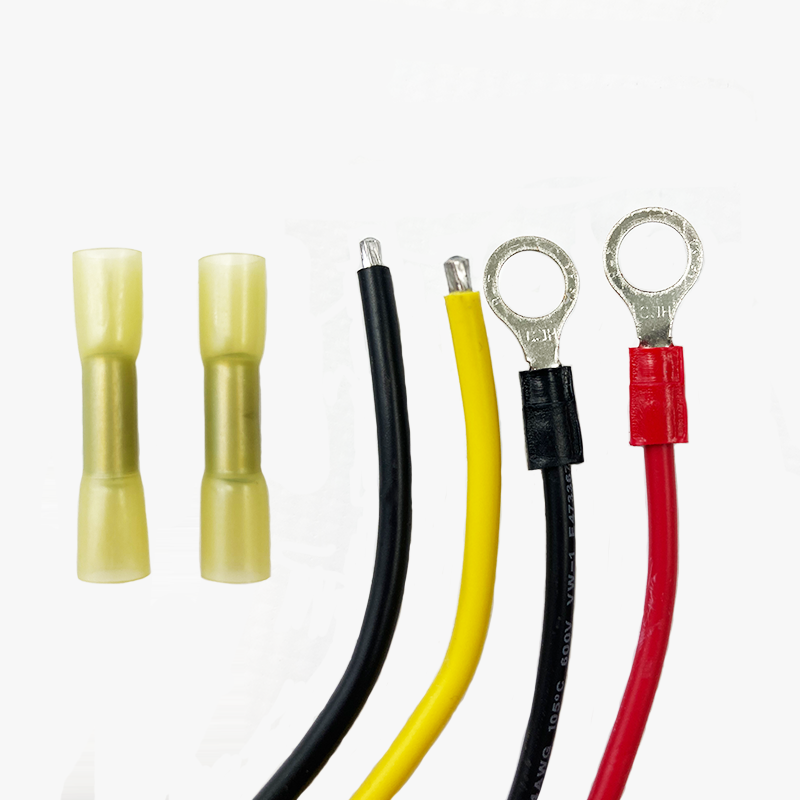

Extended wires with o-ring terminals; 2 butt connectors included.

🛡️

Made by Allied

Matched to Allied 36V or 48V lithium batteries.

📦 What's Included

Allied 36V/48V to 12V Step-Down Converter36V or 48V in, 12V out, 30A max
Extended wires with o-ring terminalsConnect to your Allied battery
2 butt connectorsFor your 12V accessory wiring

Plan to add: Wire, fuses and connectors to suit your accessories. Ask us if you'd like help planning the wiring.

🛡️ 1-Year Allied Component Warranty

Year 1Allied repairs, replaces or substitutes a defective Allied-branded component, at Allied's discretion

How to ClaimContact us first. Allied starts every claim with a technical support request

Allied's component warranty runs 1 year from purchase and covers Allied-branded chargers and accessories; Allied doesn't name converters specifically, so ask us if you have a claim. It doesn't cover use with non-Allied batteries, impact damage, a faulty electrical system, or a short circuit across the battery terminals. Refunds aren't available under the warranty.

📋 Full Specifications

Converter

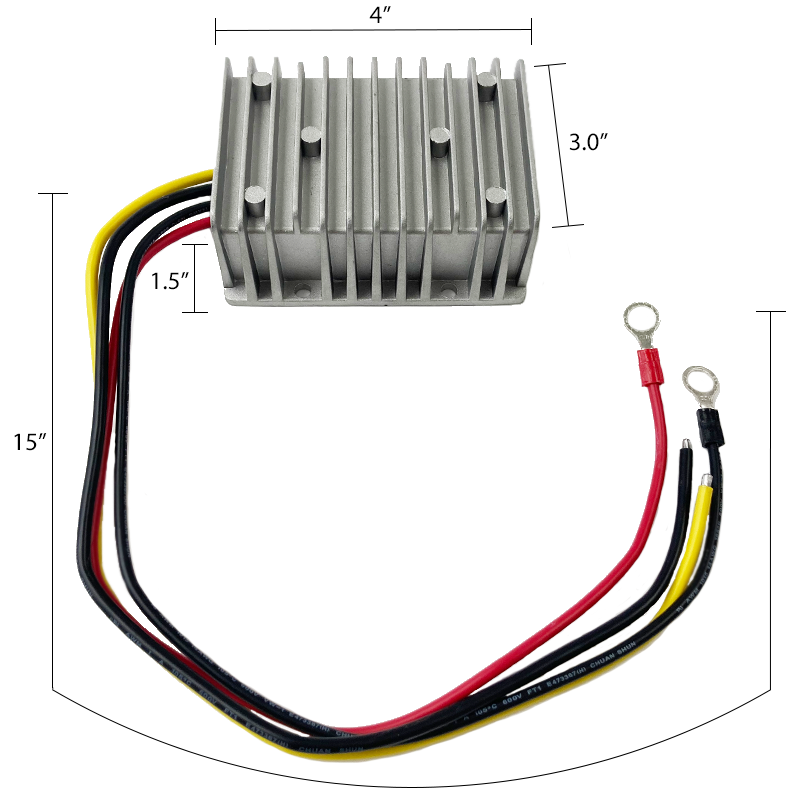

Model	Allied 36V/48V to 12V Step-Down Converter
Allied Part Number	AB-CVTR-3648V-30A
Input	Allied 36V or 48V lithium battery
Output	12V DC
Max Current	30A
Housing	Die-cast aluminum, waterproof (Allied doesn't publish an IP rating)
Wiring & Included	Extended wires with o-ring terminals; 2 butt connectors included
Shipping Weight	About 4 lb
Warranty	1-year Allied component warranty

📄 Manuals & Downloads

🌐Allied Product PageAllied 36V/48V to 12V Step-Down ConverterAllied ↗🛡️Allied WarrantyComponent & battery warranty termsAllied ↗

Specs are from Allied's product page and dealer price list. Links above go straight to Allied.

❓ Common Questions

Why do I need a converter?

Lead-acid carts let you tap one 12V battery for accessories. A lithium pack is one voltage, so a converter steps it down to 12V.

How much can it power?

Up to 30A at 12V in total. Add up the current draw of everything that runs at the same time.

Will it work with my battery?

It's made for Allied 36V or 48V lithium batteries. For 72V, Allied makes a separate converter.

Can it get wet?

Allied lists it as waterproof, in a die-cast aluminum case.

Questions About Your Setup? Ask Us First.

Send us your cart, battery and a list of your 12V accessories, and we'll confirm the converter is the right fit before you order.

📞 Call 833-664-7433 📧 Email Us
