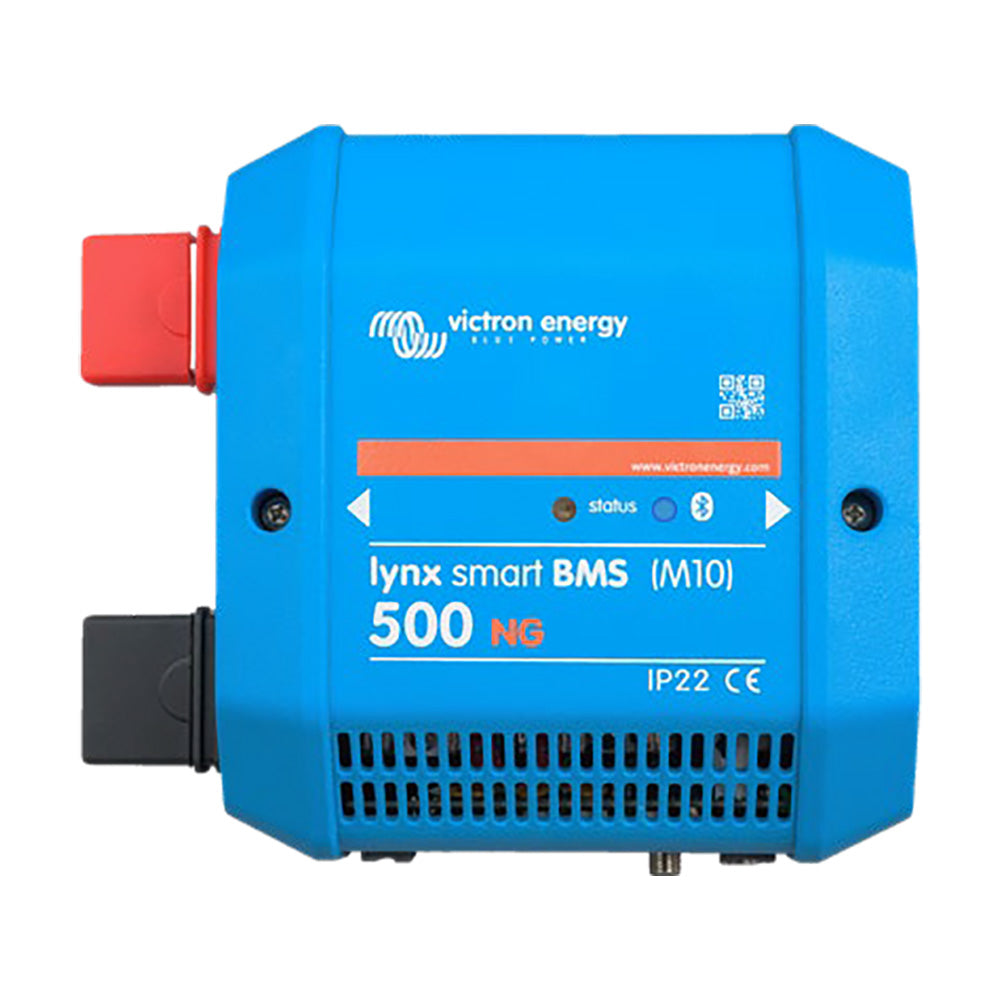

Victron Lynx Smart BMS 500 NG (M10) – Advanced Lithium Battery Management System

Optimize and protect your lithium battery system with the Victron Lynx Smart BMS 500 NG (M10), a powerful and intelligent battery management system designed specifically for Victron Lithium NG (LiFePO4) batteries. Engineered for high-performance energy systems, this BMS delivers advanced safety protection, real-time monitoring, and seamless integration for marine, RV, and off-grid applications.

As part of the Lynx modular distribution system, the Lynx Smart BMS NG provides a clean, scalable solution for managing large lithium battery banks with precision and reliability.

Designed for Victron Lithium NG Battery Systems

The Lynx Smart BMS 500 NG is purpose-built for Victron Lithium NG batteries, which use Lithium Iron Phosphate (LiFePO4) technology. These batteries are available in multiple voltage options (12.8V, 25.6V, and 51.2V) and can be configured in series, parallel, or combined setups.

• Supports 12V, 24V, and 48V systems
• Connect up to 50 batteries in a single system
• Enables large-scale energy storage for advanced installations

Integrated 500A Contactor for Safety & Control

This BMS features a built-in 500A contactor that acts as a critical safety mechanism. It automatically disconnects the battery bank during unsafe conditions and can also function as a remote-controlled main power switch.

• Continuous current rating: 500A
• Peak current: 600A (up to 5 minutes)
• Secondary safety layer for system protection

Built-In Pre-Charge Circuit

The integrated pre-charge circuit prevents high inrush currents when connecting capacitive loads such as inverters. This eliminates the need for external pre-charge devices and protects sensitive system components during startup.

Real-Time Monitoring & Diagnostics

Stay informed with a built-in battery monitoring system that provides detailed, real-time data, including:

• State of Charge (SOC)
• Battery voltage and current
• Cell voltages and temperature readings
• System status and historical performance data

Instant Readout functionality allows quick access to essential system information for fast diagnostics and troubleshooting.

Smart Connectivity with Bluetooth & GX Integration

Monitor and control your system effortlessly using built-in Bluetooth and the VictronConnect app. For advanced system management, connect to GX devices for centralized control and remote monitoring.

Compatible GX devices include:

• Cerbo GX
• Ekrano GX

When connected to the internet, you can access your system remotely via the VRM portal for full visibility and control.

DVCC Closed-Loop Control & System Automation

The Lynx Smart BMS NG supports DVCC (Distributed Voltage and Current Control), enabling automatic communication and coordination with compatible Victron devices such as inverter/chargers, solar charge controllers, and DC-DC chargers.

• Optimizes charging and discharging performance
• Enables automated system control
• ATC/ATD contacts allow control of third-party devices

Programmable Relay & Alternator Control

The integrated programmable relay provides flexible system control options:

• Alarm relay for warnings and system alerts
• Alternator control via external regulator
• Alternator ATC mode for safe disconnection before battery shutdown

AUX Output for Critical System Power

An onboard AUX output (1.1A at system voltage) provides backup power to essential devices such as GX monitoring systems, even after a BMS shutdown. This ensures continued monitoring and system visibility during low-voltage events.

VE.Can & NMEA 2000 Networking

Seamlessly integrate into advanced energy and marine systems with built-in communication support:

• VE.Can connectivity for Victron ecosystem integration
• NMEA 2000 compatibility for marine networks
• Easy connection using standard RJ45 cables

Lynx Distributor Fuse Monitoring

Monitor the status of up to four connected Lynx Distributor modules directly through VictronConnect or GX devices. Receive instant alerts if a fuse fails, improving system safety and maintenance efficiency.

Durable, Compact Design for Harsh Environments

Built with a rugged ABS enclosure and high-quality tinned copper busbars, the Lynx Smart BMS 500 NG is designed for long-term performance in demanding conditions.

• Operating temperature: -40°C to +60°C
• Humidity resistance up to 95% (non-condensing)
• IP22 protection rating

Key Features

• Advanced BMS for Victron Lithium NG (LiFePO4) batteries
• Built-in 500A contactor for system protection and control
• Supports up to 50 batteries in scalable systems
• Integrated pre-charge circuit for safe startup
• Real-time monitoring with SOC, voltage, and diagnostics
• Bluetooth connectivity via VictronConnect
• GX device integration with remote VRM monitoring
• DVCC closed-loop control for optimized system performance
• Programmable relay for automation and alerts
• AUX output for powering critical devices
• VE.Can and NMEA 2000 communication support
• Lynx Distributor fuse monitoring capability

Technical Highlights

• Battery Voltage Range: 9–60 VDC
• Supported System Voltages: 12V, 24V, 48V
• Maximum Input Voltage: 75 VDC
• Contactor Rating: 500A continuous / 600A peak
• AUX Output: 1.1A continuous
• Protection Class: IP22
• Operating Temperature: -40°C to +60°C

Ideal Applications

• Off-grid solar energy systems
• Marine and yacht electrical systems
• RV and camper power setups
• Energy storage and backup systems
• Mobile and commercial power installations

Why Choose the Victron Lynx Smart BMS 500 NG (M10)?

The Victron Lynx Smart BMS 500 NG is a complete solution for managing and protecting lithium battery systems. With advanced monitoring, integrated safety features, and seamless Victron ecosystem compatibility, it ensures reliable performance and long battery life. Whether you're building a marine, RV, or off-grid energy system, this BMS provides the control, safety, and scalability required for modern power solutions.

Manufacturer : Victron Energy
Manufacturer Part No : LYN034160310
UPC : 8719076063551
